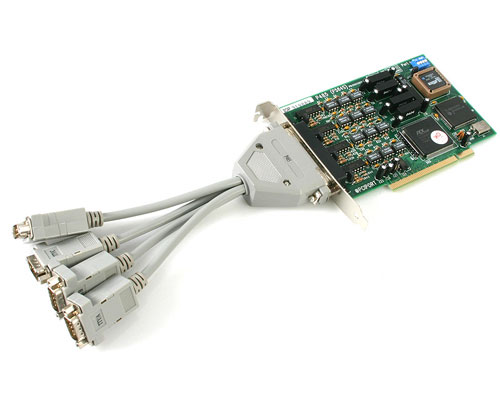

PCI4S422ISO
Main Image
Product Name 4 Port PCI RS422/RS485 Isolated Card DB9 Product Number PCI4S422ISO UPC 065030804356 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) 4 Port PCI RS-422/RS-485 Optically Isolated Serial Adapter Card Bullet 1 Adds 4 isolated RS-422 or RS-485 serial ports to your system Bullet 2 Dip switch design allows you to select either RS422 or RS485 serial interface formats depending upon your application Bullet 3 Data transfer rates of up to 230.4 Kbits/sec per port Bullet 4 Universal 32 bit PCI bus Bullet 5 RS-485 supports Automatic Data Direction Control (ADDCTM) Marketing Copy Add 4 isolated RS-422/RS-485 serial ports to your system with StarTech.com’s PCI4S422ISO PCI card. Dip switches located on the card let you choose between RS-422 and RS-485 formats for each port, depending on the application you need. The DB9 connectors let you connect many types of popular serial peripherals, like networking devices, high speed modems, monitoring equipment, long distance communication devices and printers. Suitable for industrial applications, this card is compatible with a wide range of operating systems, including Windows 2000/XP/Server 2003, DOS, Linux, and Unix. Applications - Ideal for use in commercial and industrial applications such as POS networks, ATMs, bank teller stations, and CNC based production lines
- Also used in environments using serial networking devices, high speed modems, monitoring equipment, long distance communication devices and printers
- Industrial process control
- Factory automation
- Remote serial device control
Accessory Products DB92422 Related Products PCI2S422ISO Power Consumption (In Watts) 120 mA @ 5V Product Length (mm) 126 Product Height (mm) 102 TAA Compliant No General Specifications - RS422 & RS485
- Up to 230.4 Kbits/sec per port
- RS485 Data Direction Control: ADDC
- Data Bits: 5, 6, 7 & 8
- Parity: Even, Odd or No-Parity Bit
- Stop Bits: 1, 1.5 or 2
- RS-422: TXD+, TXD-, RXD+, RXD- & signal ground
- RS-485: Data+, Data- & signal ground
- IRQ Mapping: One IRQ mapping assigned by the PCI BIOS
- Connector Cable Length: 8.5 Inches (215 mm)
Maximum Data Transfer Rate 230400 Kbits/Sec Bus Type PCI (5 Volt) Chipset ID Texas Instruments - TL16C554FN Industry Standards PCI 2.2 Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 5700 Package Depth (mm) 54 Package Height (mm) 150 Package Width (mm) 210 Package Weight (g) 450 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 4 en-US Content Approved Yes Product Manager Carey Cline
