PCI4S550

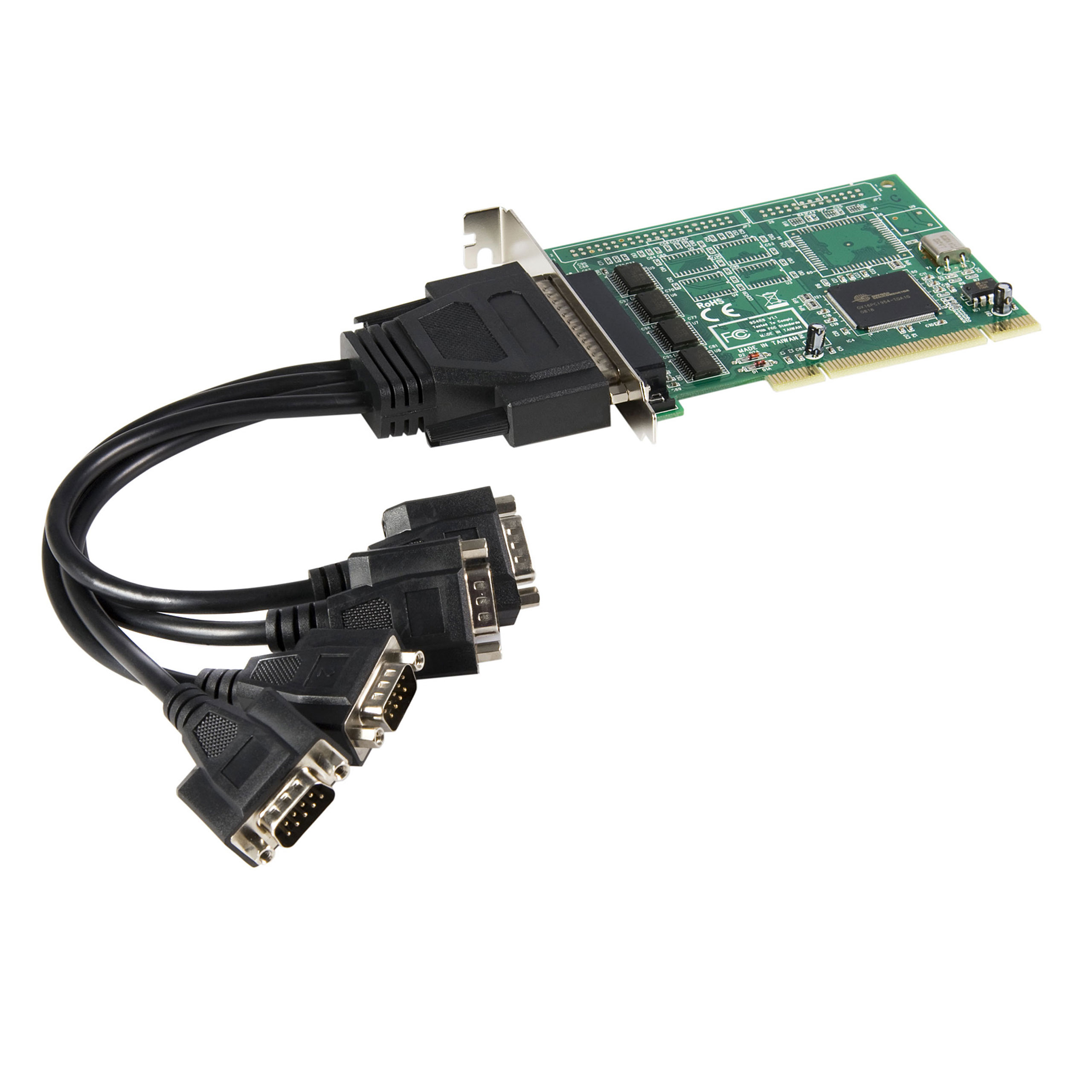

4 Port 16550 PCI Serial Card
Add four RS232 serial ports to any PC using a single PCI expansion slot
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port 16550 PCI Serial Card Product Number PCI4S550 UPC 065030785419 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 4 Port PCI Serial Adapter Card Product Title (Standard) StarTech.com 4 Port PCI RS232 Serial adapter card - PCI - serial - 4 ports Product Title (Long) 4 Port PCI RS232 Serial Adapter Card with 16550 UART Product Title (AMZ) 4 Port PCI RS232 Serial Adapter Card with 16550 UART (PCI4S550) Title Ingram (Part 1) 4 Port PCI RS232 Serial Adapter Title Ingram (Part 2) Card Website Product Headline Add four RS232 serial ports to any PC using a single PCI expansion slot Bullet 1 Easy plug and play installation fits any standard profile PCI slot Bullet 2 Includes 4-port RS232 breakout cable Bullet 3 IRQ sharing Bullet 4 16 byte FIFO buffer ensures fast data transfers while multitasking Marketing Copy Applications - Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Consumer (modems, PDAs, digital cameras, printers)
- Security (UPS control, access key panels, video cameras, card readers, modems)
- Casino (video lottery terminals, slot machines)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- ISDN Networking
Website Search Keyword - four port
- PCI serial
- PCI RS232
- Serial PCI
- RS232 PCI
- RS232 Adapter
- RS-232
Accessory Products - MC3MF
- MC6MF
- MXT100
- MXT100_25
- AT925FF
- AT925FM
- AT925SFM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- MXT100FF
Related Products - PCI2S550_LP
- 10PKPCI2S550
- PCI1S550
- PCI4S550N
- PCI2S550
Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 120 Product Width (mm) 95 Product Height (mm) 18 Product Weight (g) 78 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No FIFO 16 byte Maximum Data Transfer Rate 115.2 Kbps OS Compatibility - Linux
- Windows Server 2012
- Windows 7
- Windows 8

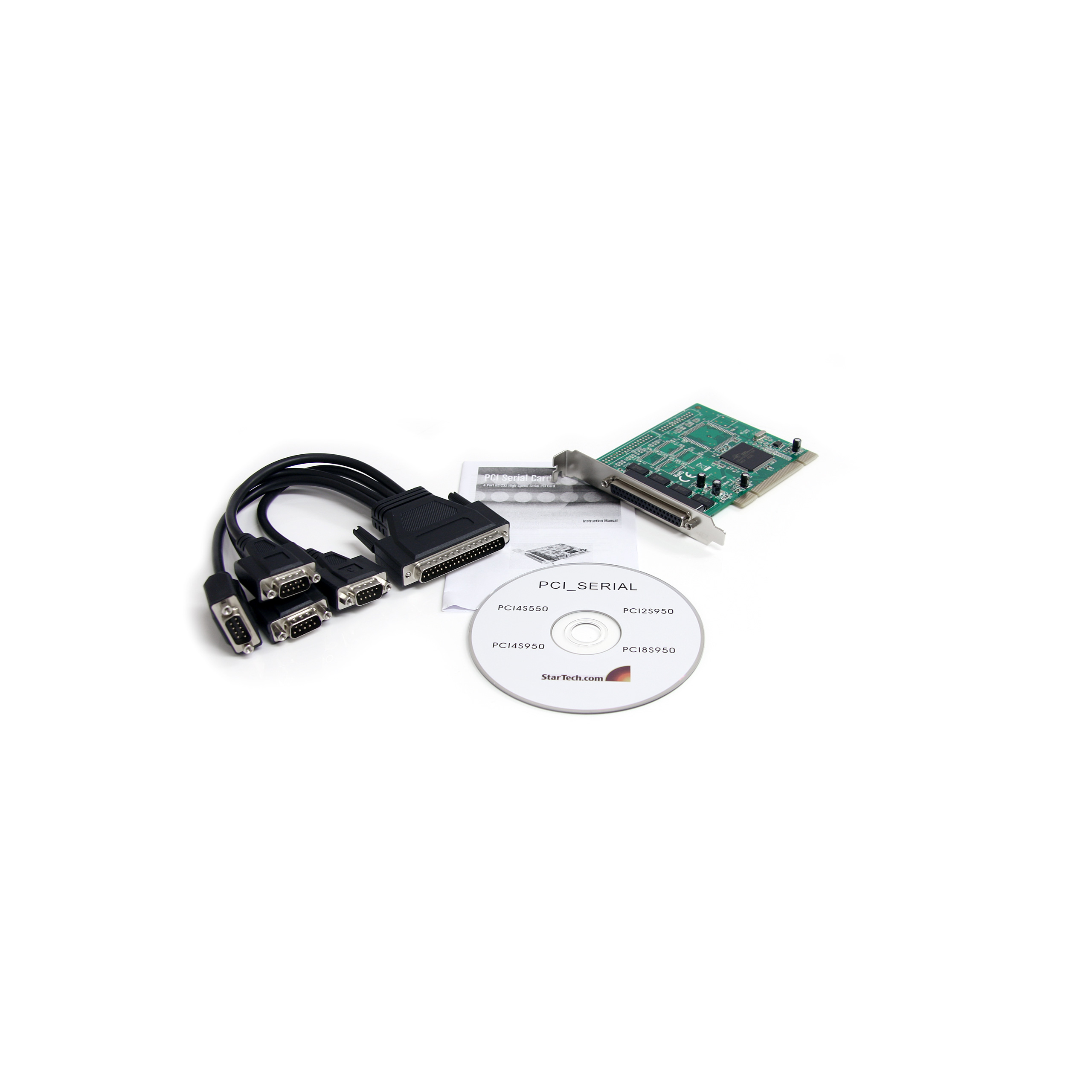

Supported Serial Protocol RS-232 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile Chipset ID PLX/Oxford - OX16PCI954 Industry Standards PCI 2.1 Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 10020 Included in Package - 1 - 4 port PCI serial card

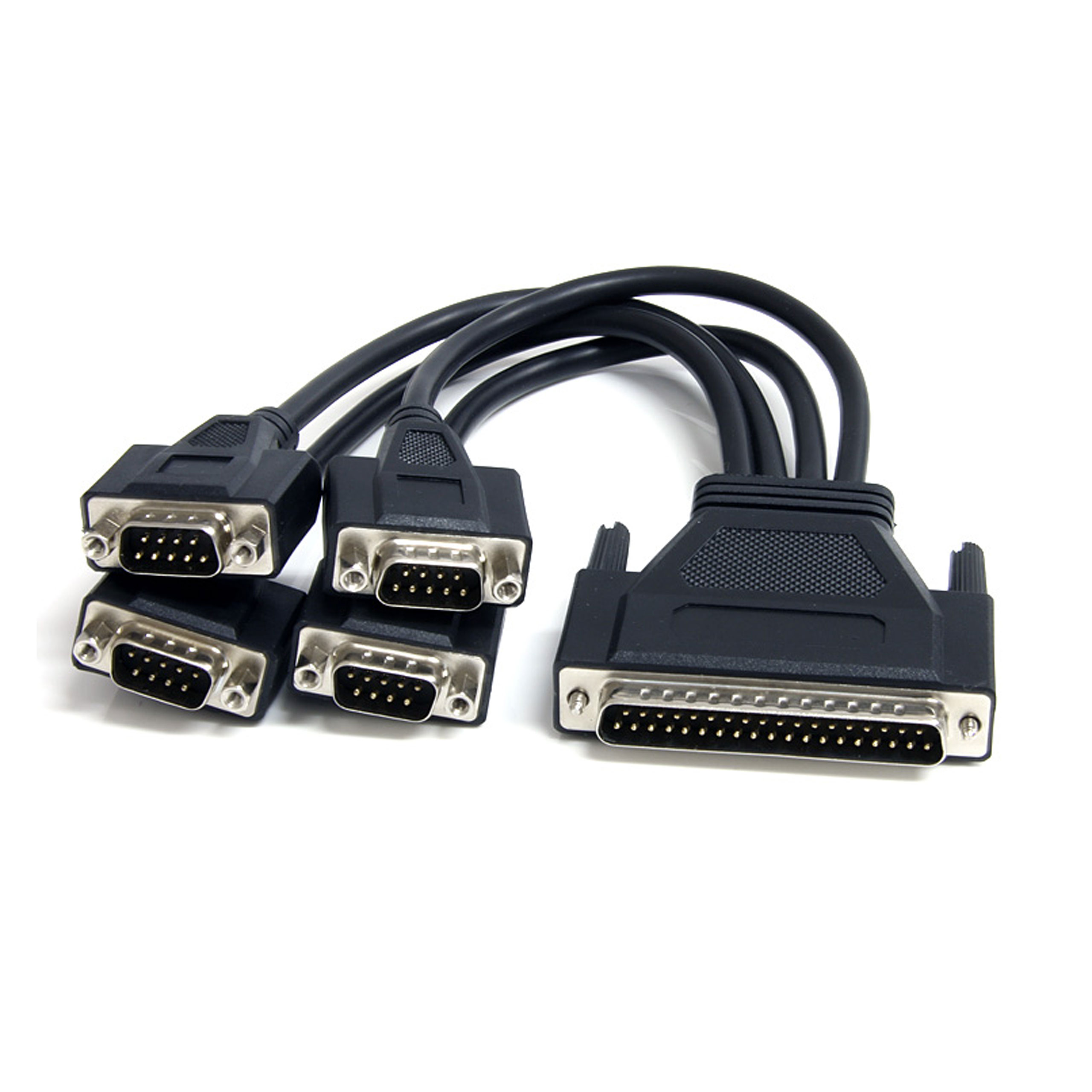

- 1 - Breakout cable
- 1 - Driver Disk (pdf manual included)
Package Depth (mm) 53 Package Height (mm) 152 Package Width (mm) 215 Package Weight (g) 420 Packaging Description 4 Port PCI RS232 Serial Card 16550 UART Packaging Description India 4 Port PCI RS232 Serial Card 16550 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager Rafal Gwozdz
