Main Image
PCI4S550N

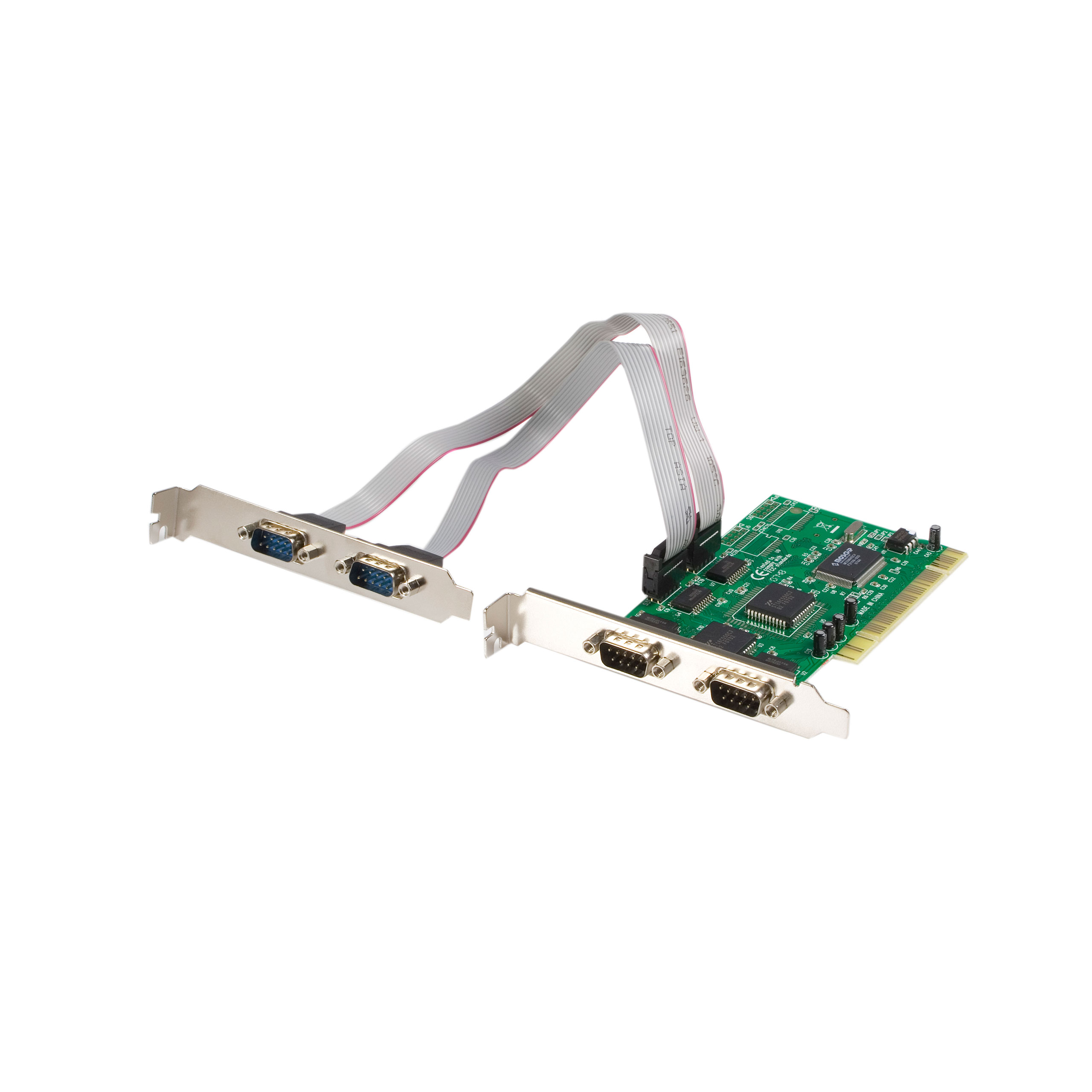

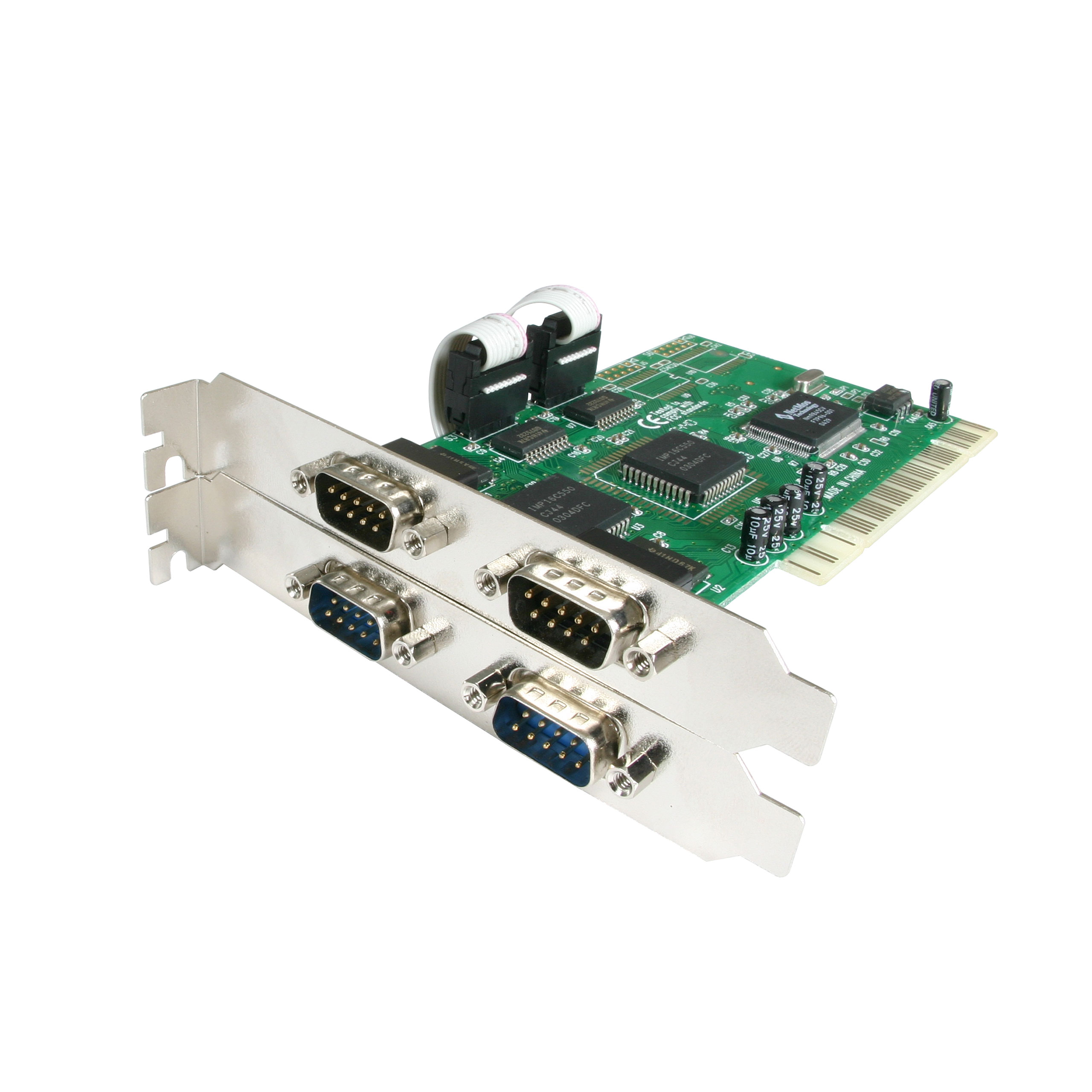

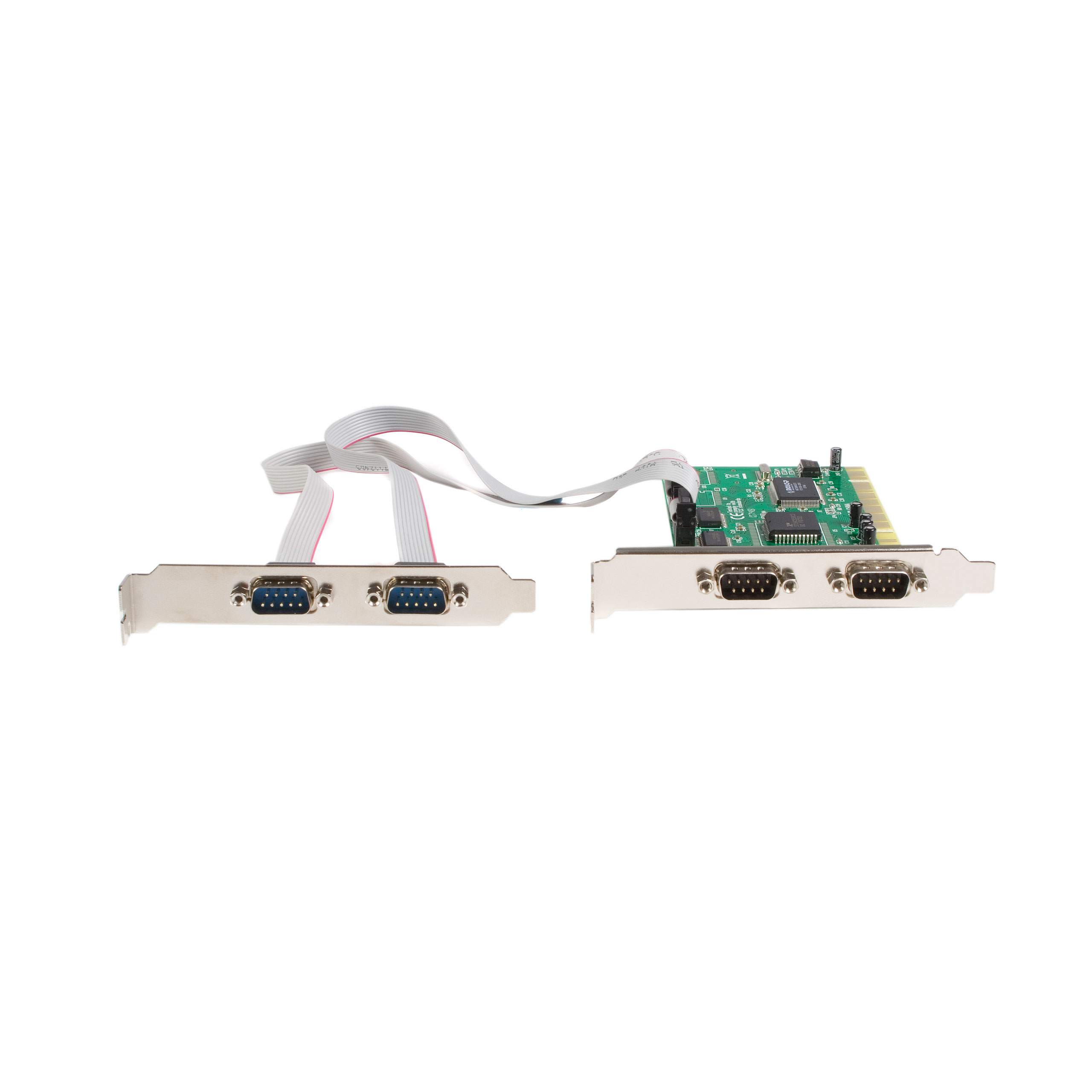

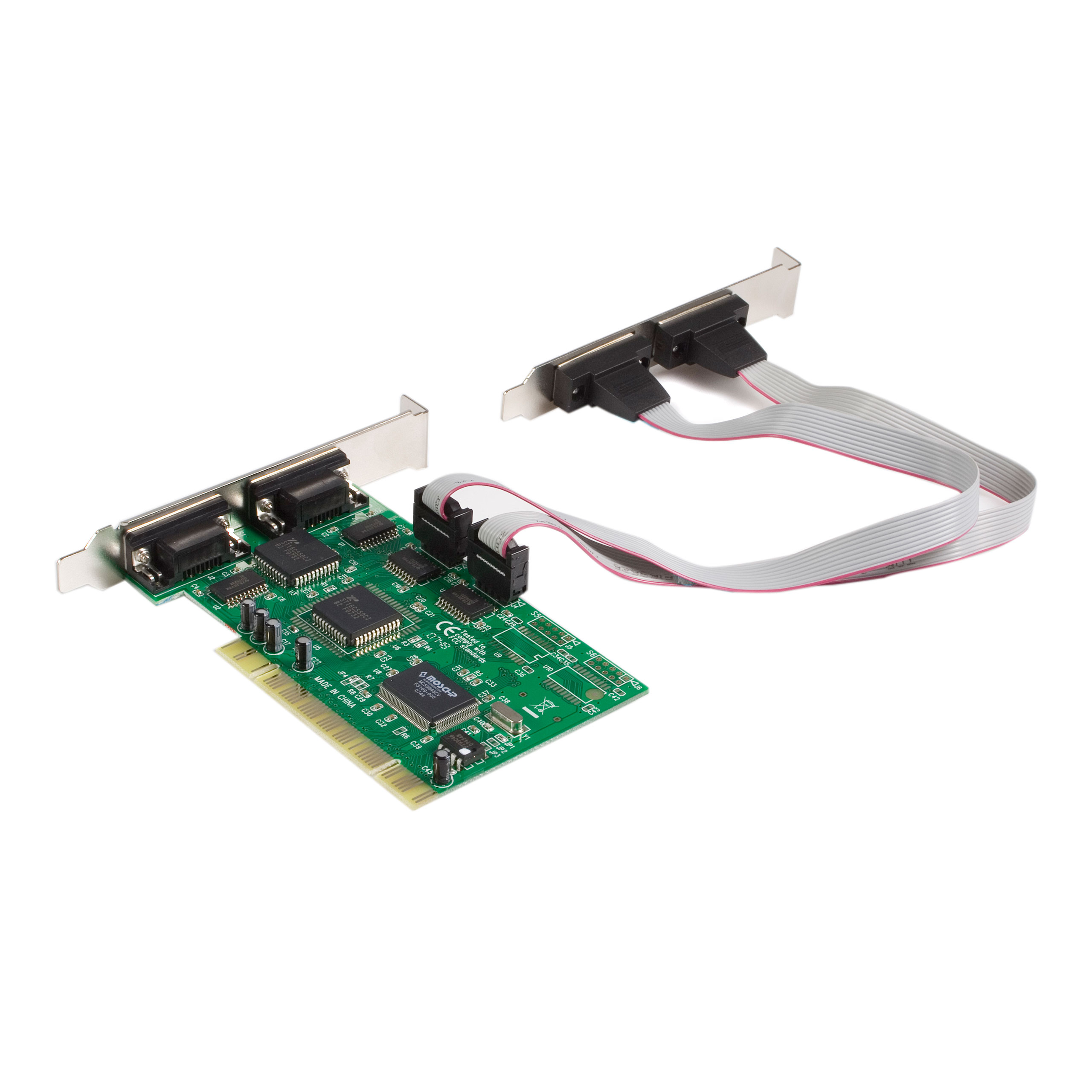

4 Port PCI 16550 Serial Card
Add 4 high-speed RS-232 serial ports to your PC through a PCI expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port PCI 16550 Serial Card Product Number PCI4S550N UPC 065030795531 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) 4 Port PCI Serial Adapter Card Product Title (Medium) x Product Title (Standard) StarTech.com 4 Port PCI RS232 Serial adapter card - PCI - serial - 4 ports Product Title (Long) 4 Port PCI RS232 Serial Adapter Card with 16550 UART Product Title (AMZ) 4-Port PCI Serial Card with 16550 UART - PCI RS232 Serial Adapter Card (PCI4S550N) Title Ingram (Part 1) 4 Port PCI RS232 Serial Adapter Title Ingram (Part 2) Card Website Product Headline Add 4 high-speed RS-232 serial ports to your PC through a PCI expansion slot Bullet 1 Includes drivers for Linux® and all versions of Windows® Bullet 2 IRQ sharing saves resources and eliminates conflicts Bullet 3 Supports the RS-232 serial interface Bullet 4 16 byte FIFO buffer ensures fast data transfer while multitasking Bullet 5 5, 6, 7, 8-bit characters selection Bullets (Consolidated) Serial adapter - PCI - RS-232 x 4 Marketing Copy Applications Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - AT925FF
- AT925FM
- SCNM10MF
- SCNM925FM
- SCNM925MF
- SCNM9FF
- SCNM9FF25
- SCNM9FM
Related Products - PCI2S550
- PCI4S550
- PCI2S550_LP
- 10PKPCI2S550
- PCI1S550
Color Green Humidity 5~85% RH Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 120.000 Product Width (mm) 20.000 Product Height (mm) 120.000 Product Weight (g) 74.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No FIFO 32 Bytes Max Baud Rate 115.2 Kbps OS Compatibility - Windows 8
- Linux
- Windows Server 2012
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

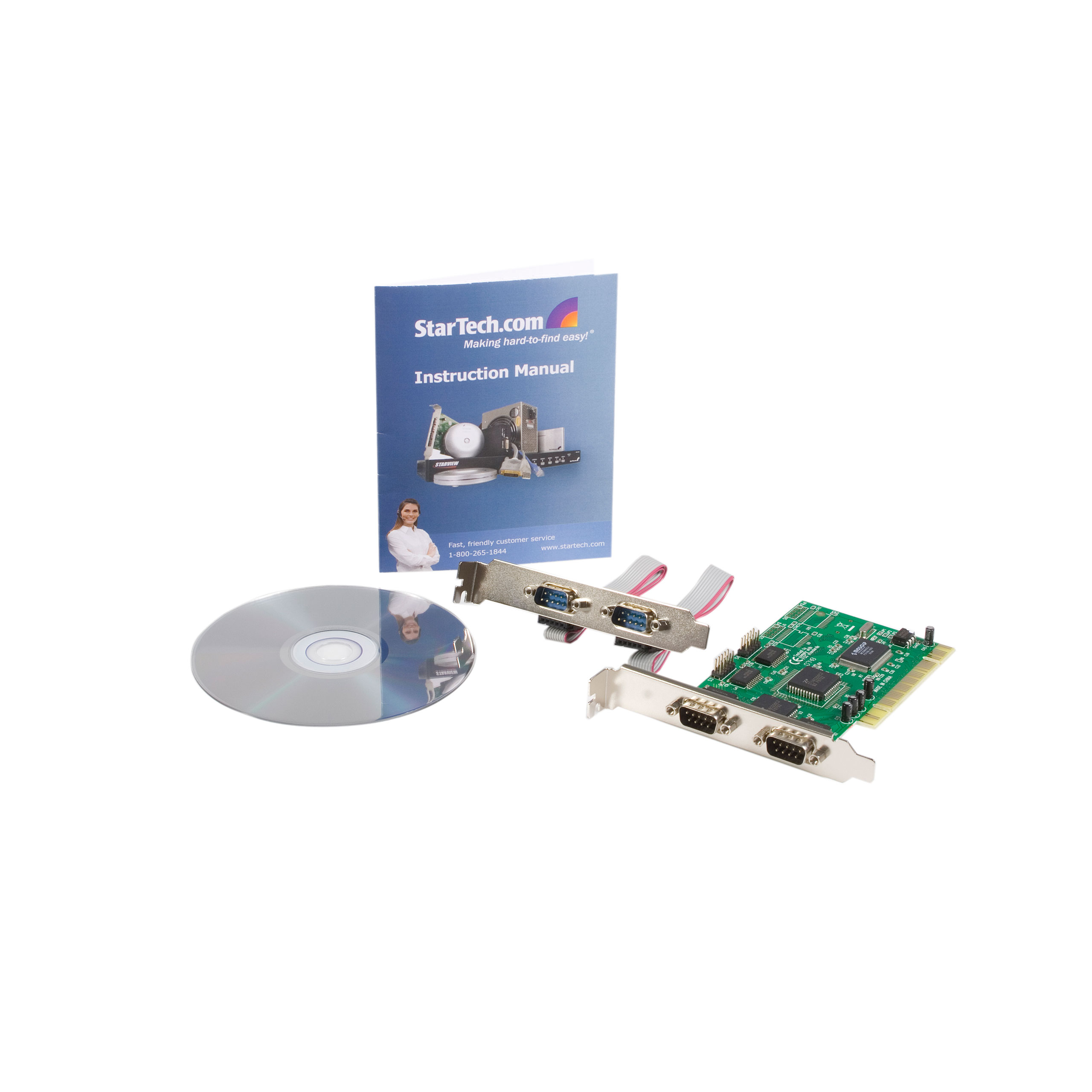

Supported Serial Protocol RS-232 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile Chipset ID ASIX - MCS9845CV Industry Standards PCI 2.1 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 404 Carton Height (mm) 282 Carton Quantity 50 Carton Weight Gross (g) 10290 Included in Package - 1 - 2 Port PCI 16550 Serial Card
- 1 - Driver CD
- 1 - User Manual
- 1 - Bracket with 2 DB9 Ports
Package Depth (mm) 141 Package Height (mm) 32 Package Width (mm) 173 Package Quantity 1 Package Weight (g) 188 Packaging Description 4 Port PCI RS232 Serial Adapter Card with 16550 UART Packaging Description India 4 Port PCI RS232 Serial Adapter Card with 16550 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
