PCI4S650PW
4 Port 3.3V/5V Serial Card with Power
Add four RS232 serial ports with 5V or 12V power output to your computer through a PCI slot
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port 3.3V/5V Serial Card with Power Product Number PCI4S650PW UPC 065030812740 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 4 Port PCI Powered Serial Adapter Card Product Title (Standard) StarTech.com 4 Port PCI Powered Serial Adapter Card Product Title (Long) 4 Port PCI Dual Profile RS232 Powered Serial Adapter Card Title Ingram (Part 1) 4 Port PCI Dual Profile RS232 Po Title Ingram (Part 2) wered Serial Adapter Card Website Product Headline Add four RS232 serial ports with 5V or 12V power output to your computer through a PCI slot Bullet 1 Configurable in 5V, 12V, and RI (non-powered) modes. Bullet 2 Supports major operating systems, including 64-bit editions of Microsoft Windows. Bullet 3 Works in both PCI and PCI-X slots, either standard or low profile. Marketing Copy Applications - Perfect for adding barcode scanners, card readers, and other similar devices to POS, manufacturing, and industrial solutions.
- Reduce clutter and the need for extra power connections by using self-powered serial devices.
Microsoft WHQL Certified Yes System and Cable Requirements - Available PCI or PCI-X slot (full size or low profile)
- Internal SP4 power connector when using EXT (External Power) jumper configuration
Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100_25
- MXT100FF
- SCNM9FF
- SCNM9FF25
Related Products - PCI2S650PW
- PCI1S650PW
Replacement Product PCI4S954PW Humidity 5~95% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 120 Product Width (mm) 17 Product Height (mm) 50 Product Weight (g) 50 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No FIFO 32 Bytes Max Baud Rate 115.2 Kbps MTBF (hours) 300,000 Hours OS Compatibility - Windows Vista
- Linux

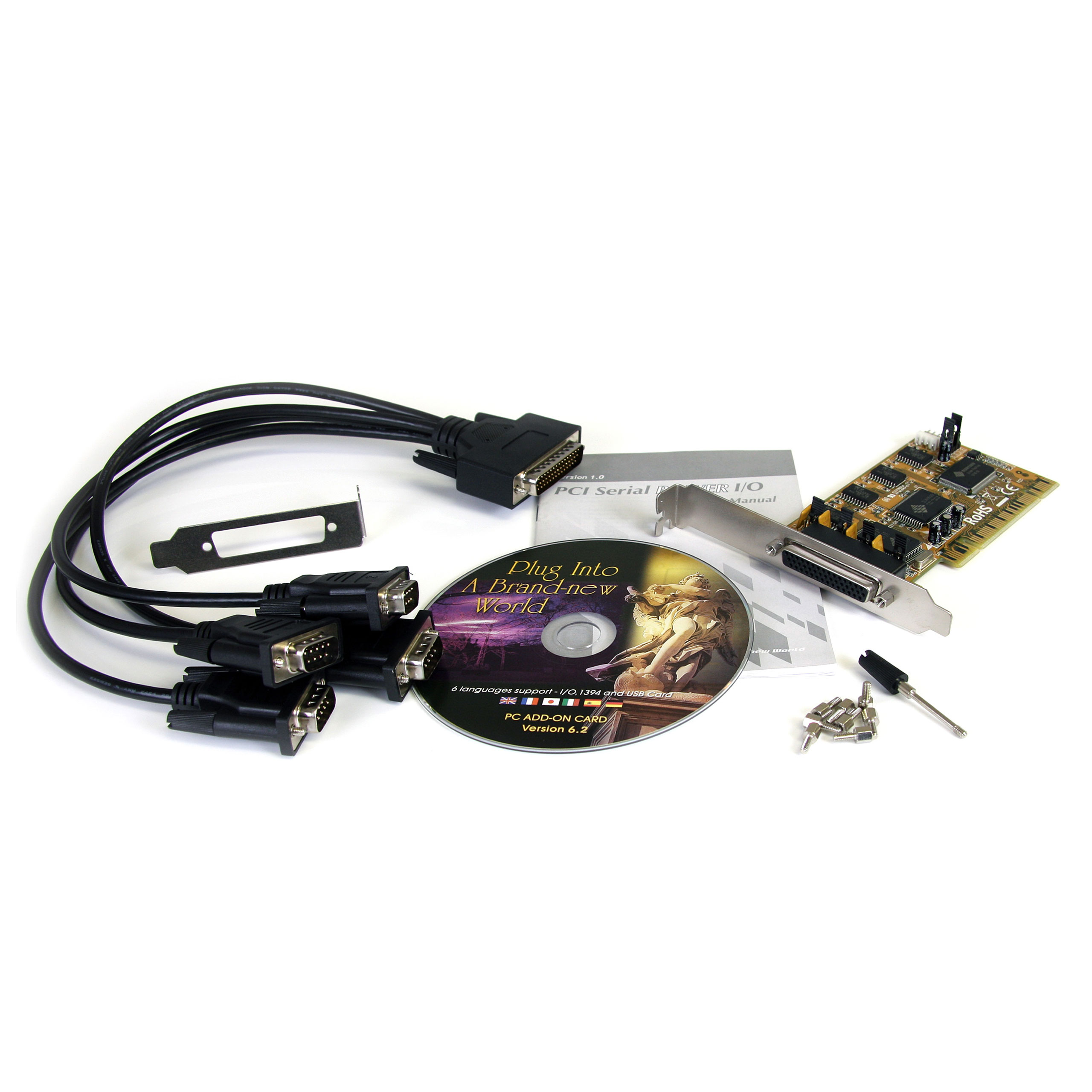

Supported Serial Protocol RS-232 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID Sunix - SUN1889 Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 17700 Included in Package - 1 - Installation CD
- 1 - Instruction Manual
- 1 - Low-Profile Bracket
- 1 - PCI1S650PW Serial Card

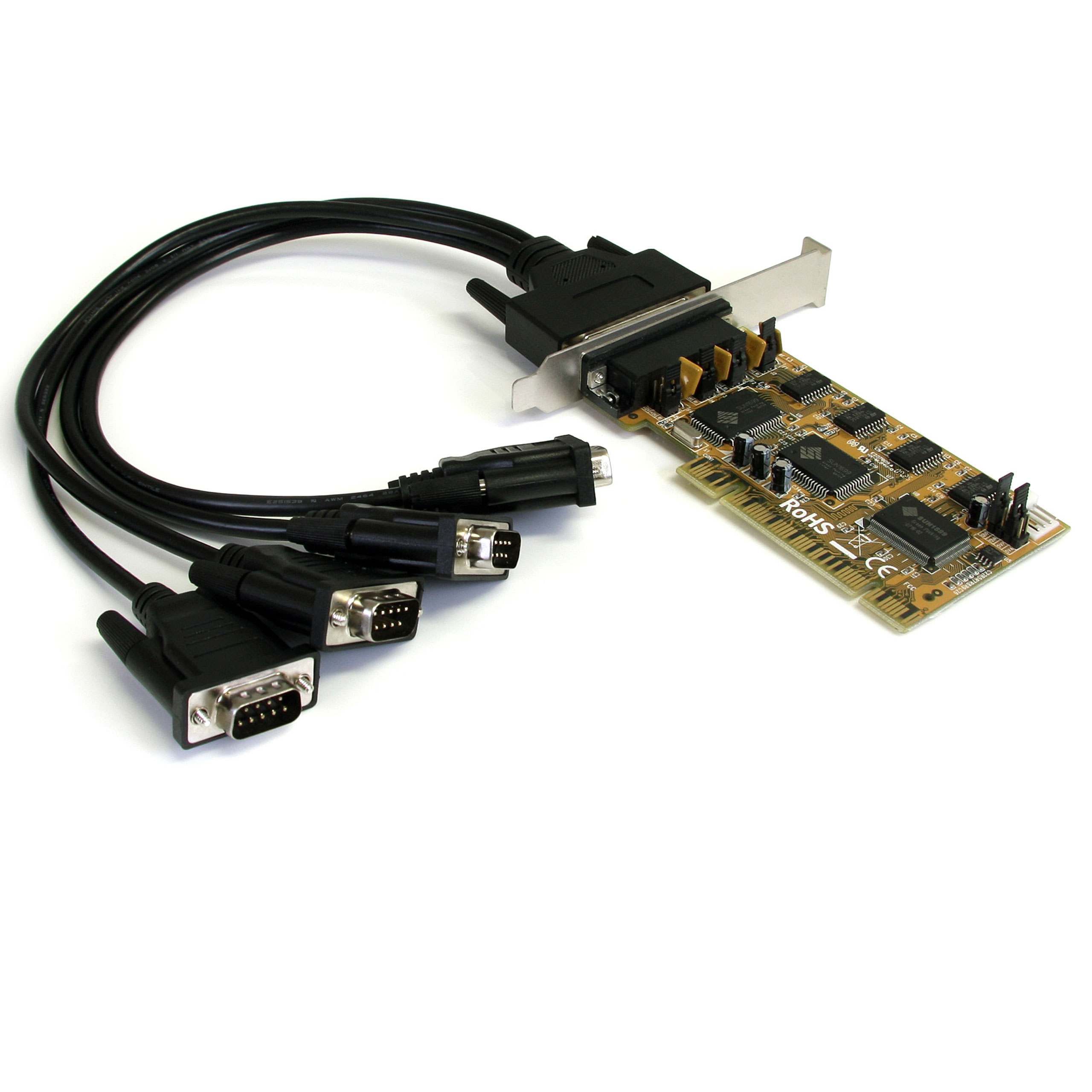

- 1 - 4 port DB9 connector dongle
Package Depth (mm) 54 Package Height (mm) 147 Package Width (mm) 216 Package Weight (g) 330 Packaging Description 4 Port PCI RS232 Powered Serial Card w/ Cable Packaging Description India 4 Port PCI RS232 Powered Serial Card w/ Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager Rafal Gwozdz
