PCI4S954PW
4Port PCI Serial Adapter - Quad Port DB9 16950 4PT
Add 4 RS232 serial ports with 5V or 12V selectable power output to your computer, through a PCI slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 4Port PCI Serial Adapter - Quad Port DB9 16950 4PT Product Number PCI4S954PW UPC 065030846752 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Ultra-Short) 4pt PCI Serial Card Product Title (Short) 4 Port RS232 PCI Serial Card w/ Power Product Title (Standard) 4 Port RS232 PCI Serial Card Adapter with Power Output Product Title (Long) 4 Port RS232 PCI Serial Card Adapter with Power Output Product Title (AMZ) 4 Port RS232 PCI Serial Card Adapter with Power Output - PCI Serial Card - rs232 Card - quad Port Serial Card (PCI4S954PW) Title Ingram (Part 1) 4 Port RS232 PCI Serial Card wit Title Ingram (Part 2) h Power Output Website Product Headline Add 4 RS232 serial ports with 5V or 12V selectable power output to your computer, through a PCI slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Compliant with PCI specifications revision 3.0 Bullet 3 High Performance Oxford 16C950 UART Bullet 4 Universal PCI card supports installation into 3.3 or 5V PCI slots Bullet 5 Selectable voltage output of 5V or 12V Bullets (Consolidated) Add 4 RS232 serial ports with 5V or 12V selectable power output to your computer - through a PCI slot - Serial Adapter - RS-232 Card - PCI Serial Card - 4 Port PCI Serial - Quad Port Serial Card - RS232 DB9 PCI Adapter - Selectable voltage output of 5V or 12V - Includes a Low and Full Profile Bracket and Breakout Cable Marketing Copy Applications - Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers/card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
- Monitor and control industrial machines on an assembly line or in a production environment
Website Search Keyword - Serial Adapter Card
- 4 Port
- PCI card
- RS-232
- rs232 with power
- power serial
- powered serial port
- powered rs232 port
- serial port power
- rs-232 power
- rs232 power
- rs 232 power
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
- MXT10010
Related Products - PCI8S950LP
- PCI4S650PW
- PCI4S550
- PCI2S1P
Output Voltage (V) 12/5V DC Color Black Humidity 5~85% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 127.000 Product Width (mm) 15.000 Product Height (mm) 64.000 Product Weight (g) 68.000 Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant No Data Bits 5, 6, 7, 8, 9 FIFO 128 Bytes Flow Control Maximum Data Transfer Rate 460.8 Kbps OS Compatibility - Linux
- Windows Server 2012
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

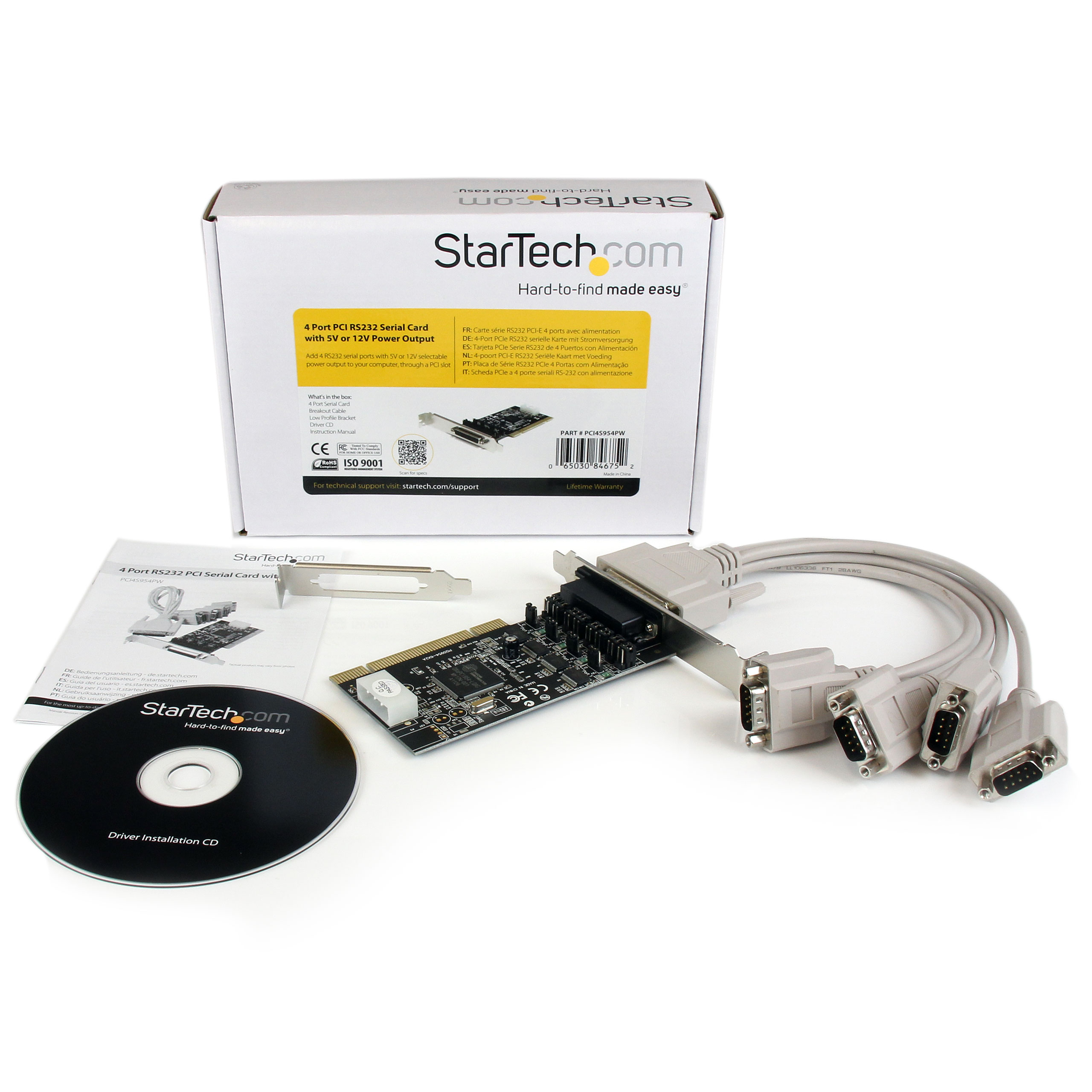

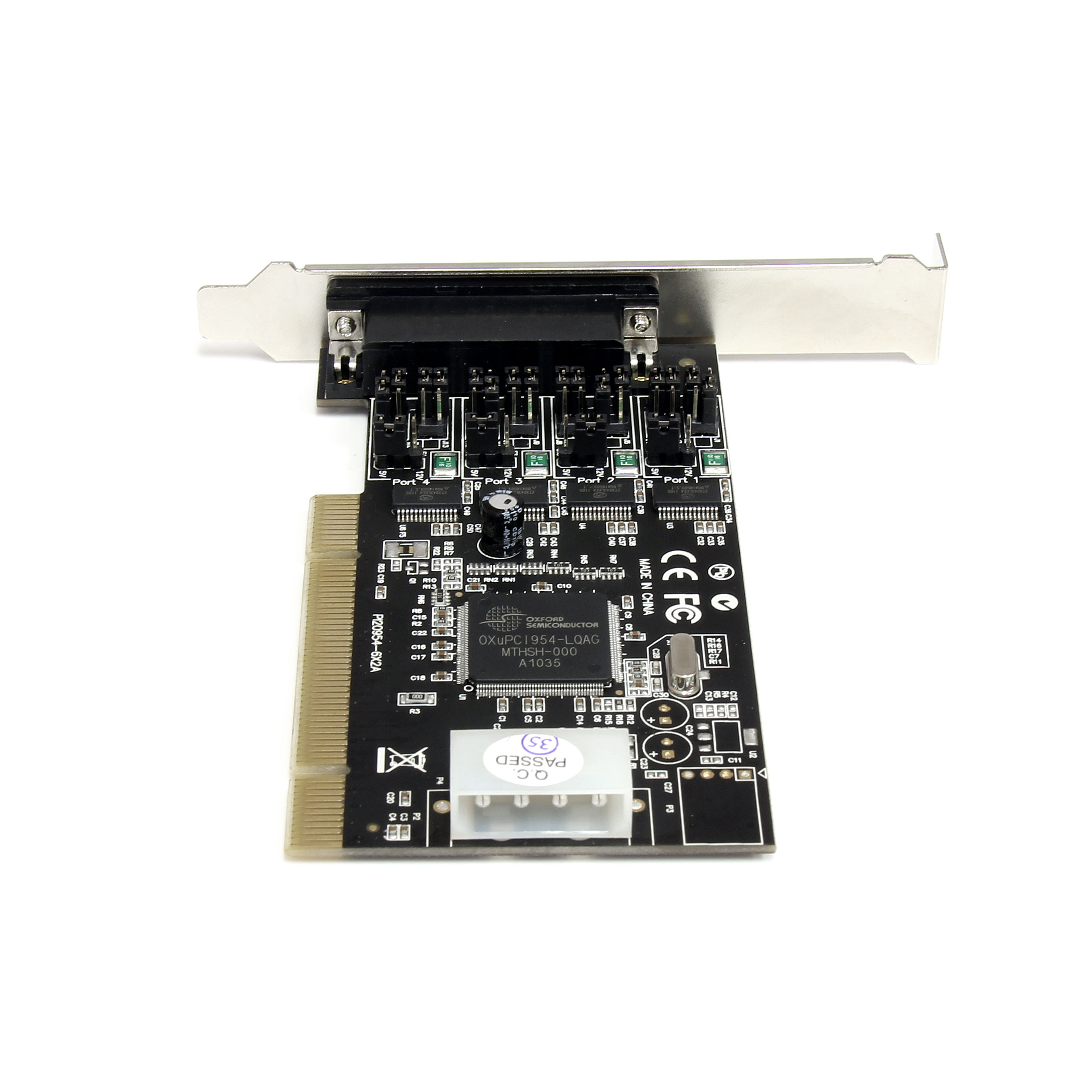

Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Surge Protection ±15KV ESD on all signal pins Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID PLX/Oxford - OXuPCI954 Industry Standards PCI 3.0 Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 325 Carton Height (mm) 465 Carton Quantity 40 Carton Weight Gross (g) 18100 Included in Package - 1 - 4 Port Serial Card
- 1 - Driver CD
- 1 - Instruction Manual

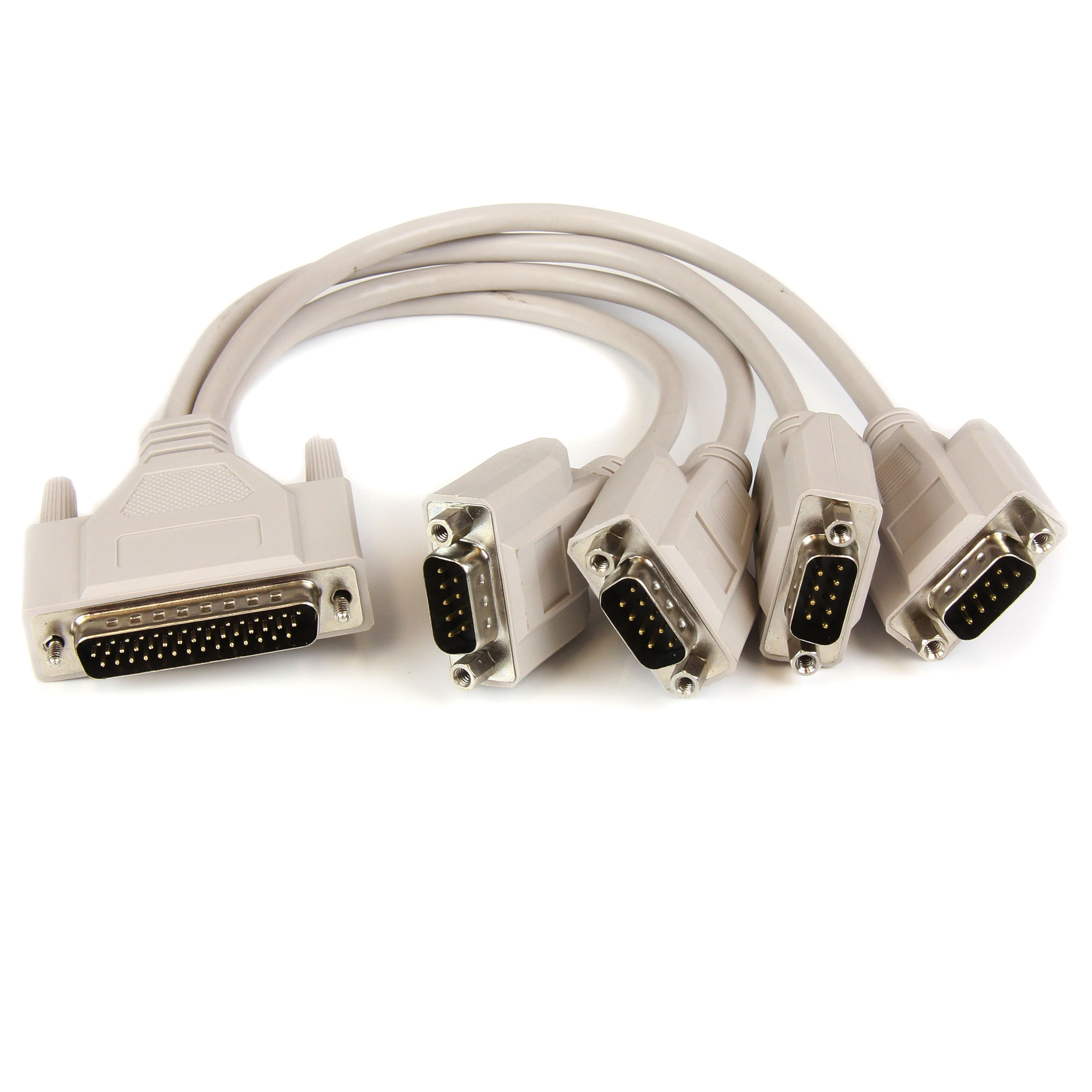

- 1 - Breakout Cable
- 1 - Low Profile Bracket
Package Depth (mm) 210 Package Height (mm) 50 Package Width (mm) 150 Package Quantity 1 Package Weight (g) 426 Packaging Description 4 Port PCIe RS232 Serial Card with Power Packaging Description India 4 Port PCIe RS232 Serial Card with Power Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
