PCI555WG

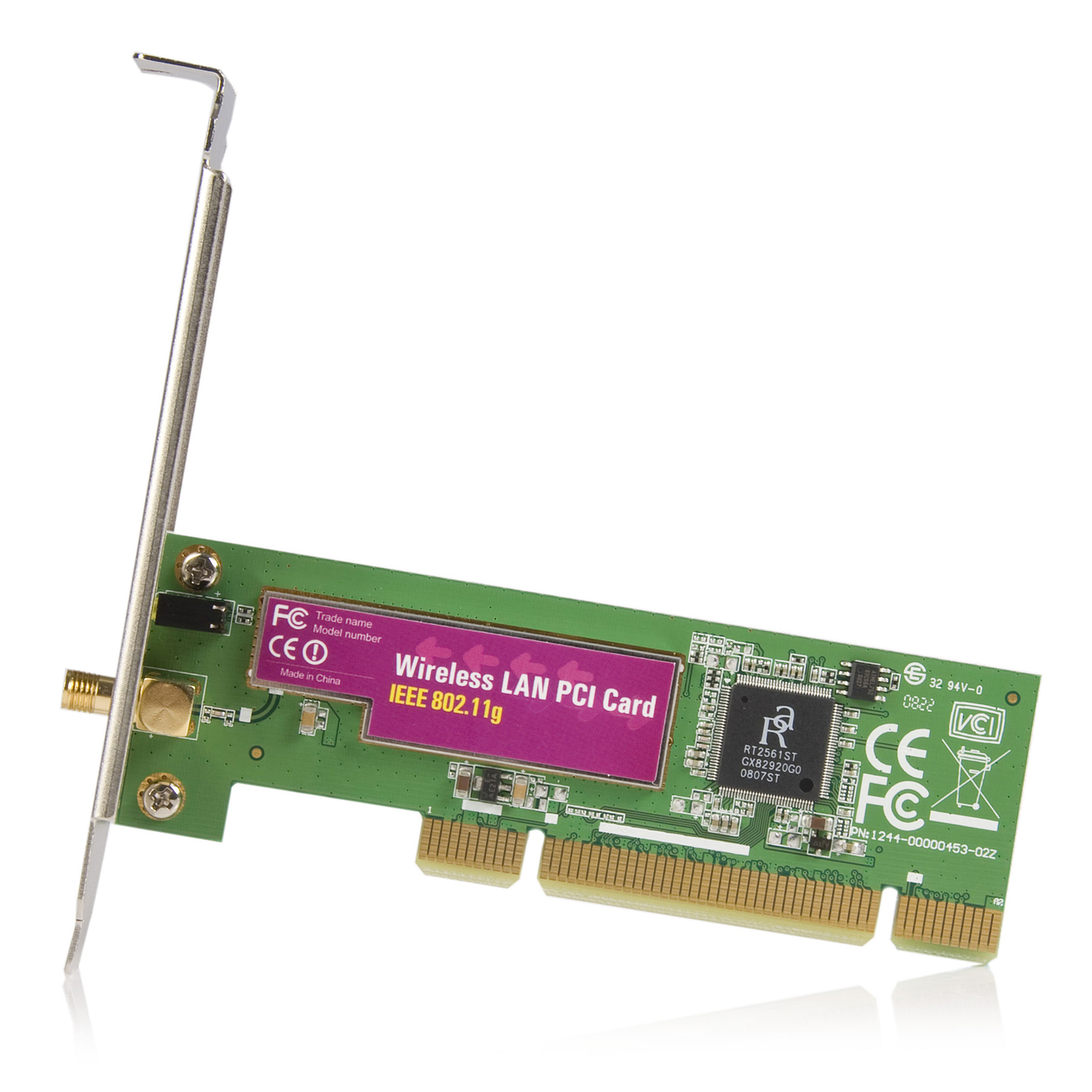

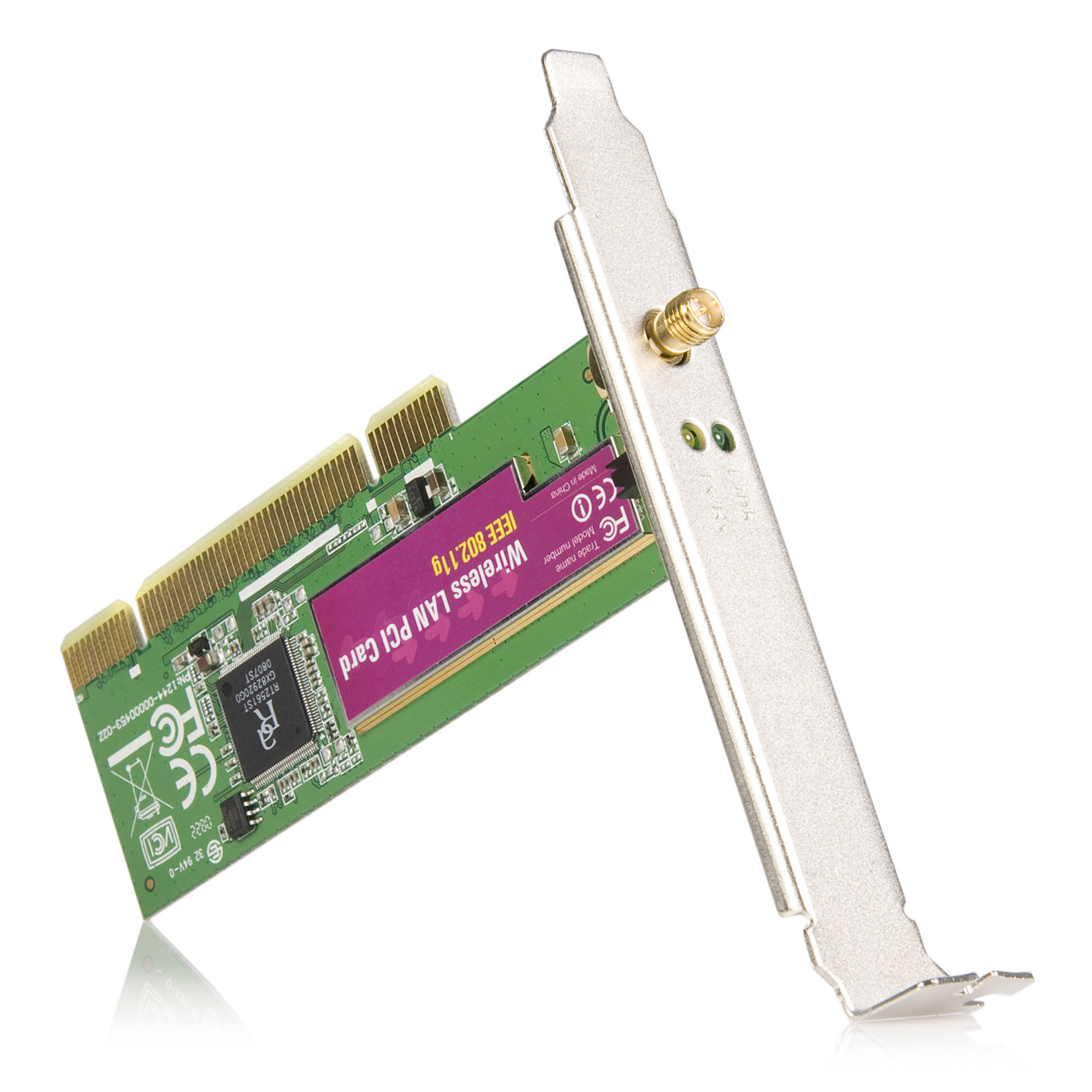

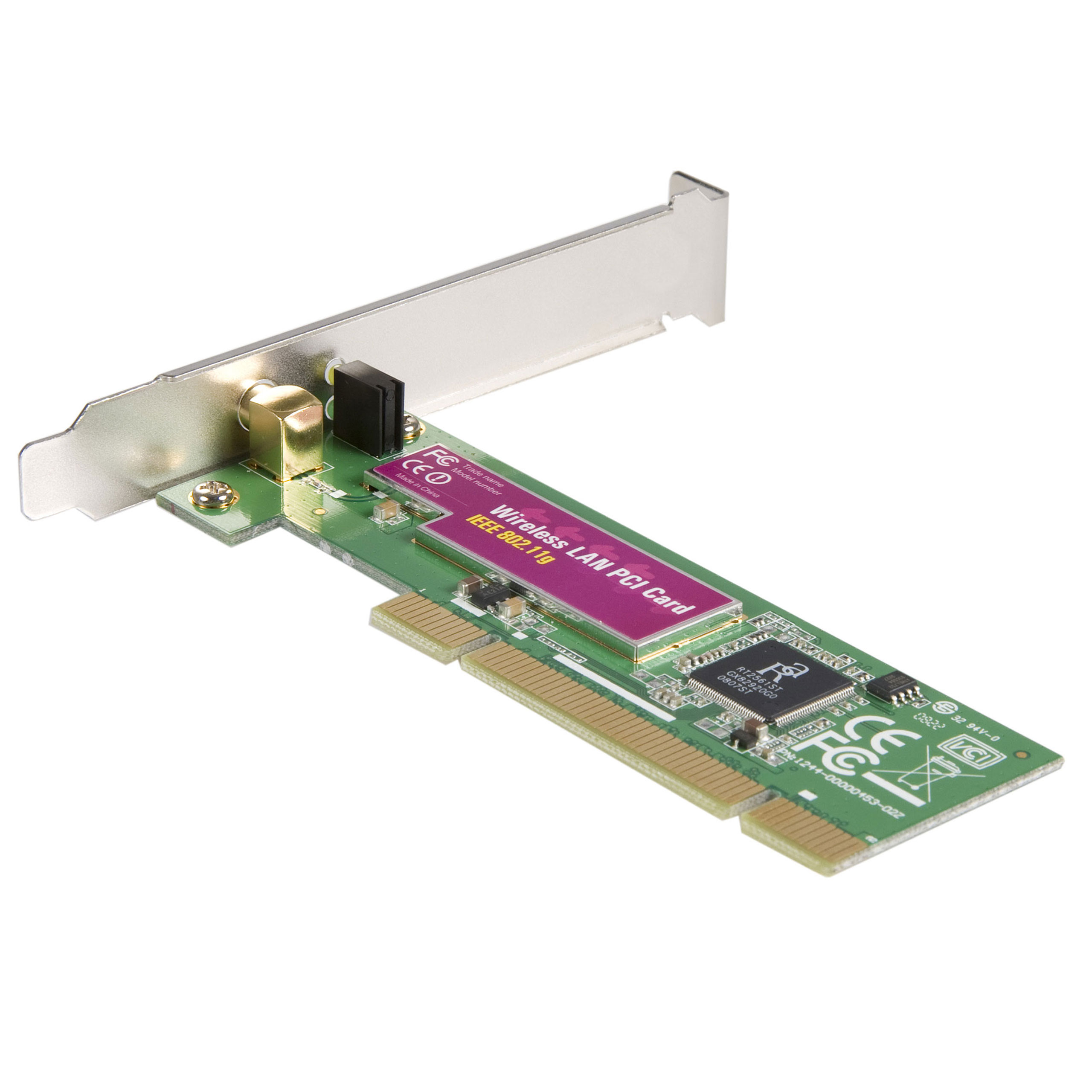

802.11g Wireless PCI NIC Adapter (inc LP bracket)
Add Wireless-B/G network connectivity to a desktop computer with a PCI slot
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 802.11g Wireless PCI NIC Adapter (inc LP bracket) Product Number PCI555WG UPC 065030803564 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) PCI Wireless-G Network Adapter Card Product Title (Standard) StarTech.com PCI555WG - Network adapter - PCI - 802.11b, 802.11g Product Title (Long) PCI 802.11g Wireless Network Adapter Card with Separate Antenna Title Ingram (Part 1) PCI 802.11g Wireless Network Ada Title Ingram (Part 2) pter Card Website Product Headline Add Wireless-B/G network connectivity to a desktop computer with a PCI slot Bullet 1 Complies with IEEE 802.11b/g, 2.4GHz wireless networking standards Bullet 2 Wireless data transfer rates up to 54Mbps over Wireless-G Bullet 3 Enhanced wireless security such as WPA, AES, 64/128-bit WEP Bullet 4 100m/328ft outdoor range Bullet 5 Wireless Ad-hoc networking support Marketing Copy Applications - Home users who want to connect new or existing computers to the home network without running wires
- Users who want to connect to an older Wireless-B network, but want the flexibility to connect to newer Wireless-G networks in the future
- Installing a computer in a remote location where running cables would be cost prohibitive
Accessory Products RPSMA10MF Operating Temperature 0 to 50 Product Length (mm) 120 Product Width (mm) 40 Product Height (mm) 22 Product Weight (g) 92 TAA Compliant No Maximum Data Transfer Rate 54 Mbps OS Compatibility - Windows 98SE
- Windows ME
- Windows 2000
- Windows XP
- Linux
- Windows Vista
- Windows 7
- Windows 8
Security Features - AES
- WEP Data Encryption
- WPA Data Encryption
Bus Type PCI / PCI-X (5 / 3.3V) Chipset ID Ralink - RT2561ST Industry Standards - IEEE 802.11b
- IEEE 802.11g
- PCI V2.2/2.1

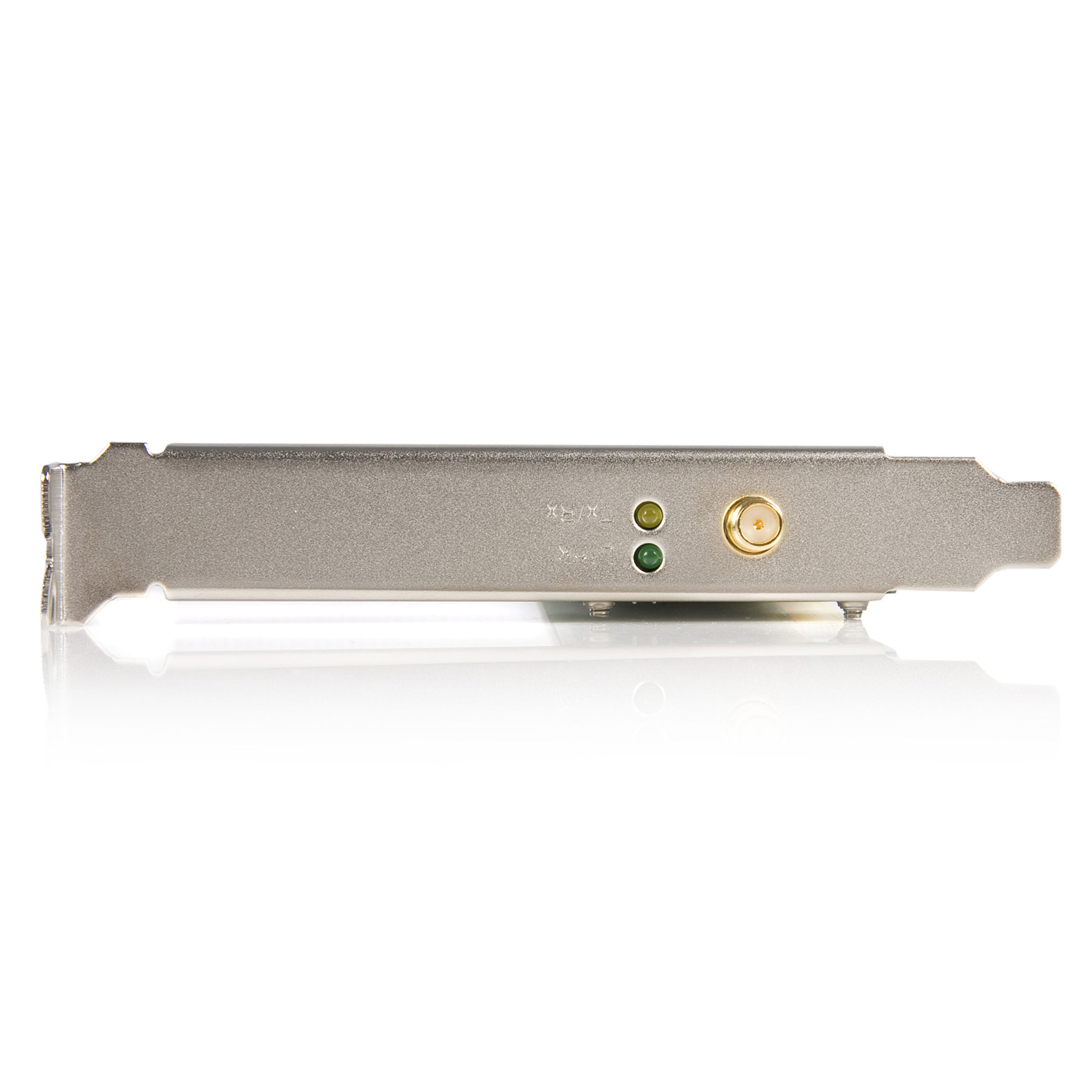

Interface/Bridge Wireless Ethernet LED Indicators - 1 - Link Activity
- 1 - Transmission Status

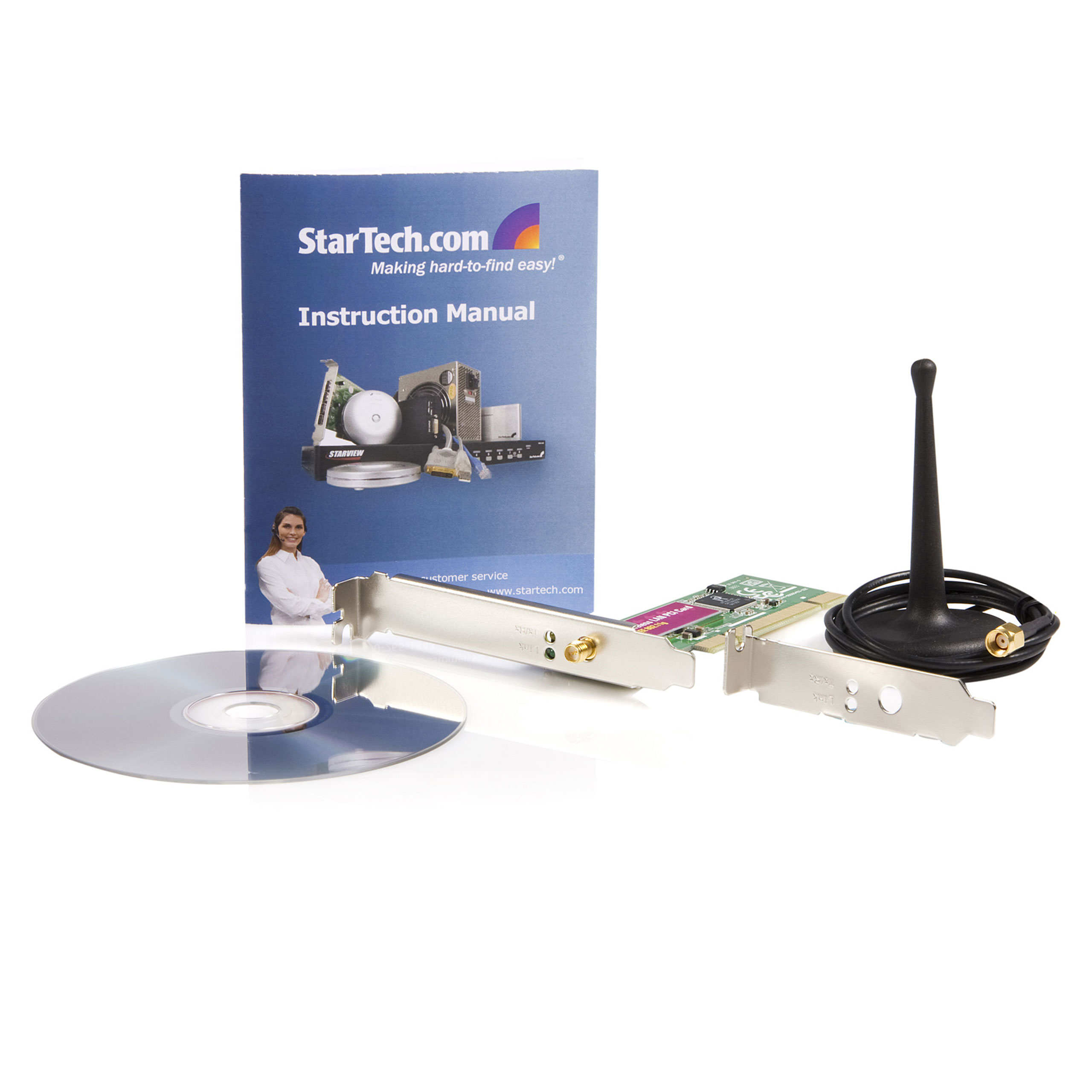

Carton Depth (mm) 460 Carton Height (mm) 295 Carton Quantity 40 Carton Weight Gross (g) 10000 Included in Package - 1 - PCI Wireless-G card

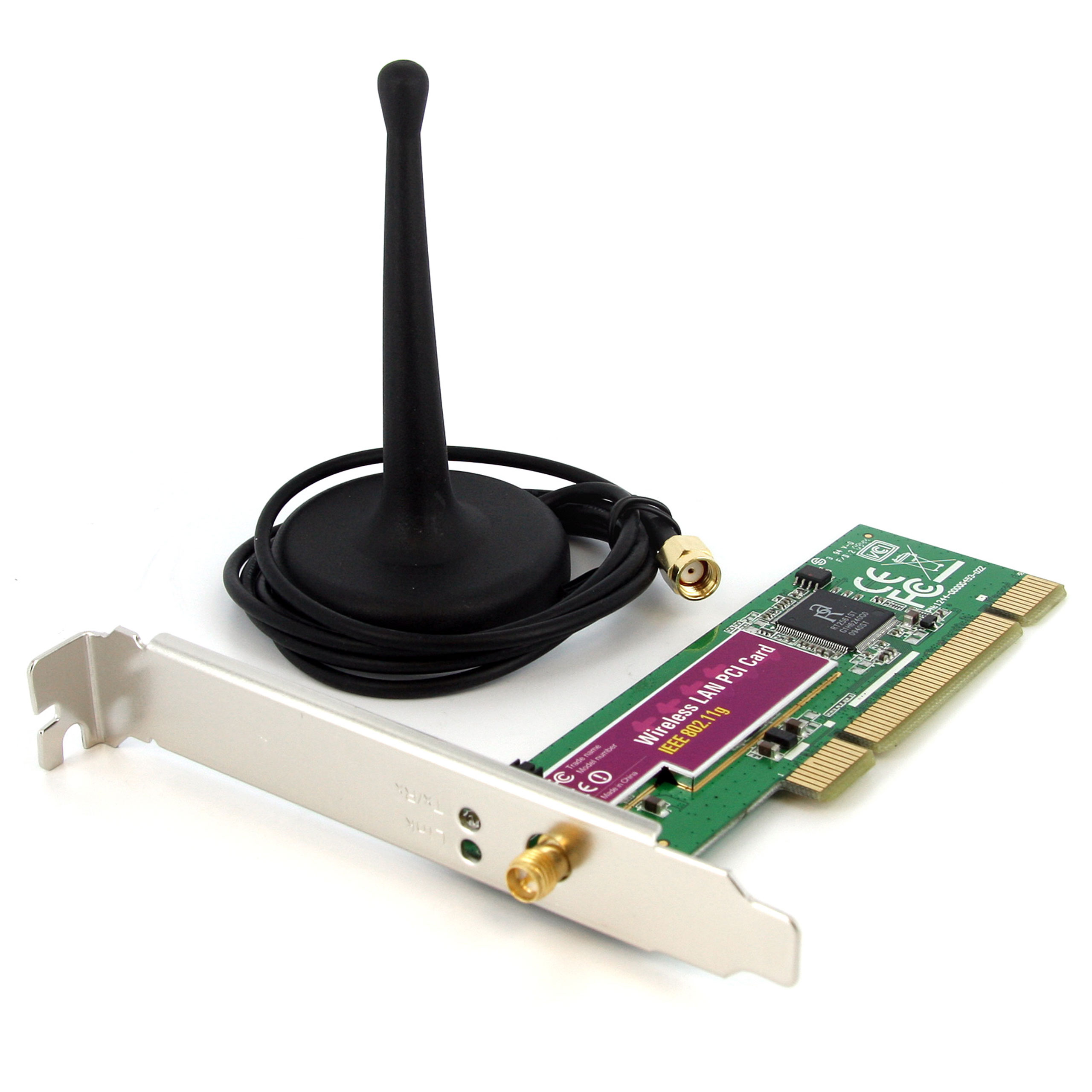

- 1 - External Wireless Antenna
- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 54 Package Height (mm) 134 Package Width (mm) 220 Package Weight (g) 220 Packaging Description PCI Wireless-G Network Adapter Card Packaging Description India PCI Wireless-G Network Adapter Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 Wi-Fi 3 (802.11g, 54Mbps) Connector 2 (Quantity) 1 Connector 3 RP-SMA (50 Ohm) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
