PCI8S650DV
Main Image

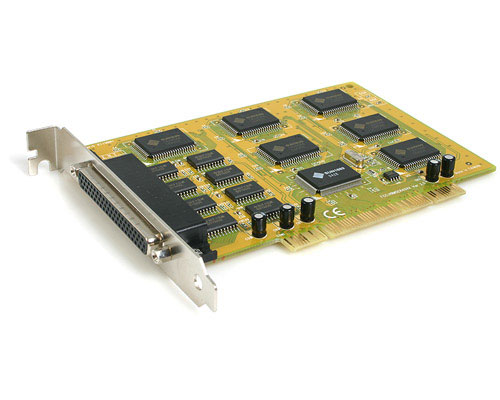

Product Name 8 Port 16650 Dual Voltage WHQL Approved Serial Card Product Number PCI8S650DV UPC 065030815970 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) 8 Port Dual Voltage WHQL Approved Serial Adapter Card with Legacy Port Remap Function Bullet 1 Dual voltage card supports both 64-bit(3.3V) and 32-bit(5V) PCI Bullet 2 128K transmit/receive FIFO buffer helps improve overall system performance Bullet 3 High speed serial data transfers up to 920Kbps (depending on Operating System) Bullet 4 IRQ sharing eliminates IRQ conflicts Bullet 5 Microsoft WHQL certified drivers Marketing Copy Applications - Casino (video lottery terminals, slot machines)
- Consumer (modems, PDAs, digital cameras, printers)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- ISDN Networking
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Security (UPS control, access key panels, video cameras, card readers, modems)
Website Search Keyword - PCI Serial Card
- PCI-X Serial Card
- WHQL certified card
Microsoft WHQL Certified Yes Accessory Products - AT925FF
- AT925FM
- AT925SFM
- MC3MF
- MC6MF
- MXT100
- MXT100_25
- MXT100FF
- MXT100MM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- DB258S650DV
- DB98S650DV
Related Products - PCI1S550
- PCI2S650DV
- PCI2S550
- PCI4S650DV
Operating Temperature 0-57 Product Length (mm) 144 Product Width (mm) 102 Product Weight (g) 100 Storage Temperature 20-85 TAA Compliant No General Specifications - Connector: DB62 Female
- Cable: DB62 to 8 port DB9 breakout cable included. DB25 cable is optional accessory (DB258S650DV)
- Data Transfer Rate (max): 920 Kbits
- Compatible OS: DOS, Windows 95, 98, ME, NT; Windows XP (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), Linux
- Supported Operating Systems for Remap Function: Microsoft DOS and Win9x/ME/NT 4.0
- Legacy Port Remap Addressing: 3F8, 3E8, 2F8, 2E8
- Chipset: Sunix SUN1699 / SUN1889
OS Compatibility Windows Vista Supported Serial Protocol RS-232 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile IO Card Port Style Dongle (Included) Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 8880 Included in Package - 1 - 8 Port PCI Serial Card
- 1 - DB62 to 8 port DB9 Cable
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 52 Package Height (mm) 154 Package Width (mm) 305 Package Weight (g) 640 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Carey Cline
