PCI8S9503V

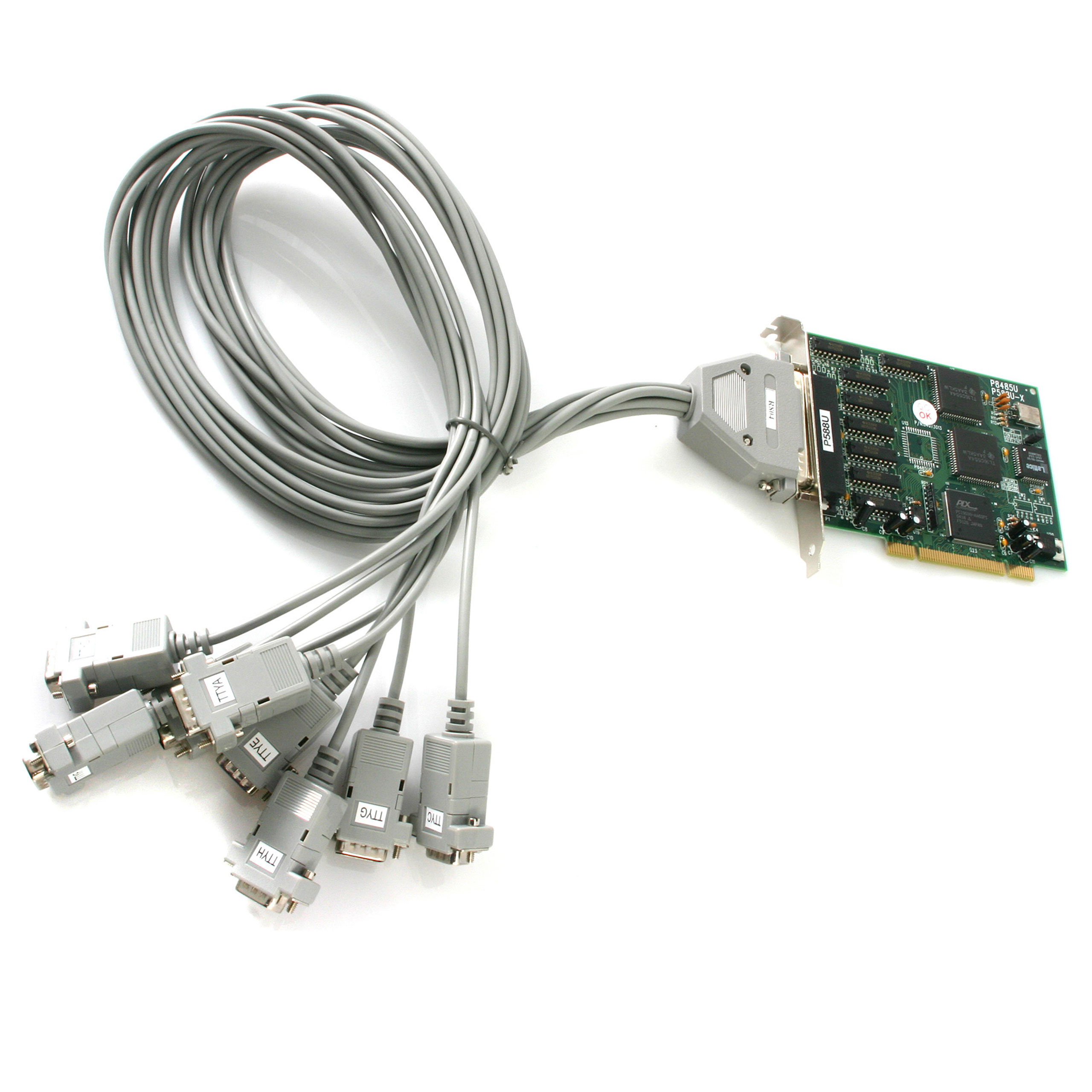

8 Port PCI 3.3/5V Buffered High Speed Se
Add eight RS232 serial ports to any PC using a single PCI expansion slot
Main Image
Product Name 8 Port PCI 3.3/5V Buffered High Speed Se Product Number PCI8S9503V UPC 065030804370 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 8 Port PCI Serial Adapter Card w/ Cable Product Title (Standard) StarTech.com Serial adapter card - PCI - serial - 8 ports - Cable Included - RS232 - DB9 Product Title (Long) 8 Port PCI RS232 Serial Adapter Card High Speed 16950 cable included Product Title (AMZ) 8 Port PCI RS232 Serial Adapter Card High Speed 16950 cable included (PCI8S9503V) Title Ingram (Part 1) 8 Port PCI RS232 Serial Adapter Title Ingram (Part 2) Card 16950 Cable Included Website Product Headline Add eight RS232 serial ports to any PC using a single PCI expansion slot Bullet 1 Adds eight high speed RS-232 serial ports to your computer Bullet 2 PCI Bus Version 2.2 compliant Bullet 3 Works with both 3.3 volt and 5 volt PCI slots Bullet 4 Breakout cable included Bullet 5 Transfer rates of up to 921 Kbps Marketing Copy Applications - Connect multiple serial devices for a central serial device control system
- Perfect for Manufacturing applications such as CNC machinery, process control equipment, bar code scanners and serial printers
- Designed for use in critical applications with embedded systems and computer based machinery
- Data center applications for serial networking devices, high speed modems, monitoring equipment, long distance communication devices and printers
- Ideal for use in commercial and industrial applications such as POS networks, ATMs, and bank teller stations
Accessory Products - AT925MF
- AT925MFCABLE
- AT925SMF
- SCNM925MF
Related Products - PCI4S9503V
- PCI8S950LP
Cable Length (mm) 1220 Humidity 5~85% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 145 Product Width (mm) 20 Product Height (mm) 104 Product Weight (g) 800 Storage Temperature 0°C to 65°C (32°F to 149°F) TAA Compliant No FIFO 16 Bytes Max Baud Rate 921.6 Kbps OS Compatibility - Windows Vista
- Windows 8
- Windows 7
- Linux
Supported Protocols RS232 Supported Serial Protocol RS-232 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile Chipset ID PLX - PCI9030 Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 10000 Included in Package - 1 - PCI Serial Card
- 1 - 8 Port DB9 Break-out Cable
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 70 Package Height (mm) 263 Package Width (mm) 294 Package Weight (g) 880 Packaging Description 8 Port PCI RS232 Serial Card w/ Cable Packaging Description India 8 Port PCI RS232 Serial Card w/ Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 8 en-US Content Approved Yes Product Manager Rafal Gwozdz
