PCI8S950LP

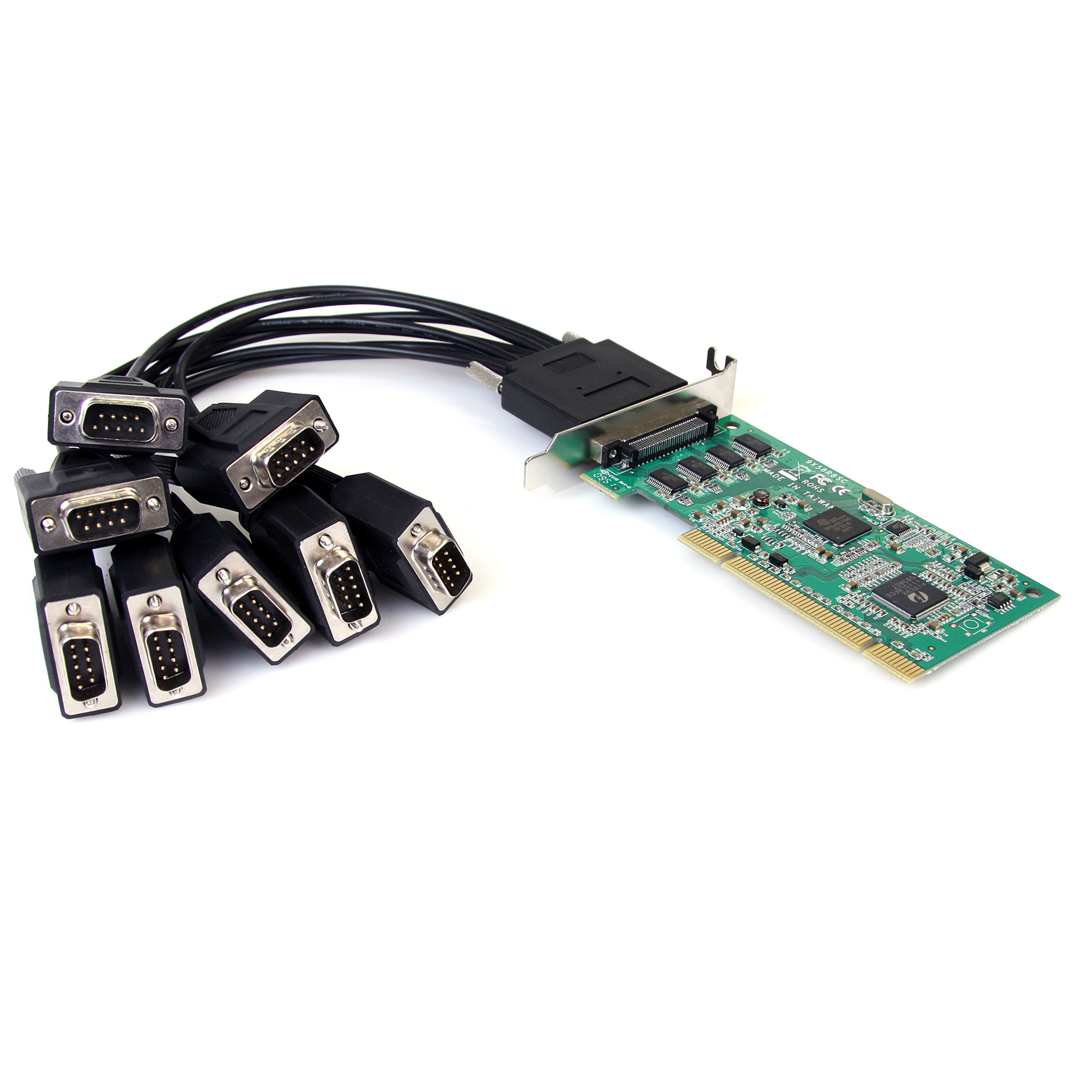

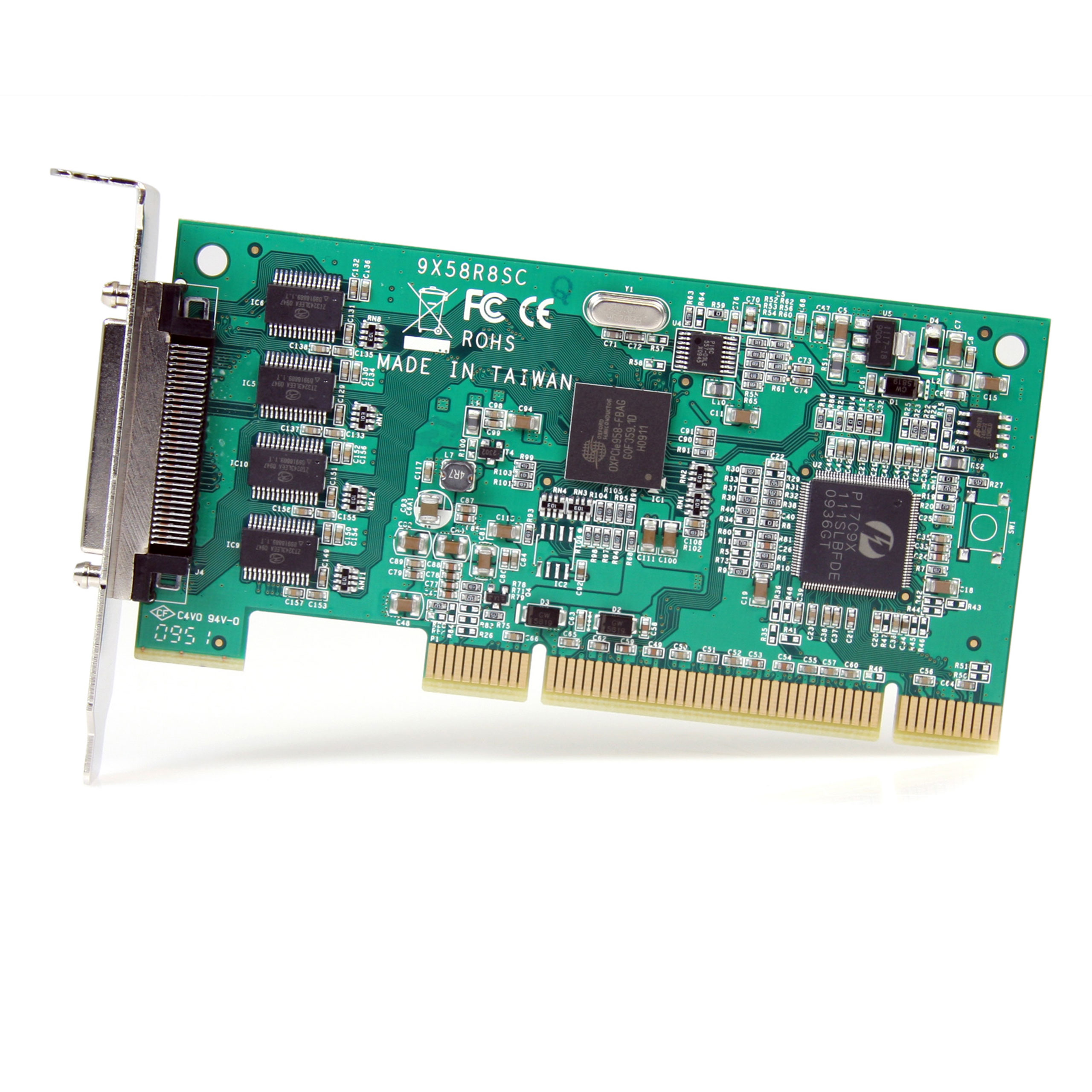

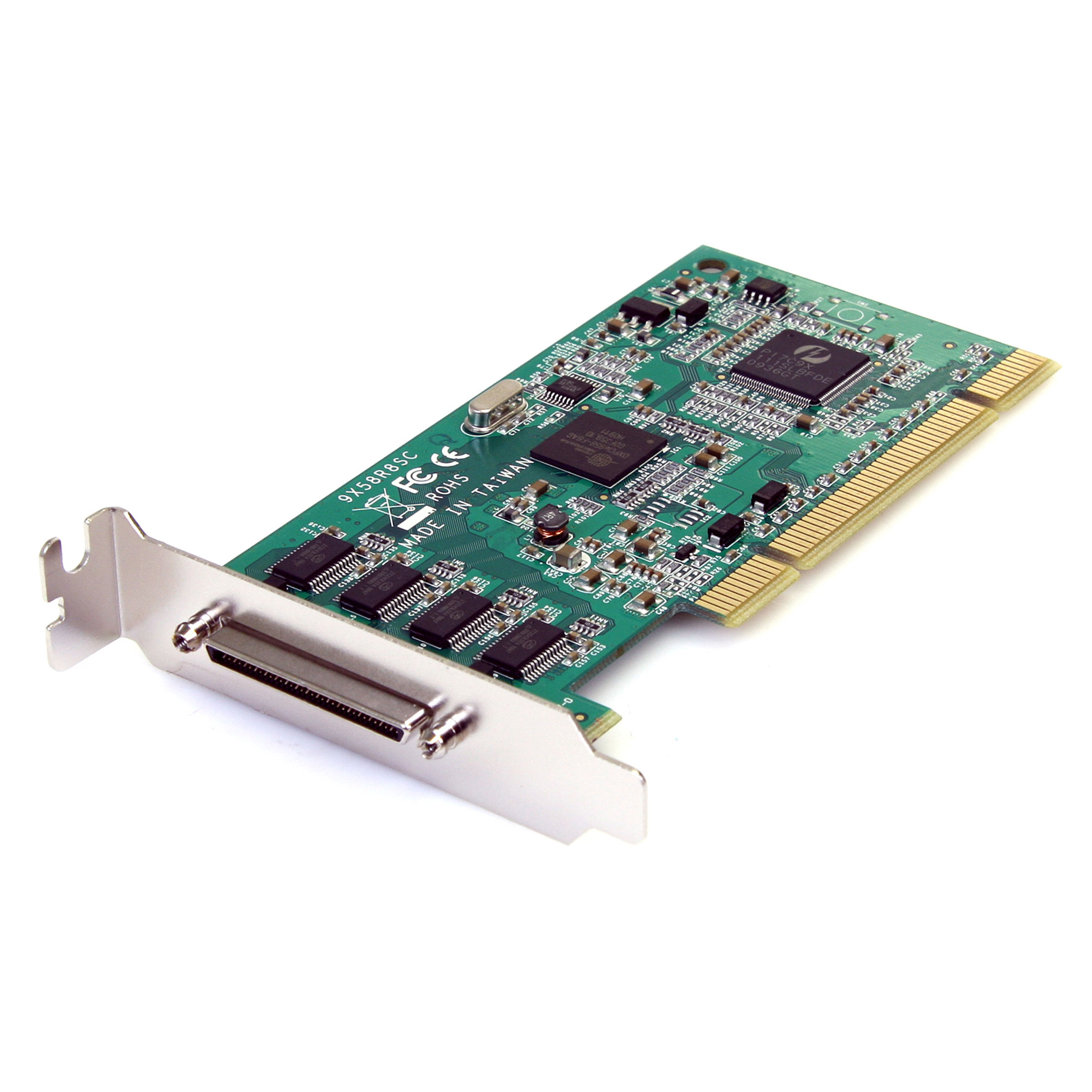

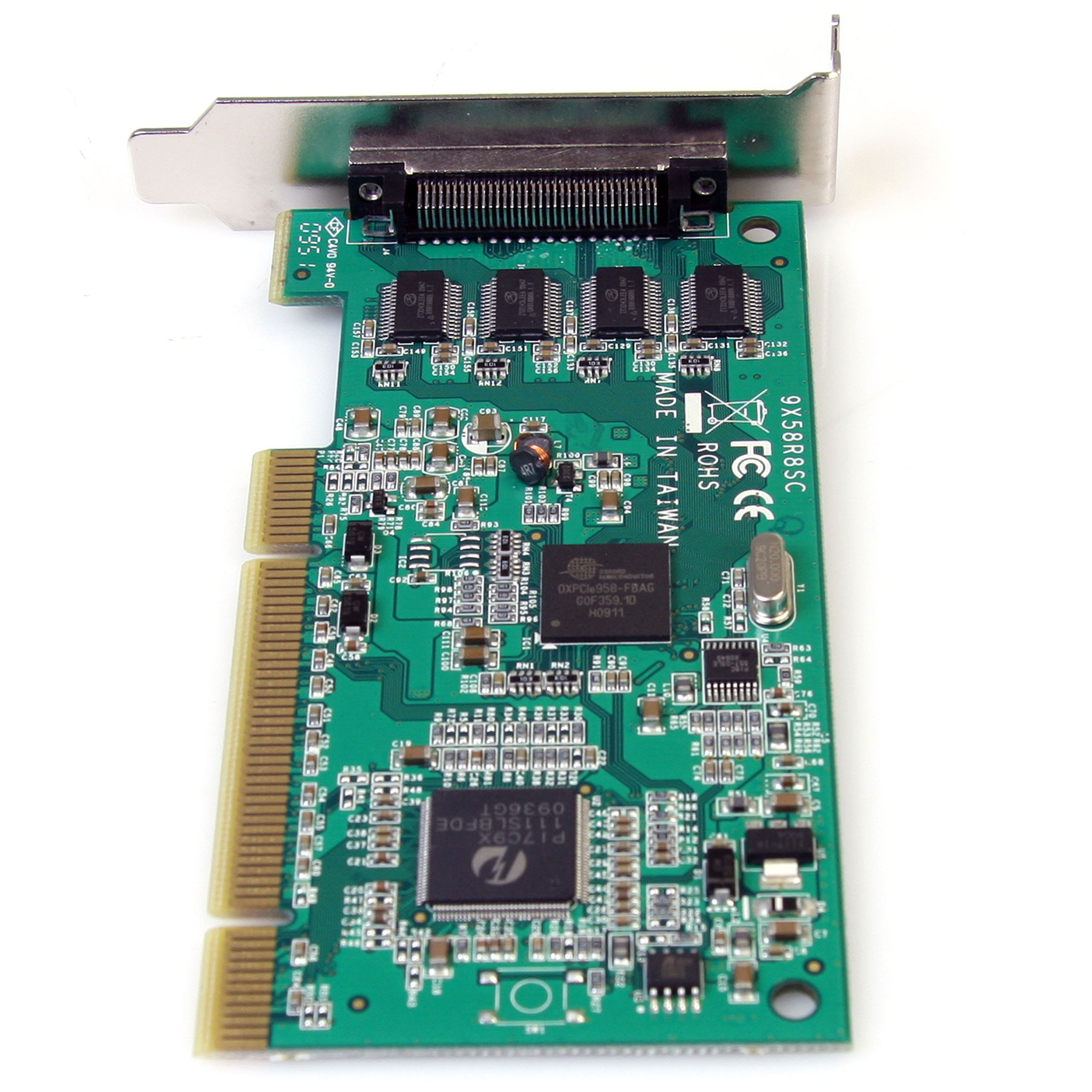

8 Port LP PCI Serial Adapter Card w/ 16950 UART
Add 8 RS-232 serial ports to your computer via a single low profile or full height PCI slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 8 Port LP PCI Serial Adapter Card w/ 16950 UART Product Number PCI8S950LP UPC 065030837620 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 8 Port LP PCI Serial Card w/ 16950 Product Title (Standard) 8 Port Low Profile RS232 PCI Serial Card w/ 16950 Product Title (Long) 8 Port Low Profile RS232 PCI Serial Card with 16950 UART Product Title (AMZ) 8 Port Low Profile RS232 PCI Serial Card with 16950 UART - PCI Serial Adapter - PCI rs232 - PCI Serial Card (PCI8S950LP) Title Ingram (Part 1) 8 Port Low Profile RS232 PCI Ser Title Ingram (Part 2) ial Card w/ 16950 UART Website Product Headline Add 8 RS-232 serial ports to your computer via a single low profile or full height PCI slot Bullet 1 Full 128-byte receiver and transmitter FIFOs, fully adjustable IRQ trigger levels and automated flow-control Bullet 2 IRQ sharing saves resources and eliminates conflicts Bullet 3 PCI Bus specification 2.2 and Power management 1.0 compliant Bullet 4 Automated in-Band, Xon/Xoff flow control Bullet 5 8 Port serial breakout cable from one VHDCI interface Marketing Copy Applications Website Search Keyword - High Density
- Eight Serial
- Low Profile
- PCI-X
- Breakout Cable
- Multiport serial
- Multi-port serial
Microsoft WHQL Certified Yes Accessory Products - MXT100
- DB9CONCABL6
- MXT100_25
- MXT10010
- MXT100FF
- MXT100MM
- NM9FF
- NM9MF
- SCNM925FM
- SCNM925FM25
- SCNM925FM50
- SCNM9FF
- SCNM9FF25
- SCNM9FM
Related Products - PCI1S950DV
- PCI2S485
- PCI2S485LP
- PCI2S650DV
- PCI2S650DVLP
- PCI2S650PW
- PCI2S950DV
- PCI4S422DB9
- PCI4S550N
- PCI4S650DV
- PCI4S650PW
- PCI8S650DV
- PCI4S422ISO
- PCI8S9503V
- PEX8S952
- PEX8S950LP
- PEX16S952LP
Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 126.5 Product Width (mm) 50 Product Height (mm) 20 Product Weight (g) 60 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No Data Bits 4, 5, 6, 7, 8 FIFO 128 Bytes Flow Control Xon/Xoff Max Baud Rate 460.8 Kbps OS Compatibility - Linux
- Windows Server 2012
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2016
- Windows 11

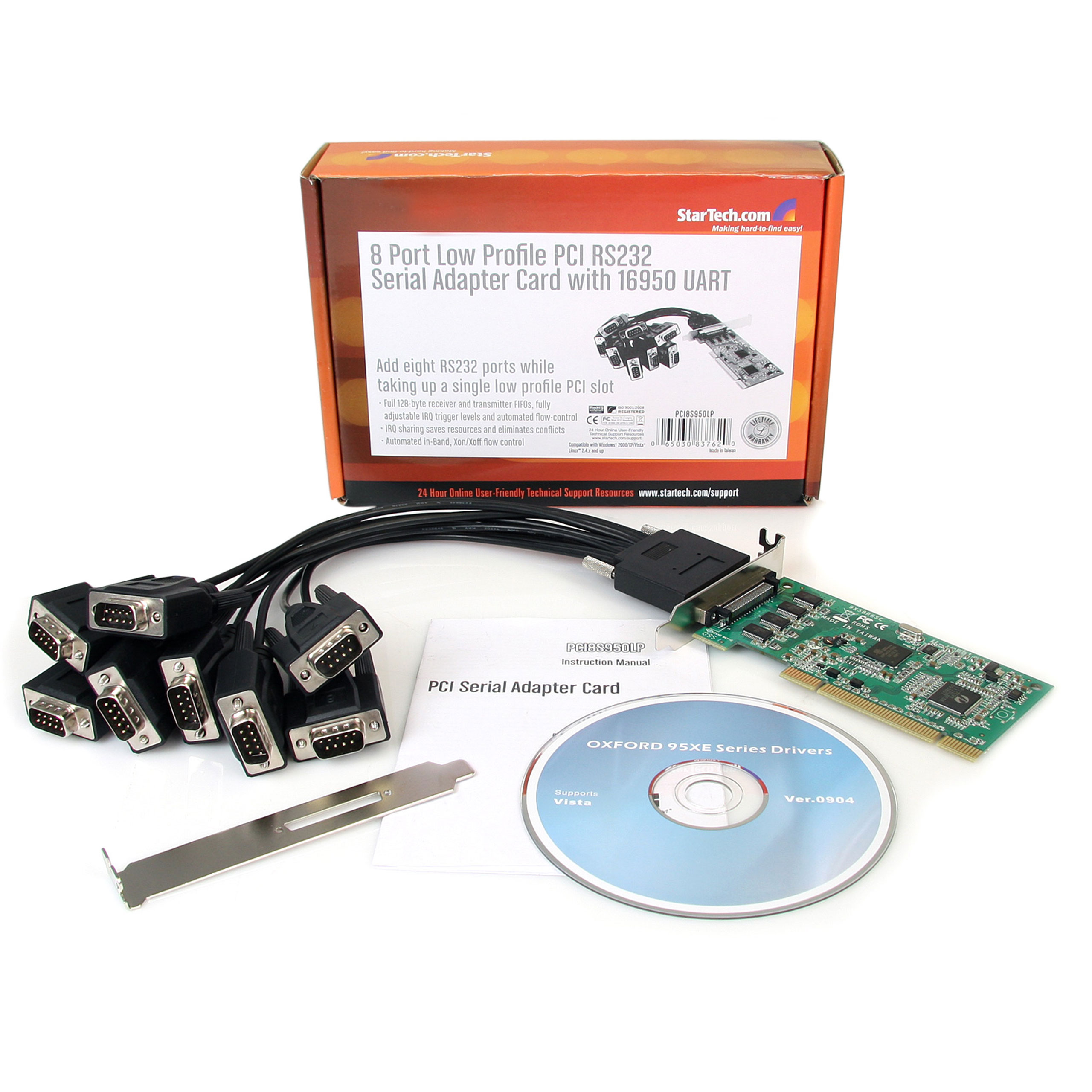

Parity None, Odd, Even, Space, Mark Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type PCI / PCI-X (5 / 3.3V) Card Type Low Profile (SP bracket incl.) Chipset ID PLX/Oxford - OXPCIe958 Industry Standards PCI Bus specification 2.2 and Power management 1.0 compliant Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 746 Carton Height (mm) 317 Carton Quantity 32 Carton Weight Gross (g) 17840 Included in Package - 1 - Low profile serial card

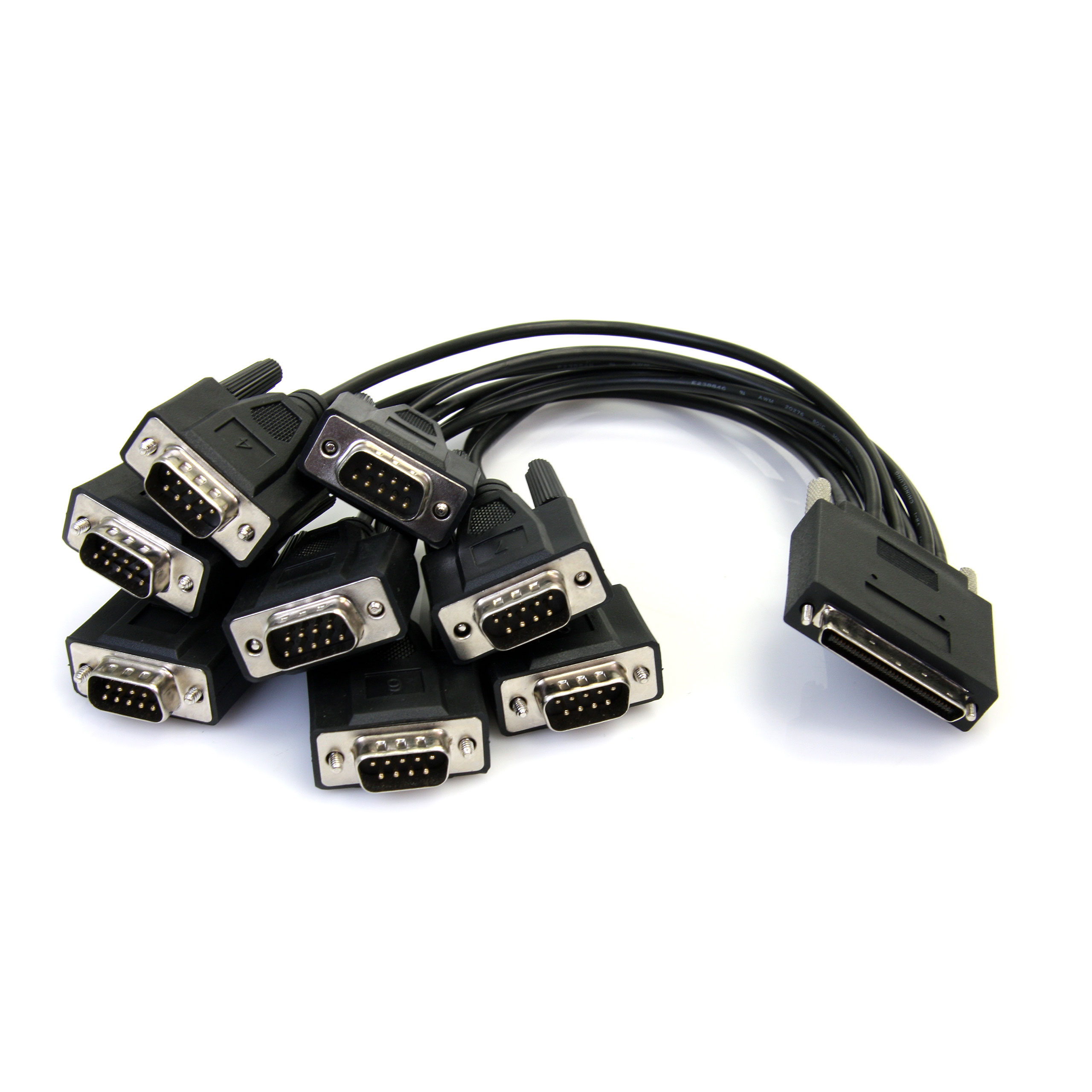

- 1 - 8 port serial dongle
- 1 - Full profile bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 56 Package Height (mm) 153 Package Width (mm) 216 Package Quantity 1 Package Weight (g) 520 Packaging Description 8 Port Low Profile PCI RS232 Serial Card Packaging Description India 8 Port Low Profile PCI RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 8 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
