PCIESATA2I

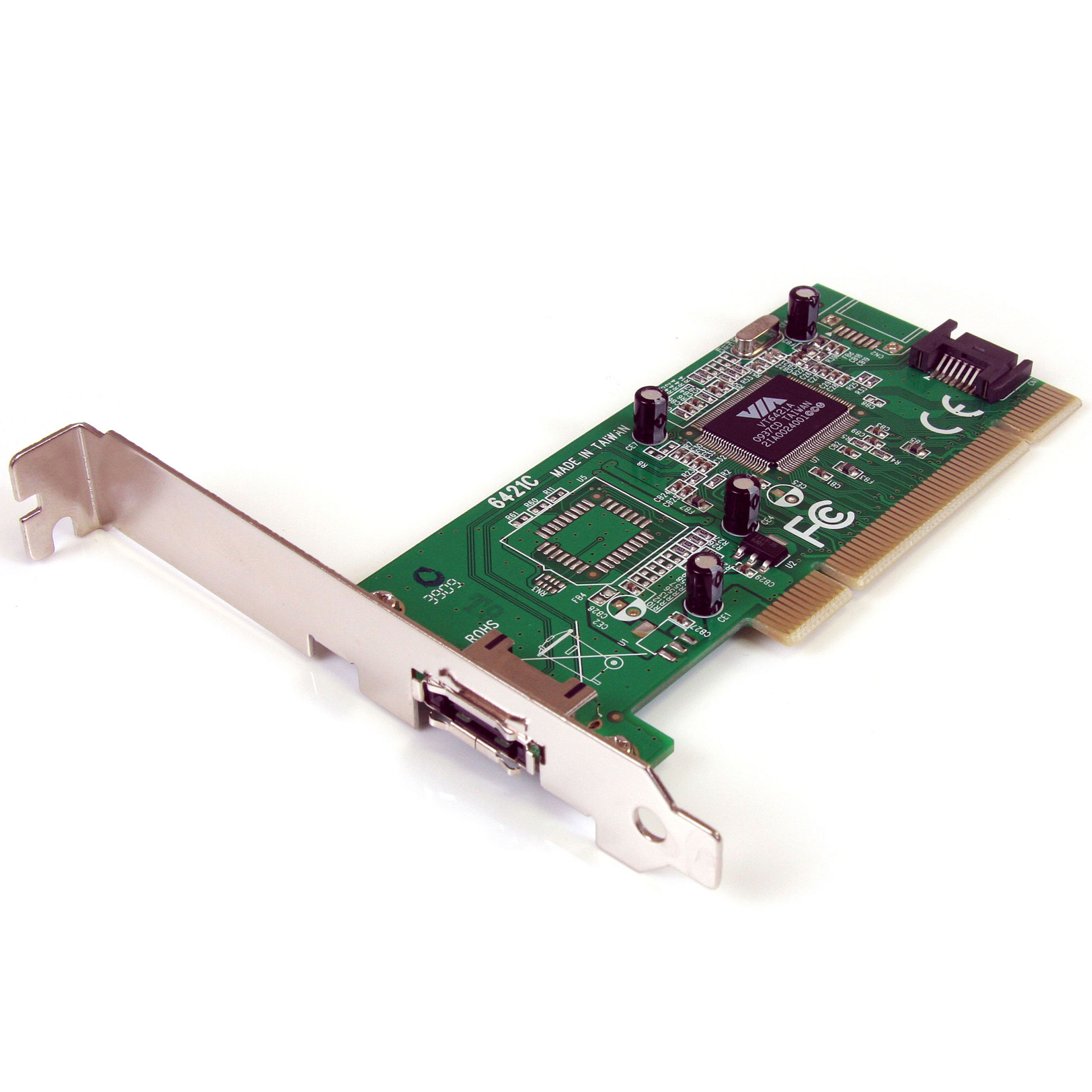

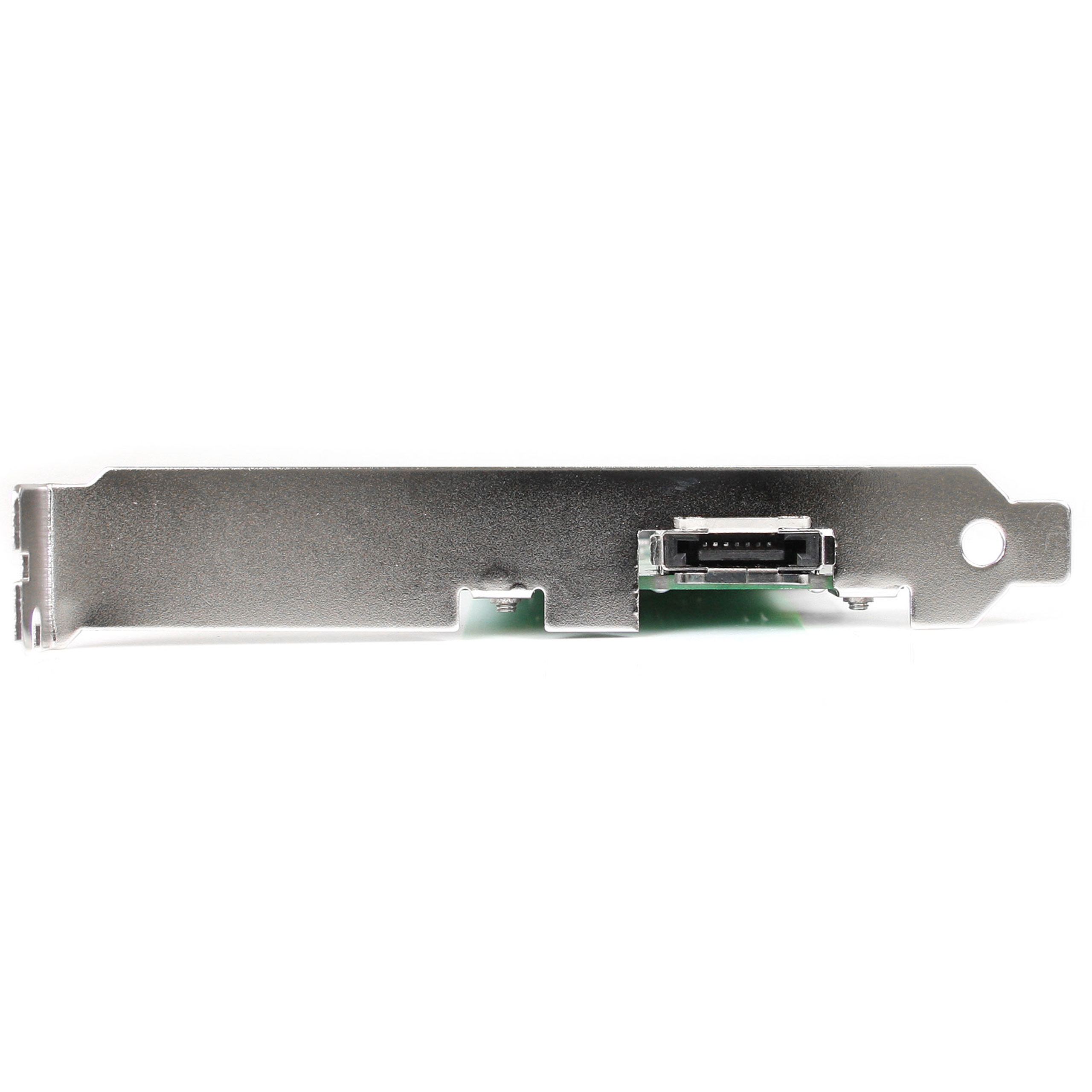

2 Port PCI SATA/eSATA Card 1 external 1 internal
Add an internal SATA port and an external SATA (eSATA) port to your desktop computer through a PCI expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port PCI SATA/eSATA Card 1 external 1 internal Product Number PCIESATA2I UPC 065030833851 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) eSATA / SATA PCI SATA Controller Card Product Title (Standard) Startech 1 Port eSATA + 1 Port SATA PCI SATA Controller Card Product Title (Long) 1 Port eSATA + 1 Port SATA PCI SATA Controller Card w/ LP Bracket Product Title (AMZ) 1 Port eSATA + 1 Port SATA PCI SATA Controller Card w/ LP BRacket - eSATA Controller - SATA II Controller (PCIESATA2I) Title Ingram (Part 1) 1 Port eSATA + 1 Port SATA PCI S Title Ingram (Part 2) ATA Controller Card Website Product Headline Add an internal SATA port and an external SATA (eSATA) port to your desktop computer through a PCI expansion slot Bullet 1 1 internal SATA port and 1 external eSATA port Bullet 2 Large capacity drive support with 48-bit Logical Block Addressing (LBA) Bullet 3 Fully compliant with the Serial ATA 1.0a specification, with transfer rates up to 1.5Gbps Bullet 4 Independent 256-byte FIFOs (32 bit x 64 deep) per SATA channel Bullet 5 Integrated PCI DMA engines Bullets (Consolidated) Storage controller - 2 Channel - SATA-150/eSATA standard size and low profile brackets - 1.5 GBps - PCI Marketing Copy Applications - Upgrade a PCI-based desktop with SATA and eSATA capabilities
- Add additional SATA capabilities to a desktop computer
- Add SATA capabilities to a low profile/small form factor (SFF) computer
Website Search Keyword - pci sata controller card
- pci esata controller card
- pci sata adapter
- pci esata adapter
- 1 port sata esata
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - ESATA3
- ESATA6
Related Products - PEXESATA2I
- PCISATA4R1
- PEXESATA2
- PEXSATA22I
- PEXESATA1
- PEXSATA24E
Color Green Material Steel Primary Material Steel Product Length (mm) 121.000 Product Width (mm) 54.000 Product Height (mm) 20.000 Product Weight (g) 46.600 TAA Compliant Yes Maximum Data Transfer Rate 1.5 Gb/sec OS Compatibility - Windows 7
- Linux
- Windows 8

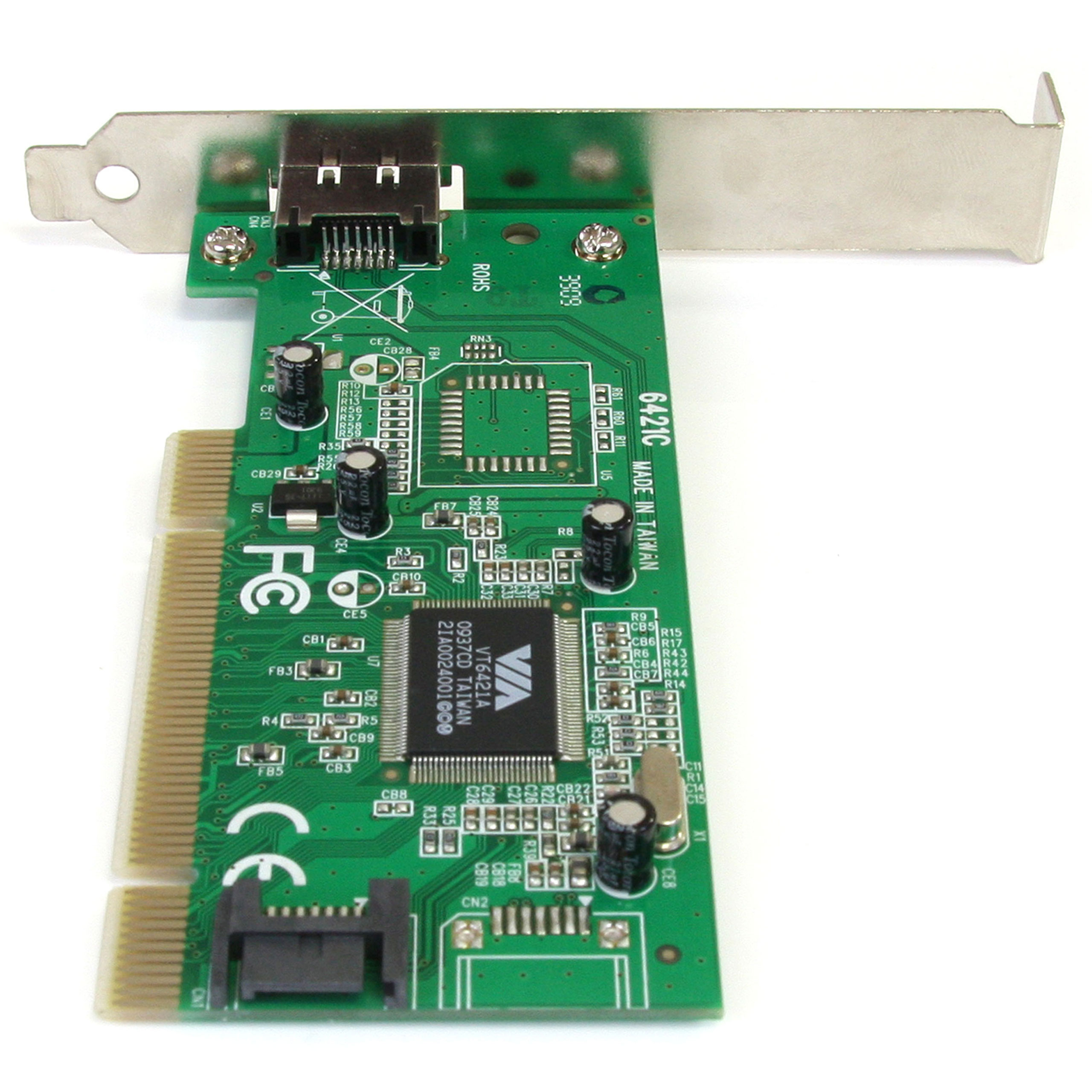

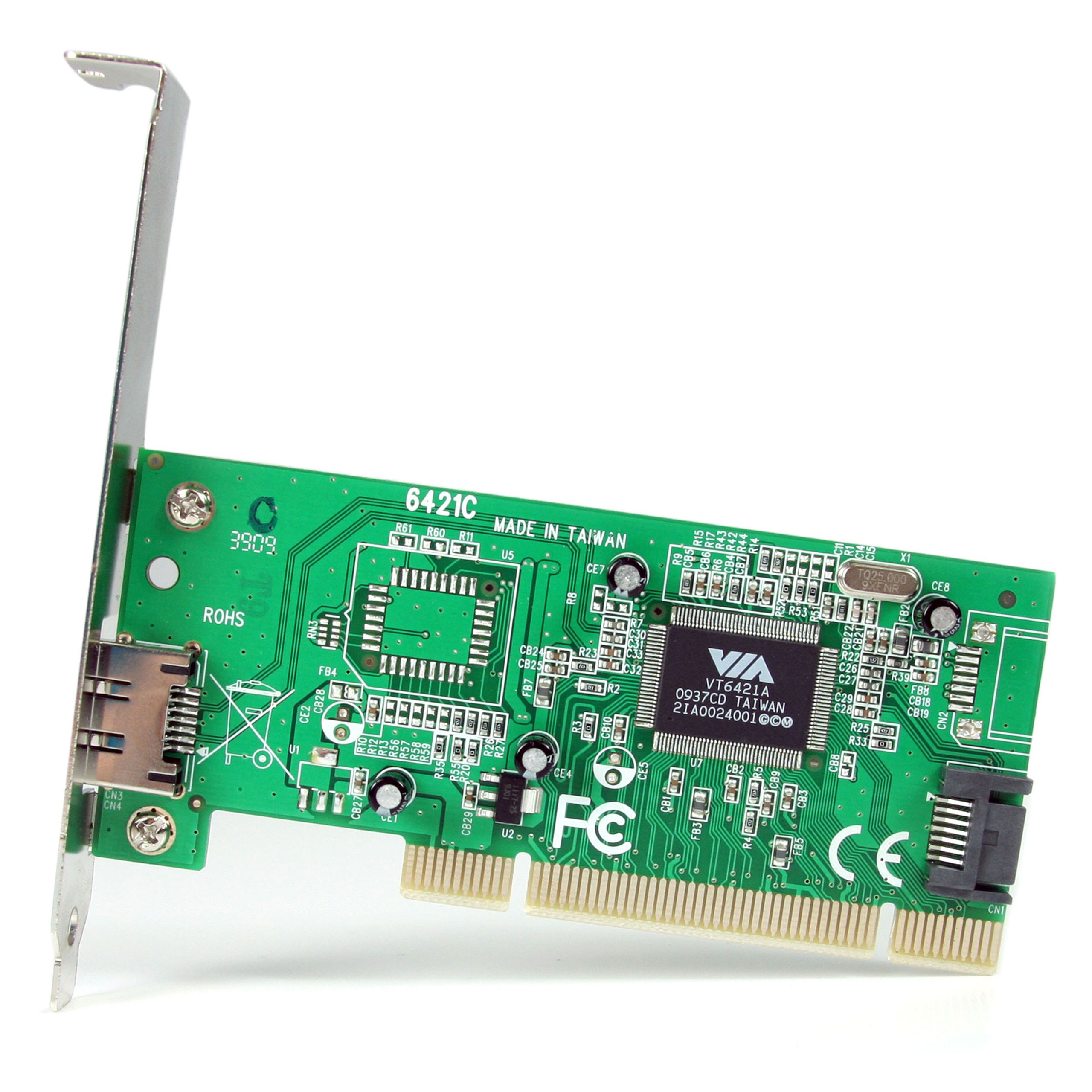

Port Multiplier No RAID No SATA Type and Rate SATA I (1.5 Gbps) Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID VIA/VLI - VT6421 Interface/Bridge - SATA
- eSATA & SATA

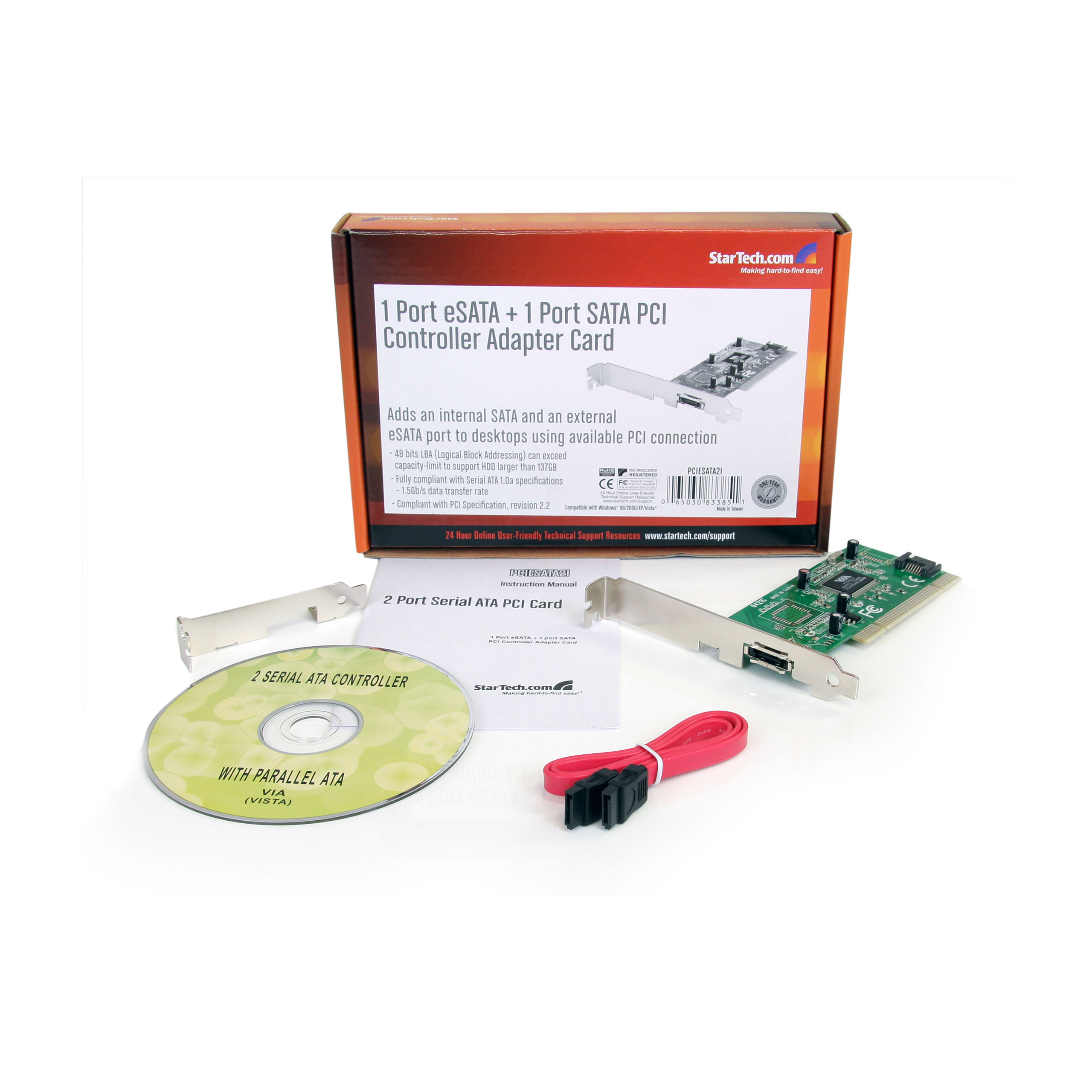

Carton Depth (mm) 410 Carton Height (mm) 310 Carton Quantity 65 Carton Weight Gross (g) 9642 Included in Package - 1 - PCI eSATA Card
- 1 - Low Profile Bracket
- 1 - SATA Data Cable
- 1 - Software CD
- 1 - Instruction Manual
Package Depth (mm) 144 Package Height (mm) 32 Package Width (mm) 172 Package Quantity 1 Package Weight (g) 142 Packaging Description eSATA/SATA PCI SATA Controller Card Packaging Description India eSATA/SATA PCI SATA Controller Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 eSATA (7-Pin) Connector 2 (Quantity) 1 Connector 3 SATA (7-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle None
