PCIIDE2

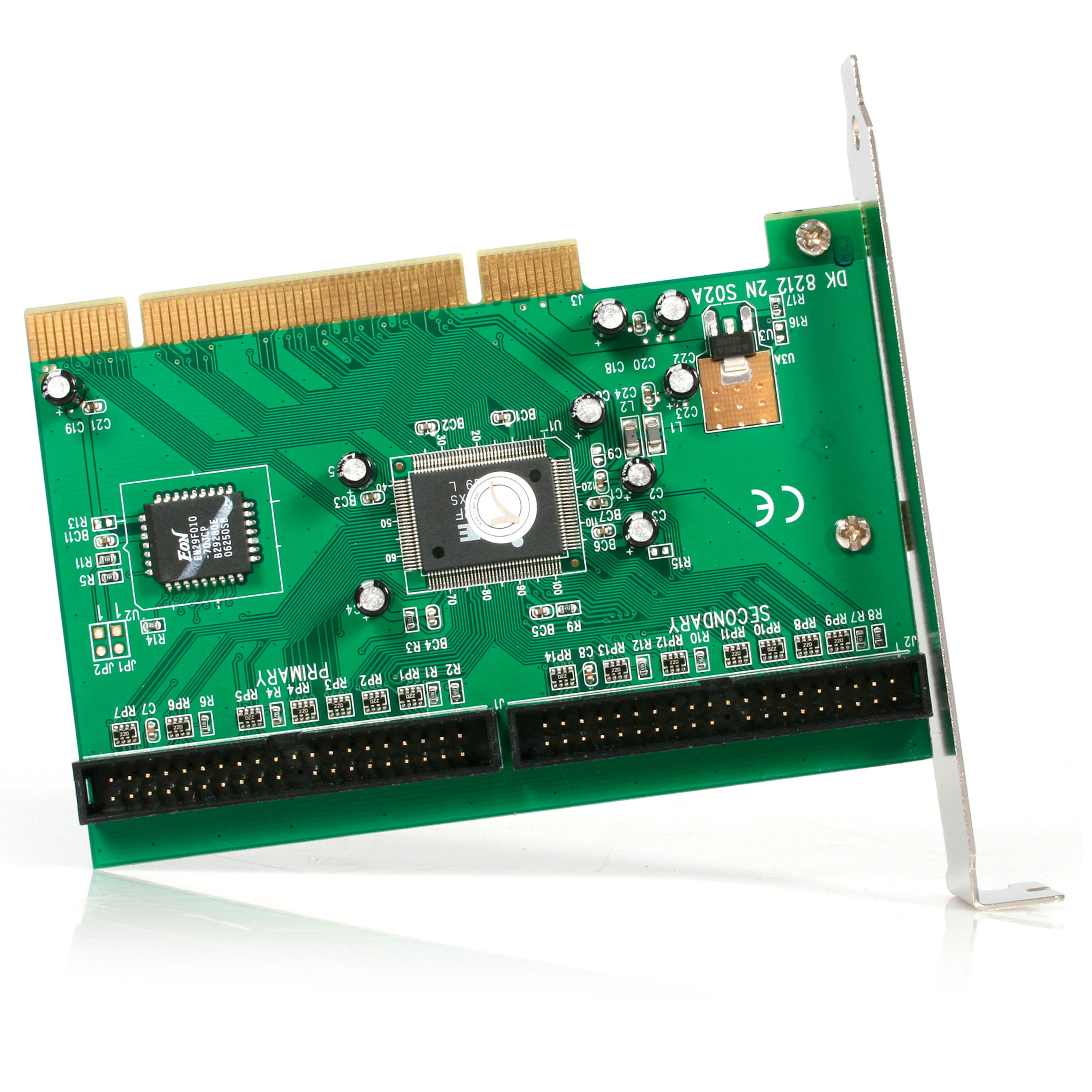

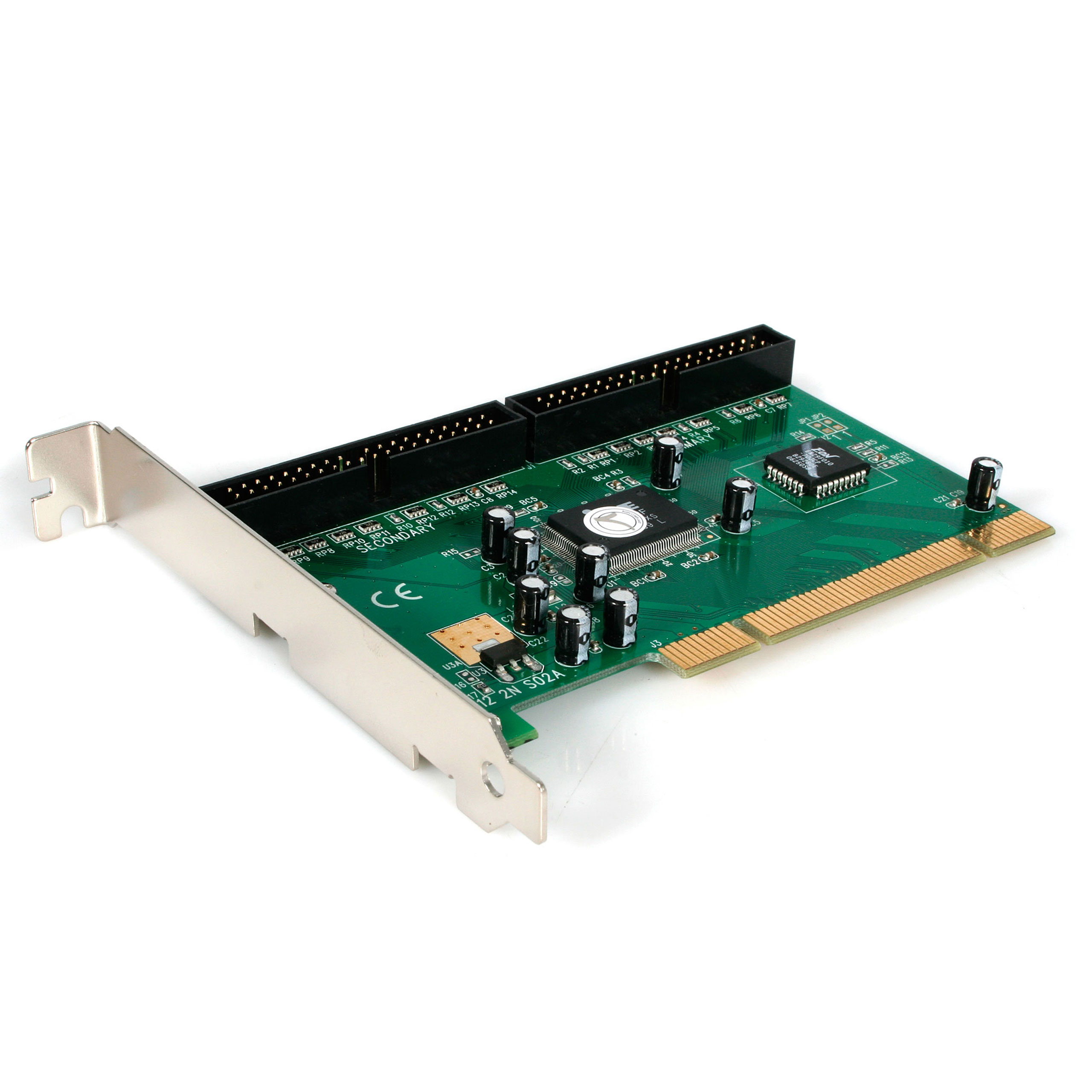

2 Port PCI ATA-133 IDE Adapter Card
Add two internal IDE connectors to a computer through a PCI slot
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port PCI ATA-133 IDE Adapter Card Product Number PCIIDE2 UPC 065030824330 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port PCI IDE Controller Adapter Card Product Title (Standard) StarTech.com 2 port PCI IDE Controller Adapter card Product Title (Long) 2 Port PCI IDE Controller Adapter Card Product Title (AMZ) 2 Port PCI IDE Controller Adapter Card - 2 Channel - 133 MBps (PCIIDE2) Title Ingram (Part 1) 2 Port PCI IDE Controller Adapte Title Ingram (Part 2) r Card Website Product Headline Add two internal IDE connectors to a computer through a PCI slot Bullet 1 48-bit LBA Bullet 2 Compliant with PCI specification revision 2.2 Bullet 3 Support for up to Ultra ATA/133 hard drives with transfer rates up to 133 MBps Bullet 4 Two dual channel IDE connectors Bullets (Consolidated) Storage controller - 2 Channel - ATA-133 - 133 MBps - PCI Marketing Copy Applications - Replace a failed IDE port on the motherboard
- Connect legacy hard drives, CD/DVD drives, ZIP drives, etc to a newer computer system
Website Search Keyword PCI IDE Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
Accessory Products - IDE100RND18
- IDE100RND24
- IDE100RND36
- IDE100TPO18
- IDERND24ELBL
- IDERND24UV
Product Length (mm) 120.000 Product Width (mm) 18.000 Product Height (mm) 85.000 Product Weight (g) 73.000 TAA Compliant Yes Max Drive Capacity Up to 132 GB Maximum Data Transfer Rate 133 MBps OS Compatibility - Linux
- Windows Server 2012
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

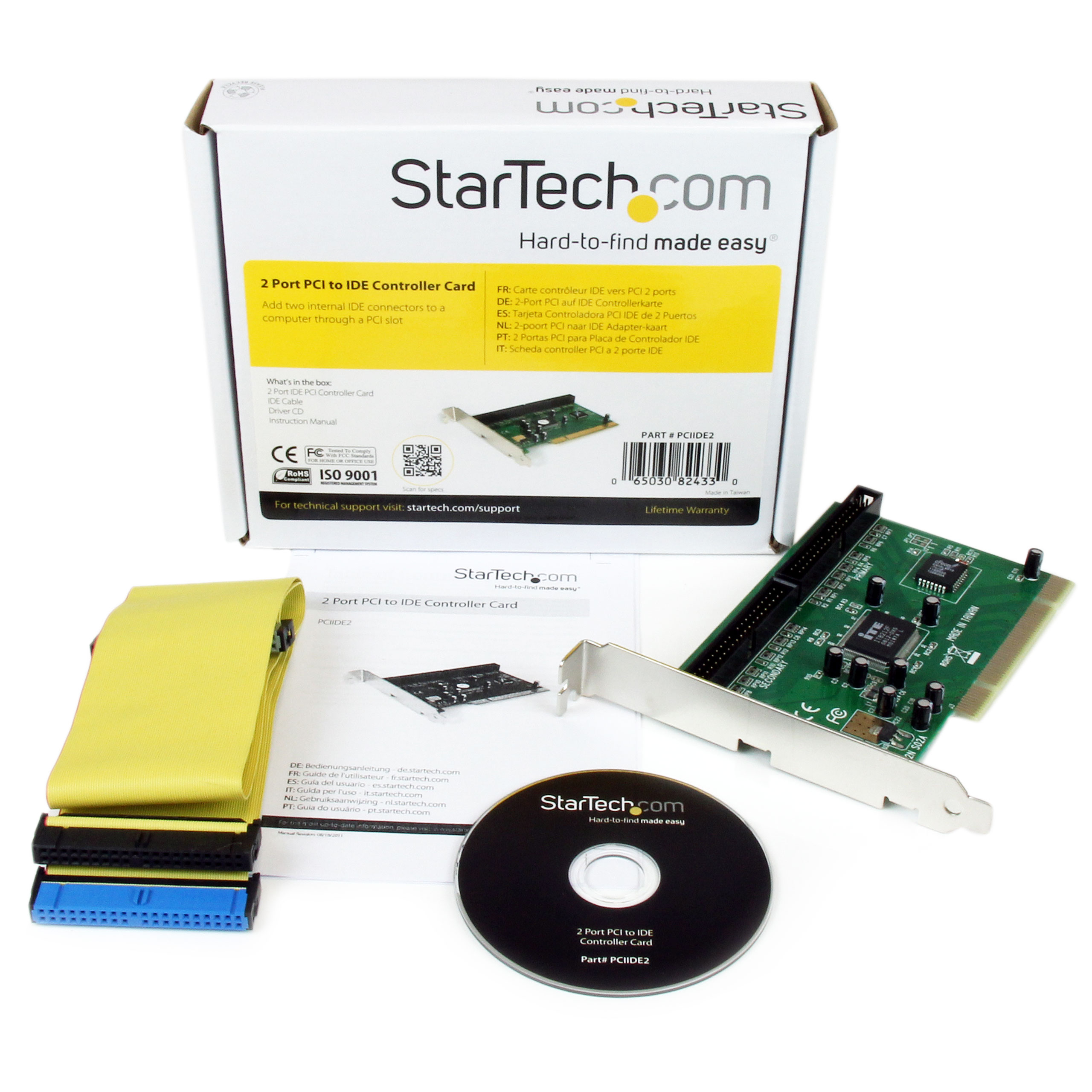

Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile Chipset ID ITE - IT8212F Industry Standards ATA/ATAPI-6 Interface/Bridge IDE Carton Depth (mm) 760 Carton Height (mm) 250 Carton Quantity 50 Carton Weight Gross (g) 12200 Included in Package - 1 - 2 Port IDE PCI Controller Card
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - IDE Cable
Package Depth (mm) 39 Package Height (mm) 143 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 220 Packaging Description 2 Port PCI to IDE Controller Card Packaging Description India 2 Port PCI to IDE Controller Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle Legacy
