PCISATA2A133
Main Image

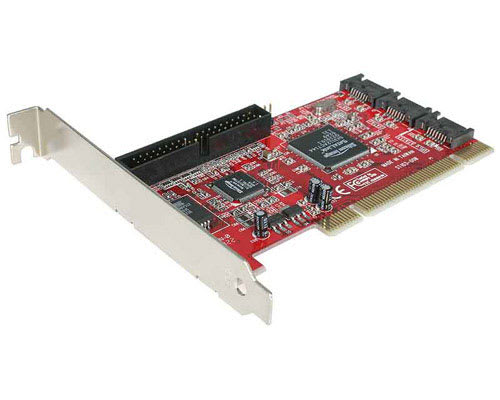

Product Name 2 Port Serial ATA and 1 Port ATA/133 IDE PCI Card Product Number PCISATA2A133 UPC 065030805155 Warranty Lifetime Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Country of Origin History (2) Taiwan Product Title (Long) 2 Port Serial ATA and 1 Port ATA/133 IDE PCI Card Bullet 1 Two internal high-speed Serial ATA ports with data transfer up to 150 MBytes/sec Bullet 2 One internal IDE port with data transfer up to133 MBytes/sec Bullet 3 Universal IO bracket easily fits any low profile or full-sized system Bullet 4 Integrated PCI DMA engines Bullet 5 Includes features like Serial ATA to PCI interrupt masking and Watch Dog Timer for fault resiliency Marketing Copy Applications - Ideal for institutions and individuals using both IDE and Serial ATA drives on the same system
- Great for use with Serial ATA, ATAPI devices, ATA/133, ATA/100, ATA/66, ATA/33, EIDE and IDE storage devices (DVD CD-ROM, CD-RW, hard drives)
Accessory Products - SATA18
- SATA18POW
- SATA24
- SATA36
- IDE_
- IDE100RND18
- IDE100RND24
- IDE100RND36
- IDE36
- IDE44
- IDE66
- IDE66_36
- IDERND18BL
- IDERND18CL
- IDERND18PWBL
- IDERND18RD
- IDERND18YL
- IDERND24BL
- IDERND24CL
- IDERND24PWBL
- IDERND24RD
- IDERND24YL
- IDERND36BL
- IDERND36CL
- IDERND36PWBL
- IDERND36RD
- IDERND36YL
- IDERND24ELBL
- IDERND24UV
- SATA24BLEL
- SATA24BLUV
- SATA24GNEL
- SATA24GNUV
- SATA24RDEL
- SATA24RDUV
Related Products - PCISATA2
- PCI2IDE133
TAA Compliant No General Specifications - OS Support: Windows 98/98SE/ME/NT 4.0/2000 and XP
- IDE Hard Drive Support: Ultra ATA/33, ATA/66, ATA/100 and ATA/133
- Serial ATA Hard Drive Support: Serial ATA/150
- Serial ATA Data Transfer Rate: Up to 150 MBytes/sec
- IDE Data Transfer Rate: Up to 133 MBytes/sec
- PCI Bus: 32-bit, 33/66 MHz
- FIFO: 256 Bytes per channel
OS Compatibility Windows Vista Bus Type PCI / PCI-X (5 / 3.3V) Industry Standards - PCI 2.2
- Serial ATA V1.0
Connector 1 IDE / PATA (ATA/133) Connector 1 (Quantity) 1 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 3 en-US Content Approved Yes
