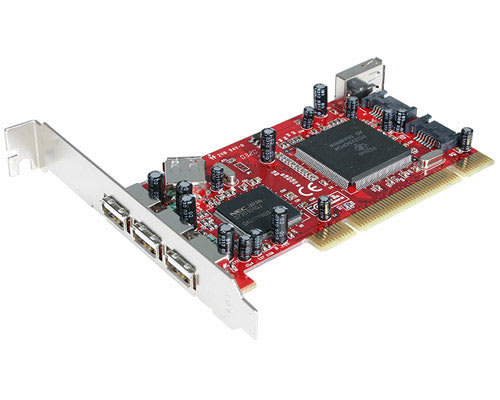

PCISATA2U5
Main Image
Product Name 2 SATA and 5 USB 2.0 PCI Combo Card Product Number PCISATA2U5 UPC 065030805117 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Long) 2 Port Serial ATA and 5 Port USB 2.0 Slot Saver PCI Card Bullet 1 Bullet 2 Two independent Serial ATA channels supports up to 2 Serial ATA hard drives Bullet 3 Compliant with Serial ATA specification V1.0 Bullet 4 Includes features like Serial ATA to PCI interrupt masking and Watch Dog Timer for fault resiliency Bullet 5 Marketing Copy Applications Connect to a wide range of internal and external USB 2.0 and SATA devices including CD-RW/DVD-ROMs, removable hard drives, video cameras, digital camcorders/cameras, mice, keyboards, scanners, printers and MP3 players/iPods Website Search Keyword HardToFind Accessory Products - USB2HAB6
- USB2HAB10
- USB2HAB15
- SATA18
- SATA24
- SATA36
- USB2HAB6LEDB
- SATA24BLUV
Related Products - PCISAT2F3U4
- PCI3UV22F
TAA Compliant No General Specifications - Internal Ports: 2 x 7-pin (female) Serial ATA ports
- Data Transfer Rate: Up to 150 MBytes/sec
- Standards: Serial ATA specification version 1.0 compliant
- FIFO: 256 Bytes/port
- External Ports: 3 x 4-pin (female) USB 2.0 ports
- Internal Ports: 2 x 4-pin (female) USB 2.0 ports
- Data Transfer Rate: Up to 480 Mbits/sec
- Standards: USB 2.0, OHCI USB Rev 1.0a & EHCI USB Rev 0.95 compliant
- Form Factor: Full-Sized or Low Profile PCI Card
- Minimum Processor Requirements: PC - Intel Pentium 2 at 400MHz or faster, Intel Celeron at 900MHz or faster, AMD Athlon of any speed
- OS Support: Windows 98SE/ME/2000/XP/Server 2003 and up
Maximum Data Transfer Rate 1200000000 MBytes/Sec OS Compatibility Windows Vista Bus Type PCI (5 Volt) Carton Depth (mm) 342 Carton Height (mm) 500 Carton Quantity 32 Carton Weight Gross (g) 7920 Package Depth (mm) 46 Package Height (mm) 158 Package Width (mm) 218 Package Weight (g) 210 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 5 en-US Content Approved Yes Product Manager Rafal Gwozdz
