PCISATA4R1
4 Port PCI Serial ATA Raid 0,1 Card
Add 4 SATA ports to your PC through a PCI expansion slot, with support for high-performance RAID array installation
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port PCI Serial ATA Raid 0,1 Card Product Number PCISATA4R1 UPC 065030805162 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Short) 4 Port PCI SATA RAID Controller Adapter Product Title (Standard) StarTech.com 4 Port PCI SATA RAID Controller Adapter Card Product Title (Long) 4 Port PCI SATA RAID Controller Adapter Card Product Title (AMZ) 4 Port PCI SATA RAID Controller Adapter Card - PCI SATA RAID Card with Low Profile / Half-Height Bracket (PCISATA4R1) Title Ingram (Part 1) 4 Port PCI SATA RAID Controller Title Ingram (Part 2) Adapter Card Website Product Headline Add 4 SATA ports to your PC through a PCI expansion slot, with support for high-performance RAID array installation Bullet 1 4 internal SATA ports Bullet 2 Large capacity drive support with 48-bit Logical Block Addressing (LBA) Bullet 3 Hot-Spare and Hot-Plugging support Bullet 4 Supports first-party DMA commands for Native Command Queuing Bullet 5 Fully compliant with the Serial ATA 1.0a specification, with transfer rates up to 1.5Gbps Bullets (Consolidated) Add 4 SATA ports to your PC through a PCI expansion slot with support for high-performance RAID array installation - PCI SATA - SATA Card - SATA Controller - PCI SATA RAID - PCI SATA 150 - Storage Controller Marketing Copy Applications - Add additional SATA ports to a low profile/small form factor (SFF) computer system
- Perfect for multi-drive internal RAID storage solutions
- Expand an older PCI-based PC or server system with 4 additional SATA ports
Website Search Keyword RoHS Special Notes While the PCISATA4R1 card supports any size hard drive in JBOD mode, the max supported drive size when in RAID mode is 2 TB (per port) Accessory Products - SATA18
- SATA24
- SATA36
- SATA18POW
- SATA18RA1
- SATA24RA1
- SATA36RA1
- SATARA24
- SATARA36
- SATA24BLEL
- SATA24BLUV
- SATA24GNEL
- SATA24GNUV
- SATA24RDEL
- SATA24RDUV
Related Products - PCISATA2A133
- PCISATA2EXT
Humidity 15% ~ 90% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 120 Product Width (mm) 45 Product Height (mm) 22 Product Weight (g) 46 Storage Temperature -25°C to 70°C (-14°F to 158°F) TAA Compliant No FIFO 256 Bytes per channel Maximum Data Transfer Rate 1.5Gbps OS Compatibility - Linux
- Windows 7
- Windows 8
- Windows Server 2012
- Windows 10
- Windows 11

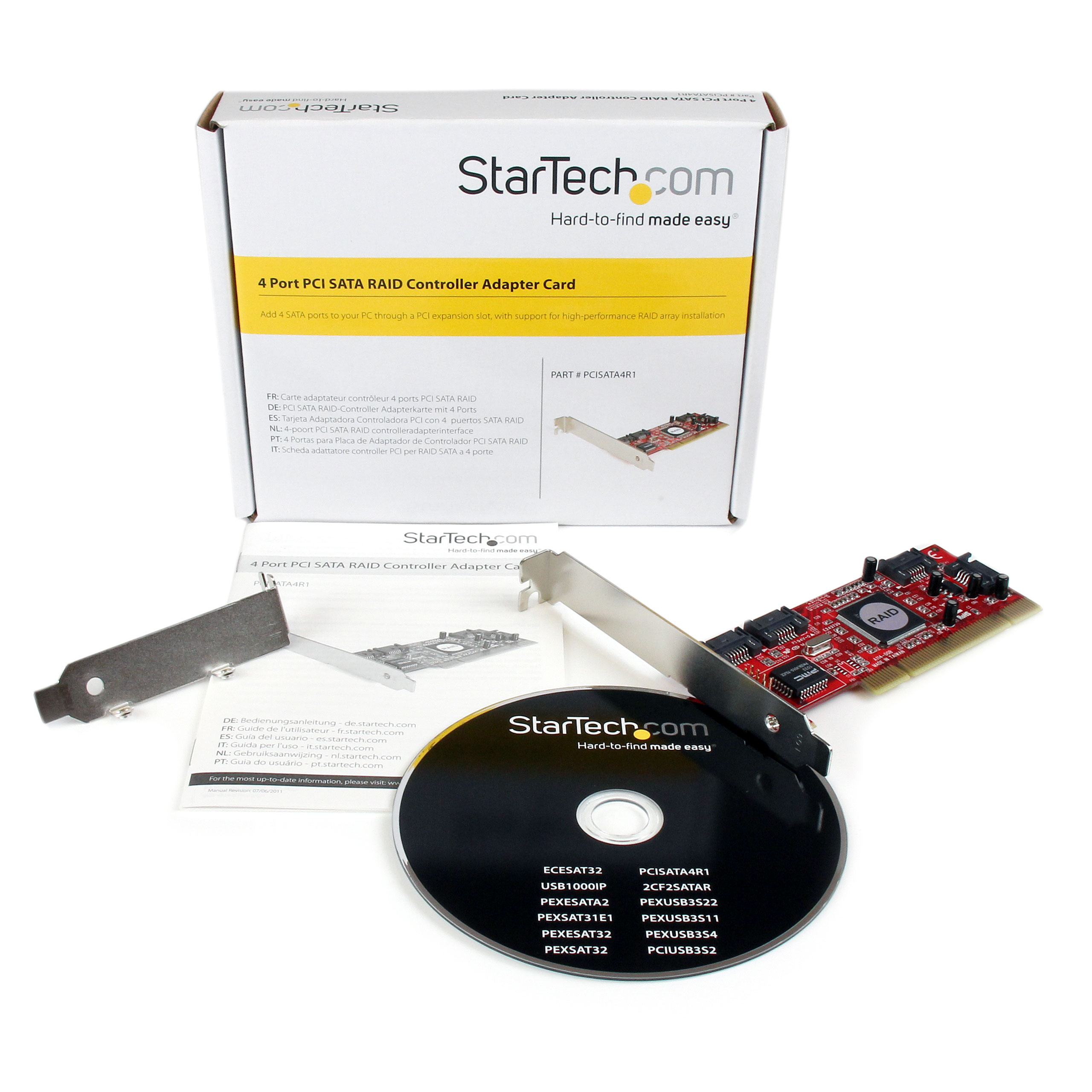

Port Multiplier No RAID Yes SATA Type and Rate SATA I (1.5 Gbps) Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID Silicon Image - SiI3114R Interface/Bridge SATA Carton Depth (mm) 500 Carton Height (mm) 350 Carton Quantity 40 Carton Weight Gross (g) 4200 Included in Package - 1 - PCI SATA card
- 1 - Instruction Manual
- 1 - Installation CD
- 1 - Low Profile Bracket
Package Depth (mm) 48 Package Height (mm) 160 Package Width (mm) 217 Package Quantity 1 Package Weight (g) 200 Packaging Description 4 Port PCI SATA RAID Controller Adapter Card Packaging Description India 4 Port PCI SATA RAID Controller Adapter Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle Legacy
