PCISCSIUW
PCI Ultra Wide SCSI Card 40Mbps-15 Drive
Connect up to 15 Ultra Wide SCSI devices to a computer through a PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCI Ultra Wide SCSI Card 40Mbps-15 Drive Product Number PCISCSIUW UPC 065030785433 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 1 Port PCI SCSI Controller Adapter Card Product Title (Standard) StarTech.com 1 Port PCI Ultra Wide SCSI Controller Adapter Card Product Title (Long) 1 Port PCI Ultra Wide SCSI Controller Adapter Card Title Ingram (Part 1) 1 Port PCI Ultra Wide SCSI Contr Title Ingram (Part 2) oller Adapter Card Website Product Headline Connect up to 15 Ultra Wide SCSI devices to a computer through a PCI slot Bullet 1 Includes built-in programmable automatic SCSI termination Bullet 2 BIOS and driver support for hard drive, tape, CD-ROM, and removable media peripherals Bullet 3 Supports most PC operating systems Bullet 4 Support up to 15 devices Marketing Copy Applications Connect hard drives, CD-ROM drives, DVD drives, tape drives, scanners, and more to your PC Accessory Products - SCSI3INT7
- SCSI25HP68_3
- SCSI2W2EXT_3
- SCSI33PEX4
- SCSI3INT
- SCSI3INT5
Related Products - PCISCSIU2W
- PCISCSI2U
- PCISCSI2

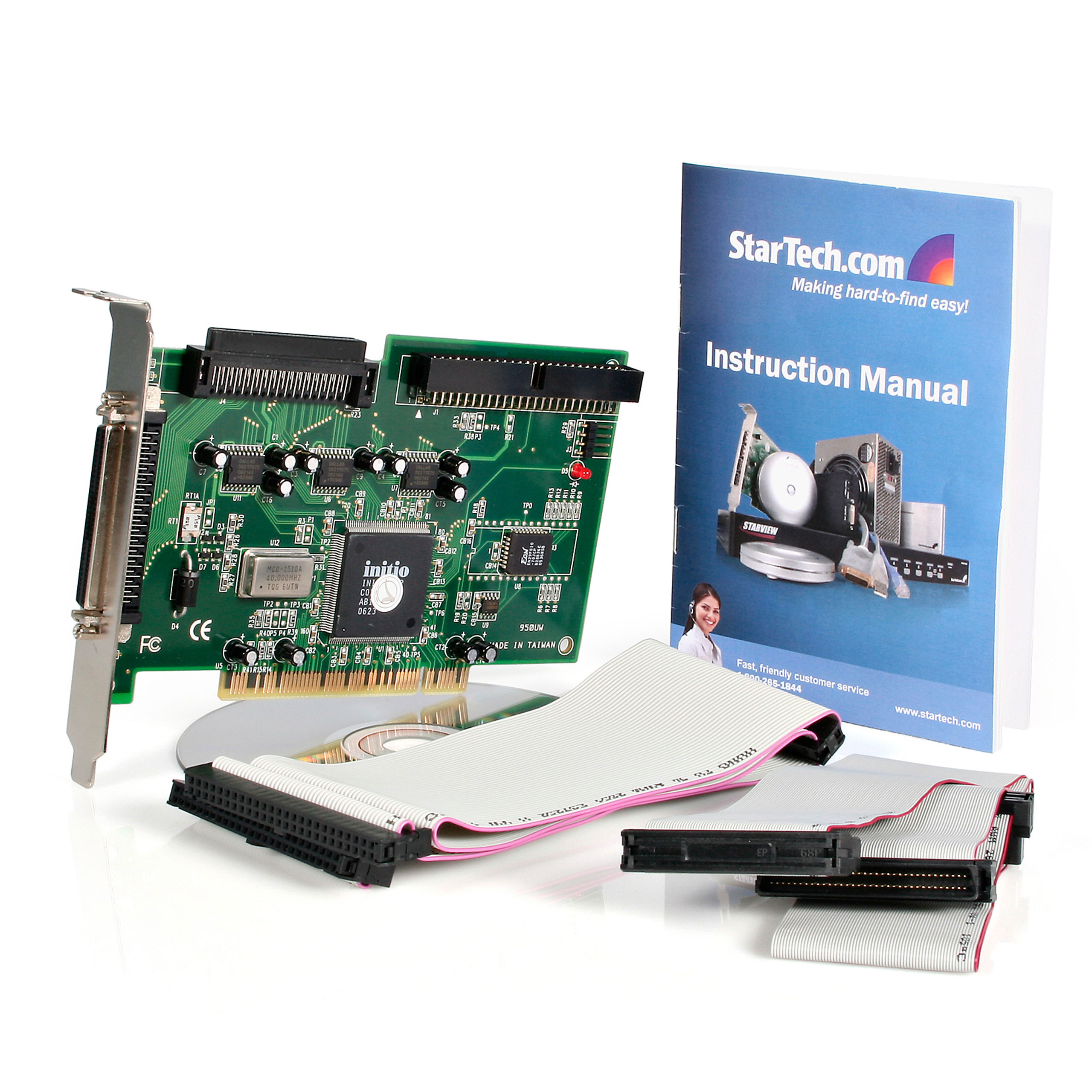

Product Length (mm) 150 Product Width (mm) 18 Product Height (mm) 100 Product Weight (g) 200 TAA Compliant No Maximum Data Transfer Rate 40 MBps Bus Type PCI (5 Volt) Chipset ID Initio - INIC-950 Industry Standards Signal Voltage Support: High Voltage Differential/SE Interface/Bridge Ultra Wide SCSI Carton Depth (mm) 500 Carton Height (mm) 350 Carton Quantity 40 Carton Weight Gross (g) 13100 Included in Package - 1 - Ultra Wide SCSI PCI Card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - 50-Pin SCSI Cable
- 1 - 68-pin SCSI Cable
Package Depth (mm) 54 Package Height (mm) 152 Package Width (mm) 216 Package Weight (g) 350 Packaging Description 1 Port PCI Ultra Wide SCSI Controller Packaging Description India 1 Port PCI Ultra Wide SCSI Controller Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 HPDB68 SCSI-3 (68-Pin) Connector 2 (Quantity) 1 Connector 3 IDC50 SCSI-1 (50-Pin) Connector 3 (Quantity) 1 Connector 4 HPDB68 SCSI-3 (68-Pin) Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
