Main Image
PCISOUND5LP
5.1 Channel PCI Low Profile Sound Card
Add 5.1 channel audio to a desktop PC through a low profile PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 5.1 Channel PCI Low Profile Sound Card Product Number PCISOUND5LP UPC 065030834742 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 5 Channel LP PCI Sound Adapter Card Product Title (Standard) StarTech.com 5 Channel Low Profile PCI Sound Adapter Card - Sound card - 24-bit - 5.1 - PCI - low profile Product Title (Long) 5 Channel Low Profile PCI Sound Adapter Card – 24 Bits Product Title (AMZ) 5 Channel Low Profile PCI Sound Adapter Card - 24 Bits - 5.1 channel PCI sound Card - PCI 5.1 sound Card (PCISOUND5LP) Title Ingram (Part 1) 5 Channel Low Profile PCI Sound Title Ingram (Part 2) Adapter Card – 24 Bits Website Product Headline Add 5.1 channel audio to a desktop PC through a low profile PCI slot Bullet 1 5.1 channel surround sound output via 3.5mm mini-jacks Bullet 2 DirectSound 3 hardware acceleration Bullet 3 Support for Dolby Digital EX and DTS ES 5.1 channel playback Bullet 4 Full-Duplex operation for recording and playback Bullet 5 Supports up to 96KHz/24-bit playback and 48KHz/16-bit recording sampling rates Marketing Copy This 5 Channel PCI Sound Adapter Card is the ideal sound solution for low profile/small form factor PC computers, supporting full-duplex operation with 6 outbound streams and 2 simultaneous input streams. Offering everything you need to take your multimedia experience to the next level, the 5-channel sound card supports the latest Dolby Digital EX and DTS 5.1 Channel DVD soundtracks, and 96Khz/24bit audio playback. The sound card includes Windows WDM supported drivers, which save both time and hassle, allowing you to add high quality audio in minutes. Equipped with a low profile bracket, the 5-channel Sound Card also includes a standard profile (full-height) mounting bracket and is PCI v2.2 compliant, so it can be installed in virtually any PCI-capable PC regardless of the size of the computer case - a cost-effective HTPC (Home Theater PC) solution! This high quality 5.1 Surround Sound card is backed by StarTech.com's 2-year warranty and free lifetime technical support. Applications - Replace failed or stereo-only onboard audio for a small form factor or full desktop system
- Upgrade to 5.1 audio for a desktop without onboard audio or less than 5.1 surround
- Build a inexpensive home theater PC or multimedia PC with surround sound capabilities
Website Search Keyword - Surround Sound
- 5.1 Channel
- Low Profile Sound Adapter
- Audio Card
- Audio Adapter
- Dual Profile
- Sound Recording
- Midi card
- MPC2
- MPC3
- AUX Audio
- Line In
- Sub
- Subwoofer
Accessory Products - MU6MF
- MU12MF
- MU6MM
- MUMFRCA
- MU6MMRCA
- MU1MFRCA
- MUY6MFF
- CDAUDIO2BULK
- CDAUDIO2
- CDAUDIO3
Related Products - PCISOUND4LP
- PCISOUND4CH
- PCISOUND5CH
- ICUSBAUDIO
Humidity 20-80% RH Operating Temperature 20°C to 50°C (68°F to 122°F) Product Length (mm) 121 Product Width (mm) 18 Product Height (mm) 80 Product Weight (g) 55 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant No OS Compatibility - Windows 2000
- Windows XP
- Windows Vista
- Windows 7
- Windows Server 2008 R2
- Windows 8

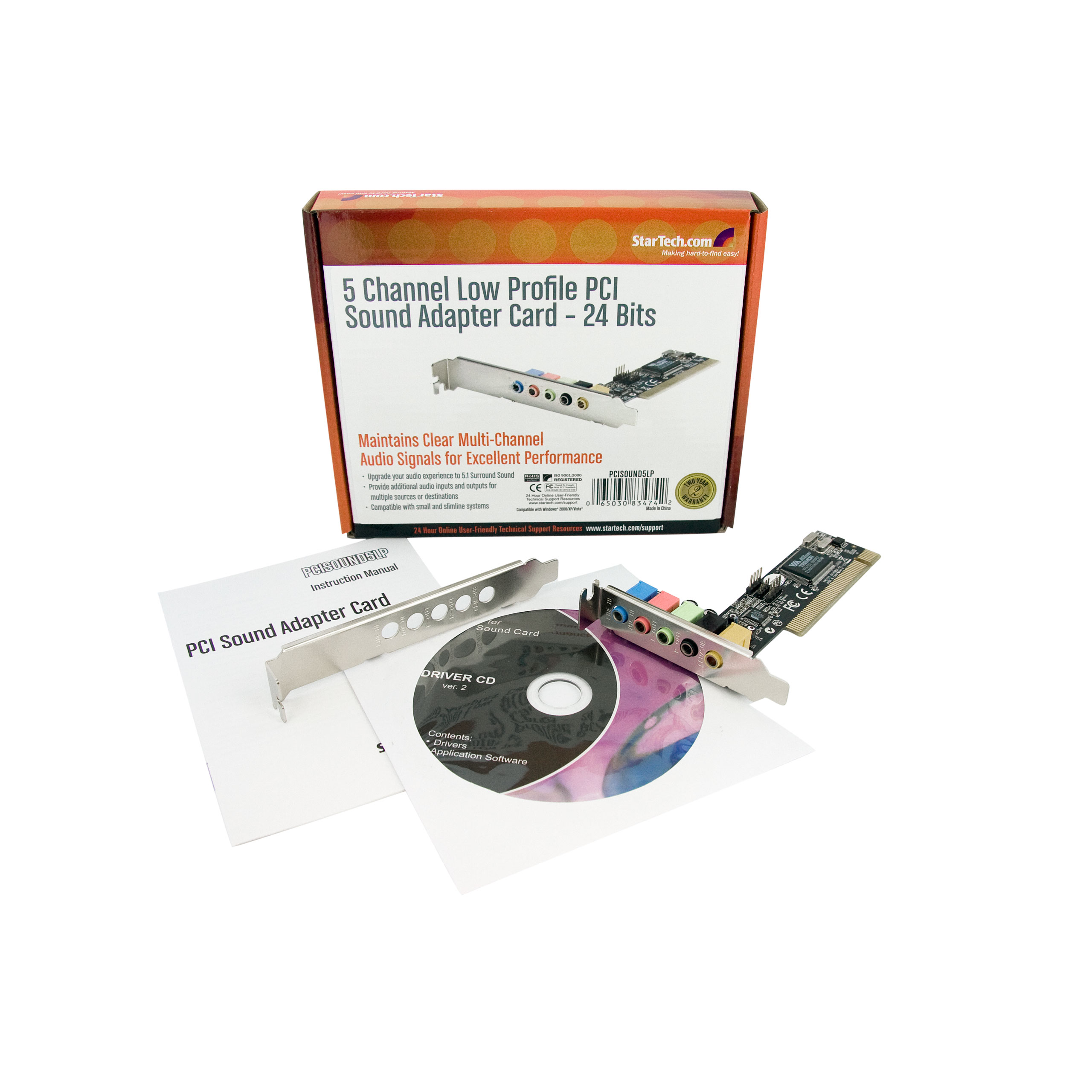

Bus Type PCI (5 Volt) Card Type Low Profile (SP bracket incl.) Chipset ID VIA/VLI - Tremor VT1723 Carton Depth (mm) 600 Carton Height (mm) 374 Carton Quantity 80 Carton Weight Gross (g) 28400 Included in Package - 1 - 5.1 Sound Card with Low Profile Bracket
- 1 - Full Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 31 Package Height (mm) 142 Package Width (mm) 173 Package Weight (g) 340 Packaging Description 5 Channel Low Profile PCI Sound Card Packaging Description India 5 Channel Low Profile PCI Sound Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 5 Connector 3 Audio Header MPC2 (4-Pin) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
