PCISOUND7

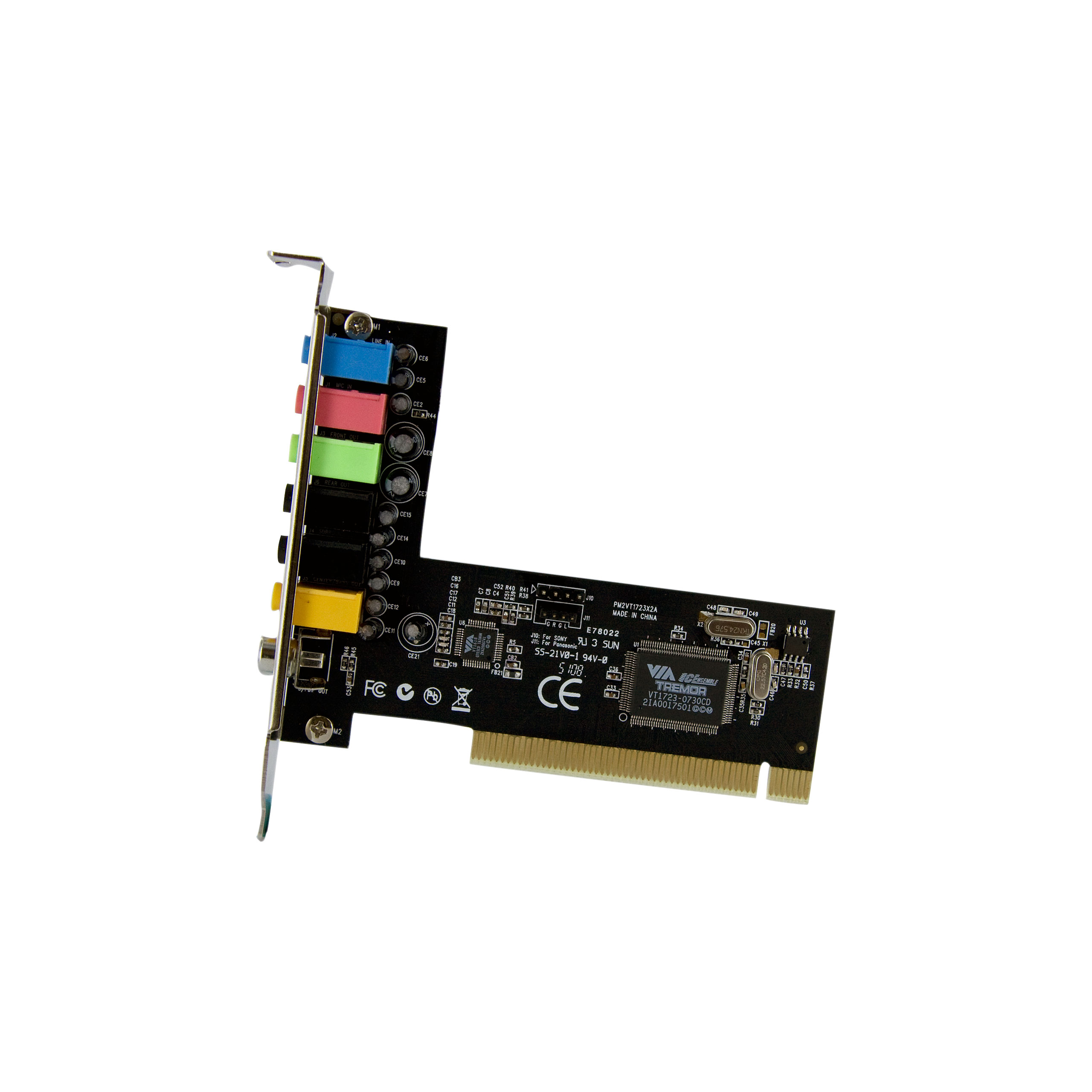

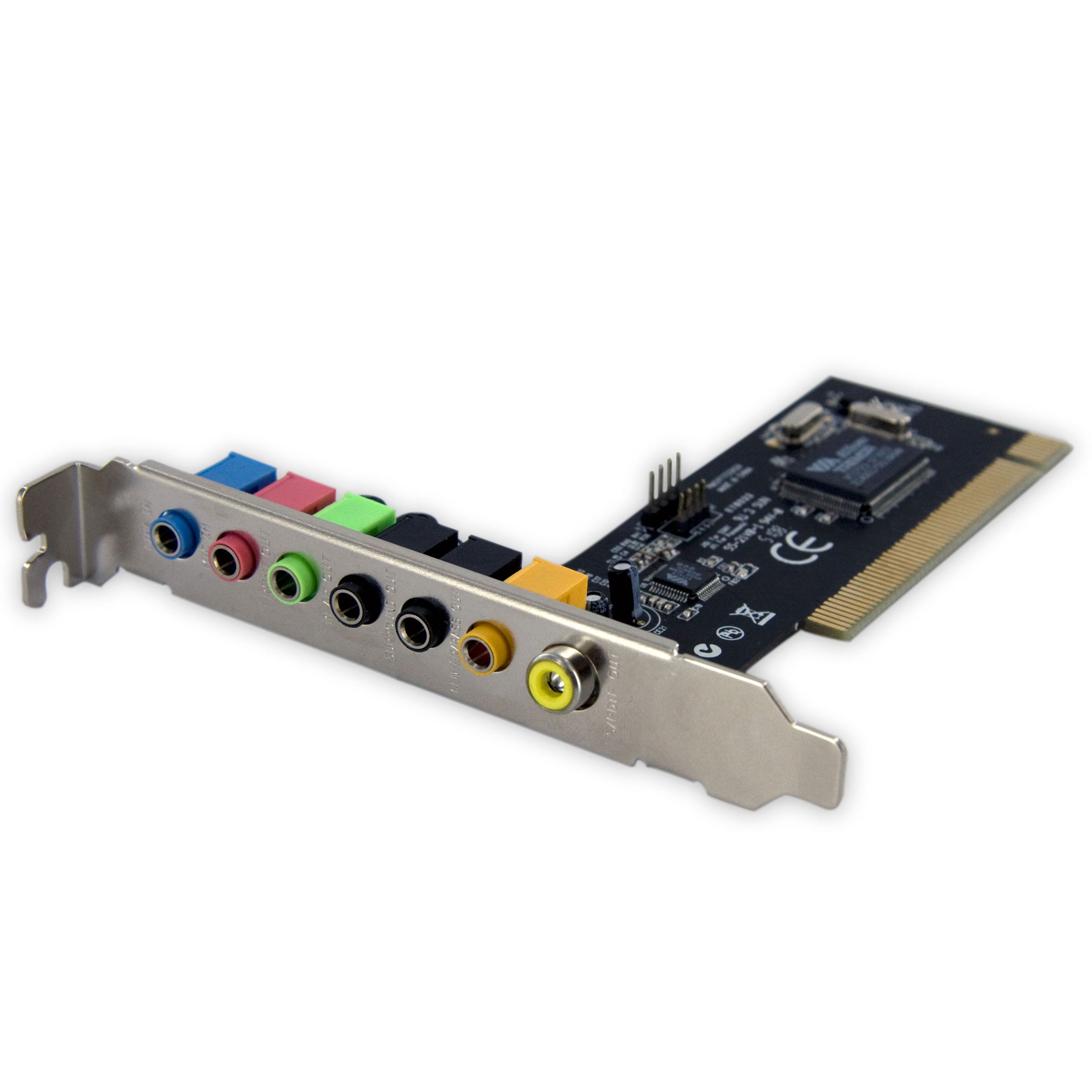

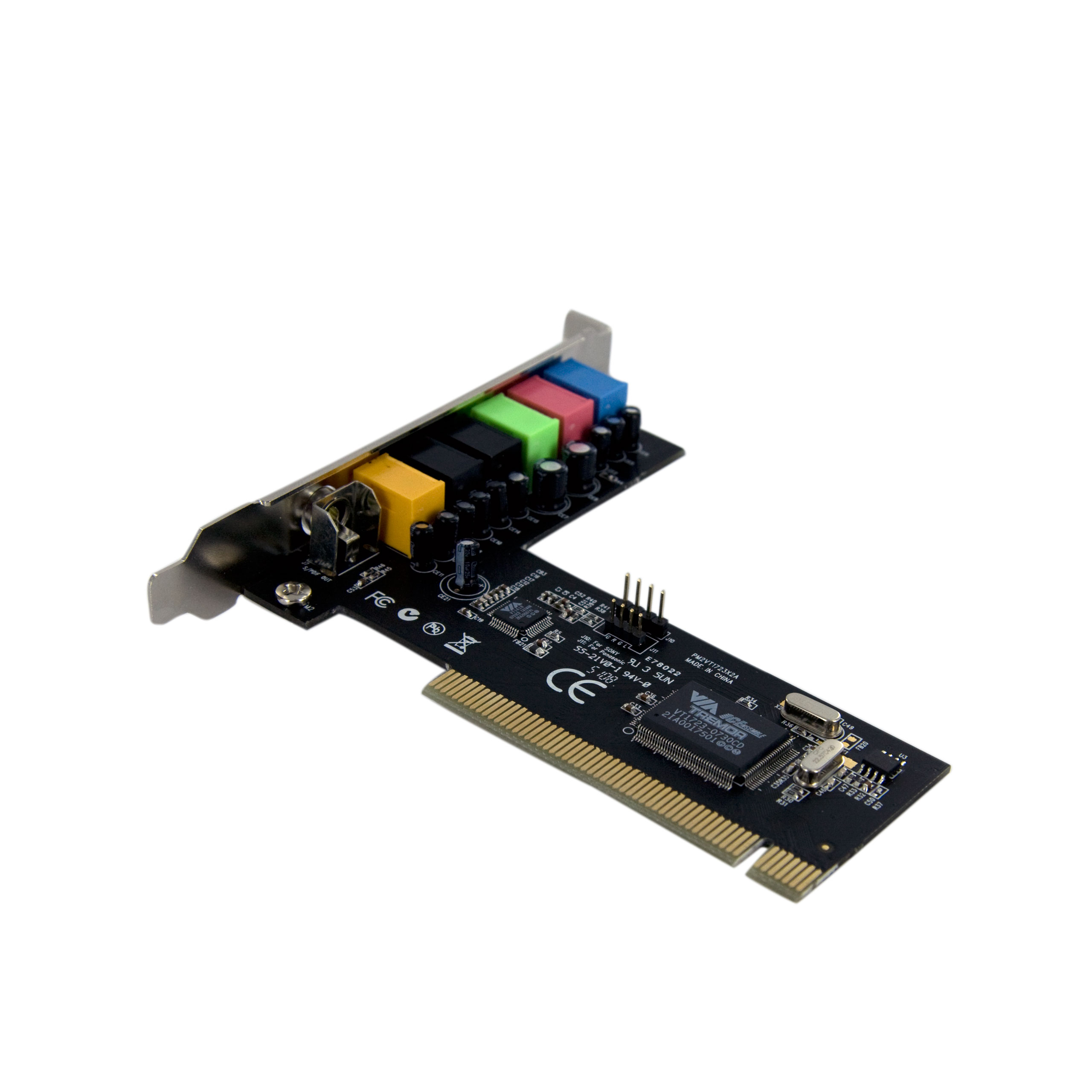

7.1 Channel PCI Sound Adapter Card - 24 bit
Add 7.1 channel audio to a desktop PC through a PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 7.1 Channel PCI Sound Adapter Card - 24 bit Product Number PCISOUND7 UPC 065030835268 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 7.1 PCI Surround Sound Adapter Card Product Title (Standard) StarTech.com 7.1 Channel PCI Digital Surround Sound Adapter Card - 24-bit Product Title (Long) 7.1 Channel PCI Digital Surround Sound Adapter Card - 24-bit Product Title (AMZ) 7.1 Channel PCI Digital Surround Sound Adapter Card - 24-bit (PCISOUND7) Title Ingram (Part 1) 7.1 Channel PCI Digital Surround Title Ingram (Part 2) Sound Adapter Card - 24 bit Website Product Headline Add 7.1 channel audio to a desktop PC through a PCI slot Bullet 1 7.1 Surround Sound Audio out Bullet 2 Support 48/44.1 KHz sampling rate for both playback and recording Bullet 3 Supports the latest Dolby® Digital EX and DTS ES 7.1 CH DVD soundtrack playback Bullet 4 DirectSound™ 3 HW acceleration Bullet 5 Supports PCI Version 2.2 with ACPI and PMI support Marketing Copy Applications - Upgrade your audio experience to 7.1 Surround Sound
- Provide additional audio inputs and outputs for multiple sources or destinations
- Improve your audio input and output quality
- Provide digital audio output
Website Search Keyword - Digital Surround Sound
- 7.1 Channel
- Audio Card
- Audio Adapter
- Sound Recording
- Midi card
- MPC2
- MPC3
- AUX Audio
- Line In
- Sub
- Subwoofer
- Digital Coax
- Dolby Digital
Microsoft WHQL Certified Yes Accessory Products - MU6MF
- MU12MF
- MU6MM
- MUMFRCA
- MU6MMRCA
- MU1MFRCA
- MUY6MFF
- CDAUDIO2BULK
- CDAUDIO2
- CDAUDIO3
- ZENDIGCOAX1
- ZENDIGCOAX2
- ZENDIGCOAX3
- ZENDIGCOAX4
Related Products - PCISOUND4LP
- PCISOUND4CH
- PCISOUND5CH
- ICUSBAUDIO
Humidity 5 to 85% RH Operating Temperature 20°C to 50°C (68°F to 122°F) Product Length (mm) 80 Product Width (mm) 18 Product Height (mm) 120 Product Weight (g) 59 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant No Full Duplex Support Yes OS Compatibility - Windows 2000
- Windows Vista
- Windows XP
- Windows Server 2003
- Windows 7
- Windows 8

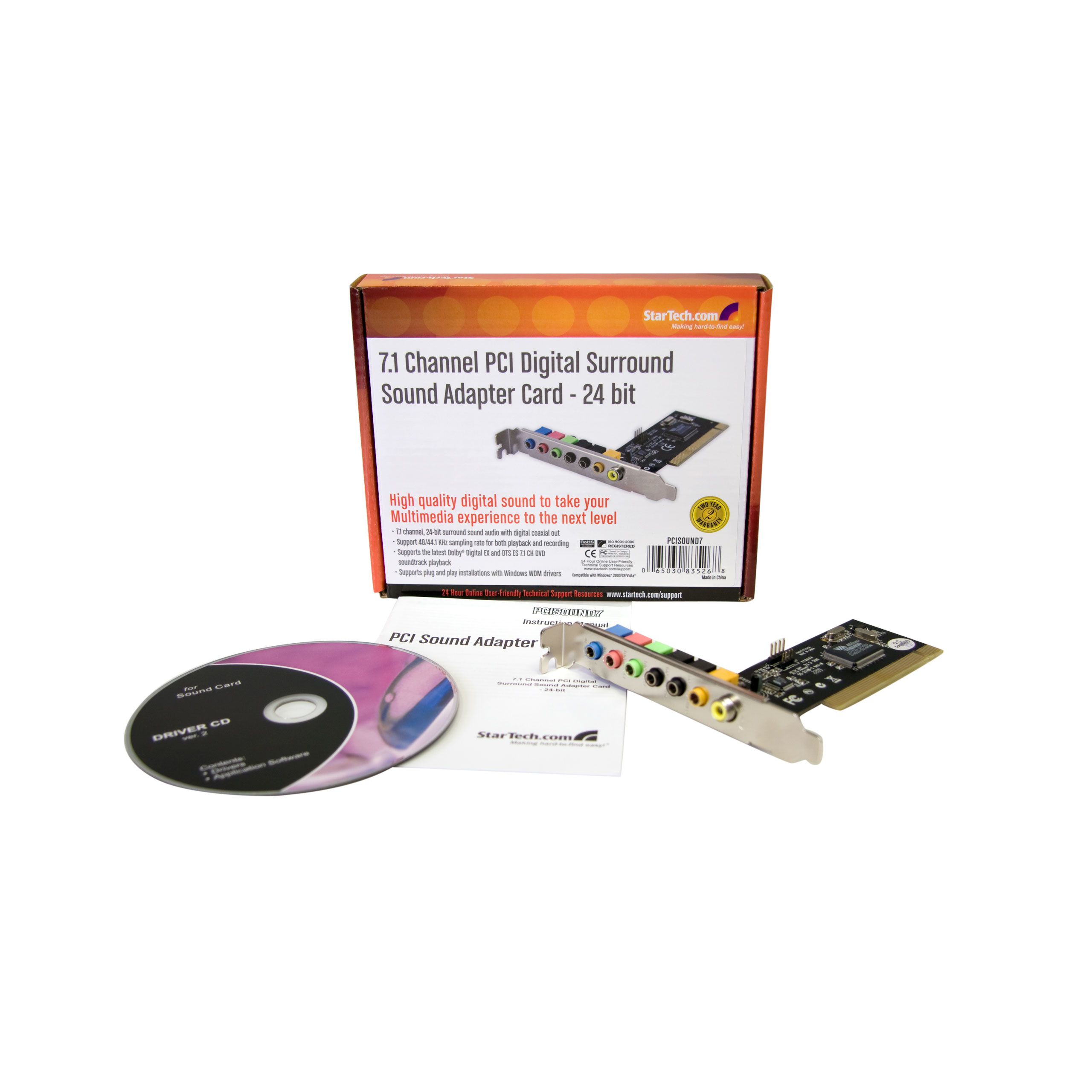

Bus Type PCI (5 Volt) Card Type Standard Profile Chipset ID VIA/VLI - Tremor VT1723 Carton Depth (mm) 598 Carton Height (mm) 381 Carton Quantity 80 Carton Weight Gross (g) 28400 Included in Package - 1 - 7.1 Surround Sound PCI Card
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 30 Package Height (mm) 143 Package Width (mm) 173 Package Weight (g) 340 Packaging Description 7.1 channel PCI Surround Sound Card Packaging Description India 7.1 channel PCI Surround Sound Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 6 Connector 3 RCA (S/PDIF Coaxial Audio) Connector 3 (Quantity) 1 Connector 4 Audio Header MPC2 (4-Pin) Connector 4 (Quantity) 2 en-US Content Approved Yes Product Manager Rafal Gwozdz
