PCIUSB3S2
2 Port PCI USB 3.0 Card Adapter
Add 2 USB 3.0 ports to a desktop computer through a PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port PCI USB 3.0 Card Adapter Product Number PCIUSB3S2 UPC 065030842921 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Short) 2 Port PCI SuperSpeed USB 3 Card Adapter Product Title (Standard) 2 Port PCI SuperSpeed USB 3.0 Card Adapter Product Title (Long) 2 Port PCI SuperSpeed USB 3.0 Card Adapter Product Title (AMZ) 2 Port PCI SuperSpeed USB 3.0 Card Adapter (PCIUSB3S2) Title Ingram (Part 1) 2 Port PCI SuperSpeed USB 3.0 Ca Title Ingram (Part 2) rd Adapter Website Product Headline Add 2 USB 3.0 ports to a desktop computer through a PCI slot Bullet 1 SuperSpeed USB 3.0 compliant host connection Bullet 2 Compliant with USB 3.0 base specification 1.0 and xHCI specification 0.95 Bullet 3 Backward compatible with USB 2.0/1.x devices Bullet 4 Provides up to 900mA of power over USB Bullet 5 2 external USB 3.0 ports Marketing Copy Applications - Add USB 3.0 capabilities to an older PCI-based system
- Expand system capabilities with additional external USB ports
- Enable high speed USB 3.0 data communication for external storage devices and audio/video devices
Website Search Keyword - pci usb 3 card
- superspeed usb 3 adapter
- pci superspeed adapter card
- usb 3 controller
System and Cable Requirements Available PCI expansion slot Accessory Products - USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- USB3SAA6BK
- USB3SAB3
- USB3SAB6
- USB3SAB10
- USB3SAUB1
- USB3SAUB3
Related Products - PEXUSB3S2
- PCIUSB7
- PEXUSB7LP
- PEXUSB400
Replacement Product PCIUSB3S22 Humidity 15% ~ 90% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 120 Product Width (mm) 120 Product Height (mm) 20 Product Weight (g) 54 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant No Maximum Data Transfer Rate 1.3 Gbps (PCI Bus) OS Compatibility - Windows 7
- Windows Server 2008 R2
- Windows XP
- Windows Vista
- Windows 2000
- Windows Server 2003
- Windows 8

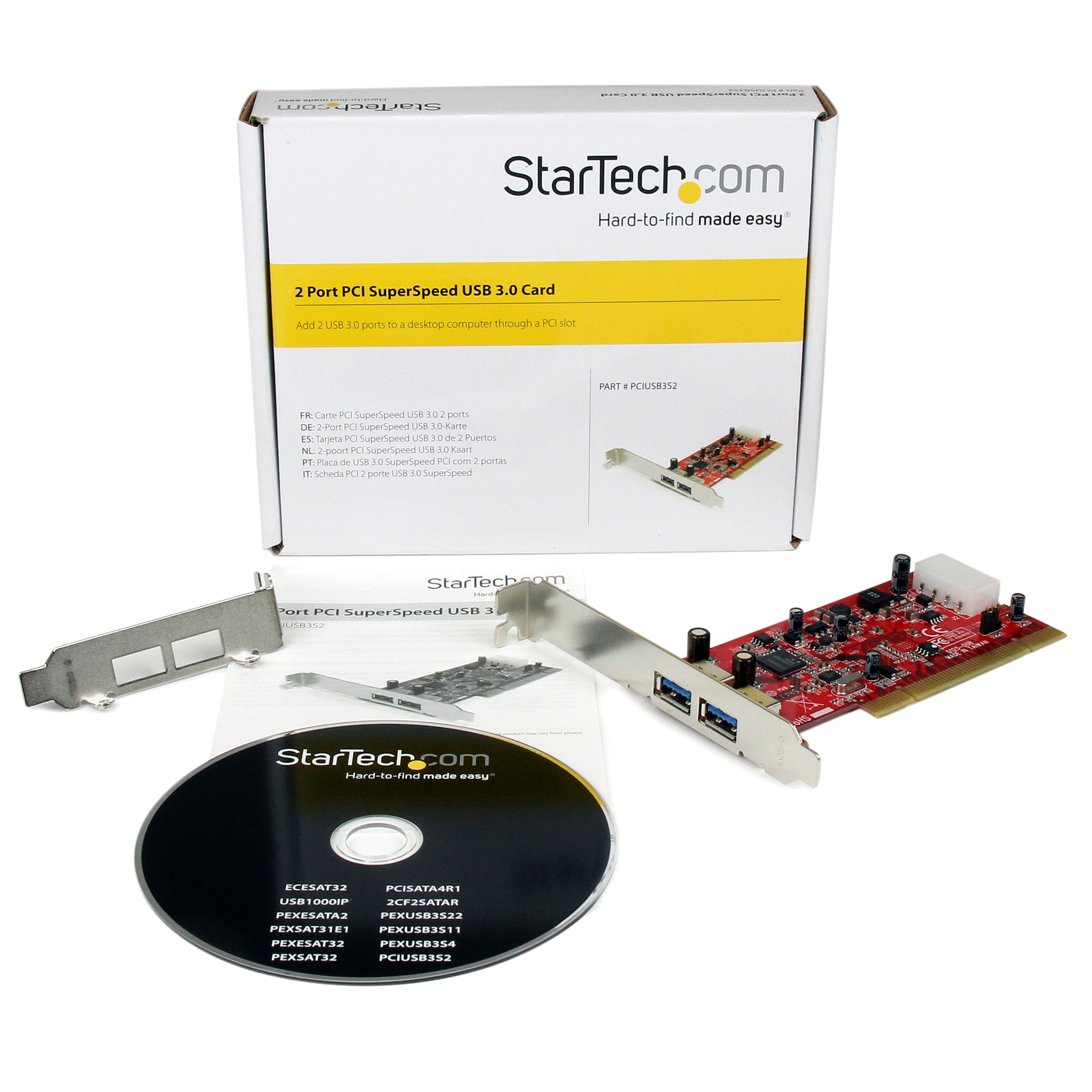

UASP Support No Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID Renesas/NEC - µPD720200 Interface/Bridge USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 330 Carton Height (mm) 490 Carton Quantity 40 Carton Weight Gross (g) 7600 Included in Package - 1 - PCI USB 3.0 card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Low Profile Bracket
Package Depth (mm) 140 Package Height (mm) 30 Package Width (mm) 175 Package Weight (g) 145 Packaging Description 2 Port PCI SuperSpeed USB 3.0 Card Packaging Description India 2 Port PCI SuperSpeed USB 3.0 Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
