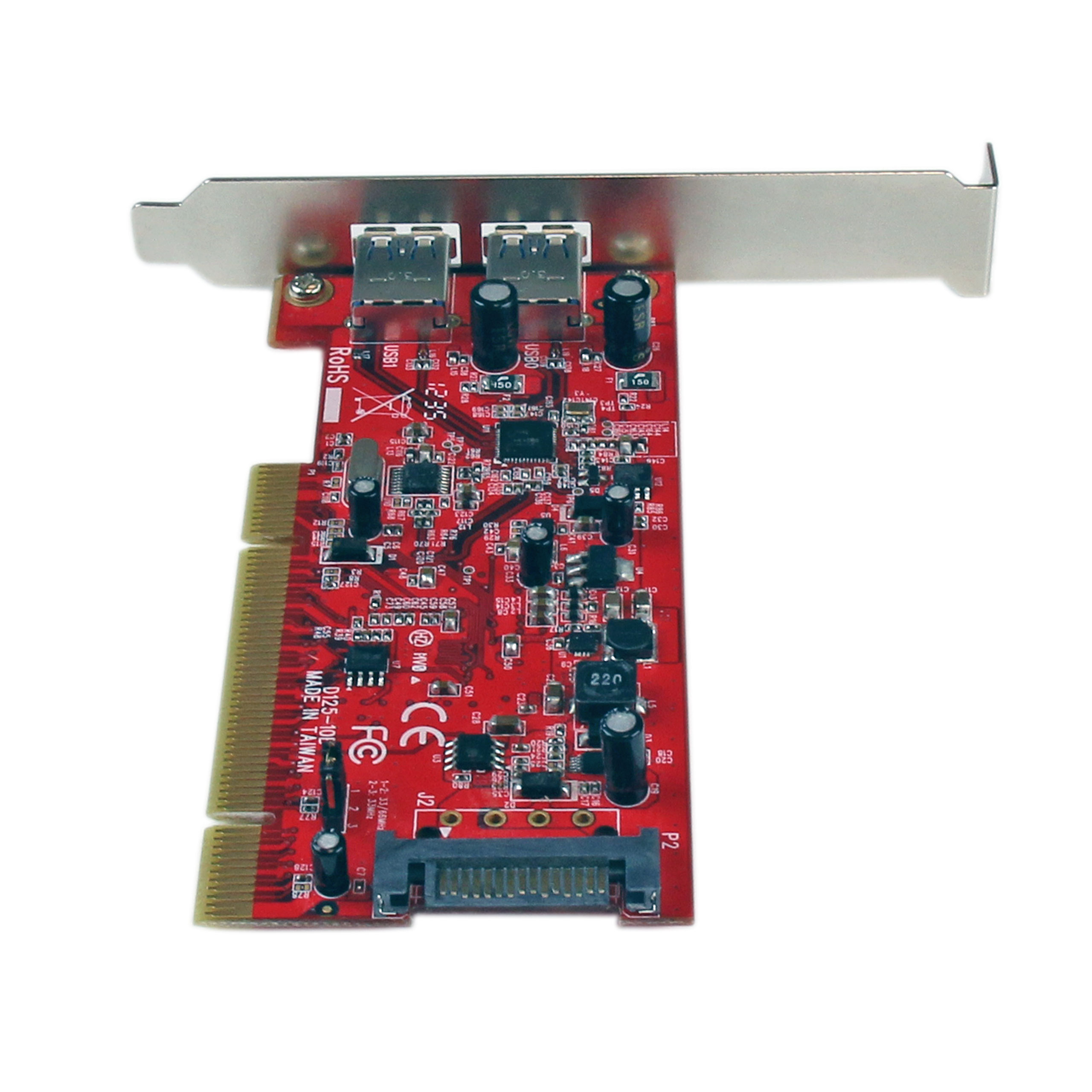

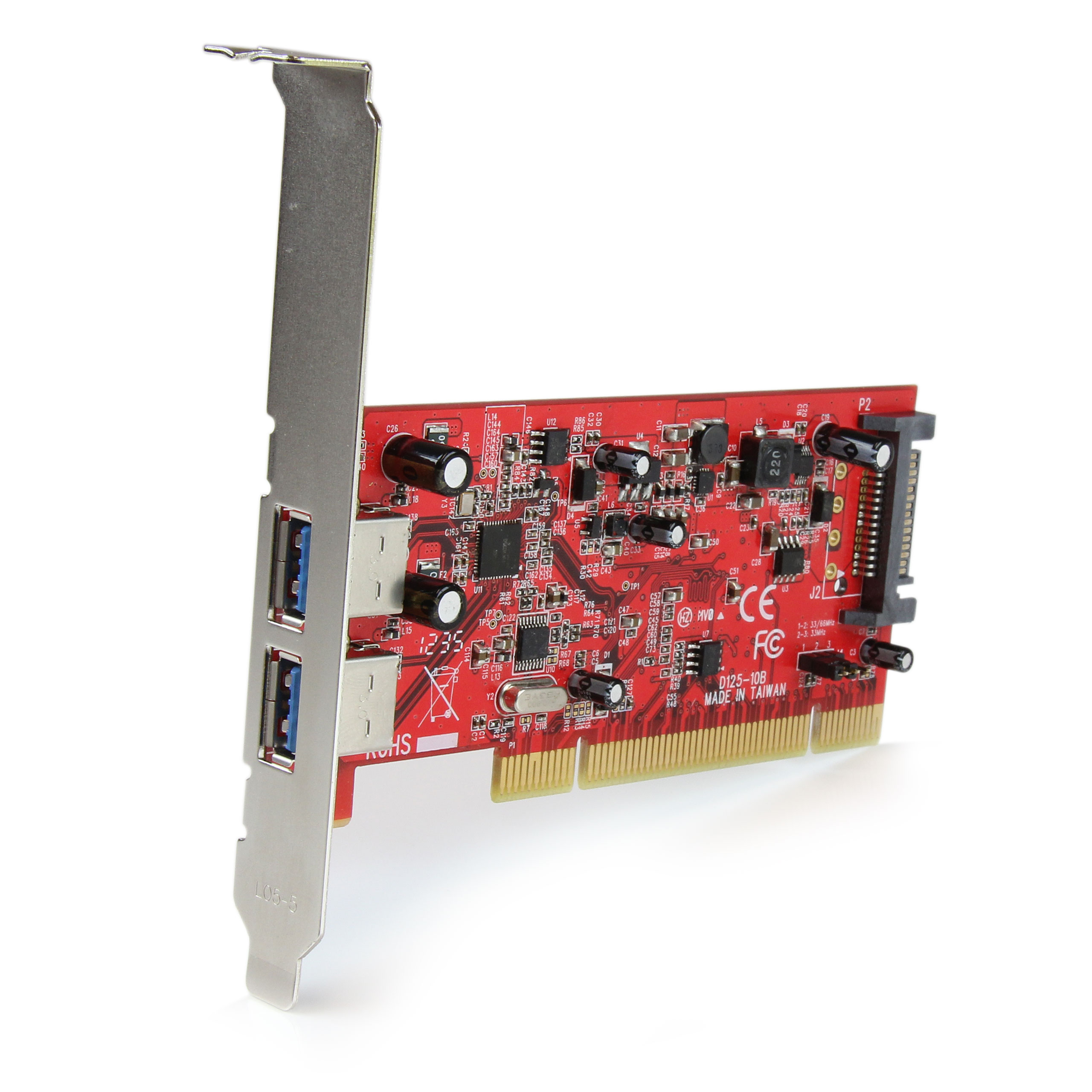

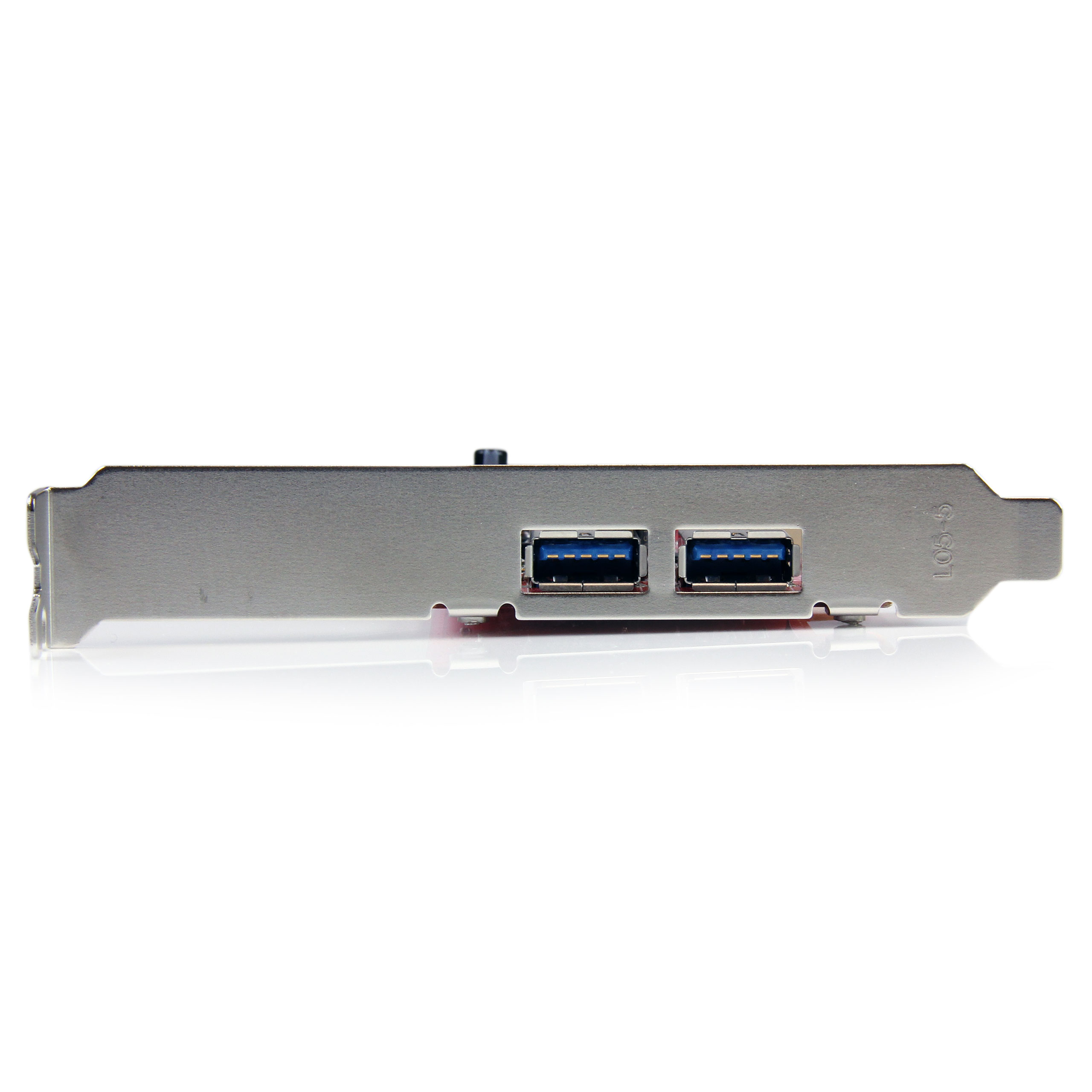

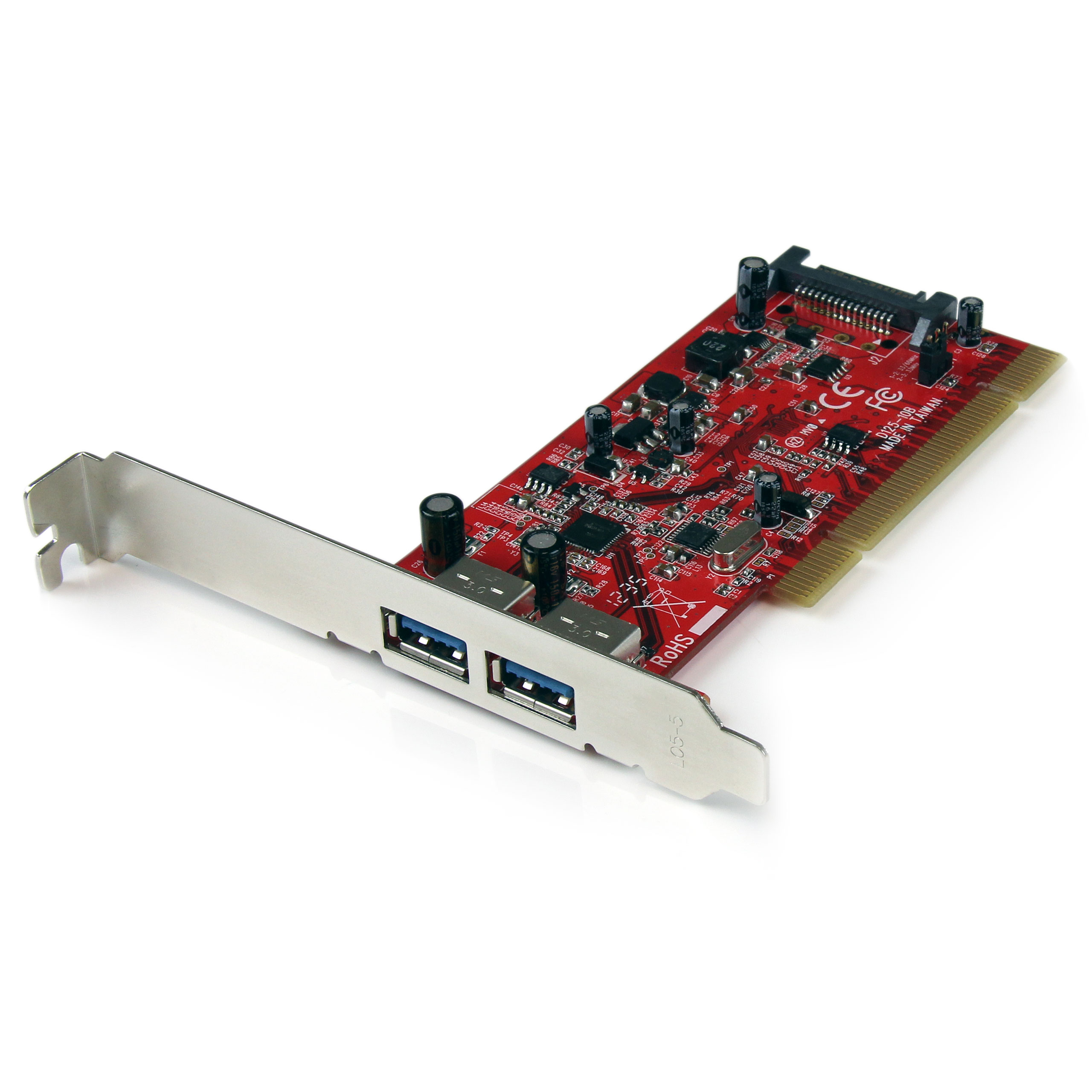

PCIUSB3S22
2 Port PCI SuperSpeed USB 3 0 Card Adapter
Add 2 SuperSpeed USB 3.0 (USB 3.2 Gen 1) ports to a computer through a PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port PCI SuperSpeed USB 3 0 Card Adapter Product Number PCIUSB3S22 UPC 065030849463 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Family USB 3.0 PCI card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Short) 2 Port PCI USB 3.0 Card w/ SATA Power Product Title (Medium) x Product Title (Standard) 2 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA Power - 5Gbps Product Title (Long) 2 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA Power - TAA Product Title (AMZ) 2 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA Power - Dual Port PCI USB 3 Controller Card - 5Gbps (PCIUSB3S22) Title Ingram (Part 1) Dual Port PCI SuperSpeed USB 3 C Title Ingram (Part 2) ontroller Card with SATA Power Website Product Headline Add 2 SuperSpeed USB 3.0 (USB 3.2 Gen 1) ports to a computer through a PCI slot Bullet 1 Includes a Low Profile/Half-Height installation bracket Bullet 2 2 external Super Speed USB 3.2 Gen 1 (5Gbps) ports Bullet 3 Compliant with PCI Specification 3.0 Bullet 4 Provides up to 900mA of power over USB 3.2 Gen 1 Bullet 5 Backward compatible with USB 2.0/1.x devices Bullets (Consolidated) Add 2 SuperSpeed USB 3.2 Gen 1 ports to a computer through a PCI slot - Compatible with Dell OptiPlex 7010/HP Compaq dc7800 - 2 Port PCI USB 3.2 Gen 1 Adapter Card/PCI USB 3.2 Gen 1 Card Adapter - PCI USB 3.2 Gen 1 Controller/SATA Powered PCI USB 3.2 Gen 1 Card/USB 3.2 Gen 1 Expansion Card - Add Dual USB 3.2 Gen 1 Ports to a desktop PC/Connect USB 3.2 Gen 1 peripherals to a legacy PC through a PCI slot - Standard and Low Profile USB 3.2 Gen 1 PCI-X Card - Optional SATA Power for high power USB 3.2 Gen 1 devices such as external hard drives Marketing Copy Applications - Connect USB 3.2 Gen 1 peripherals to a legacy PC through a PCI slot
- Expand system capabilities with additional external USB ports
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
System and Cable Requirements - Available PCI slot
- Available SATA power connector
Accessory Products - USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- USB3SAA6BK
- USB3SAB3
- USB3SAB6
- USB3SAB10
- USB3SAUB1
- USB3SAUB3
Related Products - PEXUSB3S2
- PCIUSB7
- PEXUSB7LP
- PEXUSB400
- PCIUSB3S2
- PCIUSB3S4
Replacement Product PCIUSB3S4 Color Red Humidity 15% ~ 90% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 123.000 Product Width (mm) 10.000 Product Height (mm) 56.000 Product Weight (g) 60.000 Storage Temperature -25°C to 70°C (13°F to 158°F) TAA Compliant Yes Maximum Data Transfer Rate 1.3 Gbps (PCI Bus) OS Compatibility - Windows 7
- Windows 8
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

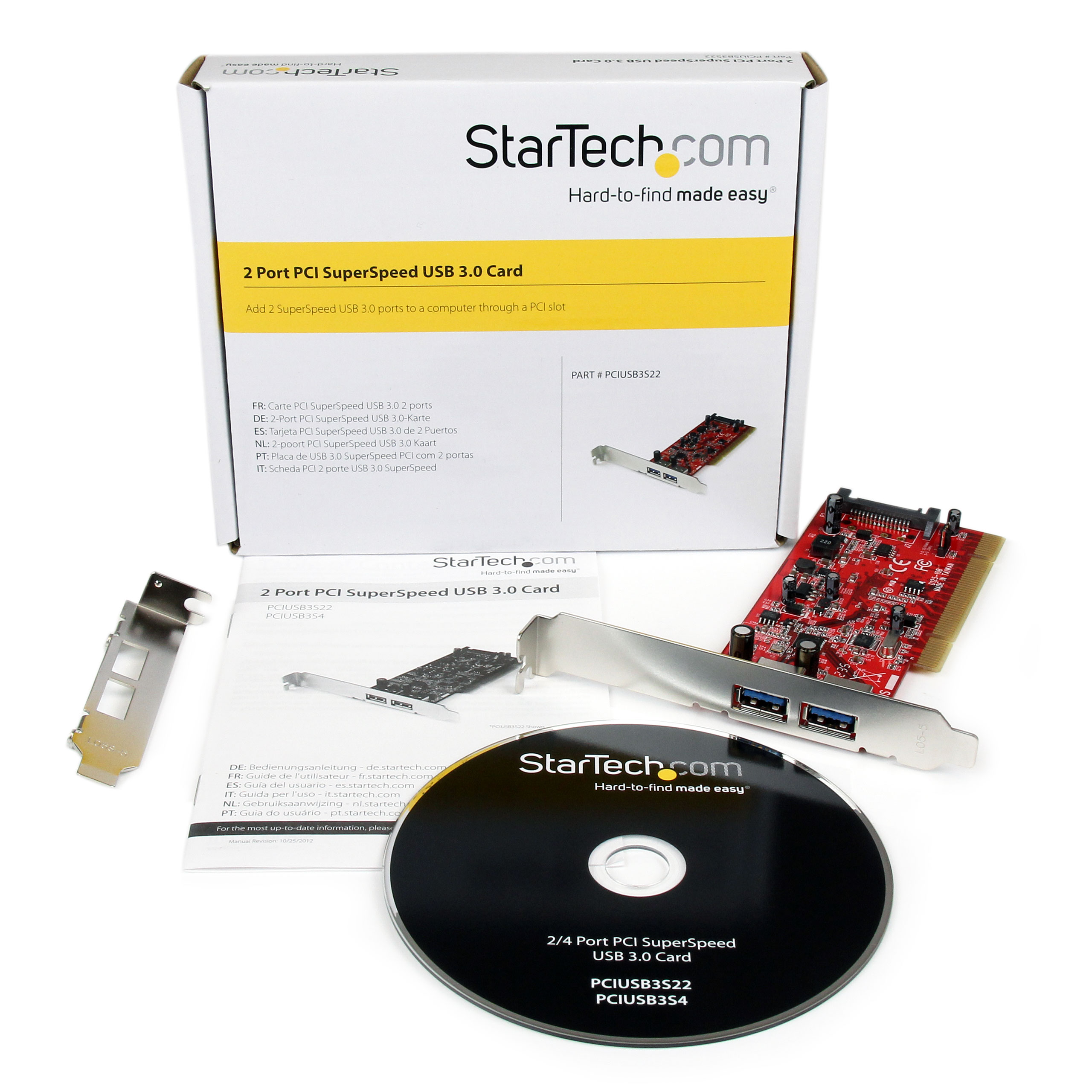

UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID Renesas/NEC - µPD720202 Interface/Bridge USB 3.2 Gen 1 (5Gbps) USB Port Type USB-A Carton Depth (mm) 376 Carton Height (mm) 318 Carton Quantity 60 Carton Weight Gross (g) 9968 Included in Package - 1 - PCI USB 3.0 Card
- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 144 Package Height (mm) 32 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 148 Packaging Description 2 Port PCI SuperSpeed USB 3.0 Card Packaging Description India 2 Port PCI SuperSpeed USB 3.0 Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-02-25 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Yiming Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None
