PCIUSB3S4

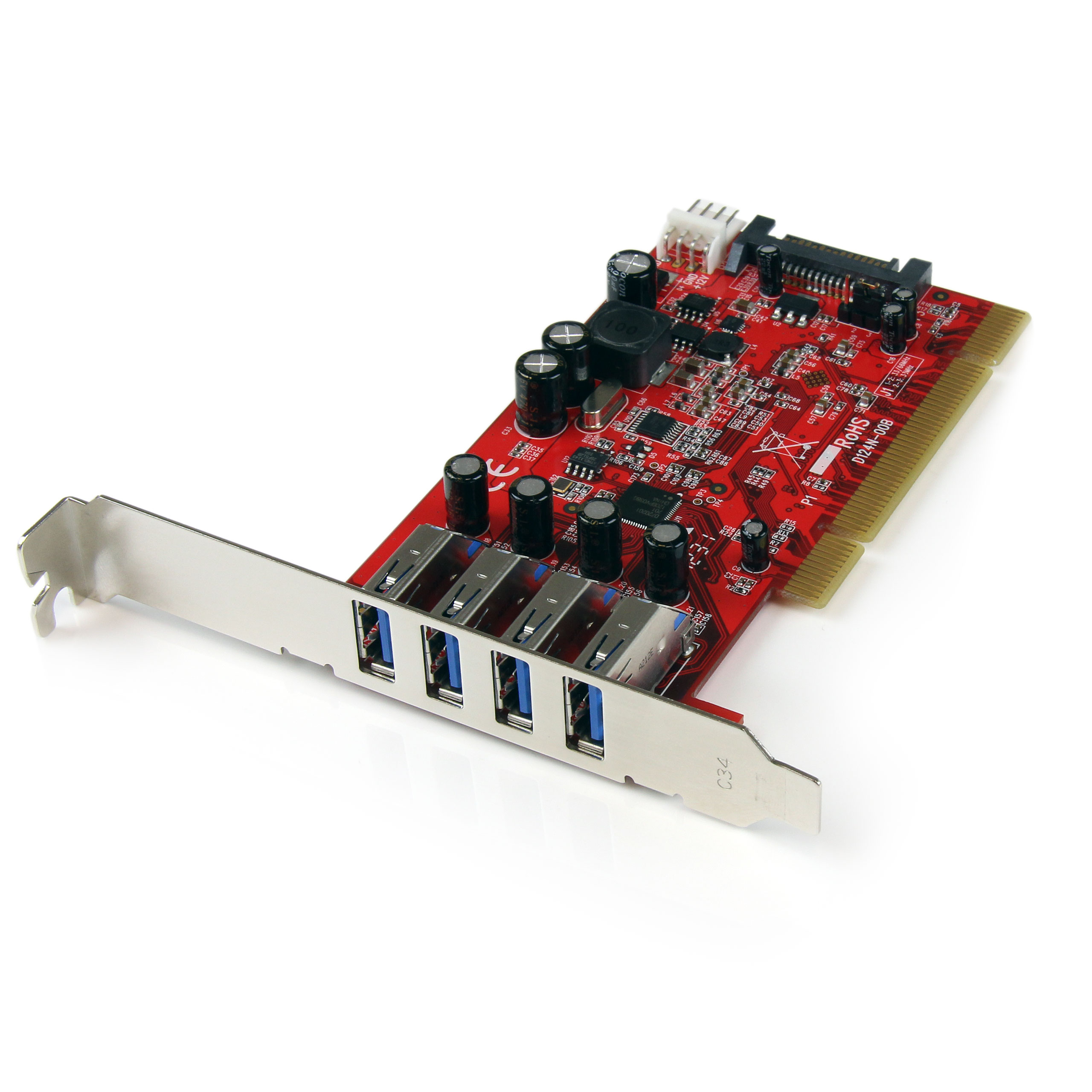

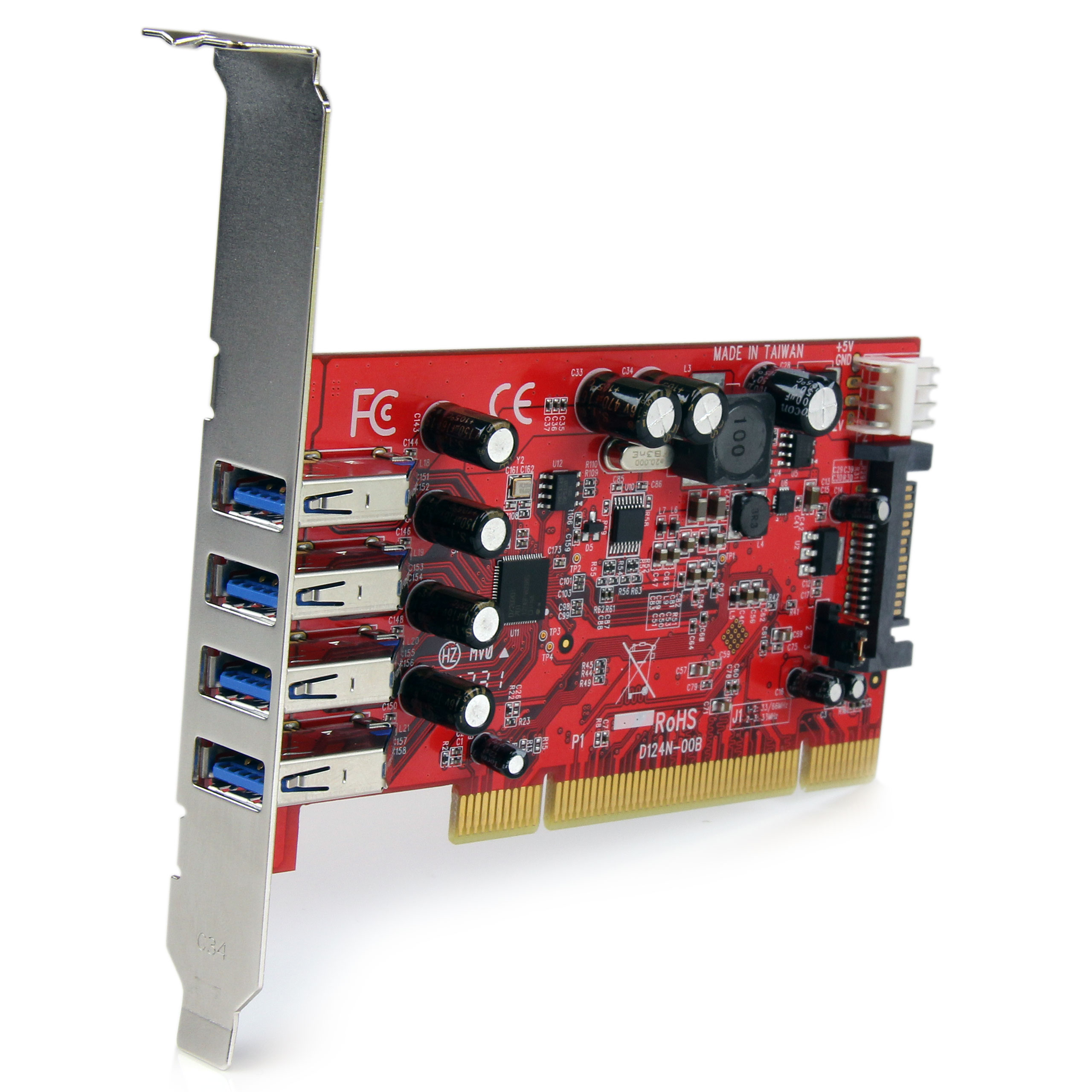

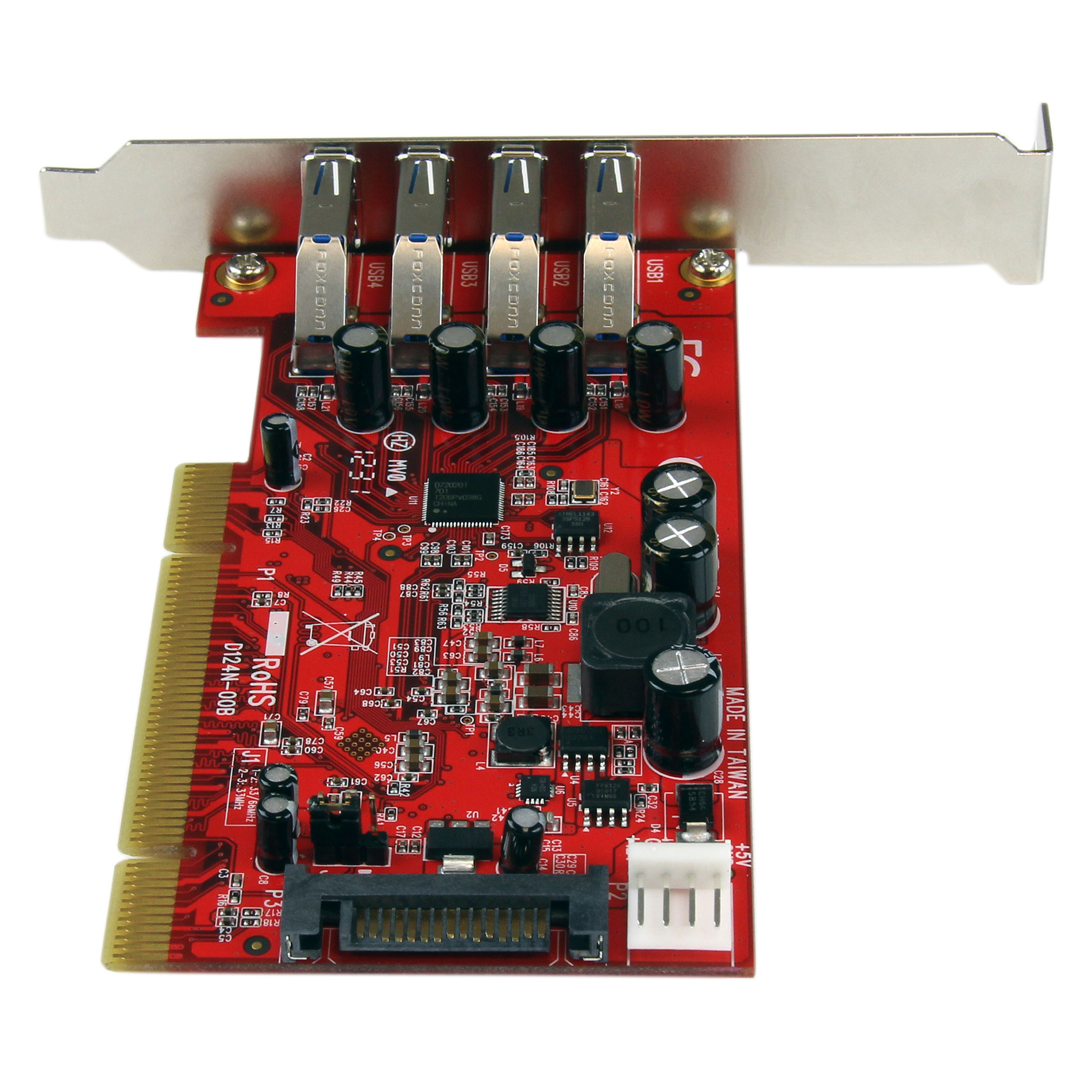

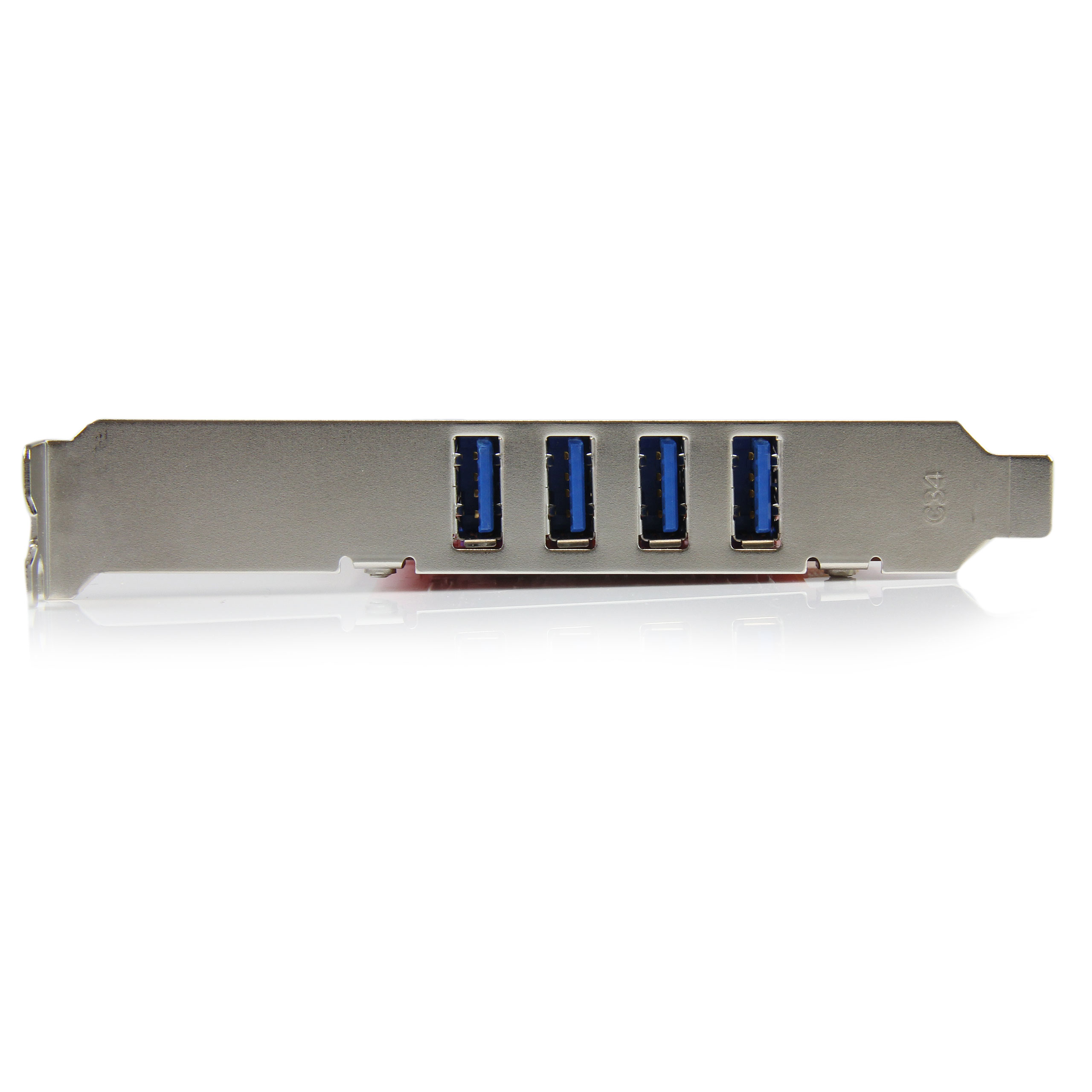

4 Port SuperSpeed USB 3 0 PCI Card
Add 4 SuperSpeed USB 3.0 (USB 3.2 Gen 1) ports to a computer through a PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port SuperSpeed USB 3 0 PCI Card Product Number PCIUSB3S4 UPC 065030849517 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - 5Gbps Family USB-A Cards - 5Gbps - PCI Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) 4Pt PCI USB 3 Card Product Title (Short) 4 Port PCI USB 3.0 Card w/ SATA Power Product Title (Medium) x Product Title (Standard) 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA/SP4 Power, 5Gbps, TAA Product Title (Long) 4 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA / SP4 Power - TAA Product Title (AMZ) 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA/SP4 Power, Quad Port PCI USB-A 3.0 (5Gbps) Controller Card, Red, Windows Only , TAA (PCIUSB3S4) Title Ingram (Part 1) Quad Port PCI SuperSpeed USB 3 C Title Ingram (Part 2) ontroller Card with SATA Power Website Product Headline Add 4 SuperSpeed USB 3.0 (USB 3.2 Gen 1) ports to a computer through a PCI slot Bullet 1 ADD 4x SUPERSPEED USB 3.0 PORTS: This PCI/PCI-X Universal (3.3V & 5V, 32-bit) card adds four USB-A 3.2 Gen 1 ports to your computer or server through a PCI slot; Supports USB 3.0/3.1 Gen 1/USB 3.2 Gen 1x1 Bullet 2 TRANSFER SPEEDS: USB PCI card with UASP achieves speeds up to the maximum of your PCI bus (1.3Gbps); Ideal for older computers with only PCI slots available like Dell OptiPlex 7010/HP Compaq dc7800; Backward compatible with USB 2.0/1.1/1.0 Bullet 3 OPTIONAL POWER: USB PCI expansion card features SATA & SP4 power ports to supply additional power to the USB ports (when motherboard power is insufficient); Power can be connected to SATA or SP4 port to provide up to 5V 0.9A/4.5W per USB Type-A port Bullet 4 STANDARD & LOW PROFILE BRACKET: PCI USB card comes with a full-profile (standard) bracket pre-installed and a low-profile (half height) bracket included for versatile installation in both low-profile and full-profile computer systems Bullet 5 COMPATIBILITY: This card is Windows only; Supported versions: Windows XP and up, Windows Server 2003 and up; USB card is only compatible with PCI/PCI-X slots and is NOT COMPATIBLE with PCI-Express (PCIe); See PEXUSB3S4V for a PCIe solution Bullets (Compact) 4-Port USB 3.2 Gen 1 PCI/PCI-X Card (USB 3.2 Gen 1) - Achieve speeds up to PCI bus max (1.3Gbps) - Optional SATA/SP4 power - PCI 3.3V/5V 32-bit - Full/low profile brackets - For PCs with PCI slots like Dell OptiPlex 7010/HP Compaq dc7800 Bullets (Consolidated) 4-Port USB 3.2 Gen 1 PCI card installs in PCI/PCI-X slot | 3.3V & 5V | 32-bit - USB 3.2 Gen 1 PCI card adapter | Achieve speeds up to the maximum of your PCI bus (1.3Gbps) | Backward compatible with USB 2.0/1.1/1.0 - Ideal for older computers with only PCI slots available like Dell OptiPlex 7010/HP Compaq dc7800 - Optional SATA/SP4 power up 5V 0.9A/4.5W per USB-A port - Full-profile (preinstalled) and low-profile bracket included Marketing Copy Applications - Add USB 3.2 Gen 1 capabilities to an older PCI-based system
- Expand system capabilities by adding external USB ports
- Enable Super Speed USB 3.2 Gen 1 data communication for external storage devices and audio/video devices
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
System and Cable Requirements - Available PCI slot
- Available SATA or Floppy power connector
Accessory Products - USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- USB3SAA6BK
- USB3SAB3
- USB3SAB6
- USB3SAB10
- USB3SAUB1
- USB3SAUB3
Related Products - PEXUSB3S2
- PCIUSB7
- PEXUSB7LP
- PEXUSB400
- PCIUSB3S2
- PCIUSB3S22
Input Voltage 3.3V / 5V DC Output Voltage (V) 3.3V DC Color Red Humidity 15% ~ 90% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 133 Product Width (mm) 20 Product Height (mm) 65 Product Weight (g) 72 Storage Temperature -25°C to 70°C (13°F to 158°F) TAA Compliant Yes Maximum Data Transfer Rate 1.3 Gbps (PCI Bus) OS Compatibility - Windows 7
- Windows 8
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

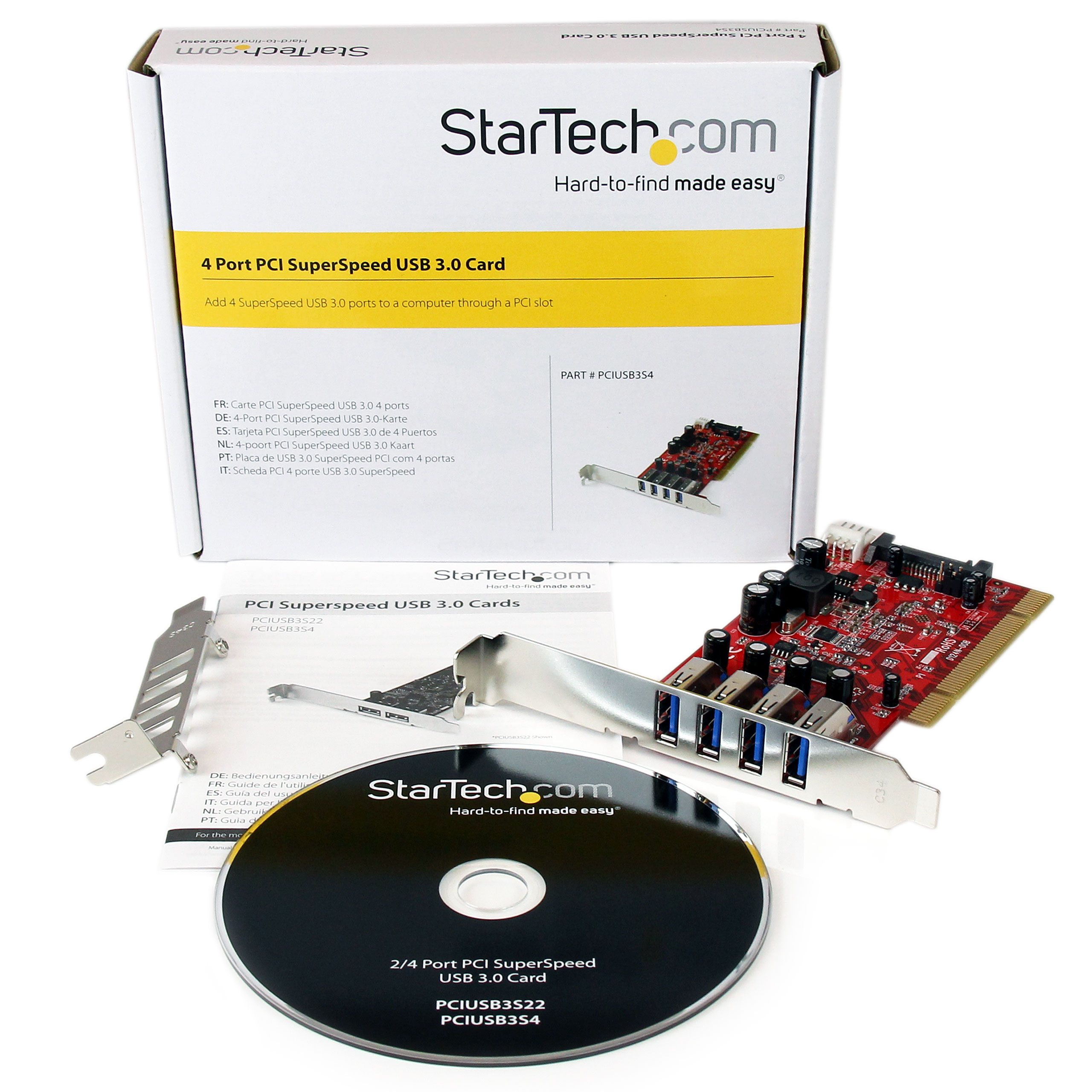

UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 3.0 (5Gbps) Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID Renesas/NEC - µPD720202 Interface/Bridge USB 3.2 Gen 1 (5Gbps) USB Port Type USB-A Carton Depth (mm) 380 Carton Height (mm) 320 Carton Quantity 60 Carton Weight Gross (g) 10920 Included in Package - 1 - PCI USB 3.0 Card
- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Included In Package for Label - 1 - PCI USB 3.0 Card
- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 143 Package Height (mm) 32 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 166 Packaging Description 4 Port PCI SuperSpeed USB 3.0 Card Packaging Description India 4 Port PCI SuperSpeed USB 3.0 Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 4 Connector 3 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-02-25 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Yiming Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None
