Main Image
PCIUSB7
7 Port PCI USB 2 0 Adapter Card
Add 7 USB 2.0 Ports to your PC through a PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 7 Port PCI USB 2 0 Adapter Card Product Number PCIUSB7 UPC 065030836531 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-A Cards - USB 2.0 Family USB-A Cards - USB 2.0 - PCI Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 7 Port PCI USB Card Adapter Product Title (Medium) . Product Title (Standard) 7 Port PCI USB Card Adapter, TAA Product Title (Long) 7 Port PCI USB Card Adapter - TAA Product Title (AMZ) 7 Port PCI USB Card Adapter - PCI to USB 2.0 Controller Adapter Card - Full Profile Expansion Card , TAA (PCIUSB7) Title Ingram (Part 1) 7 Port PCI USB Card Adapter Title Ingram (Part 2) . Website Product Headline Add 7 USB 2.0 Ports to your PC through a PCI slot Bullet 1 4 external USB 2.0 ports and 3 internal USB 2.0 port/headers Bullet 2 High Speed USB 2.0 compliant, with support for data transfer rates up to 480Mbps Bullet 3 Backwards compatible with USB1.1/1.0 devices Bullet 4 Up to 500mA of power per port Bullet 5 Compliant with USB EHCI revision 0.95 and UHCI 1.1 specifications Bullets (Consolidated) Add 7 USB 2.0 Ports to your PC through a PCI slot -PCI to USB - PCI USB Controller - USB 2.0 Card - PCI to USB Adapter - PCI USB Card Marketing Copy Applications - Add additional internal and external USB 2.0 ports to a desktop computer system
- Add an internal USB 2.0 header for use with internal/front-bay mounted USB peripherals
- Balance the number of available internal and external USB 2.0 ports on a computer system
Website Search Keyword - USB 2.0
- Expansion Card
- Adapter Card
- Internal USB
- 9 pin USB Motherboard header
- Full Profile
- PCI
- PCI-X
- Windows 7
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
System and Cable Requirements Unused PCI slot Accessory Products - USB2HAB10
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- USB2HAB6
- USB2HAB6LEDB
- USB2HAB6LEDR
- USB2HAB6LEDY
- USB2HAB6T
- USBHAB6FLBG
- USBHAB6FLRY
Related Products - PCI220USB
- PCI220USBLP
- PCI330USB2
- PCI3UV22F
- PCI420USB
- PCI625USB2I
- PEX400USB2
- EC400USB
- EC230USB
- CB420USB
- CB330USB2
- CBUSB22
Color Green Material Steel Primary Material Steel Product Length (mm) 122.000 Product Width (mm) 120.000 Product Height (mm) 20.000 Product Weight (g) 75.000 TAA Compliant Yes Maximum Data Transfer Rate 480 Mbps OS Compatibility - Windows 7
- Windows Server 2012
- Linux
- Windows 8
- Mac OS X Yosemite (10.10)
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile Chipset ID VIA/VLI - VT6212 Industry Standards - EHCI 2.0
- OHCI 1.1
- PCI 2.2
- Power Management 1.1

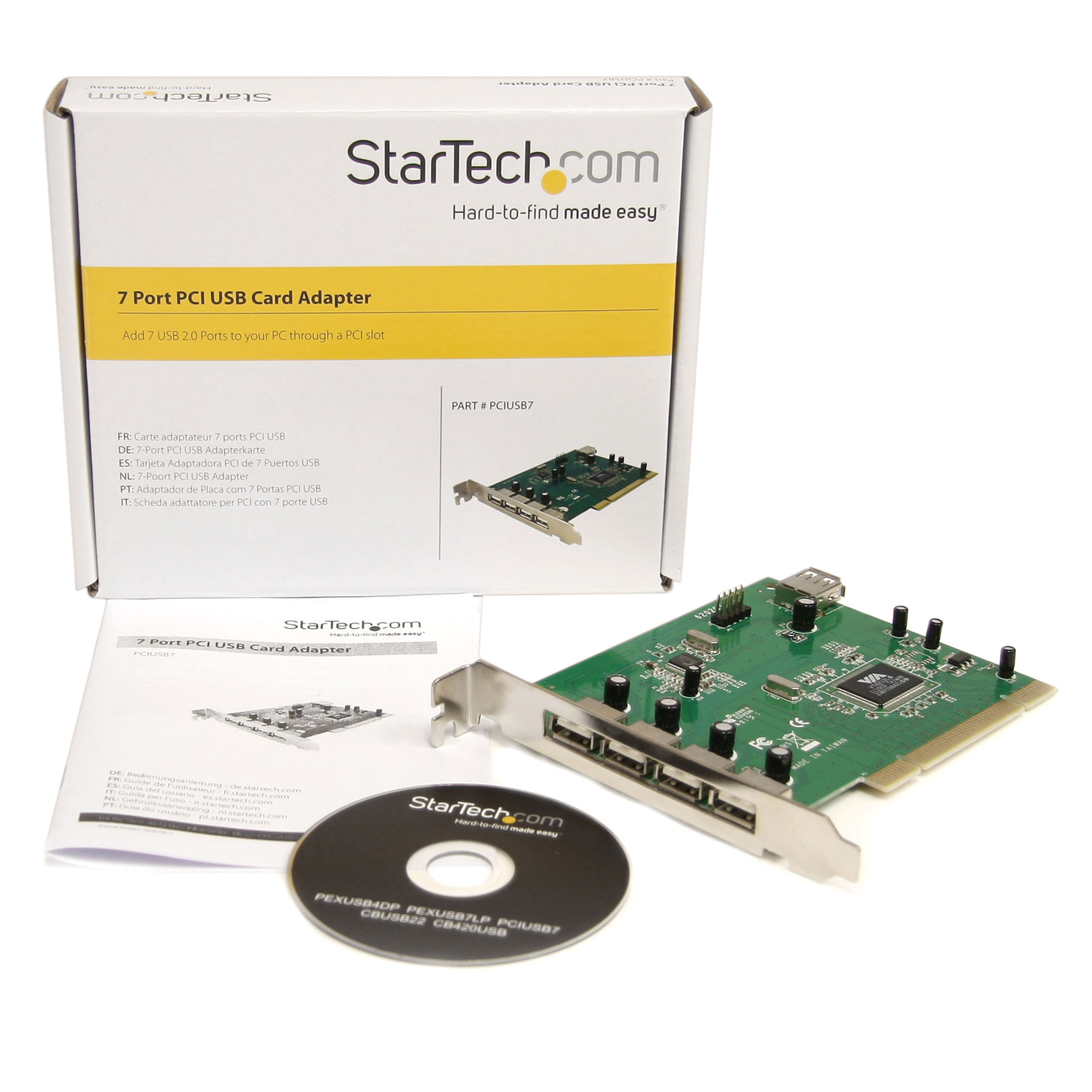

Interface/Bridge USB 2.0 Carton Depth (mm) 356 Carton Height (mm) 315 Carton Quantity 75 Carton Weight Gross (g) 11100 Included in Package - 1 - PCI USB 2.0 Card
- 1 - Instruction Manual
- 1 - Driver CD
Included In Package for Label - 1 - Driver CD
- 1 - Instruction Manual
- 1 - PCI USB 2.0 Card
Package Depth (mm) 143 Package Height (mm) 33 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 146 Packaging Description 7 Port PCI USB Card Adapter Packaging Description India 7 Port PCI USB Card Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 1 Connector 4 IDC (10-Pin) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,NL,PE,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
