PCIVGAV7
PCI VGA Video Card
Add high quality VGA video to your server, POS system or PC through a PCI expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCI VGA Video Card Product Number PCIVGAV7 UPC 065030831758 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 VGA Converters Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 16 MB PCI VGA Video Adapter Card Product Title (Standard) StarTech.com VGA Video Adapter Card - PCI - XGI Volari 27 - 16 MB Product Title (Long) XGI Volari Z7 16 MB PCI VGA Video Adapter Card Product Title (AMZ) XGI Volari Z7 16 MB PCI VGA Video Adapter Card (PCIVGAV7) Title Ingram (Part 1) XGI Volari Z7 16 MB PCI VGA Vide Title Ingram (Part 2) o Adapter Card Website Product Headline Add high quality VGA video to your server, POS system or PC through a PCI expansion slot Bullet 1 Compliant with PCI 2.2 (33/66 MHz) Bullet 2 Maximum 2D Resolution for 32-bit (1280x1024 @60Hz) and 16-bit (1600x1200 @ 75Hz) Bullet 3 Maximum color depth up to 16.7M colors output Marketing Copy Applications - Provide enhanced graphic performance for today's demanding applications in server, POS or Industrial environments
- Use as a replacement video card for a failed on-board output to avoid the cost and hassle of replacing the entire motherboard
- Ideal for embedded or critical environment applications
Website Search Keyword - vga video card
- DDR RAM
- pci video adapter cards
- video adapter cards
- thin clients vga graphics card
- server vga graphics card
- pos point of sale vga graphics card
- industrial pc vga graphics card
- xgi volari z7 chipset
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - C15HPSM
- MXT101
- MXT101HQ10
- MXT101MMHQ
- VGA2NTSCPRO
- VGA2CPNT
- VGA2DVII
- VID2VGATV
- VGAHD2HDMI
Related Products - PEXVID7200A
- AGPVID5500A
Power Consumption (In Watts) 1.4W Humidity 5 ~ 95% RH Operating Temperature -10°C to 85°C (14°F to 185°F) Product Length (mm) 120 Product Width (mm) 160 Product Height (mm) 19 Product Weight (g) 66 Storage Temperature -20°C to 90°C (-4°F to 194°F) TAA Compliant No OS Compatibility - Linux
- Windows XP
- Windows Vista
- Windows 2000

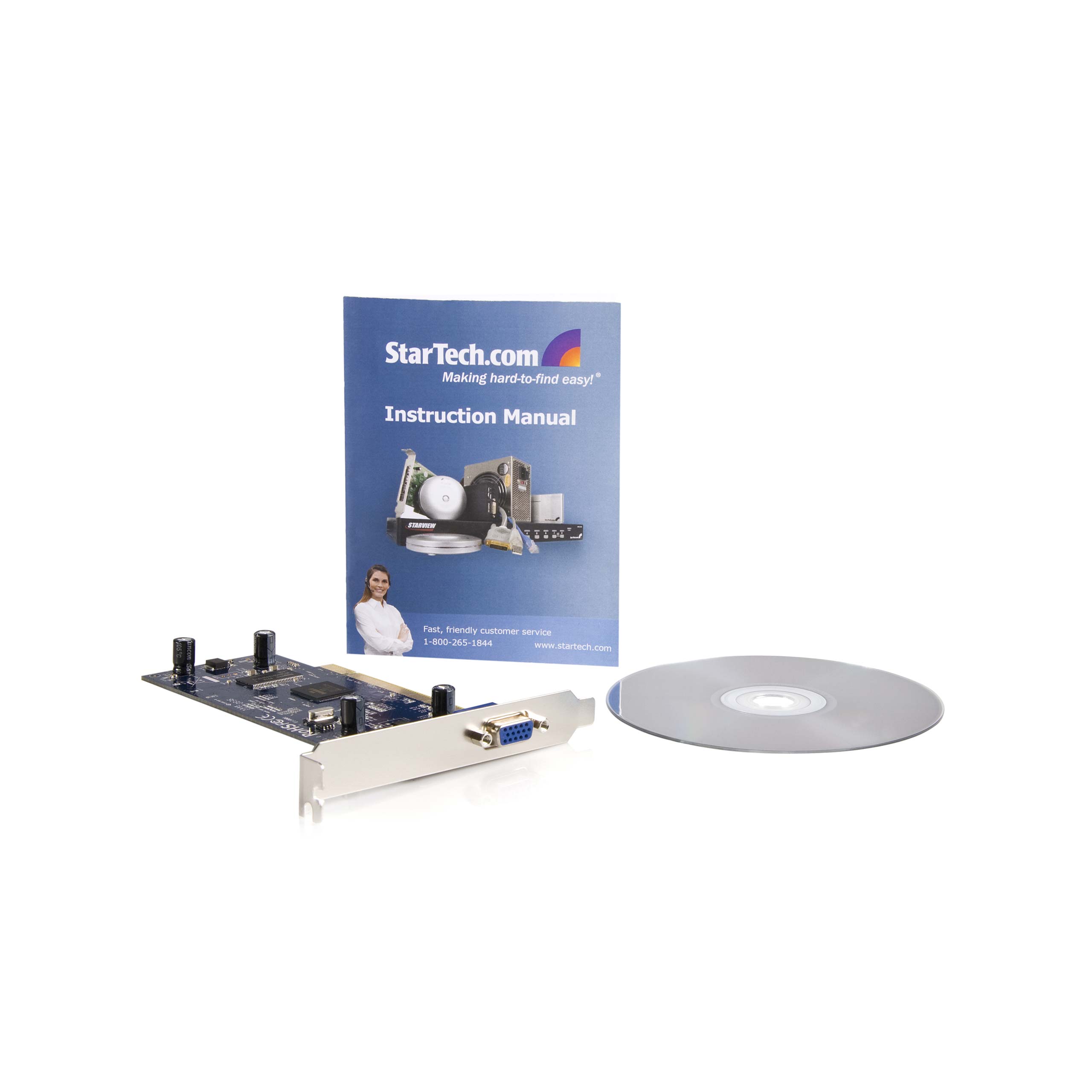

Bus Type PCI / PCI-X (5 / 3.3V) Chipset ID XGI - Volari Z7 Memory 16 MB DDR RAM Carton Depth (mm) 760 Carton Height (mm) 250 Carton Quantity 50 Carton Weight Gross (g) 10400 Included in Package - 1 - PCI VGA Video Card
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 34 Package Height (mm) 154 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 167.83 Packaging Description 16 MB PCI VGA Video Card Packaging Description India 16 MB PCI VGA Video Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy
