PCIX1PEX4
PCI-X to x4 PCI Express Adapter
Install a low profile x4 PCI Express card into a PCI-X slot
Main Image
Product Images
Product Images
BOM Image
Product Name PCI-X to x4 PCI Express Adapter Product Number PCIX1PEX4 UPC 065030841580 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Expansion Slot Conversion and Extension Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) PCI-X to x4 PCI Express Adapter Card Product Title (Standard) PCI-X to x4 PCI Express Adapter Card Product Title (Long) PCI-X to x4 PCI Express Adapter Card Product Title (AMZ) PCI-X to x4 PCI Express Adapter Card (PCIX1PEX4) Title Ingram (Part 1) PCI-X to x4 PCI Express Adapter Title Ingram (Part 2) Card Website Product Headline Install a low profile x4 PCI Express card into a PCI-X slot Bullet 1 Physical x16 PCI Express female connector allows x16/x8/x4/x1 cards to fit Bullet 2 Compliant with PCI Express Base specification 1.0a Bullet 3 Compliant with PCI-X 1.0 and PCI 3.0 specifications Bullet 4 Electrically x4 PCI Express compatible, with data transfer rates up to 10 Gbps Bullet 5 Unique rear bracket mating design for low profile/half-height to full profile conversion Marketing Copy Applications - Upgrade an older server to be able to use newer PCI Express-based expansion cards
- Add dedicated PCI Express graphics to a non-PCI Express server motherboard
Website Search Keyword - pcix to pcie
- PCI-X to PCI Express
- x4 pci express adapter
- PCI-X converter
- pci-x to pcie bridge
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes The x16 PCI Express connector is only electrically x4 compatible. Maximum data transfer rates are therefore limited to x4 speeds. System and Cable Requirements Full Profile PCI-X (3.3V) slot Related Products - PCI1PEX1
- PEX1PCI1
- PEX1TO162
- PEX2PCIE4L
- PEX2PCI4

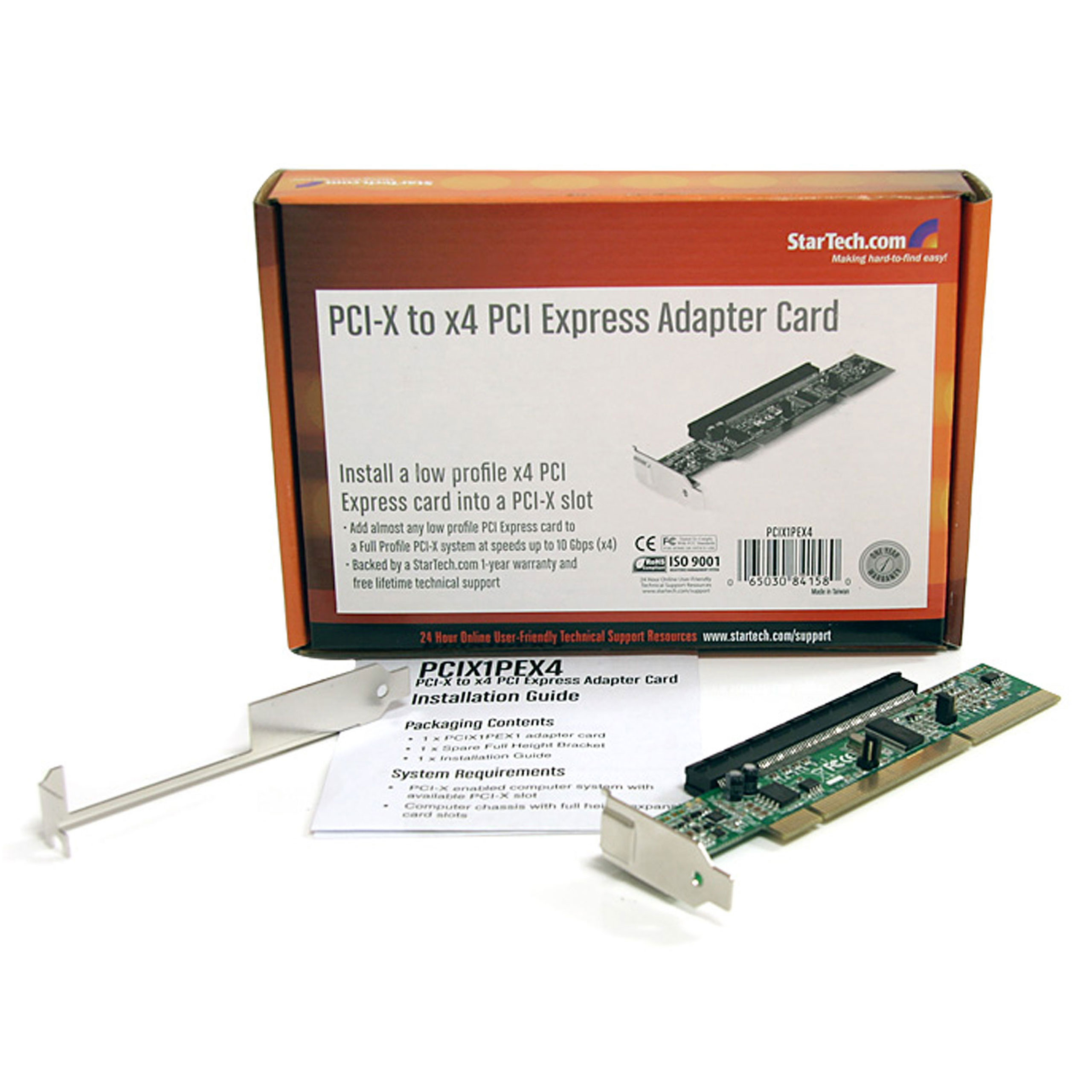

Operating Temperature -40°C to 85°C (-40°F to 185°F) Product Length (mm) 164 Product Width (mm) 40 Product Height (mm) 20 Product Weight (g) 41 Storage Temperature -65°C to 150°C (-85°F to 302°F) TAA Compliant Yes Bus Type PCI-X (3.3V) Chipset ID PLX - PEX8114 Interface/Bridge PCI Express Carton Depth (mm) 440 Carton Height (mm) 230 Carton Quantity 50 Carton Weight Gross (g) 6600 Included in Package - 1 - PCI-X to PCI Express adapter card
- 1 - User Manual
- 1 - Spare Full Height Bracket
Package Depth (mm) 145 Package Height (mm) 40 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 111.9914 Packaging Description PCI-X to x4 PCI Express Adapter Packaging Description India PCI-X to x4 PCI Express Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 PCI Express x4 Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
