Main Image
PCM815SHNA
8 Outlet Remote Power Module-RS232 Interface
Power up to eight devices on and off remotely over a local IP network or the internet
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 8 Outlet Remote Power Module-RS232 Interface Product Number PCM815SHNA UPC 065030810661 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Racks and Enclosures Category Level 2 Rack Power Category Level 3 Rackmount PDUs Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Short) Power Switch 8 Outlet Serial Control PDU Product Title (Standard) StarTech.com 1U Rackmount Power Switch 8 Outlet 15 Amp RS232 Serial Control PDU - 8 Outlet Remote Power Switch - RS232 Interface - Power control unit - AC 100-240 V - RS-232 - 8 output connector(s) Product Title (Long) 1U Rackmount Power Switch 8 Outlet 15 Amp RS232 Serial Control PDU Title Ingram (Part 1) 1U Rackmount Power Switch 8 Outl Title Ingram (Part 2) et 15 Amp Serial Control PDU Website Product Headline Power up to eight devices on and off remotely over a local IP network or the internet Bullet 1 Ideal accessory to StarTech.com’s Server Remote Control product line, or as a standalone power management solution Bullet 2 Manage the power requirements of up to 8 computers or other devices from a single switch Bullet 3 Versatile cascade feature allows you to combine up to 16 power management switches to control up to 128 devices Bullet 4 Access the features of the power management switch from its easy-to-use software interface or from the front panel Bullet 5 Easy setup using industry standard cabling and rack-mountable form factor Marketing Copy Special Notes Adding more than 1 optional PCM815SHNA power switch to the Server Remote Control requires a RPORT module Accessory Products - MXT100MM
- NETRS232_1
- NETRS2321E
- ICUSB232
- ICUSB232PRO
- ICUSB2321X
Related Products - RPORT
- SV1110IPEXT
- SV841HDI
- SV1641HDI
Input Voltage 120 AC Color Black Humidity 10~90% RH Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 410 Product Width (mm) 165 Product Height (mm) 44.5 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No General Specifications - Max Combined Switches: 16 units via UTP Cable Cascade
- Max. Current load per Port: 6 Amps
Management RS232 Maximum Total Current Draw per Phase 15A OS Compatibility - Windows 8
- Windows 7
Form Factor Horizontal LED Indicators - 8 - Power
- 8 - Alarm State
- 1 - Current Load Indicator (amps)
- 1 - Bank Number Indicator

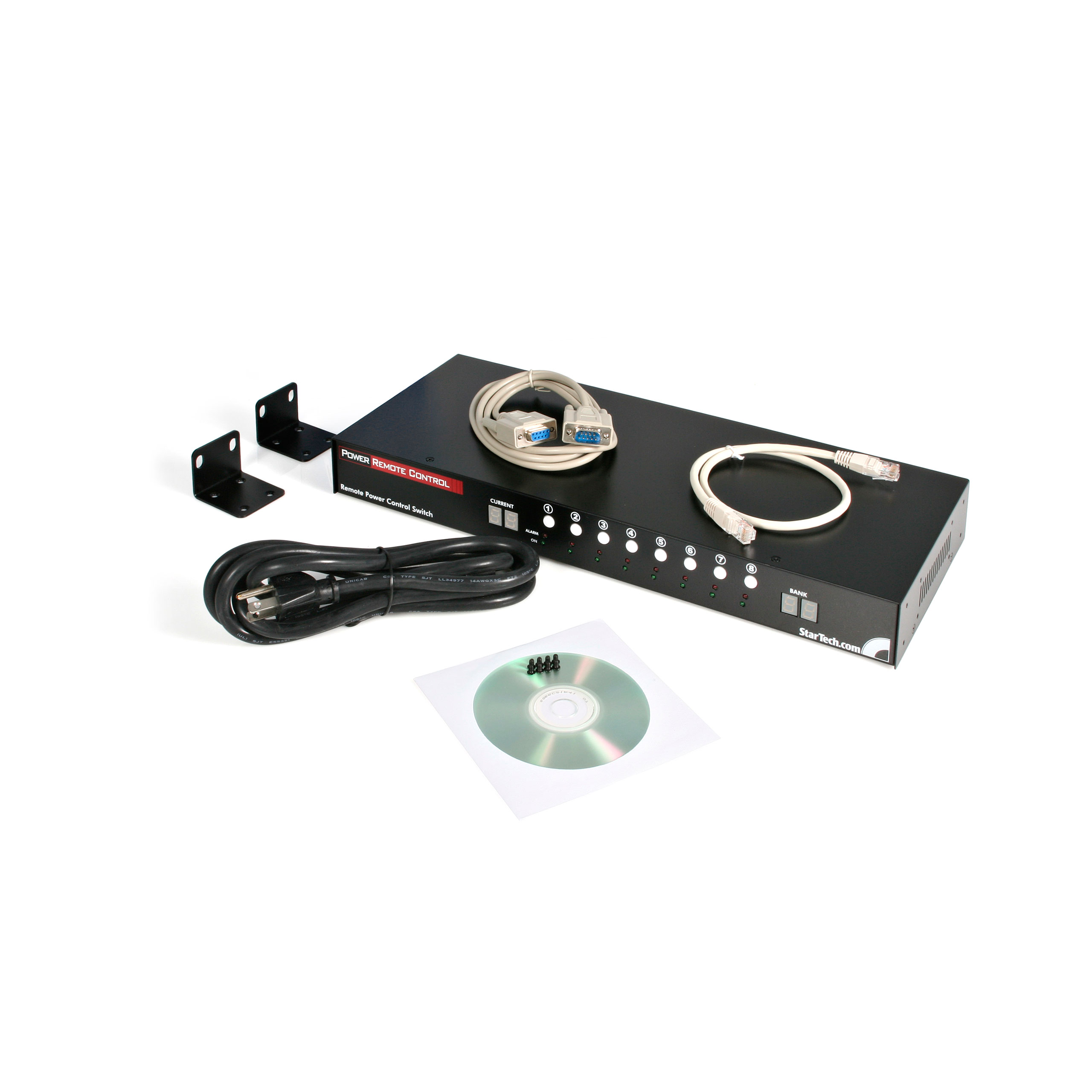

Rack-Mountable Yes Carton Depth (mm) 650 Carton Height (mm) 290 Carton Quantity 3 Carton Weight Gross (g) 17600 Included in Package - 1 - 8 Outlet Remote Power Switch
- 1 - Power Cord
- 1 - DB9 M/F Cable
- 2 - Rackmount Brackets (w/ Screws)
- 1 - RJ45 Cable
- 1 - Software CD
Package Depth (mm) 151 Package Height (mm) 372 Package Width (mm) 522 Package Quantity 1 Package Weight (g) 3280 Packaging Description 8 Outlet 1U Rackmount Power Switch PDU Packaging Description India 8 Outlet 1U Rackmount Power Switch PDU Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 IEC C14 (250V AC, 10A) Connector 3 (Quantity) 1 Connector 4 NEMA 5-15 (125V AC, 15A) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
