PCSCREWKITMC
Main Image
Product Images

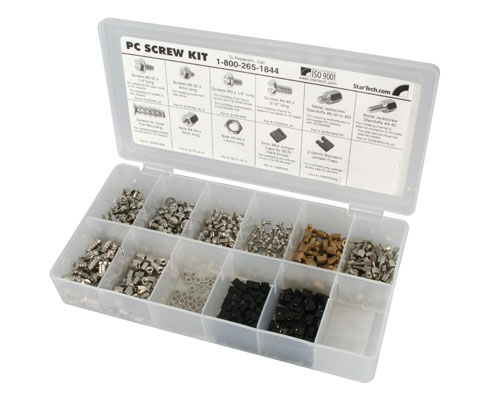

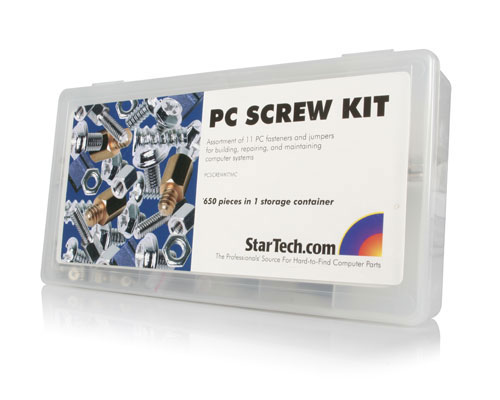

Product Name Assortment of screws, nuts and jumpers Product Number PCSCREWKITMC UPC 065030796552 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX020X Product Title (Short) PC Screw Kit - PC Screws and Jumpers Product Title (Standard) Deluxe Assortment PC Screw Kit - PC Screws/Jumpers Product Title (Long) Deluxe Assortment PC Screw Kit - PC Screws and Jumpers Title Ingram (Part 1) Deluxe Assortment PC Screw Kit - Title Ingram (Part 2) PC Screws and Jumpers Bullet 1 Handy plastic case designed with dividers Bullet 2 Label inside the lid explains common use for each item and also lists a StarTech.com reorder part number for replenishment Bullet 3 Plastic container comes with a latch that prevents it from accidentally opening up upon impact Bullet 4 Additional compartment is provided to store other screws Marketing Copy Applications - PC Assembly
- PC Repair
- PC Upgrades
Related Products PCSCREWKIT TAA Compliant No General Specifications - Screw 6-32 x .25 Inches: Used in PC case cover and I/O plates
- Screw 6-32 x .15 Inches: Used to install hard drives
- Screw M3 x .25 Inches: Used to install floppy drive, CD-ROM drive and motherboard
- Screw 4-40 x .18 Inches: Used in I/O plate connector
- Metal Jackscrew Standoffs 6-32 to M3: Used in motherboard installation and pre-taped PC chassis
- Metal Jackscrew Standoffs 4-40: Used in I/O plate connector
- Case fan screws: Used to install plastic-framed cooling fans to PC chassis
- Nuts 4-40 x 6 mm: Used in joining cables
- Nuts 4-40 x 1.6 mm: Used in screw 4-40
- Jumper 2.54 mm: Used in circuit boards
- Jumper 2.0 mm: Used in SCSI hard drives
- Case dimension:
- Length: 8.2 Inches (210 mm)
- Width: 4.52 Inches (115 mm)
- Height: 1.77 Inches (45 mm)
Carton Depth (mm) 255 Carton Height (mm) 190 Carton Quantity 20 Carton Weight Gross (g) 11000 Package Depth (mm) 33 Package Height (mm) 108 Package Width (mm) 210 Package Weight (g) 490 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Daryl Hunt
