PDU02IPSC
2 Outlet IP Remote PDU w/ RS232 and Sensor Ports
Power two devices on/off remotely over a LAN or the Internet, plus monitor a connected UPS and sensor data
Main Image
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2 Outlet IP Remote PDU w/ RS232 and Sensor Ports Product Number PDU02IPSC UPC 065030852364 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Racks and Enclosures Category Level 2 Rack Power Category Level 3 Rackmount PDUs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 2Pt Switched IP PDU Product Title (Short) 2 Port Switched IP PDU w/ RS232 Product Title (Medium) 2 Port Switched IP PDU - Remote IP Power Switch w/ RS232 Console & Sensor Ports Product Title (Standard) 2 Port Switched IP PDU - Single-Phase Remotely Managed IP Power Switch w/ RS232 Console and Sensor Ports Product Title (Long) 2 Port Switched IP PDU - Single-Phase Remotely Managed IP Power Switch w/ RS232 Console and Sensor Ports Product Title (AMZ) 2 Port Switched IP PDU Single-Phase Remotely Managed IP Power Switch w/ RS232 Console and Sensor Ports - IP PDU Power Switch (PDU02IPSC) Title Ingram (Part 1) 2 Outlet Managed IP Remote PDU Title Ingram (Part 2) with RS232 and Sensor Ports Website Product Headline Power two devices on/off remotely over a LAN or the Internet, plus monitor a connected UPS and sensor data Bullet 1 IP-addressable PDU with 2 power outlets Bullet 2 Supports power event scheduling on a daily, weekly, monthly or yearly basis Bullet 3 Individual and global outlet controls Bullet 4 Auto-Ping can monitor and auto-detect failed network equipment to perform a timed power cycle Bullet 5 Configurable Email, SMS and SNMP Trap notifications Bullets (Consolidated) Power two devices on/off remotely over a LAN or the Internet, plus monitor a connected UPS and sensor data - Switched PDU/IP Power Switch/Managed PDU/single phase PDU/Remote power distribution unit/2 outlet/Remote power/RS232 console and sensor ports - Reduce downtime of key equipment with remote power control - Monitor and control from anywhere in the world through a simple web interface - Monitor and receive power event notifications for critical server and networking equipment Marketing Copy Applications - Use for intelligent remote power management for data center devices
- Monitor and receive power event notifications for critical server and networking equipment
- Create power schedules for industrial machinery
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
Accessory Products - PXT515C158
- PXT515C154
Related Products - PDU02IP
- PCM815SHNA
Input Voltage 120 AC Power Consumption (In Watts) 4.5 Power Source Standard 120V Power Cords Color Black Humidity 0~85% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 182.000 Product Width (mm) 130.000 Product Height (mm) 45.000 Product Weight (g) 820.000 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant No General Specifications - Max. Current load per Port: 8 A
- Max. Total Current Output: 12 A
Management - RS232
- IP
- Sensor Port
Maximum Total Current 12A MTBF (hours) 175,200 Hours LED Indicators - 2 - Per-Outlet On/Off Indicators
- 1 - Power
- 1 - Reset Indicator

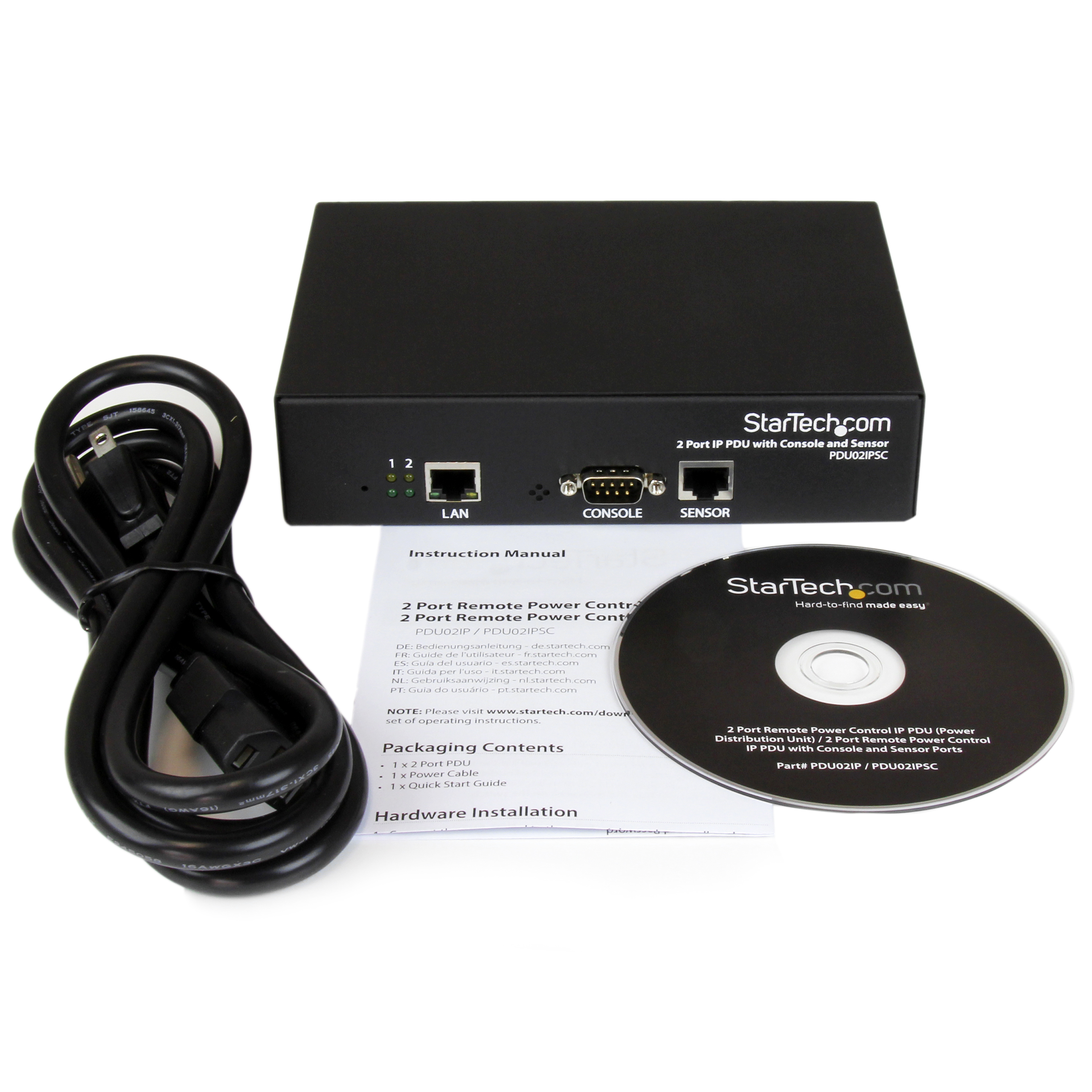

Rack-Mountable No Carton Depth (mm) 430 Carton Height (mm) 510 Carton Quantity 20 Carton Weight Gross (g) 27200 Included in Package - 1 - 2 Port PDU
- 1 - Power Cable
- 1 - Quick Start Guide
Package Depth (mm) 217 Package Height (mm) 80 Package Width (mm) 245 Package Quantity 1 Package Weight (g) 1200 Packaging Description 2 Port IP PDU with Console and Sensor Ports Packaging Description India 2 Port IP PDU with Console and Sensor Ports Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 2 Connector 3 IEC C14 (250V AC, 10A) Connector 3 (Quantity) 1 Connector 4 NEMA 5-15 (125V AC, 15A) Connector 4 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-07-23 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Sead Ferhatovic Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
