PEX10000SFPI

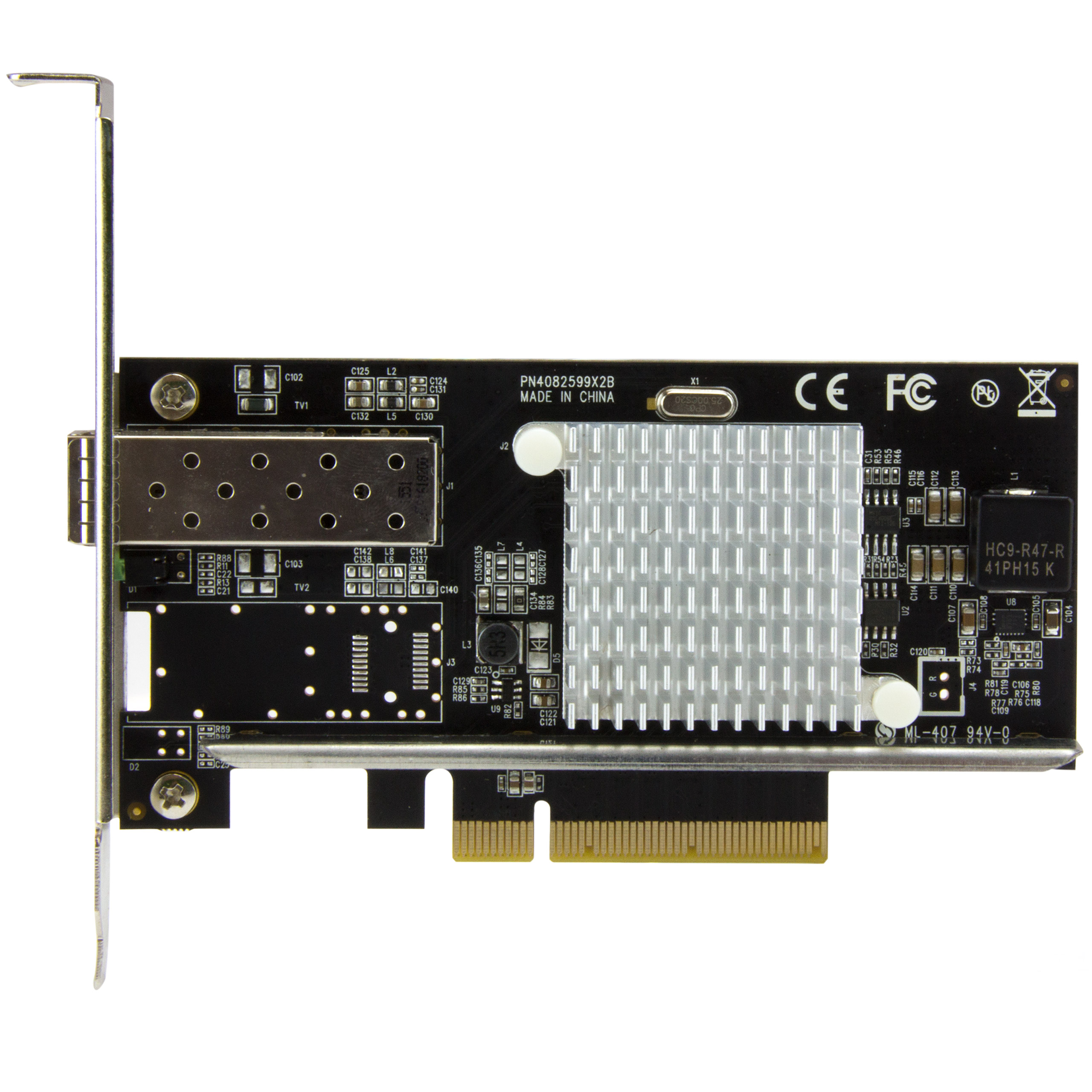

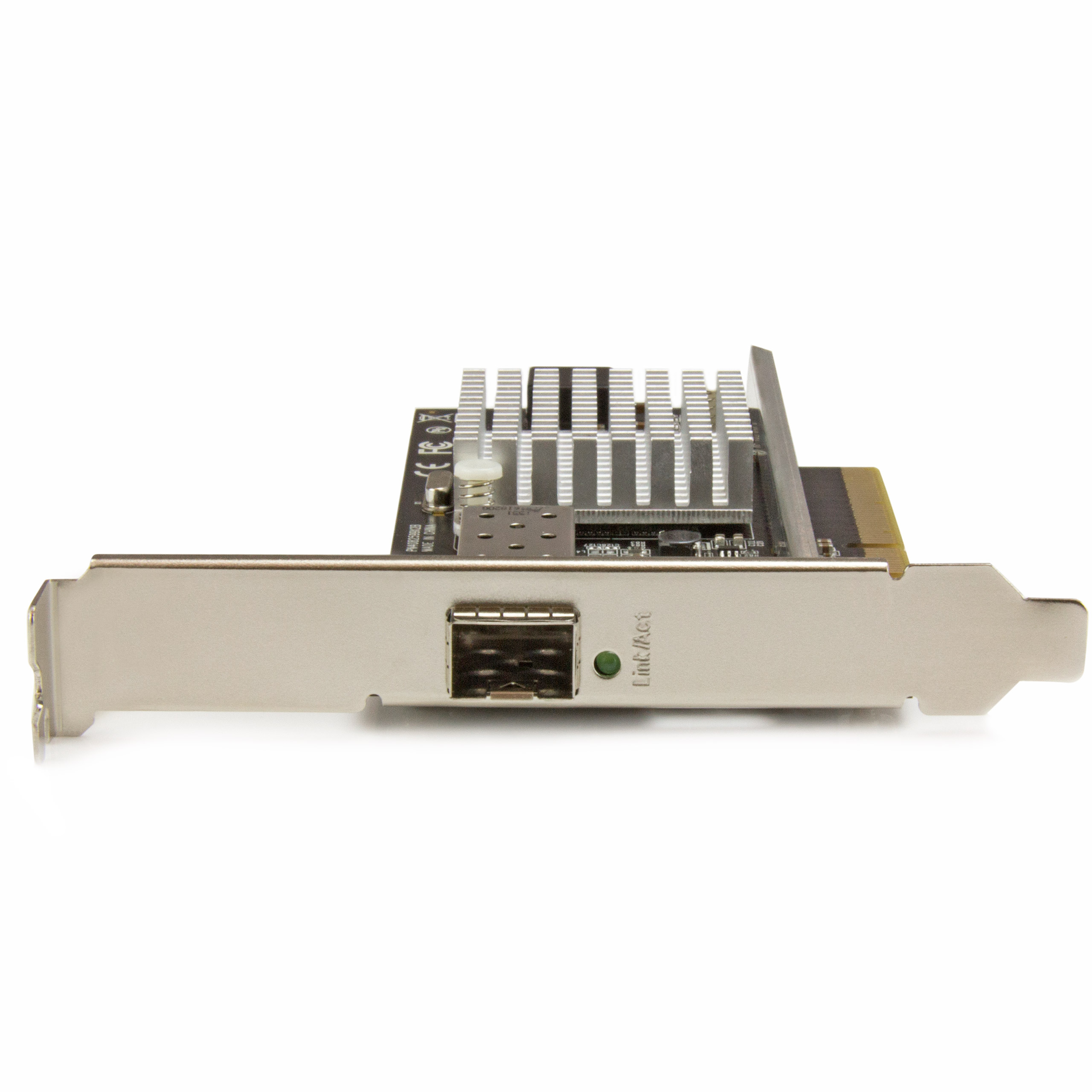

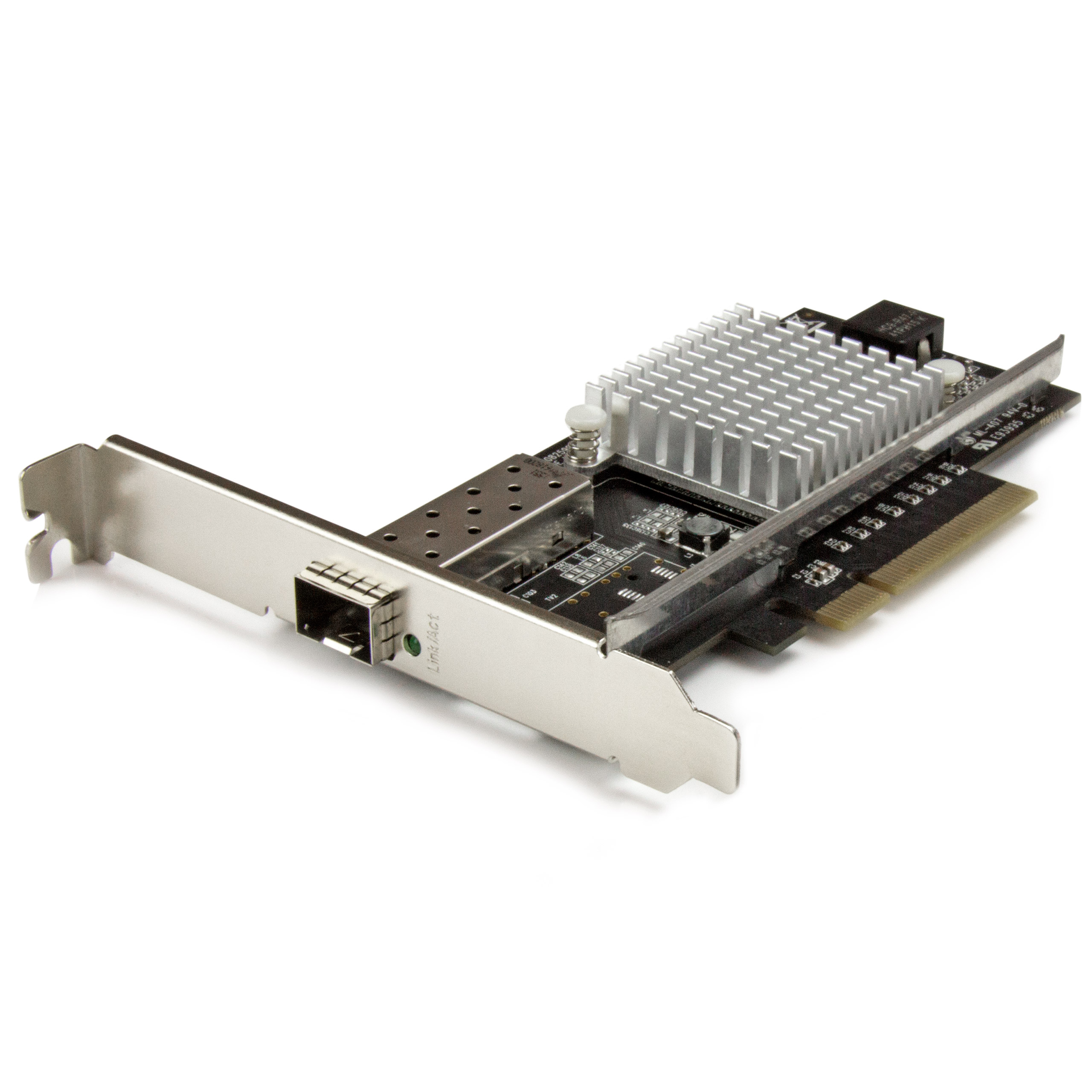

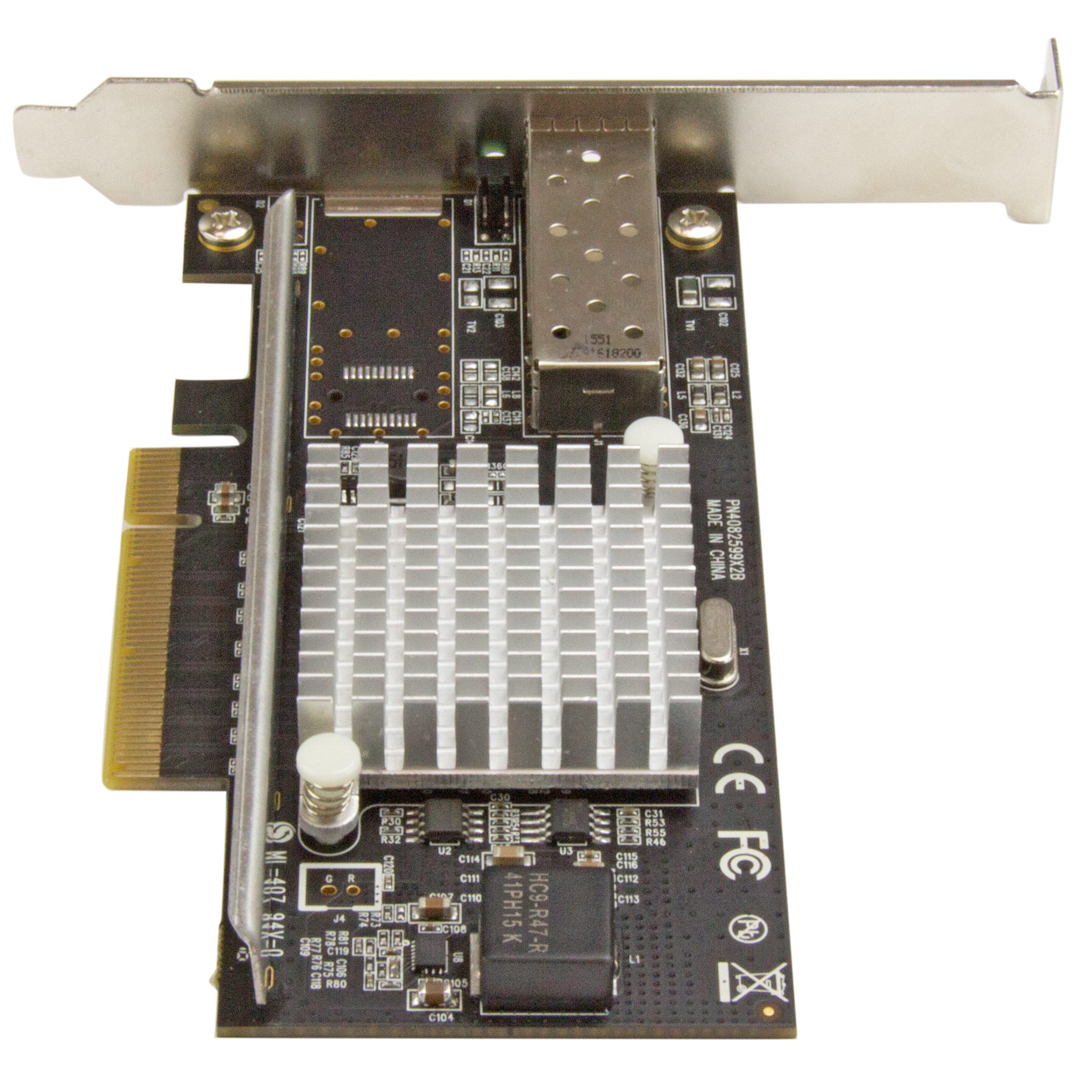

1 Port 10GbE Open SFP Network Card PCI Express
Get advanced connectivity over multimode or single-mode fiber, by adding a 10GBase-LR/SR open SFP+ port to your server or workstation
Main Image
Enhanced Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name 1 Port 10GbE Open SFP Network Card PCI Express Product Number PEX10000SFPI UPC 065030866163 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Fiber Cards Family 10G PCIe Ethernet NICs - Fiber/SFP+-Intel Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX163X Product Title (Ultra-Short) 10G Open SFP+ NIC Product Title (Short) 10G Open SFP+ Network Card - PCI Express Product Title (Medium) 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM - PCIe 10G NIC Product Title (Standard) 10G Network Card – MM/SM – 1x Single 10G SPF+ slot – Intel 82599 Chip – Gigabit Ethernet Card – Intel NIC Card Product Title (Long) 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM Product Title (AMZ) 10G Network Card - MM/SM - 1x Single 10G SPF+ slot - Intel 82599 Chip - Gigabit Ethernet Card - Intel NIC Card (PEX10000SFPI) Title Ingram (Part 1) 1-Port 10GbE Network Card with Title Ingram (Part 2) Open SFP+ - PCI Express 10G NIC Website Product Headline Get advanced connectivity over multimode or single-mode fiber, by adding a 10GBase-LR/SR open SFP+ port to your server or workstation Bullet 1 Add a 10GbE SFP+ slot to your server or workstation for fast, high bandwidth connectivity, compatible with SR or LR transceivers Bullet 2 Compatible with multimode or single-mode fiber Bullet 3 Intel 82599 chipset with Intel Virtualization Technology for Connectivity Bullet 4 PXE network boot support Bullet 5 Compliant with IEEE 802.3ae (10GBASE-LR/SR only) and IEEE 802.3aq (10GBASE-LRM) Bullets (Compact) Get advanced connectivity over multi-mode or single-mode fiber, by adding a 10GBase-LR/SR open SFP+ port to your server or workstation - 1-Port 10G Open SFP+ network card with Intel Chip - PCI Express 10GbE NIC w/ Open SFP+ for SR or LR transceivers Bullets (Consolidated) Get advanced connectivity over multi-mode or single-mode fiber by adding a 10GBase-LR/SR open SFP+ port to your server or workstation - 1-Port 10G Open SFP+ network card with Intel 82599 chip - 1 Port PCI Express 10GbE network adapter card with open SFP+ - PCIe 10G NIC compliant with SR or LR transceivers - 10G Ethernet network adapter compliant with IEEE 802.3ae (10GBASE-LR/SR only) and IEEE 802.3aq (10GBASE-LRM) - PXE network boot support Marketing Copy Marketing Copy (No HTML) Applications - Add 10Gbps network connectivity to file or application servers and high-performance workstations
- Transmit full 10 Gigabit network speeds to a remote terminal over longer distances than copper cabling
- Supports secure setups - a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
- Upgrade your onboard network adapter to 10 Gigabit SFP+, for faster communication
- Create a video / audio editing console with 10Gbps access to network storage
- Ideal for remote embedded industrial monitoring systems, and high-speed video surveillance
Website Search Keyword - 10G Open SFP+ Network Card - PCIe
- pci express 10g network card
- pcie 10g nic
- pcie 10g network adapter
- pcie 10g server card
- 10g Ethernet network adapter
- 1 port 10g card
- sfp 10g card
- sfp 10g nic
- 10base-sr network card
- 10base-lr nic
- 10g converged network card
- 10g converged network adapter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - Intel NIC Teaming is supported only on Windows Server OS (e.g., Server 2012, 2016) and not on desktop versions like Windows 10 or 11. Accessory Products - SFP10GSRST
- SFPCMM3M
- SFPCMM2M
- SFPCMM1M
- SFPCMM5M
Related Products - PEX20000SFPI
- PEX10000SFP
Constrained SKU Alternatives (Limited Stock) PEX1000SFP2 Color Black Humidity 20% ~ 80% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 135.000 Product Width (mm) 18.000 Product Height (mm) 120.000 Product Weight (g) 102.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Compatible Networks 1Gbps / 10Gbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 10 Gbps OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Linux
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
Promiscuous Mode Yes Supported Protocols Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Intel - 82599 Industry Standards Interface/Bridge - Fiber (10 Gigabit Ethernet)
- Gigabit Ethernet

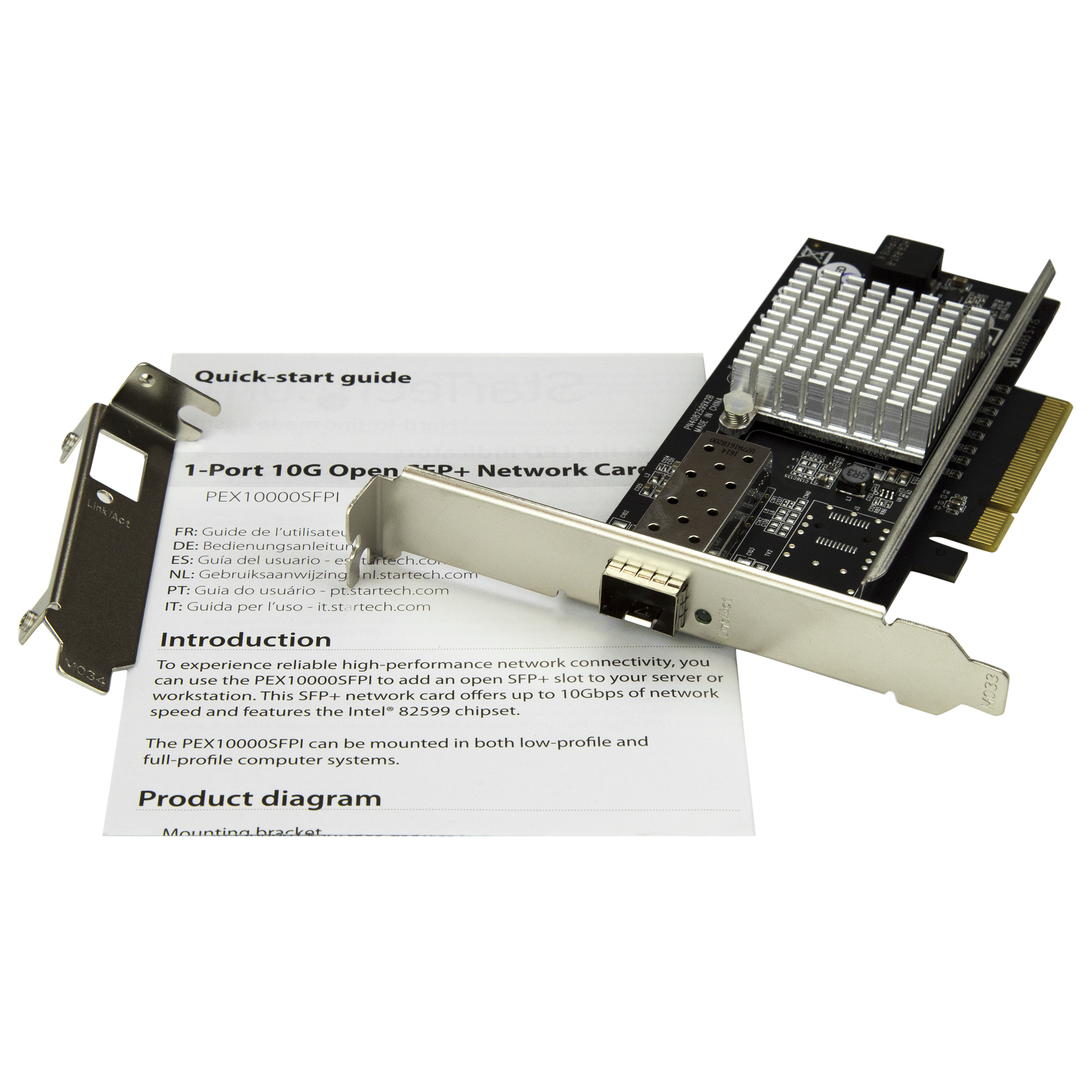

Carton Depth (mm) 308 Carton Height (mm) 364 Carton Quantity 80 Carton Weight Gross (g) 13852 Included in Package - 1 - 10G open SFP+ fiber network card
- 1 - low-profile bracket
- 1 - quick-start guide
Package Depth (mm) 143 Package Height (mm) 30 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 164 Packaging Description 1-Port 10G Open SFP+ Network Card - PCIe - MM/SM Packaging Description India 1-Port 10G Open SFP+ Network Card - PCIe - MM/SM Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x8 Connector 1 (Quantity) 1 Connector 2 SFP+ Slot Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2016-07-22 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2016-07-26 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-07-12 Target Production Release 2016-07-15 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
