PEX1000MMSC

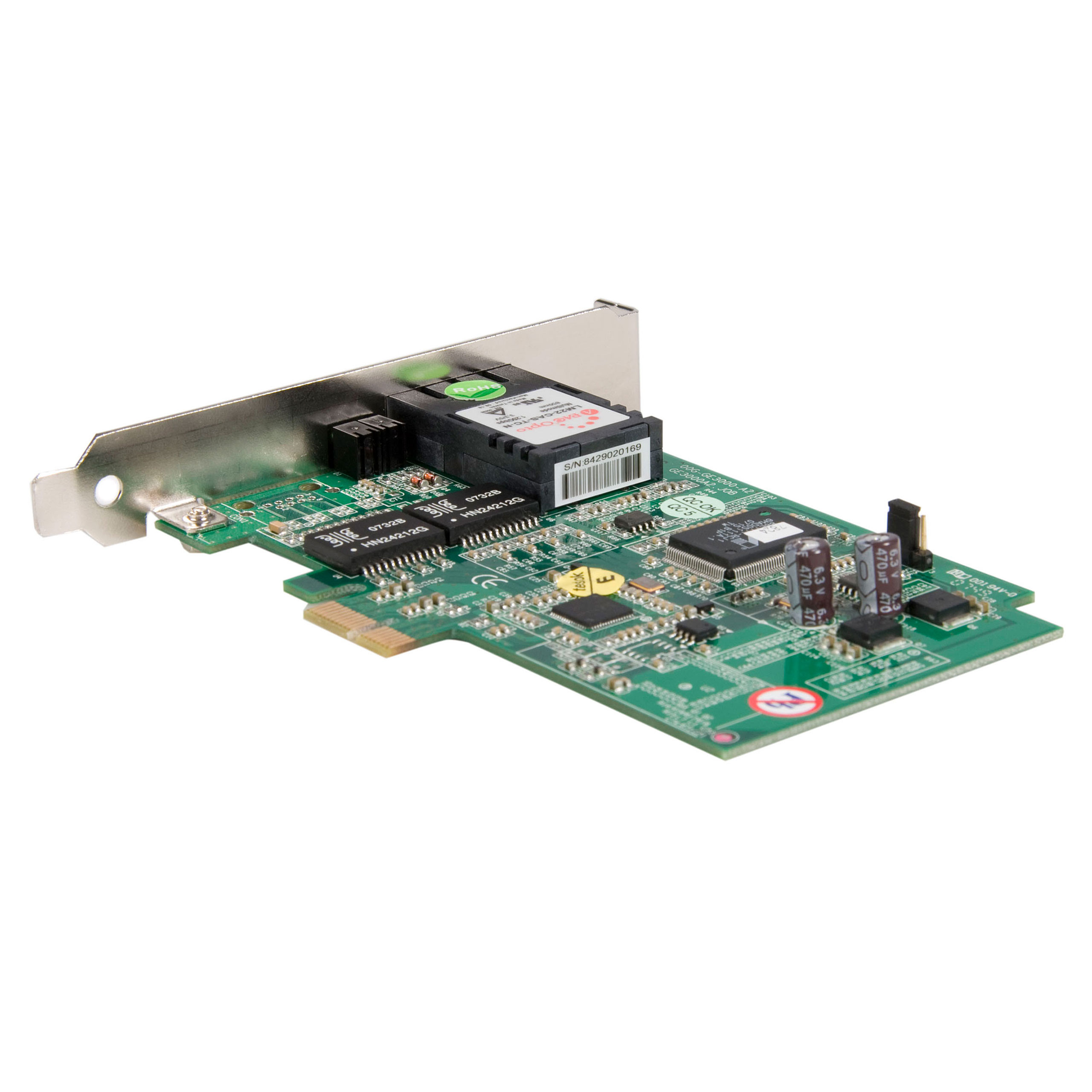

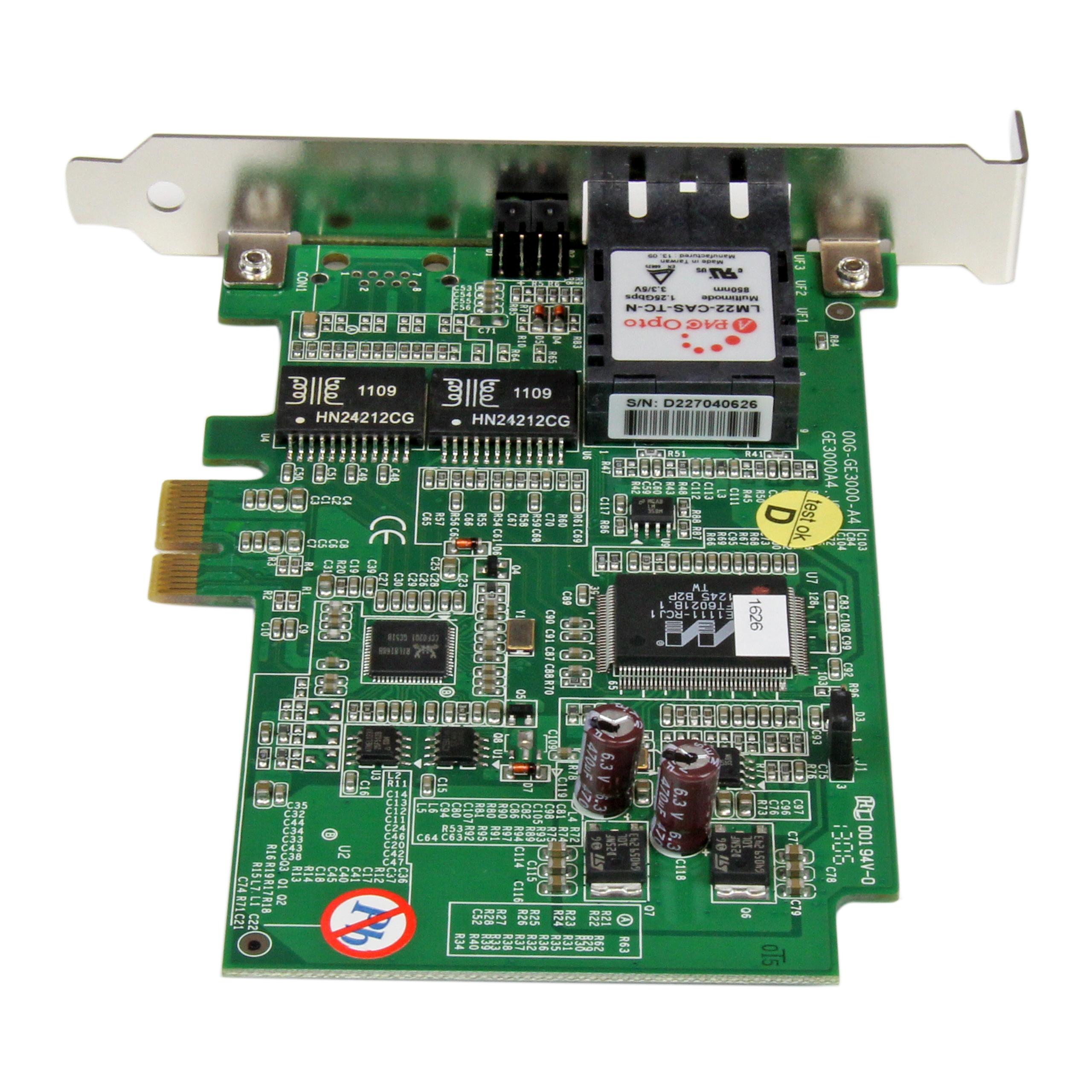

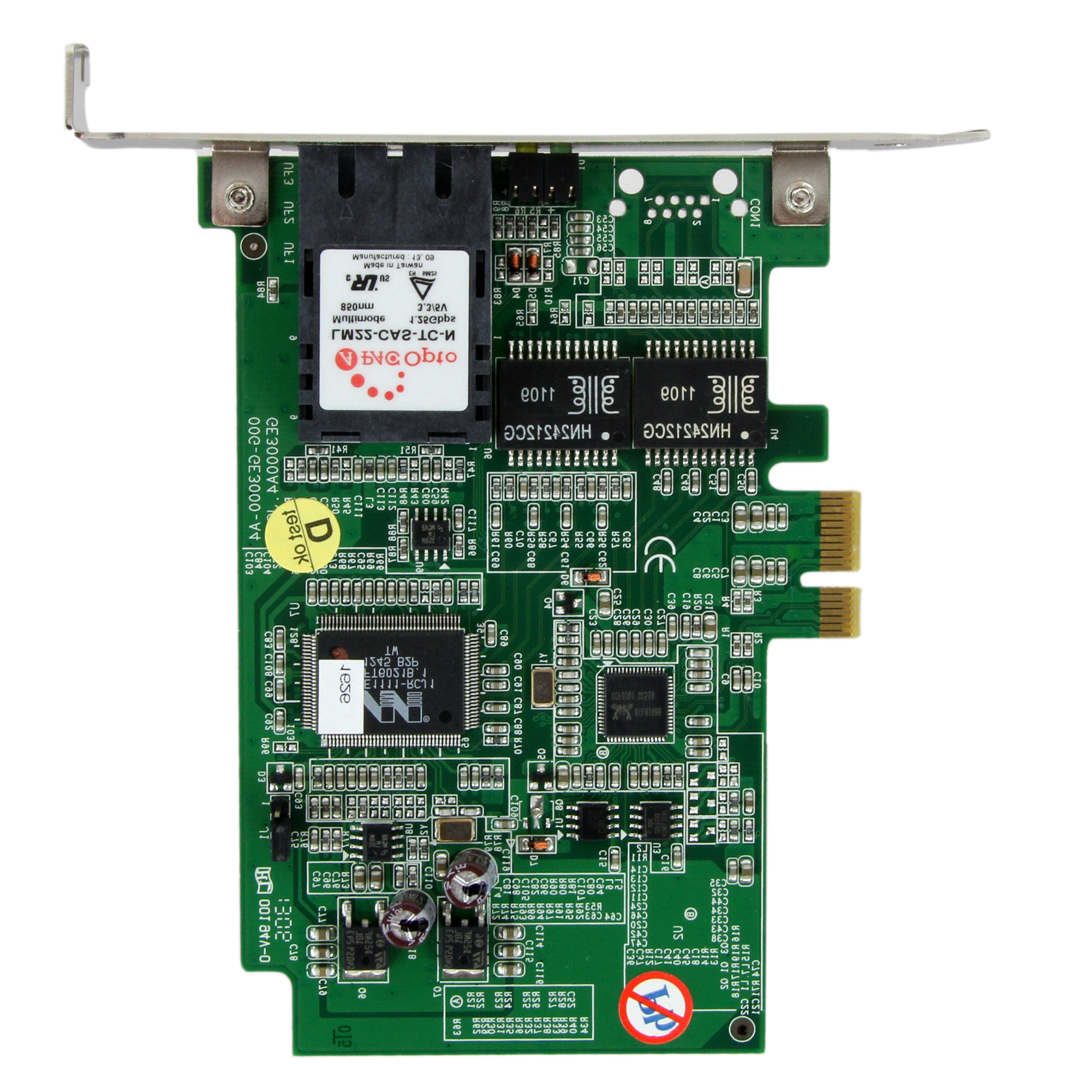

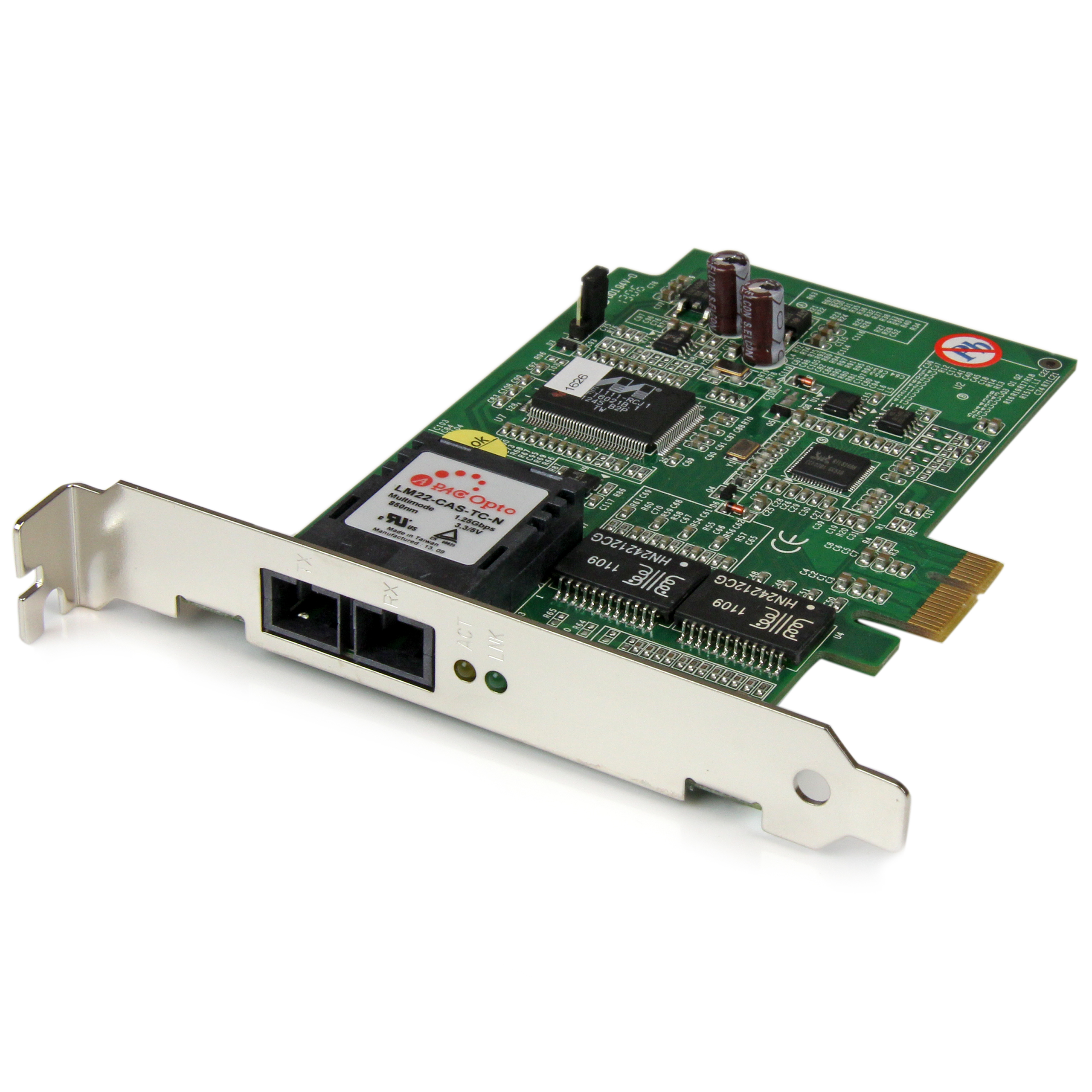

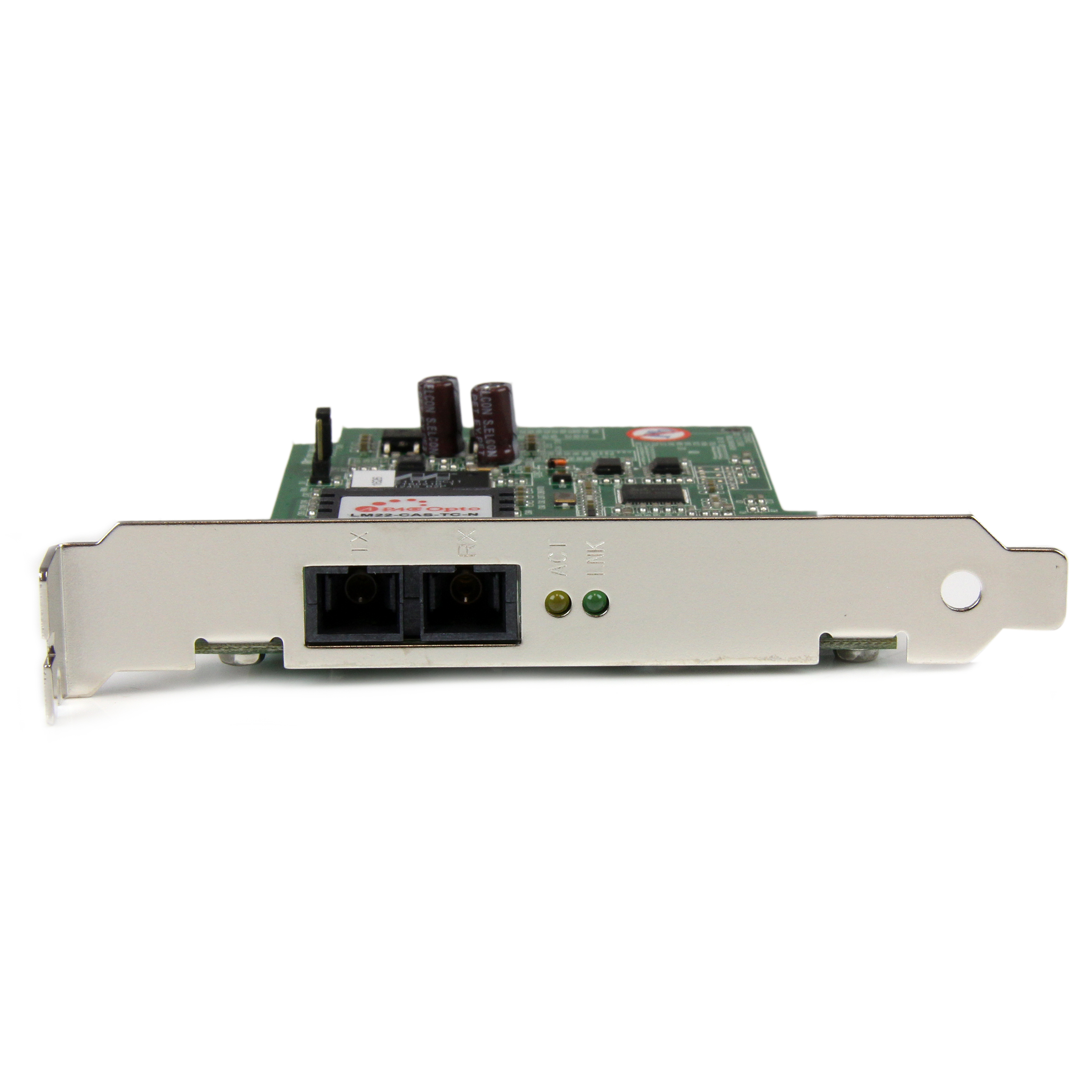

1000 Gigabit MM SC Fiber PCIe Card - 550m
Add a gigabit Multi-mode SC fiber port to your system through PCI Express
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 1000 Gigabit MM SC Fiber PCIe Card - 550m Product Number PEX1000MMSC UPC 065030832670 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX026X Product Title (Ultra-Short) 1Gbps PCIe Fiber NIC Product Title (Short) 1000 Mbps Gigabit MM SC Fiber PCIe Card Product Title (Standard) StarTech.com Fiber PCI Express card - multi mode - gigabit - 1000 Mbps - 550m Product Title (Long) 1000 Mbps Gigabit Ethernet Multi Mode SC Fiber PCI Express Card - 550m Product Title (AMZ) 1000 Mbps Gigabit Ethernet Multi Mode SC Fiber PCI Express Card - 550m (PEX1000MMSC) Title Ingram (Part 1) 1000 Mbps Gigabit Multi Mode SC Title Ingram (Part 2) Fiber PCI Express Card 550m Website Product Headline Add a gigabit Multi-mode SC fiber port to your system through PCI Express Bullet 1 Advanced Configuration Power Management Interface (ACPI) 2.0 Bullet 2 Supports Wake-on-LAN remote wake-up Bullet 3 Microsoft NDIS5 (IP, TCP, UDP) checksum offload Bullet 4 Cable diagnostic utility Bullet 5 Supports up to 7K Bytes jumbo frame in Windows® 7/Vista (4KB in older OS) Bullets (Consolidated) Add a gigabit Multi-mode SC Fiber Port to your system through PCI Express - PCI Express Fiber NIC - Fiber Network Card - Fiber Ethernet Card -PCI Express Fiber Card - up to 550m - PCIe Fiber Card - Network Card Marketing Copy Applications - Add a 1000 Mbps SC Fiber connection to a PCI compatible PC
- Add network connectivity to a PC up to 550m Away
- Create a secure connection between the PC and a fiber switch
- Perfect for remote embedded industrial monitoring systems, and high speed video surveillance
Website Search Keyword - 1000 base
- PCI Express
- Fiber Converter
- Multi mode fiber
- Gigabit
- Gigabit adapter
- Fiber Card
- Optic card
- Fiber optic
- ST card
- ST connector
- Secure NIC
- NIC
- Fiber NIC
- Fiber Network Card
Special Notes Not compatible with 10/100 Accessory Products - FIBSCSC5
- FIBSCSC10
- FIBSCSC15
Related Products - PEX1000MMST
- PCI100MMSC
Replacement Product PEX1000MMSC2 Color Green Humidity 5%-95% non-condensing Operating Temperature 0°C to 45° C (32°F to 113°F) Product Length (mm) 109.000 Product Width (mm) 83.000 Product Height (mm) 20.000 Product Weight (g) 80.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Compatible Networks 1000 Mbps (1 Gbps) Maximum Cable Length (mm) 550000 OS Compatibility - Linux
- Windows 8
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 7
Wake-On-LAN (WOL) Yes Wavelength 850nm Bus Type PCI Express Card Type Standard Profile Chipset ID Realtek - RTL8168B Industry Standards IEEE802.3z 1000Base-SX, IEEE802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.3ad Interface/Bridge Fiber Ethernet LED Indicators 2 - Link and Activity Carton Depth (mm) 505 Carton Height (mm) 381 Carton Quantity 25 Carton Weight Gross (g) 18200 Included in Package - 1 - PCI Express Gigabit Ethernet Adapter

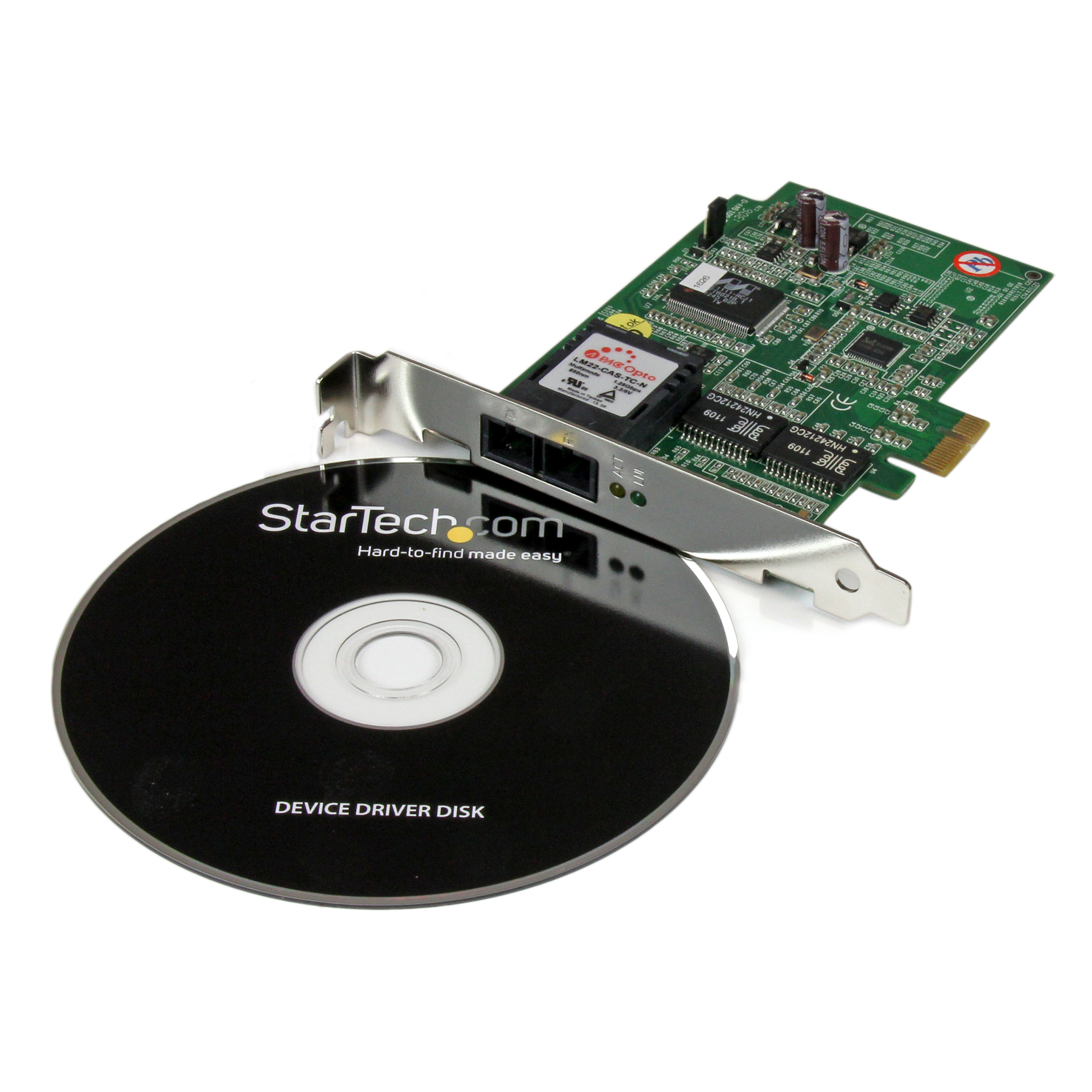

- 1 - Driver/Instruction Manual CD-ROM
Package Depth (mm) 50 Package Height (mm) 174 Package Width (mm) 221 Package Weight (g) 680 Packaging Description 1 Gigabit PCIe Multimode SC Fiber Card Packaging Description India 1 Gigabit PCIe Multimode SC Fiber Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 SC Duplex Fiber Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
