Main Image

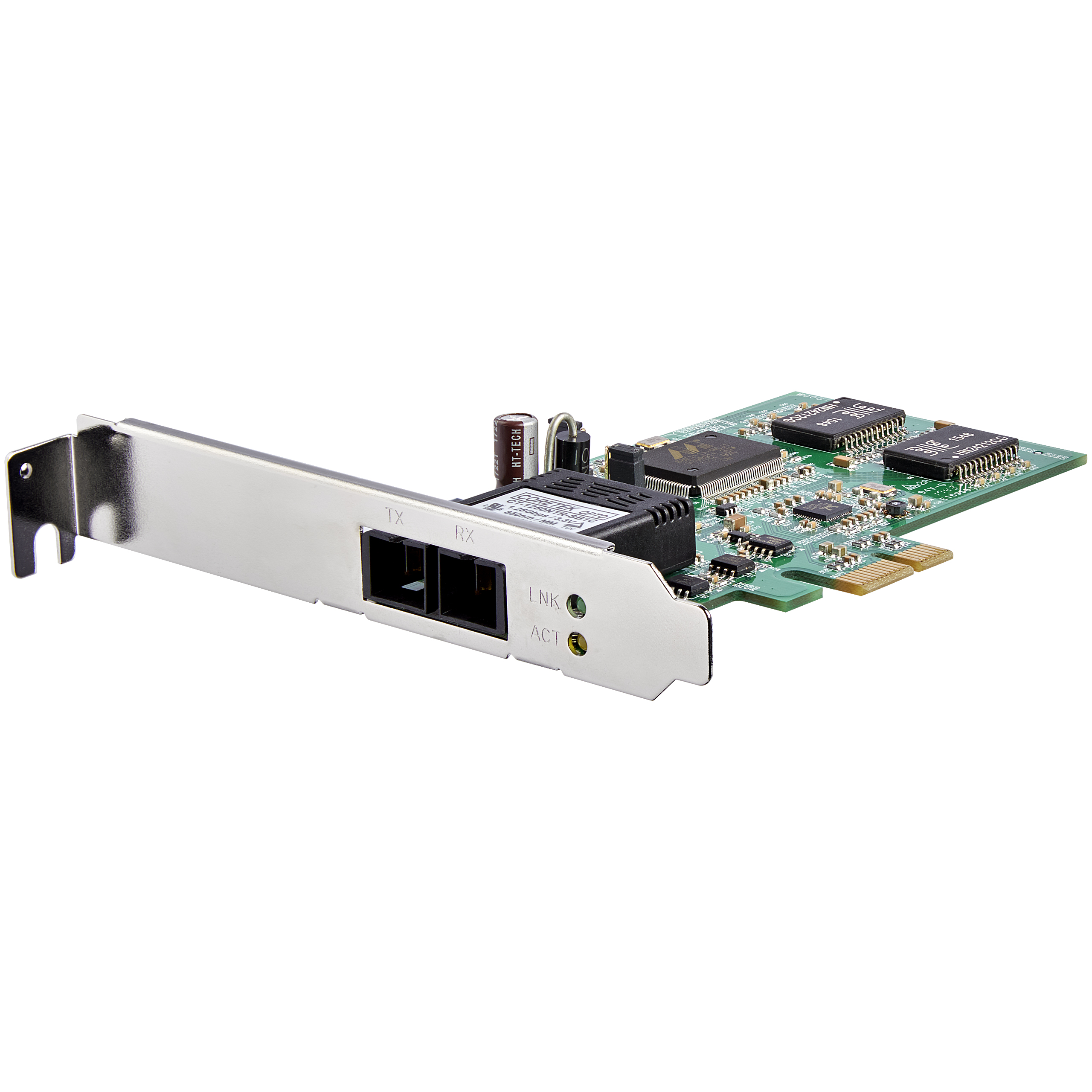

PEX1000MMSC2
Gigabit PCIe Multimode SC Fiber Card - 550m
Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network
Main Image
Product Images
Product Images
Product Images
Product Name Gigabit PCIe Multimode SC Fiber Card - 550m Product Number PEX1000MMSC2 UPC 065030857703 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Fiber Cards Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX026X Product Title (Ultra-Short) PCIe GbE Fiber NIC Product Title (Short) PCIe Gigabit SC Fiber Network Card Product Title (Medium) PCI Express (PCIe) Gigabit Ethernet Multimode SC Fiber Network Card Adapter NIC Product Title (Standard) PCI Express (PCIe) Gigabit Ethernet Multimode SC Fiber Network Card Adapter NIC, 550m, TAA Product Title (Long) PCI Express (PCIe) Gigabit Ethernet Multimode SC Fiber Network Card Adapter NIC - 550m - TAA Product Title (AMZ) PCI Express (PCIe) Gigabit Ethernet Multimode SC Fiber Network Card Adapter NIC - 550m - PCIe GbE Fiber Optic Network Card , TAA (PEX1000MMSC2) Title Ingram (Part 1) PCI Express GbE MM SC Fiber Title Ingram (Part 2) Optic Network Card - Fiber Card Website Product Headline Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network Bullet 1 Supports Full/Half-duplex Auto-Negotiation Bullet 2 Includes low-profile/half-height installation bracket Bullet 3 Compliant with IEEE802.3z 1000Base-SX, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control Bullet 4 Jumbo Frame Support Bullet 5 Supports PCI Message Signaled Interrupt (MSI) Bullets (Compact) Connect a PCIe based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network - PCI Express Gigabit Ethernet Multimode SC Fiber Network Card - PCIe card - PCIe network card - PCIe Ethernet card - 550m - Gigabit fiber NIC Bullets (Consolidated) Connect a PCIe based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network - PCI Express (PCIe) Gigabit Ethernet Multimode SC Fiber Network Card Adapter NIC - 550m - PCIe GbE Fiber Optic Network Card - SC Fiber Gigabit Ethernet Card - MM Fiber Network Adapter - Gigabit Fiber NIC Card - SC Duplex Fiber Gigabit Network Adapter - Multimode Fiber Ethernet Adapter - Configured with standard profile bracket and low-profile/half-height bracket also included Marketing Copy Applications - Perfect for remote embedded industrial monitoring systems, and high-speed video surveillance
- Ideal for reliable and secure setups - a direct fiber connection means no electromagnetic interference, which can be a problem with copper-based network cards
- Provide full Gigabit bandwidth to a remote terminal over long distances, extends a network connection further than typical copper cabling
Website Search Keyword - Fiber NIC
- Fiber Network Card
- fiber optic card
- fiber adapter
- multimode fiber card
- SC card
- SC fiber card
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes Not compatible with 10/100 Mbps Accessory Products - FIBSCSC1
- FIBSCSC2
- FIBSCSC50
- FIBSCSC10
- 50FIBSCSC1
- 50FIBPSCSC1
- 50FIBPSCSC2
- 50FIBPSCSC5
Related Products - PEX1000MMSC
- PEX1000SFP2
- PCI100MMSC
- PCI100MMST
- PEX100SFP
Power Consumption (In Watts) 3.2W Max Color Green Humidity 5~95% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Steel Product Length (mm) 120.000 Product Width (mm) 18.000 Product Height (mm) 118.000 Product Weight (g) 66.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant Yes Buffer Size 48 KB Compatible Networks 1000 Mbps (1 Gbps) Full Duplex Support Yes Maximum Data Transfer Rate 2000 Mbps (2 Gbps) - Full-Duplex MTBF (hours) 361, 978 hours OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Mac OS X Mavericks (10.9)
- Linux
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Industry Standards IEEE802.3z 1000BASE-SX, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1 Interface/Bridge Fiber Ethernet LED Indicators - 1 - Link (Green)
- 1 - Activity (Yellow)
Carton Depth (mm) 550 Carton Height (mm) 367 Carton Quantity 50 Carton Weight Gross (g) 11980 Included in Package - 1 - 1 Port PCI Express Gigabit Fiber Network Card
- 1 - Low Profile Bracket
- 1 - Instruction Manual
Included In Package for Label - 1 - 1 Port PCI Express Gigabit Fiber Network Card
- 1 - Low Profile Bracket
- 1 - Instruction Manual
Package Depth (mm) 215 Package Height (mm) 51 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 182 Packaging Description Gigabit PCIe Multimode SC Fiber Card - 550m Packaging Description India Gigabit PCIe Multimode SC Fiber Card - 550m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 SC Duplex Fiber Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-04-30 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
