Main Image
PEX1000MMST

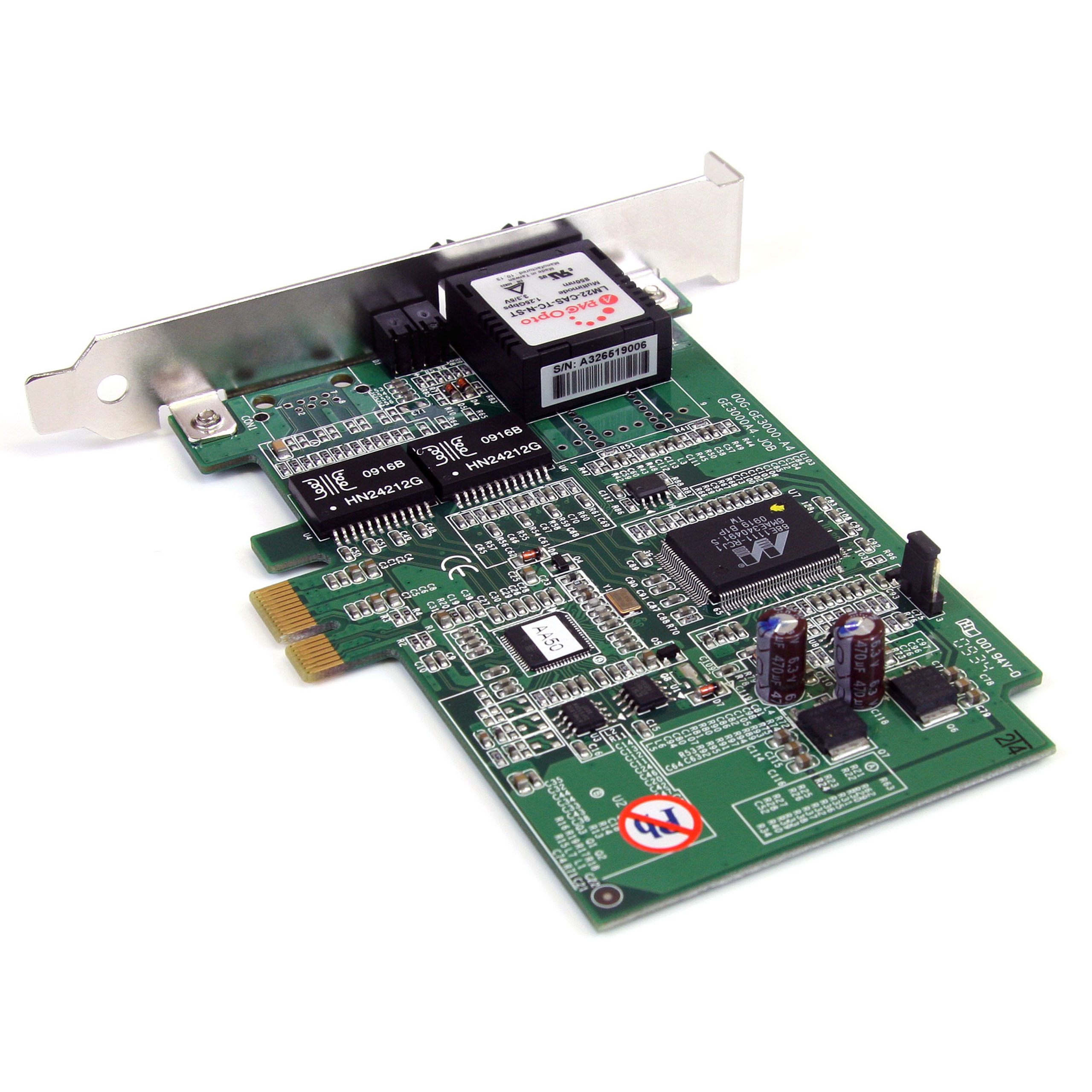

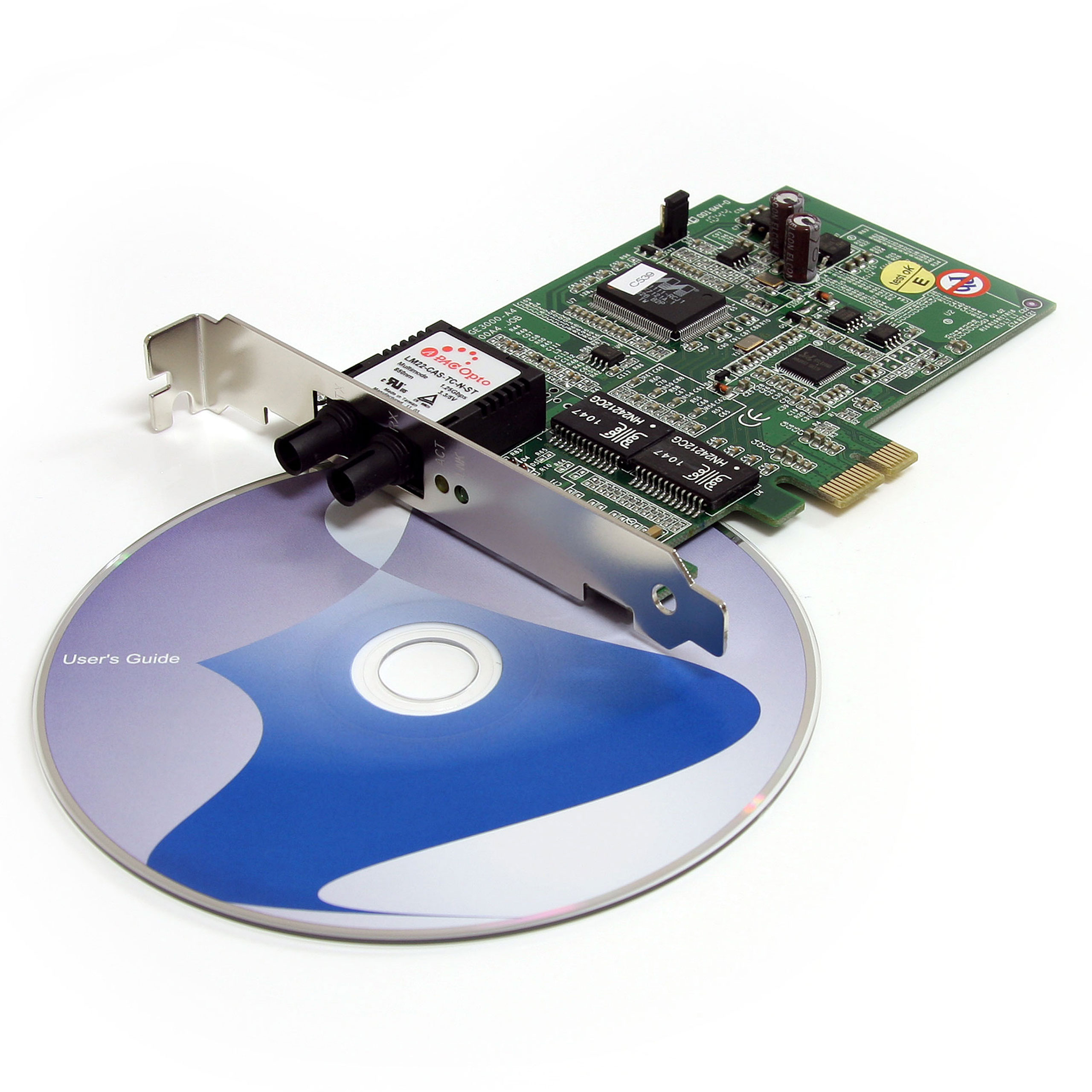

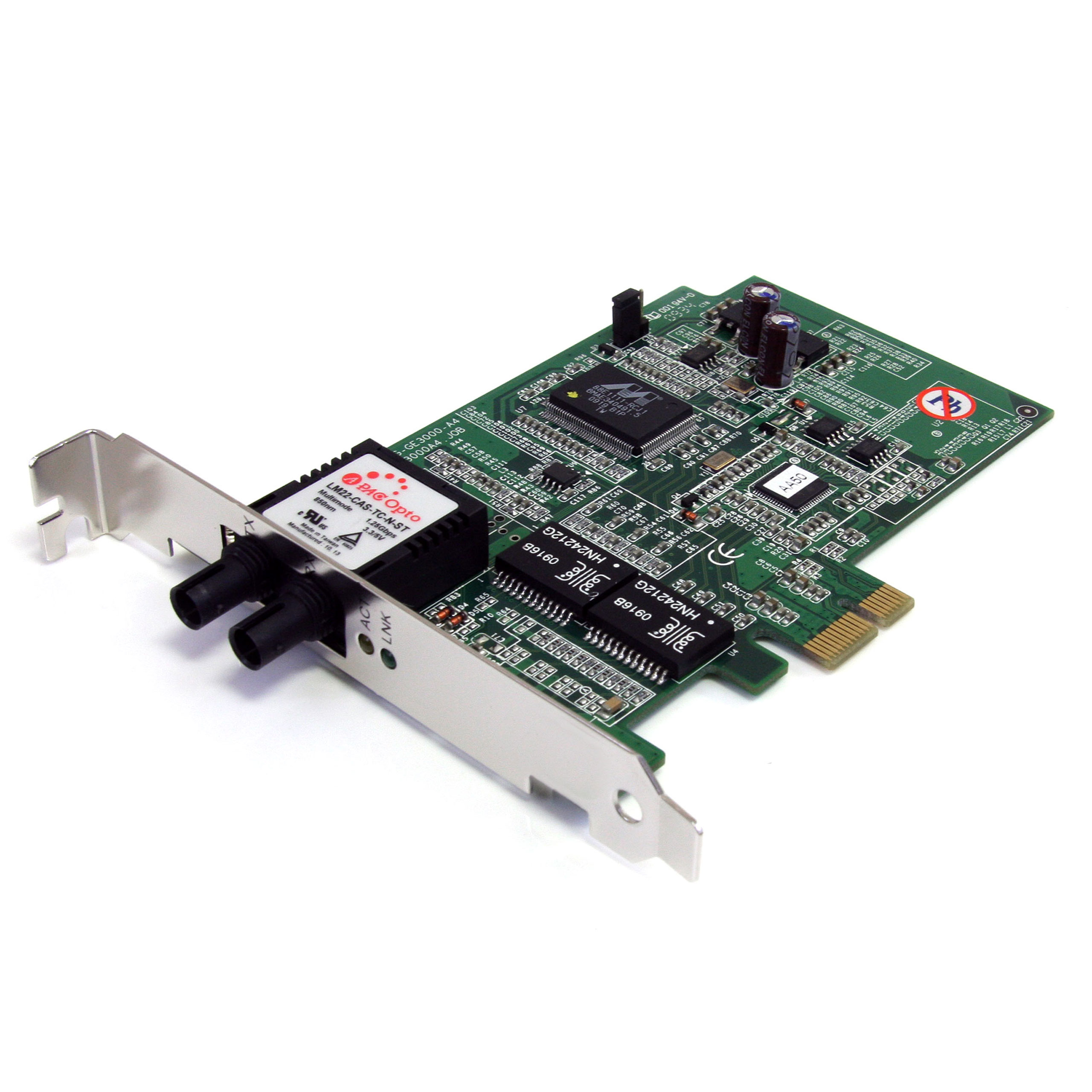

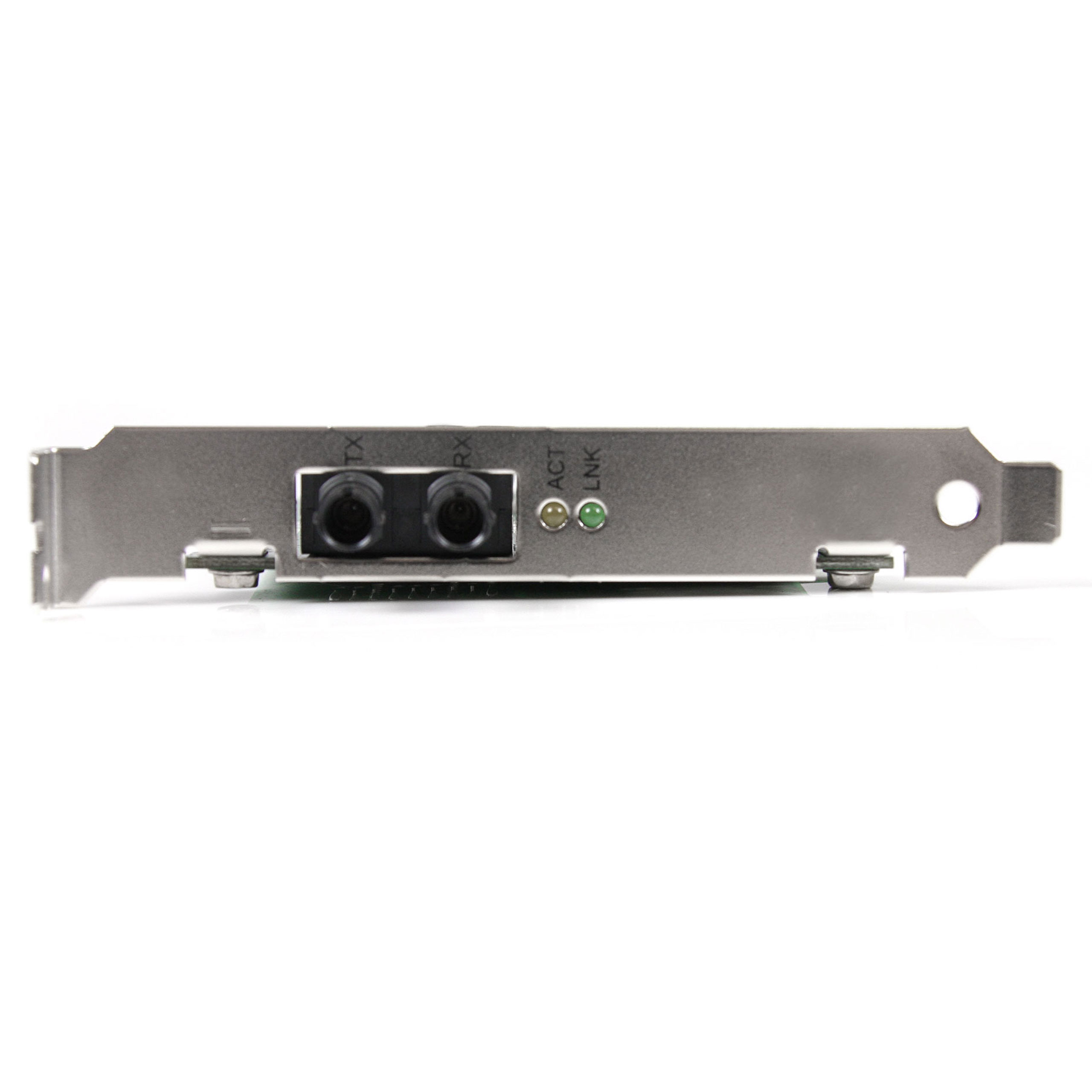

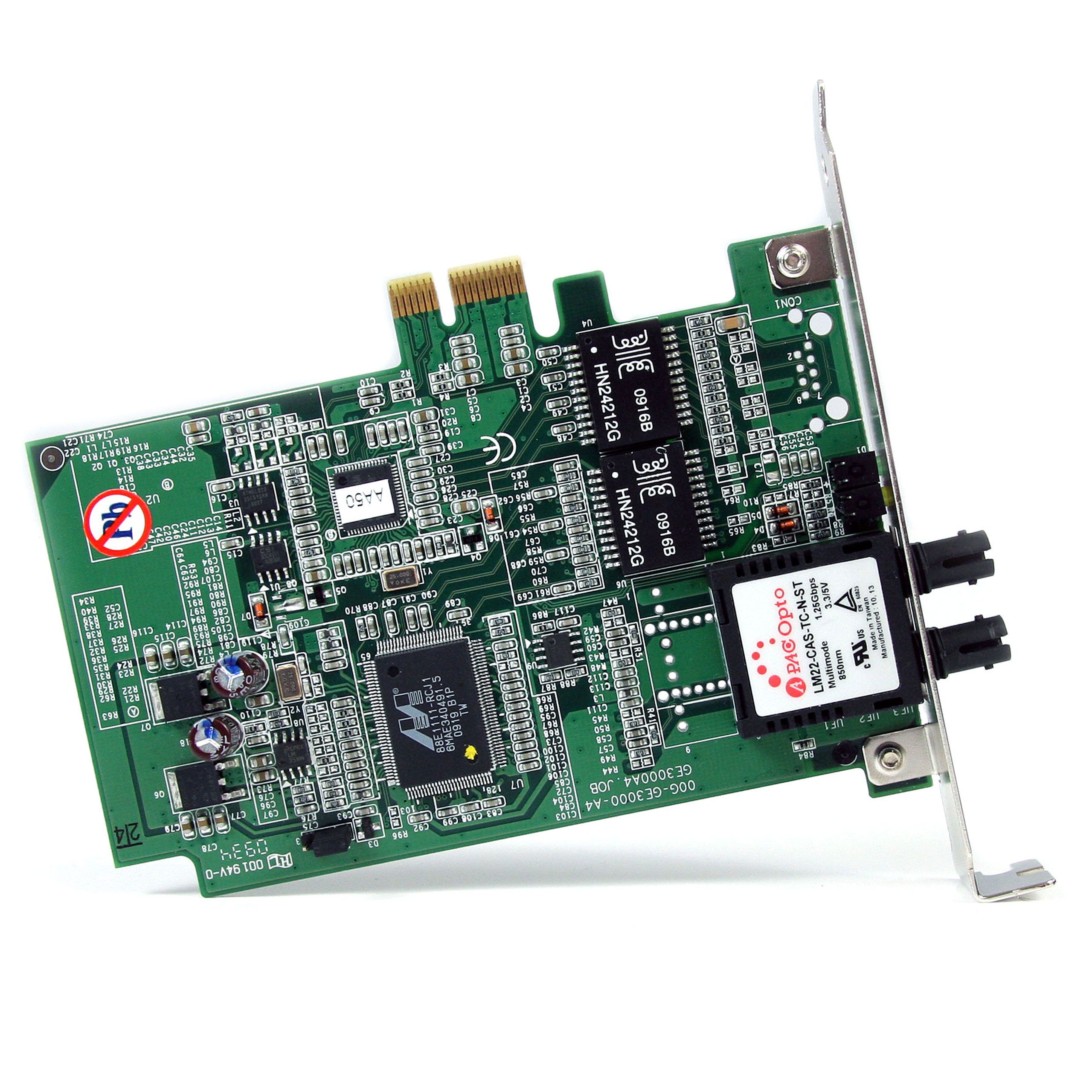

1000 Gigabit MM ST Fiber PCIe Card - 550m
Securely connect a PC directly to a Gigabit multimode ST fiber network through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 1000 Gigabit MM ST Fiber PCIe Card - 550m Product Number PEX1000MMST UPC 065030841788 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX026X Product Title (Short) 1000 Mbps Gigabit MM ST Fiber PCIe Card Product Title (Standard) StarTech.com Fiber PCI Express card - multi mode - gigabit - 1000 Mbps - 550m Product Title (Long) 1000 Mbps Gigabit Ethernet Multi Mode ST Fiber PCI Express Card - 550m Product Title (AMZ) 1000 Mbps Gigabit Ethernet Multi Mode ST Fiber PCI Express Card - 550m (PEX1000MMST) Title Ingram (Part 1) 1000 Mbps Gigabit Multi Mode ST Title Ingram (Part 2) Fiber PCI Express Card 550m Website Product Headline Securely connect a PC directly to a Gigabit multimode ST fiber network through a PCI Express slot Bullet 1 1000Mbps Full-duplex operation Bullet 2 Advanced Configuration Power Management Interface (ACPI) 2.0 Bullet 3 Cable diagnostic utility Bullet 4 Compliant with RFC 1157 SNMP v1 which allows you to manage remotely Bullet 5 Complies with IEEE 802.1Q, 802.1p standards Marketing Copy Applications - Retain full Gigabit network speeds to a remote terminal over long distances
- Perfect for remote embedded industrial monitoring systems, and high speed video surveillance
- Ideal for secure setups - a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
Website Search Keyword - 1000 base
- Fiber Converter
- Gigabit
- Gigabit adapter
- Multi mode fiber
- PCI Express
- Fiber card
- Optic card
- Fiber optic
- ST card
- ST connector
- Secure NIC
- NIC
- Fiber NIC
- Fiber Network Card
Special Notes Not compatible with 10/100 Accessory Products - FIBSTST10
- FIBSTST15
- FIBSTST5
Related Products - PEX1000MMSC
- PCI100MMSC
- PCI100MMST
- MCMGBSC055
- MCMGBSC15
- MCM110SC2
- MCM110ST2
Power Consumption (In Watts) 2.3W Max Humidity 5%-95% non-condensing Operating Temperature 0°C to 45° C (32°F to 113°F) Product Length (mm) 109 Product Width (mm) 83 Product Height (mm) 20 Product Weight (g) 80 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Compatible Networks 1000 Mbps (1 Gbps) Maximum Cable Length (mm) 550000 OS Compatibility - Linux
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 8
- Windows 7
Wake-On-LAN (WOL) Yes Wavelength 850nm Bus Type PCI Express Card Type Standard Profile Chipset ID Realtek - RTL8168B Industry Standards IEEE802.3z 1000Base-SX/1000Base-LX, IEEE802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.3ad Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 1 - Link (Green)
- 1 - Activity (Yellow)
Carton Depth (mm) 370 Carton Height (mm) 310 Carton Quantity 20 Carton Weight Gross (g) 7000 Included in Package - 1 - Driver / Instruction Manual CD
- 1 - PCI Express Gigabit Ethernet Adapter
Package Depth (mm) 50 Package Height (mm) 175 Package Width (mm) 213 Package Weight (g) 300.0044 Packaging Description Gigabit PCIe MM ST Fiber Network Card 550m Packaging Description India Gigabit PCIe MM ST Fiber Network Card 550m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 ST Duplex Fiber Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
