PEX1000SFP
PCIe GbE SFP Fiber Optic Network Adapter
Connect a PCI Express-based PC directly to a fiber optic network using the Gigabit SFP of your choice
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name PCIe GbE SFP Fiber Optic Network Adapter Product Number PEX1000SFP UPC 065030848985 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Fiber Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX026X Product Title (Short) Gigabit Fiber SFP PCIe Network Card Product Title (Standard) PCI Express Gigabit Ethernet Fiber Open SFP PCIe Network Card Adapter NIC Product Title (Long) PCI Express Gigabit Ethernet Fiber Open SFP PCIe Network Card Adapter NIC Product Title (AMZ) PCI Express Gigabit Ethernet Fiber Open SFP Network Adapter NIC - PCIe Gbe SFP Fiber Optic Network Card - Server Adapter (PEX1000SFP) Title Ingram (Part 1) PCI Express Gigabit PCIe SFP Fib Title Ingram (Part 2) er Optic Network Adapter SFP NIC Website Product Headline Connect a PCI Express-based PC directly to a fiber optic network using the Gigabit SFP of your choice Bullet 1 Preboot Execution Environment (PXE) 2.1 Bullet 2 Compatible with any Gigabit SFP modules Bullet 3 Jumbo Frame Support Bullet 4 Supports Full/Half-duplex Auto-Negotiation, Auto-MDI/MDIX Bullet 5 Supports PCI Message Signaled Interrupt (MSI) Marketing Copy Applications - Ideal for secure setups - a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
- Perfect for remote embedded industrial monitoring systems, and high speed video surveillance
- Retain full Gigabit network speeds to a remote terminal over long distances
Website Search Keyword - Fiber NIC
- Fiber Network Card
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Special Notes Fiber data transfer speeds and distances are dependent on the SFP used (sold separately) Accessory Products - SFPG1320C
- SFPG1340C
- SFPG1580C
- SFPLHSM
Related Products - PEX1000MMST
- PCI100MMST
- PEX1000MMSC
- PCI100MMSC
Replacement Product PEX1000SFP2 Power Consumption (In Watts) 2.3 W Max Humidity 5~95% RH (Non-condensing) Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 85 Product Width (mm) 14 Product Height (mm) 128.5 Product Weight (g) 68 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Buffer Size 48 KB Compatible Networks 1000 Mbps (1 Gbps) Full Duplex Support Yes Maximum Data Transfer Rate 2000 Mbps (2 Gbps) - Full-Duplex OS Compatibility - Windows 7
- Linux
- Windows 8
- Windows Server 2012

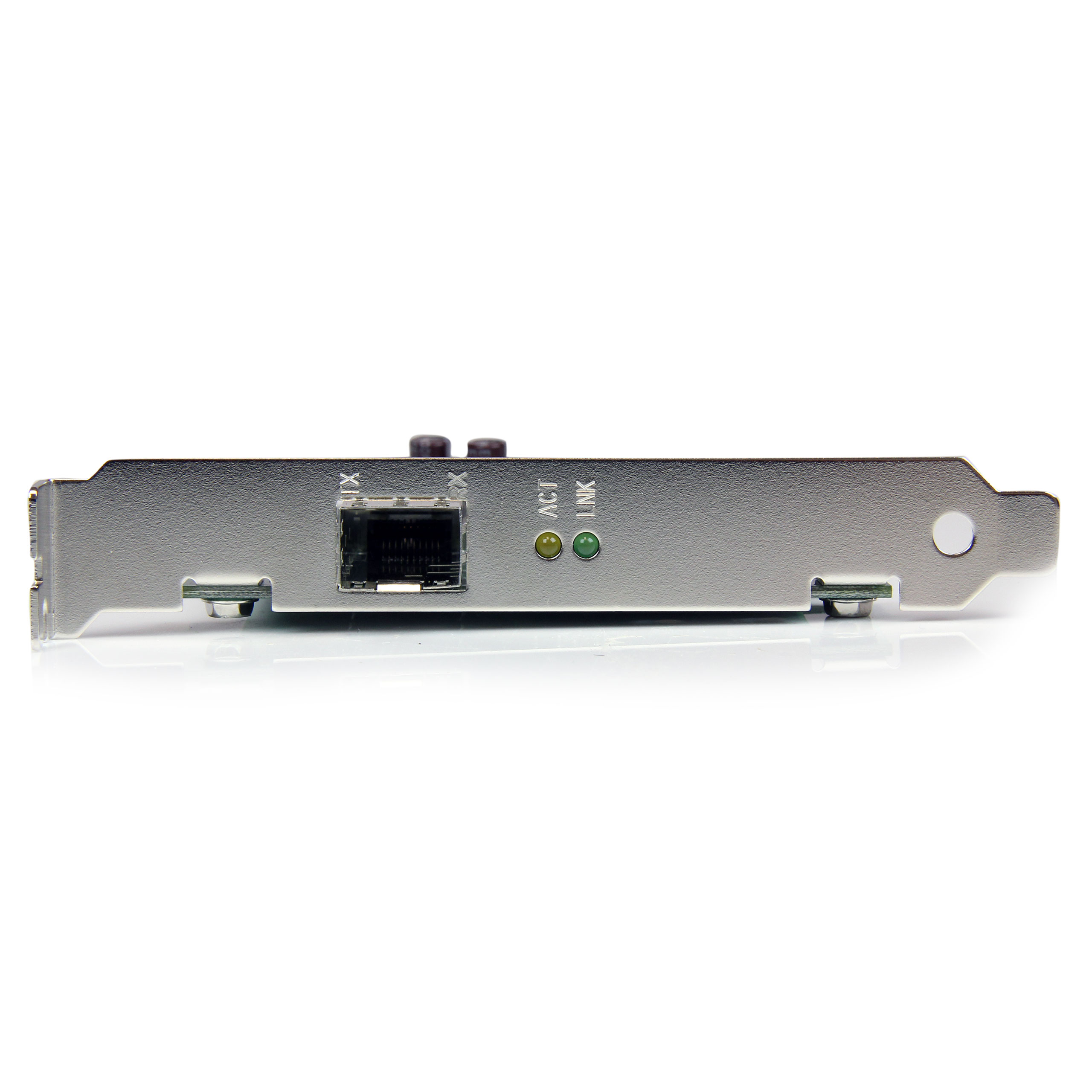

Bus Type PCI Express Card Type Standard Profile Chipset ID Industry Standards IEEE 802.3z 1000Base-SX/LX, IEEE802.1Q VLAN Tagging, IEEE802.1p Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1 Interface/Bridge Fiber Ethernet LED Indicators - 1 - Link (Green)
- 1 - Activity (Yellow)
Carton Depth (mm) 563 Carton Height (mm) 370 Carton Quantity 50 Carton Weight Gross (g) 12300 Included in Package - 1 - Instruction Manual
- 1 - PCI Express Open SFP Network Card

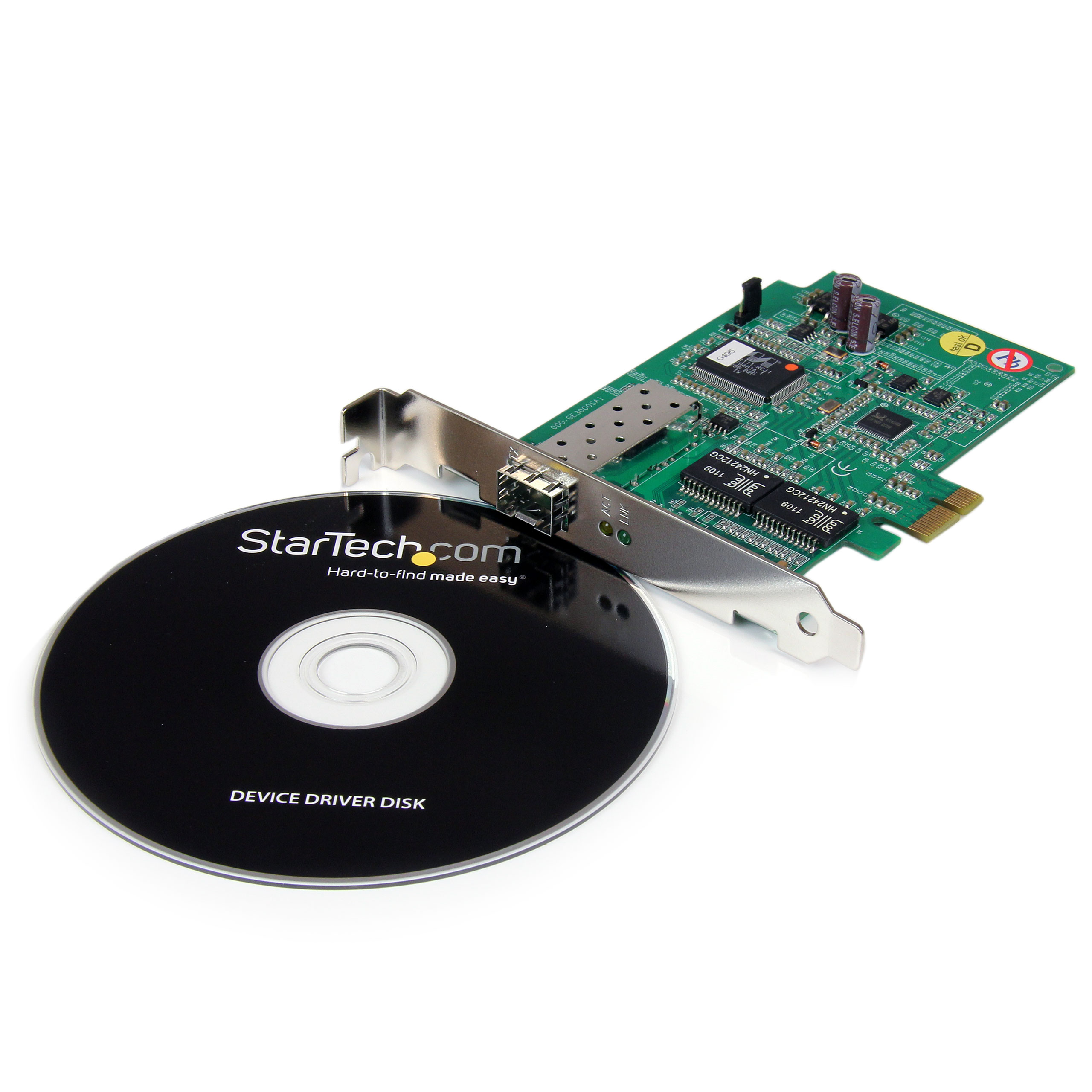

- 1 - Driver CD
Package Depth (mm) 210 Package Height (mm) 50 Package Width (mm) 172 Package Quantity 1 Package Weight (g) 214 Packaging Description PCIe Gigabit Fiber Network Card w/ Open SFP Packaging Description India PCIe Gigabit Fiber Network Card w/ Open SFP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 SFP Slot Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-02-28 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
