PEX100S
PCI E 10 100 Ethernet Card Dual Profile
Add a 10/100Mbps Ethernet port to a desktop computer through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCI E 10 100 Ethernet Card Dual Profile Product Number PEX100S UPC 065030828185 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family No family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 1 Port PCIe Ethernet Network Card Product Title (Standard) 1 Port PCIe Ethernet Network Card Product Title (Long) 1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card Product Title (AMZ) 1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card - Low Profile Network Card (PEX100S) Title Ingram (Part 1) 1 Port PCI Express 10/100 Ethern Title Ingram (Part 2) et Network Adapter Website Product Headline Add a 10/100Mbps Ethernet port to a desktop computer through a PCI Express slot Bullet 1 Single 10/100Mbps RJ45 Ethernet port Bullet 2 Compliant with IEEE802.3 CSMA/CD, 802.3 10Base-T and 100Base-TX standards Bullet 3 Crossover Detection & Auto-Correction (Auto-MDIX) Bullet 4 Full and Half duplex mode support Bullet 5 Link speed and duplex mode auto-negotiation Bullets (Compact) Add a 10/100Mbps Ethernet port to a desktop computer through a PCI Express slot - PCI Express Ethernet adapter - PCIe Ethernet card - PCI Express Ethernet NIC -10/100 adapter card Bullets (Consolidated) Add a 10/100Mbps Ethernet port to a desktop computer through a PCI Express slot - Compatible with PCI-E equipped computers and RJ-45 ethernet equippment - PCIe Ethernet Card/PCI express ethernet NCI/10/100 adapter card - Cost effective and simple Ethernet networking for a desktop computer systems - Compliant with IEEE802.3 CSMA/CD, 802.3 10Base-T and 100Base-TX standards - Supports Wake-on-LAN - Full/Low Profile installation brackets included Marketing Copy Applications - Replacement Ethernet card for a home or office desktop computer
- Adding Ethernet network connectivity for broadband Internet access to an old desktop computer
- Adding a second or redundant network connection for a workstation or server
Website Search Keyword - Ethernet Card
- 10/100
- PCI Express
- PCI Express to Ethernet
- PCIe
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - M45PATCH6BL
- M45PATCH10BL
- M45PATCH15BL
- M45PATCH25BL
- M45PATCH50BL
Related Products - ST100S
- ST1000BTPEX
- ST100SLP
- DS5107
Constrained SKU Alternatives (Limited Stock) ST1000SPEX2 Color Black Material Steel Primary Material Steel Product Length (mm) 92.500 Product Width (mm) 120.000 Product Height (mm) 21.000 Product Weight (g) 32.000 TAA Compliant No Compatible Networks 10/100 Mbps Maximum Data Transfer Rate 100 Mbps OS Compatibility - Linux
- Windows 7
- Windows 8
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

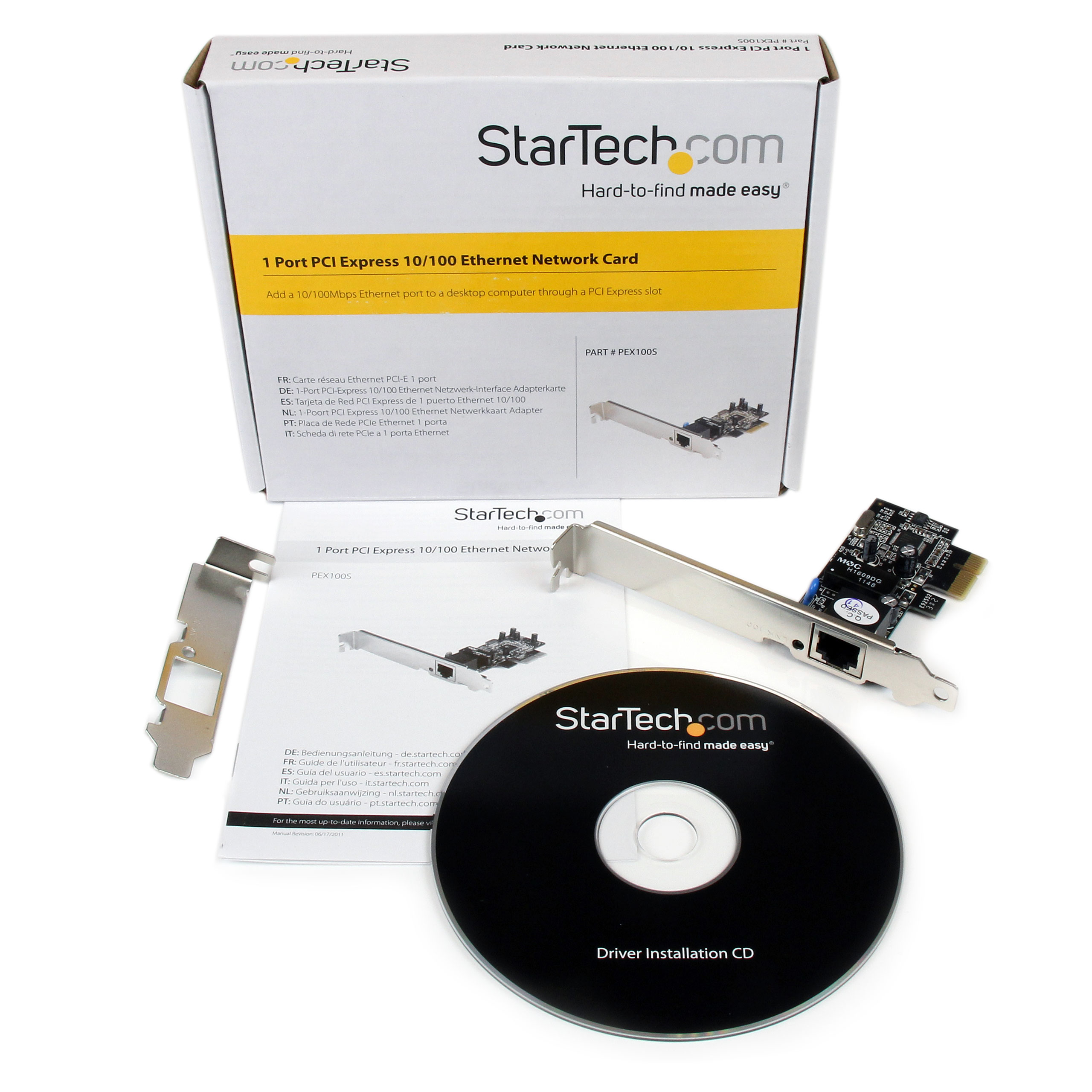

Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Realtek - RTL8105E Interface/Bridge RJ45 (10/100 Ethernet) LED Indicators 1 - Link Status Carton Depth (mm) 306 Carton Height (mm) 366 Carton Quantity 80 Carton Weight Gross (g) 10654 Included in Package - 1 - 10/100 PCI-Express Ethernet Card
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - Low Profile Bracket
Package Depth (mm) 144 Package Height (mm) 30 Package Width (mm) 171 Package Quantity 1 Package Weight (g) 118 Packaging Description 1 Port PCIe Ethernet Network Card Packaging Description India 1 Port PCIe Ethernet Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,MX,NL,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
