PEX100SFP
PCIe 10/100 Mbps SFP Fiber Optic Network Adapter
Connect a PCI Express-based PC directly to a fiber optic network using the 10/100 Mbps SFP of your choice
Main Image

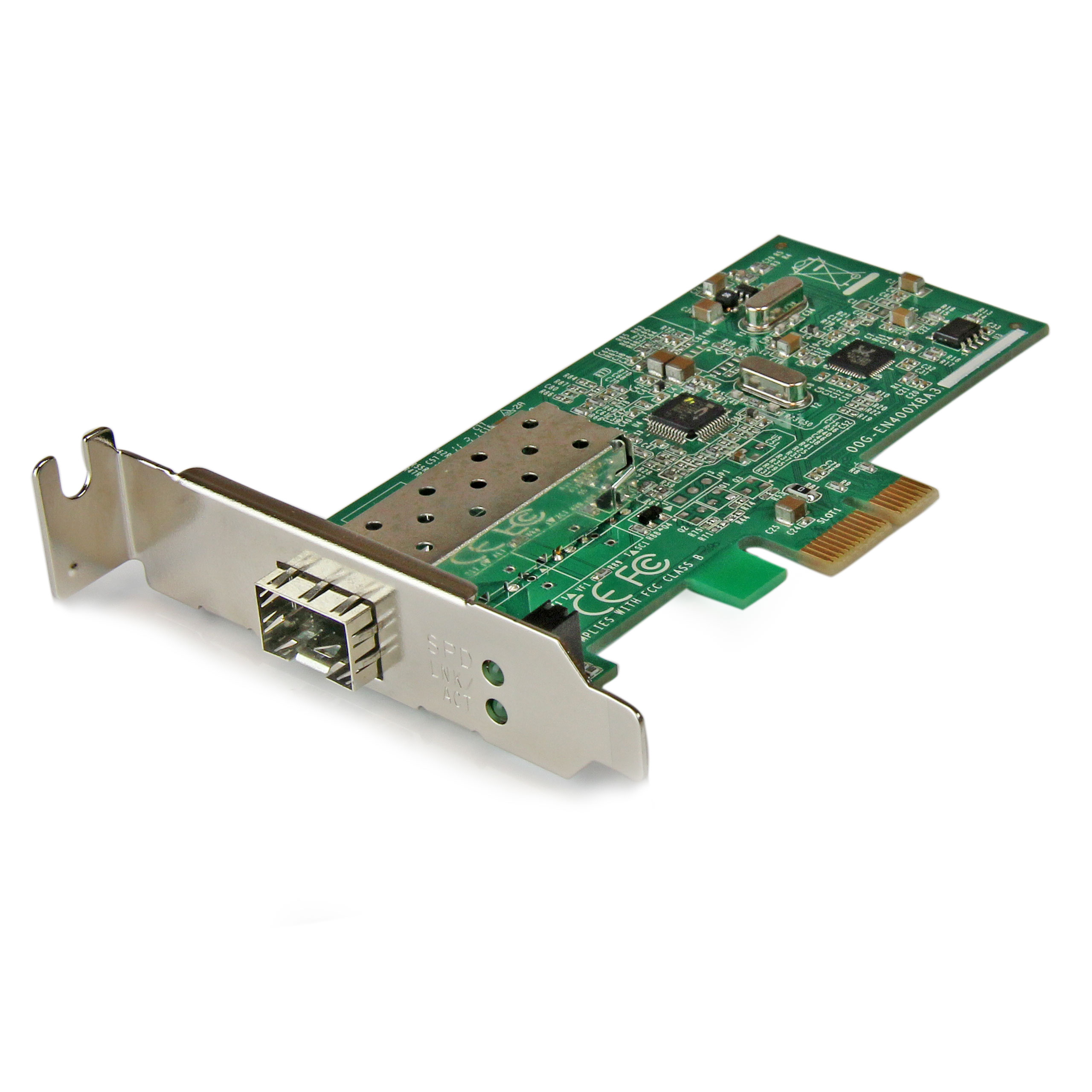

Product Images

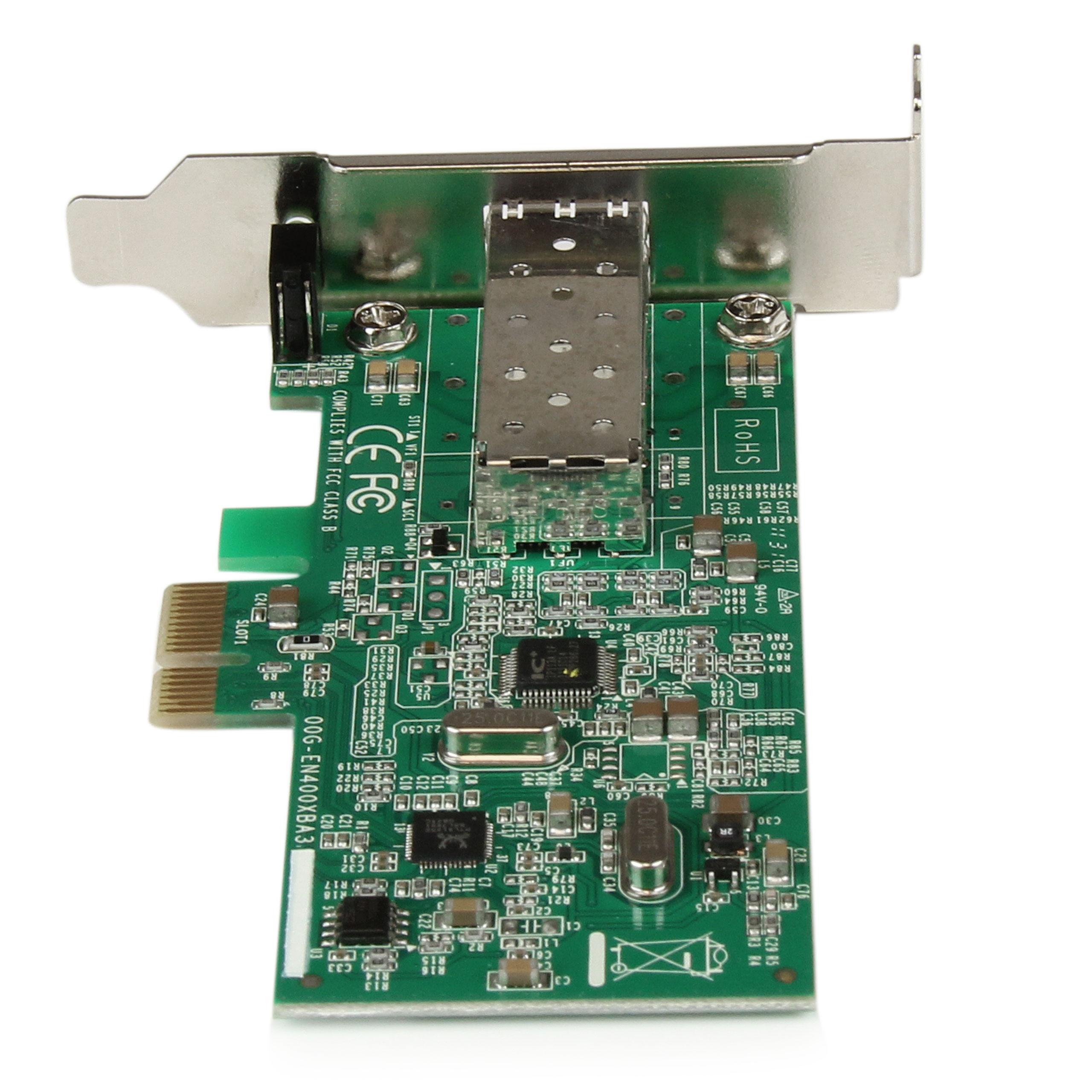

Product Images

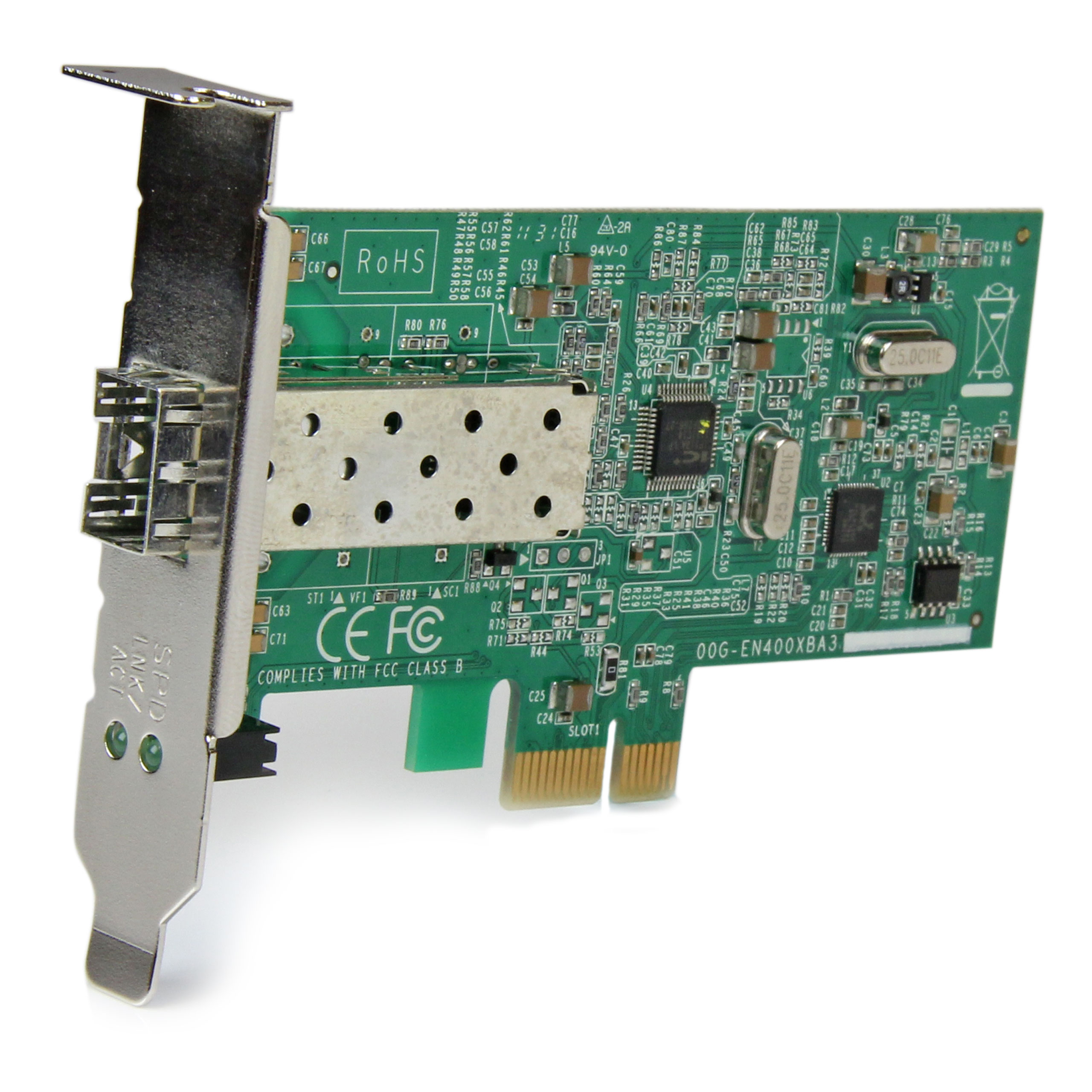

Product Images
Product Name PCIe 10/100 Mbps SFP Fiber Optic Network Adapter Product Number PEX100SFP UPC 065030849234 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Fiber Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX026X Product Title (Ultra-Short) PCIe SFP Fiber Card Product Title (Short) 10/100 Mbps Fiber SFP PCIe Network Card Product Title (Standard) PCI Express 10/100 Mbps Ethernet Fiber SFP PCIe Network Card Adapter NIC Product Title (Long) PCI Express 10/100 Mbps Ethernet Fiber SFP PCIe Network Card Adapter NIC Product Title (AMZ) PCI Express 10/100 Mbps Ethernet Fiber SFP Network Adapter NIC - PCIe 10/100 SFP Fiber Optic Network Card - Server Adapter (PEX100SFP) Title Ingram (Part 1) PCI Express 10/100 SFP Fiber Opt Title Ingram (Part 2) ic Network Adapter SFP NIC Website Product Headline Connect a PCI Express-based PC directly to a fiber optic network using the 10/100 Mbps SFP of your choice Bullet 1 Preboot Execution Environment (PXE) 2.1 Bullet 2 Supports Full/Half-duplex Auto-Negotiation, Auto-MDI/MDIX Bullet 3 Supports PCI Message Signaled Interrupt (MSI) Bullet 4 Compliant with IEEE 802.3u 100Base-FX, IEEE802.1Q VLAN Tagging, IEEE802.1p Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1 Bullet 5 Cable diagnostic utility Bullets (Consolidated) Connect a PCI Express-based PC directly to a Fiber optic Network using the 10/100 Mbps SFP of your choice - PCI Express SFP - PCIe SFP - SFP Network Card - SFP NIC - SFP Network Adapter - 10/100 Ethernet Fiber Open SFP Network Card Marketing Copy Applications - Ideal for secure setups - a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
- Perfect for remote embedded industrial monitoring systems, and high speed video surveillance
- Retain full 100 Mbps network speeds to a remote terminal over long distances
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Fiber data transfer speeds and distances are dependent on the SFP used (sold separately) Accessory Products - SFPF1302C
- SFPF1320C
- SFPF1340C
Related Products - PEX1000MMST
- PCI100MMST
- PEX1000MMSC
- PCI100MMSC
- PEX1000SFP
Power Consumption (In Watts) 2.3 W Max Humidity 5~95% RH (Non-condensing) Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 115 Product Width (mm) 20 Product Height (mm) 80 Product Weight (g) 42 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Buffer Size 48 KB Compatible Networks 10/100 Mbps Full Duplex Support Yes Maximum Data Transfer Rate 200 Mbps (Full-Duplex) OS Compatibility - Windows 7
- Windows 8
- Windows Server 2012
- Windows 10
- Windows 11
Bus Type PCI Express Card Type Low Profile Chipset ID Industry Standards IEEE 802.3u 100Base-FX, IEEE802.1Q VLAN Tagging, IEEE802.1p Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1 Interface/Bridge Fiber Ethernet LED Indicators - 1 - Link (Green)
- 1 - Activity (Yellow)
Carton Depth (mm) 370 Carton Height (mm) 310 Carton Quantity 20 Carton Weight Gross (g) 7000 Included in Package - 1 - Instruction Manual (on CD)
- 1 - PCI Express Open SFP Network Card
- 1 - Driver CD
Package Depth (mm) 175 Package Height (mm) 50 Package Width (mm) 213 Package Quantity 1 Package Weight (g) 185 Packaging Description PCIe 10/100 Mbps Fiber Network Card w/ Open SFP Packaging Description India PCIe 10/100 Mbps Fiber Network Card w/ Open SFP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 SFP Slot Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-02-28 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
