PEX10GSFP

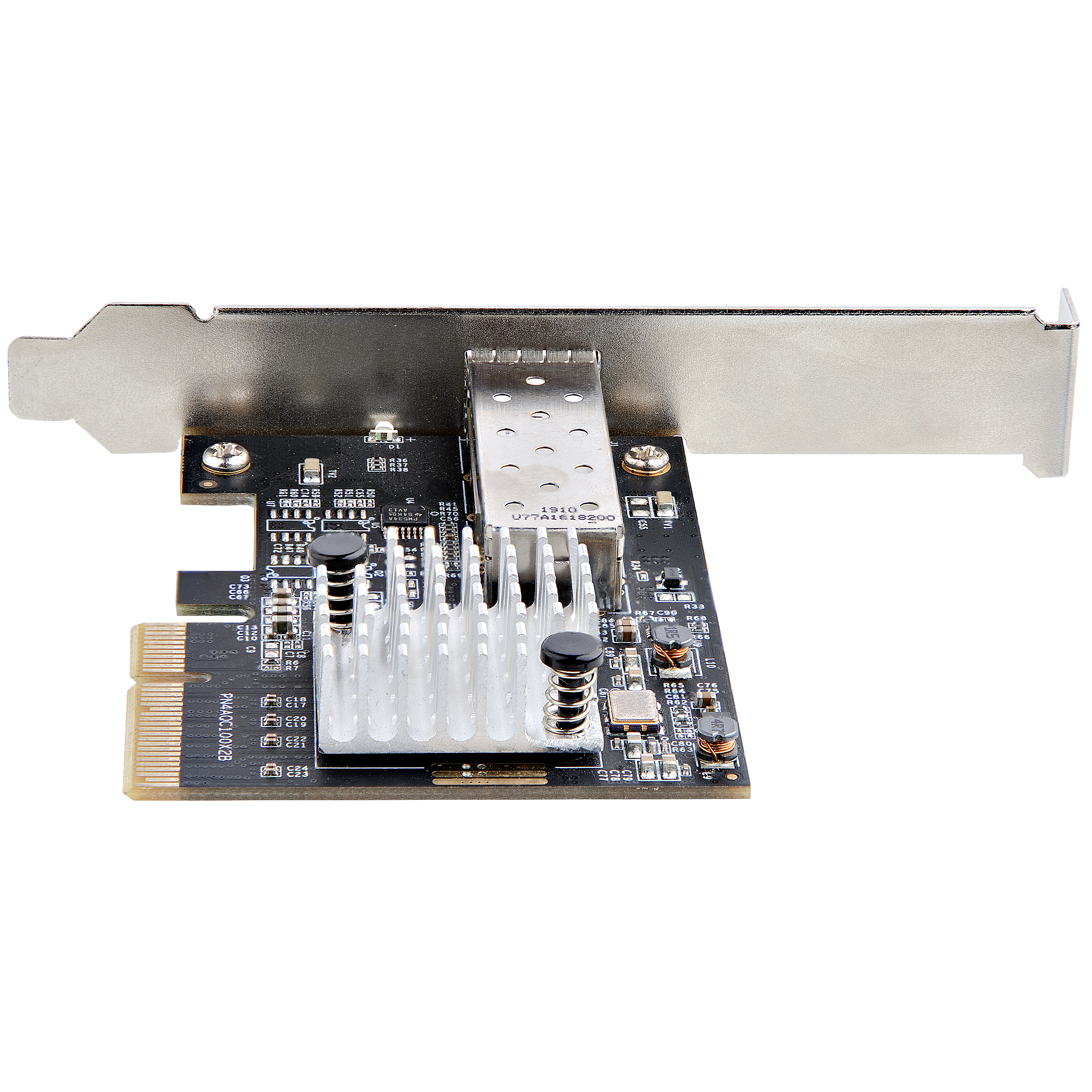

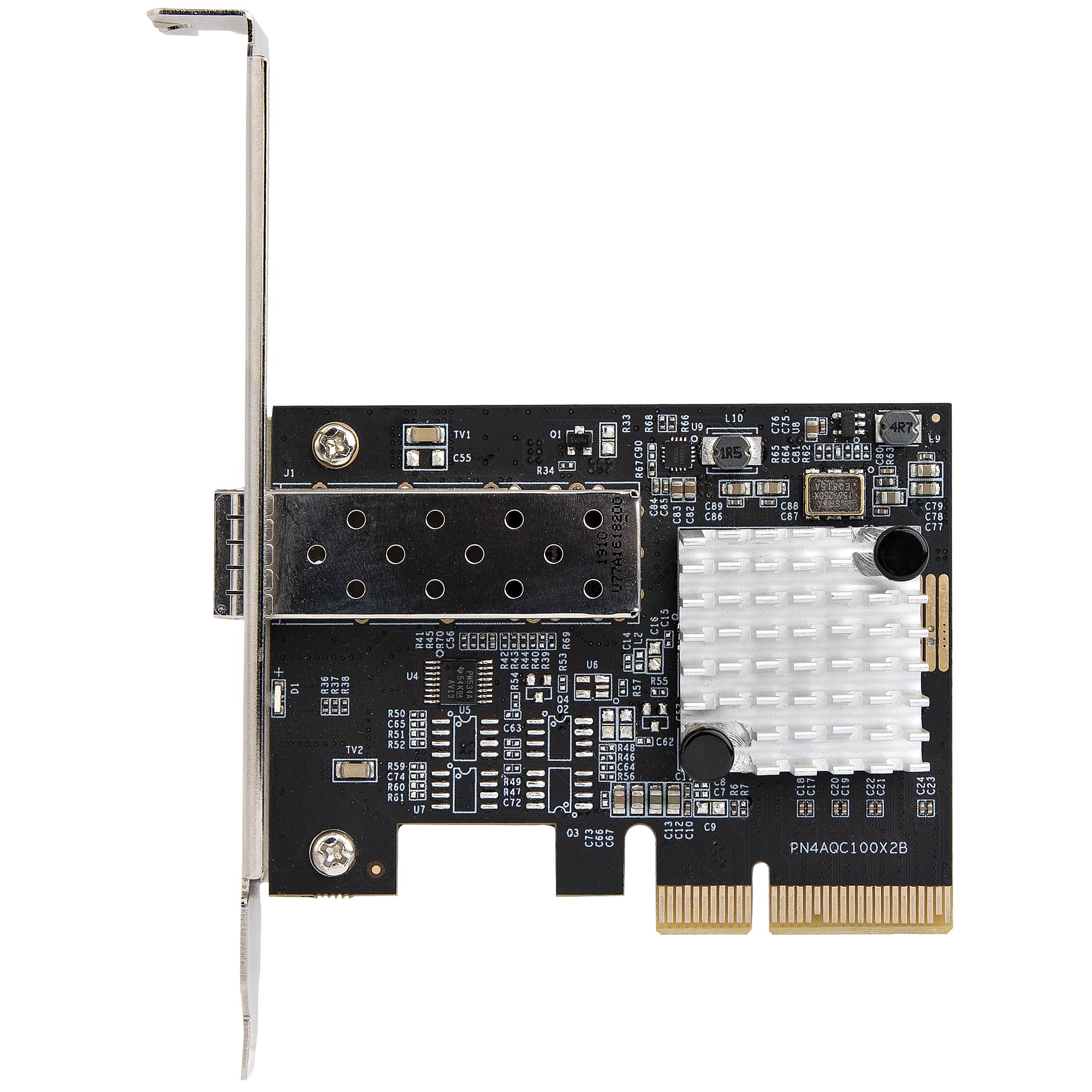

1 Port PCI Express 10GbE SFP Network Adapter Card Aquanti
PCI Express SFP+ Card | 10 Gbps | Open SFP+ Slot | Fiber, Copper & DAC | PCIe 3.0 x4
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 1 Port PCI Express 10GbE SFP Network Adapter Card Aquanti Product Number PEX10GSFP UPC 065030891295 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Fiber Cards Family no family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Ultra-Short) SFP+ Card 10 Gbps Product Title (Short) 10G PCIe SFP+ Card, Single Open SFP Port Product Title (Medium) 10G PCIe SFP+ Card, Single Open SFP+ Port MSA-Compliant Modules/Cables, SFP NIC Product Title (Standard) 10G PCIe SFP+ Card, Single SFP+ Port Network Adapter, Open SFP+ for MSA-Compliant Modules/Cables, 10 Gigabit PCIe NIC Card Product Title (Long) 10G PCIe SFP+ Card - Single SFP+ Port Network Adapter - Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables - 10 Gigabit Fiber PCIe NIC - PCI Express SFP+ Network Card Product Title (AMZ) 10G PCIe SFP+ Card - Single SFP+ Port Network Adapter - Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables - 10 Gigabit Fiber PCIe NIC - PCI Express SFP+ Network Card (PEX10GSFP) Title Ingram (Part 1) SFP+ Card 10 Gbps - Title Ingram (Part 2) Fiber, Copper & DAC - Open SFP+ Website Product Headline PCI Express SFP+ Card | 10 Gbps | Open SFP+ Slot | Fiber, Copper & DAC | PCIe 3.0 x4 Bullet 1 MAXIMUM THROUGHPUT: Increase your bandwidth up to 10 Gbps with this SFP+ card for enhanced data transfer rate using fiber optic cable; Reduce wait times for large file transfers, content sharing, network storage, or any other high bandwidth application Bullet 2 WIDE COMPATIBILITY: This PCIe network card has an open SFP+ slot that can accept any MSA-compliant module or direct attach cable (DAC). It is compatible with multimode, single-mode, and copper SFP+ modules. This card is natively supported in Windows 11 Bullet 3 SECURE INTERFACE: For security and privacy reasons a fiber network card is the ideal point-to-point network adapter; Eliminate EMI with a fiber connection and cover longer distances with fiber to host Bullet 4 SPECIFICATIONS: 10Gbps open slot SFP+ port | MMF, SMF, and Copper Support | 9K Jumbo Frames | IEEE 802.3ad Link Aggregation | IEEE 802.1Q VLAN tagging | PCIe 3.0 x4 | MSA Compliant | Full Duplex | Low Profile Bracket included | Windows, macOS and Linux Bullet 5 STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years, this PCIe 10Gb open slot SFP+ card is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Up to 10 Gbps PCIe network card - MSA compliant SFP+ slot - Eliminate EMI using Fiber - MMF/SMF/Copper Support - 9K Jumbo - Link Aggregation - VLAN tagging - PCIe 3.0 x4 - DAC support - Full Duplex - Low Profile Bracket incl. - Windows/Linux Bullets (Consolidated) Up to 10 Gbps fiber optic SFP card supports multimode/singlemode fiber and copper such as SFP10GSRST/SFP10GLRST/SFP10GBTST - PCIe network card with MSA-compliant open SFP+ slot - Eliminate EMI and cover longer distances with fiber to host - 10Gbps open slot SFP+ port | MMF/SMF/Copper Support | 9K Jumbo Frames | IEEE 802.3ad Link Aggregation | IEEE 802.1Q VLAN tagging | PCIe 3.0 x4 |Direct Attach Cable (DAC) support | Full Duplex | Low Profile Bracket included | Windows/Linux Marketing Copy Marketing Copy (No HTML) Website Search Keyword - fiber card
- fiber network card
- gigabit fiber
- Gigabit network card
- Gigabit nic
- Gigabit nic card
- network adapter
- pci express sfp card
- pcie network card
- sfp nic
- sfp+ card
- sfp+ network card
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements Not compatible with 10/100/1000 Mbps SFP transceivers. 10 Gigabit SFP+ transceiver or DAC required Accessory Products - SFP10GSRST
- SFP10GLRST
- SFPCMM3M
- SFP10GAC7M
- SFP10GAOC5M
- SFP10GBTST
Related Products - PEX10000SRI
- PEX10000SFP
- PEX20000SFPI

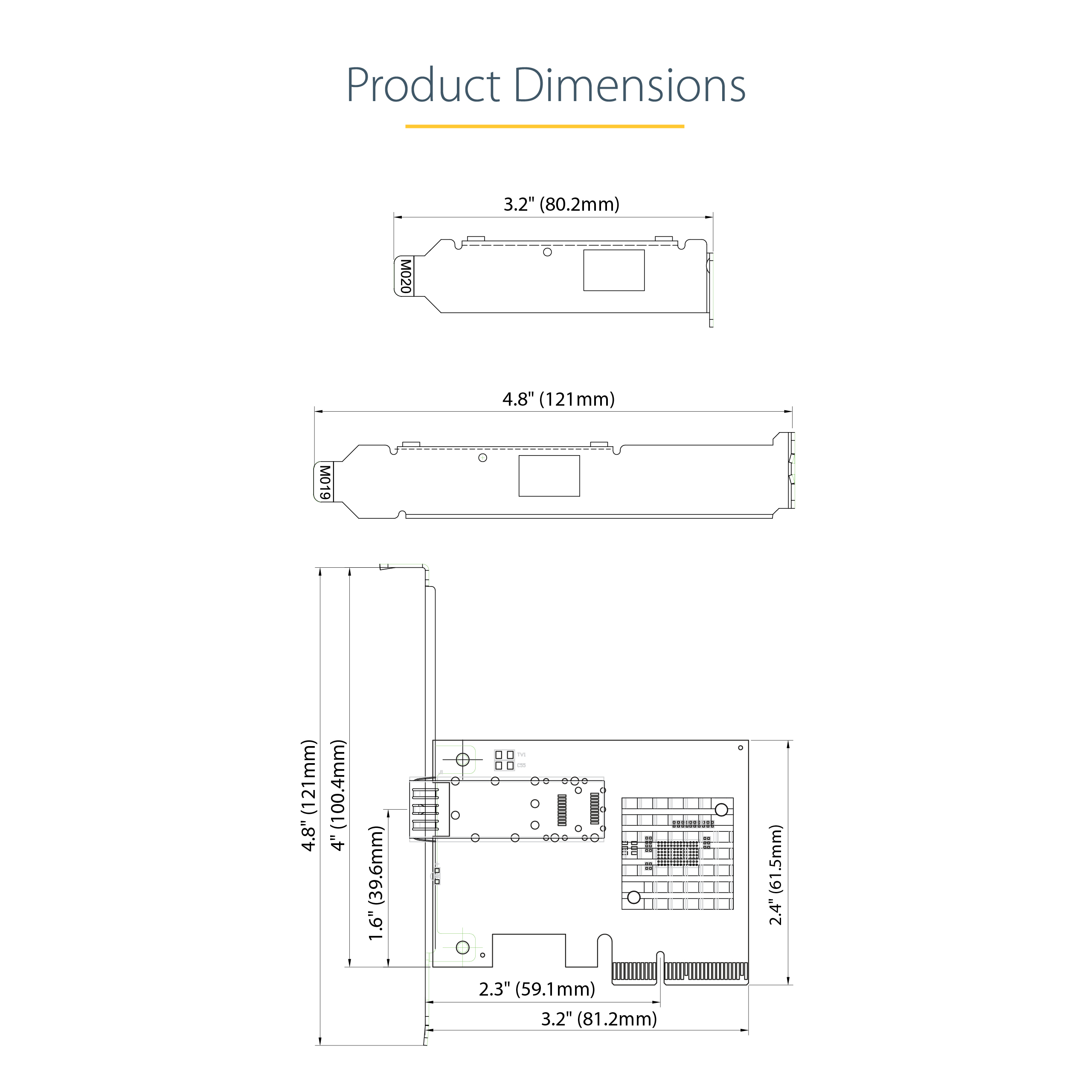

Humidity 20% ~ 80% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 94.500 Product Width (mm) 18.500 Product Height (mm) 120.800 Product Weight (g) 55.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Compatible Networks 10 Gbps Fiber Type - Single Mode
- Multi Mode
Jumbo Frame Support 9K max. Maximum Data Transfer Rate 20000 Mbps (20 Gbps) - Full-Duplex OS Compatibility - Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows Server 2008 R2
- Windows Server 2012
- Windows Server 2012 R2
- Windows Server 2016
- Windows Server 2019
- Linux
- Windows 11
- Windows Server 2022
- VMware ESXi 7.0
Supported Protocols Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Aquantia - AQC100S Industry Standards Interface/Bridge Fiber (10 Gigabit Ethernet) SFP Compatible Brand MSA Compliant Carton Depth (mm) 310 Carton Height (mm) 235 Carton Quantity 20 Carton Weight Gross (g) 3250 Included in Package - 1 - Network Card
- 1 - Quick-Start Guide

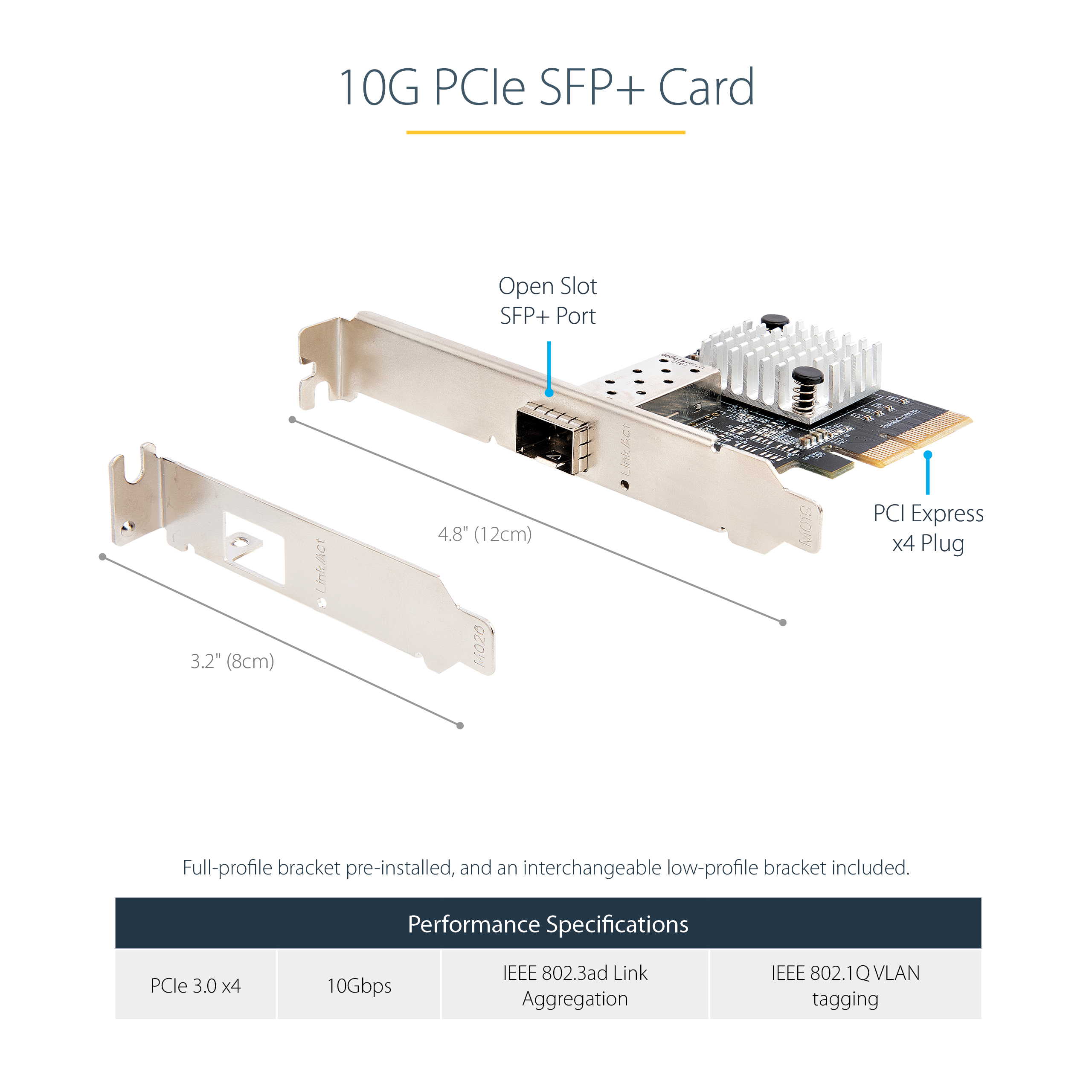

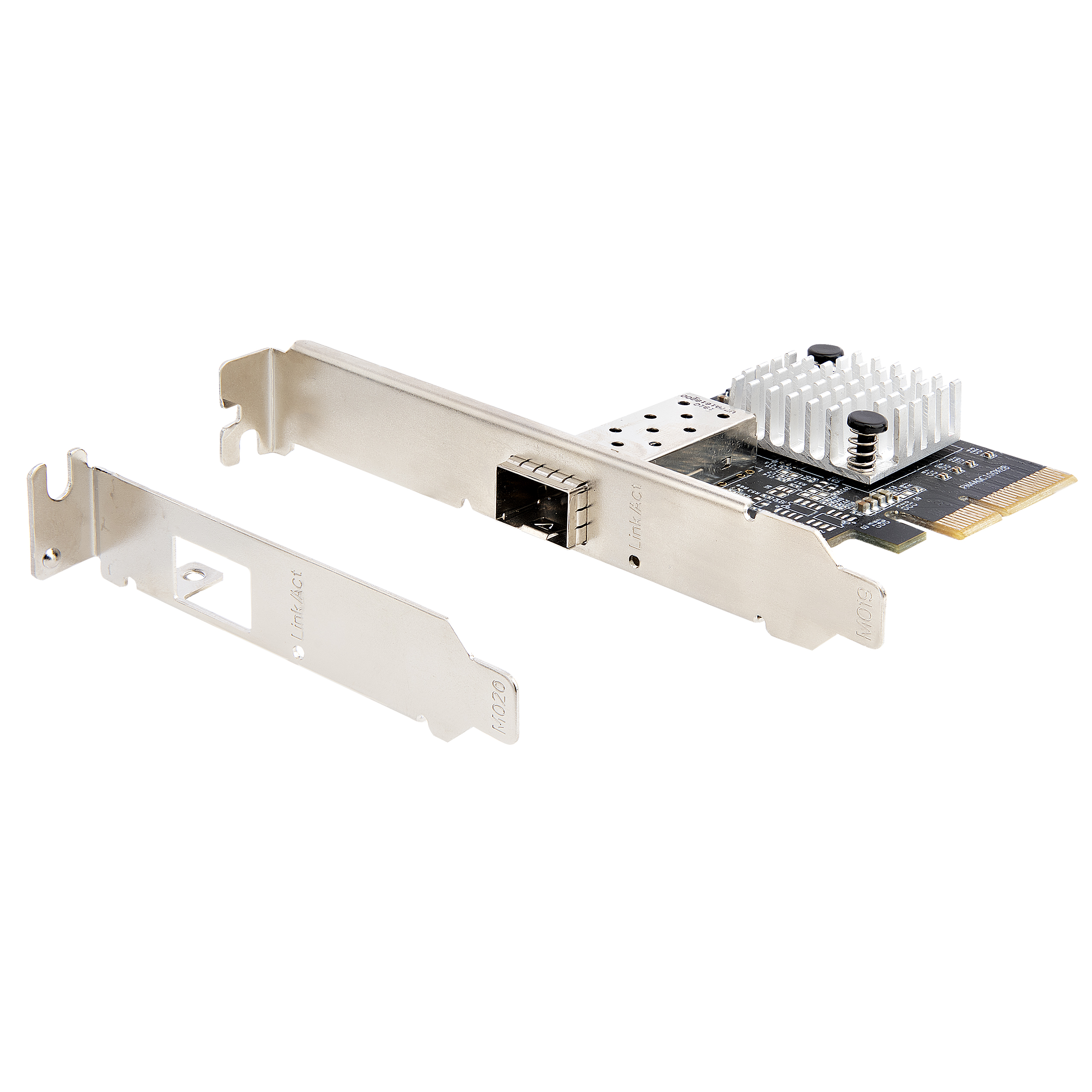

- 1 - Low Profile Bracket
Package Depth (mm) 210 Package Height (mm) 35 Package Width (mm) 145 Package Quantity 1 Package Weight (g) 140 Packaging Description 1-Port PCI Express 10Gb SFP+ Network Adapter Card Packaging Description India 1-Port PCI Express 10Gb SFP+ Network Converter Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 SFP+ (10Gbps) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2021-03-25 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2021-11-11 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2021-06-17 Target Production Release 2021-07-15 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None
