Main Image
PEX1394A2

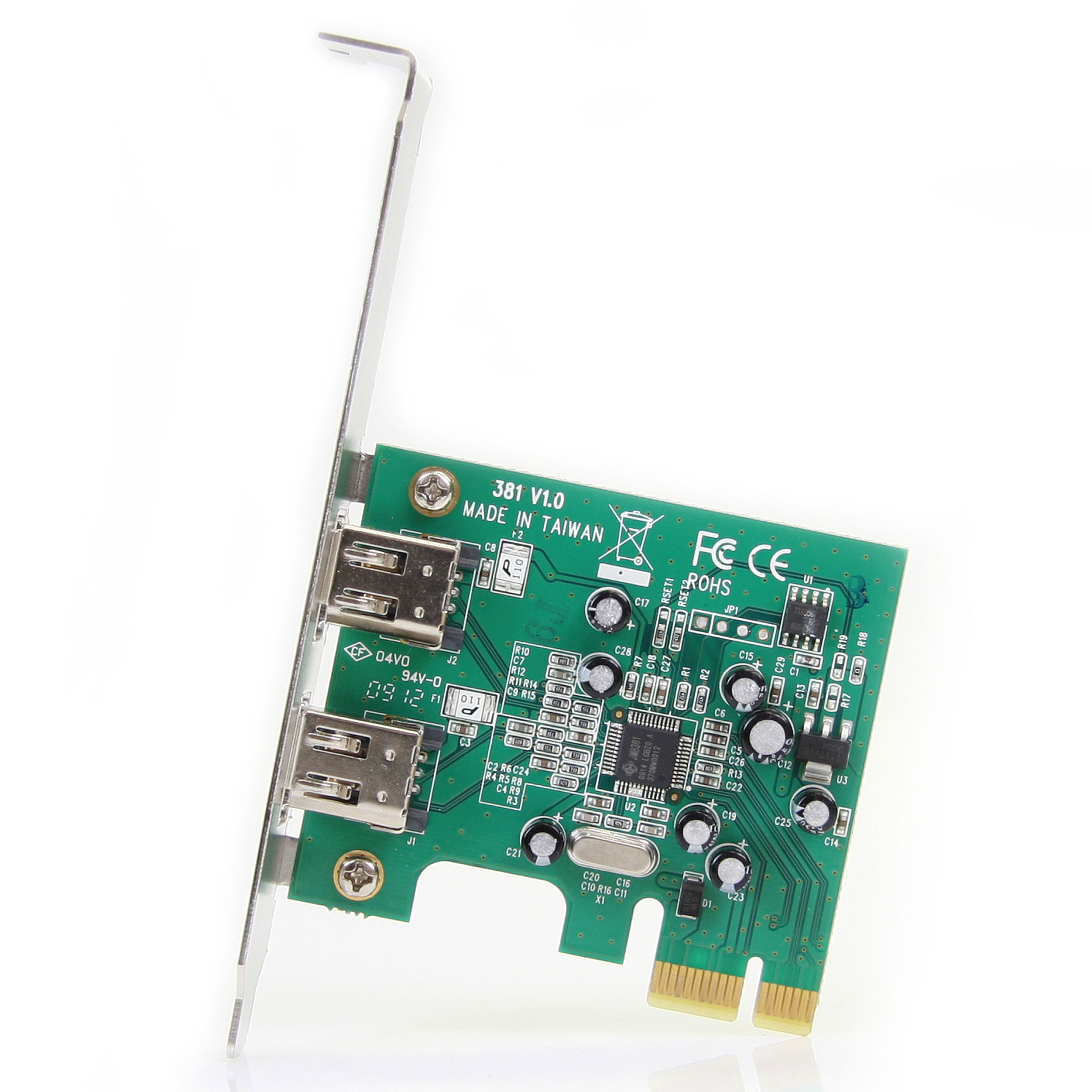

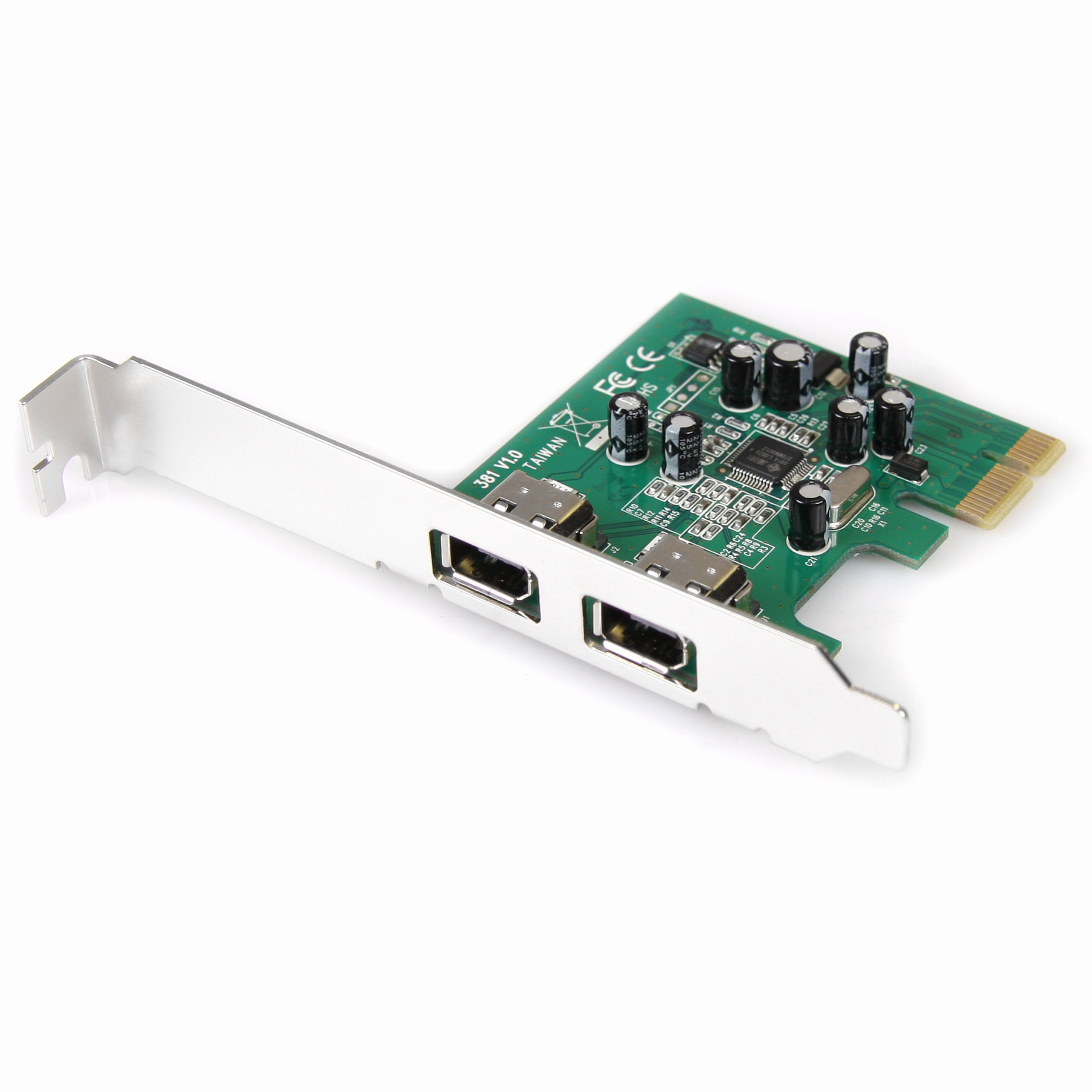

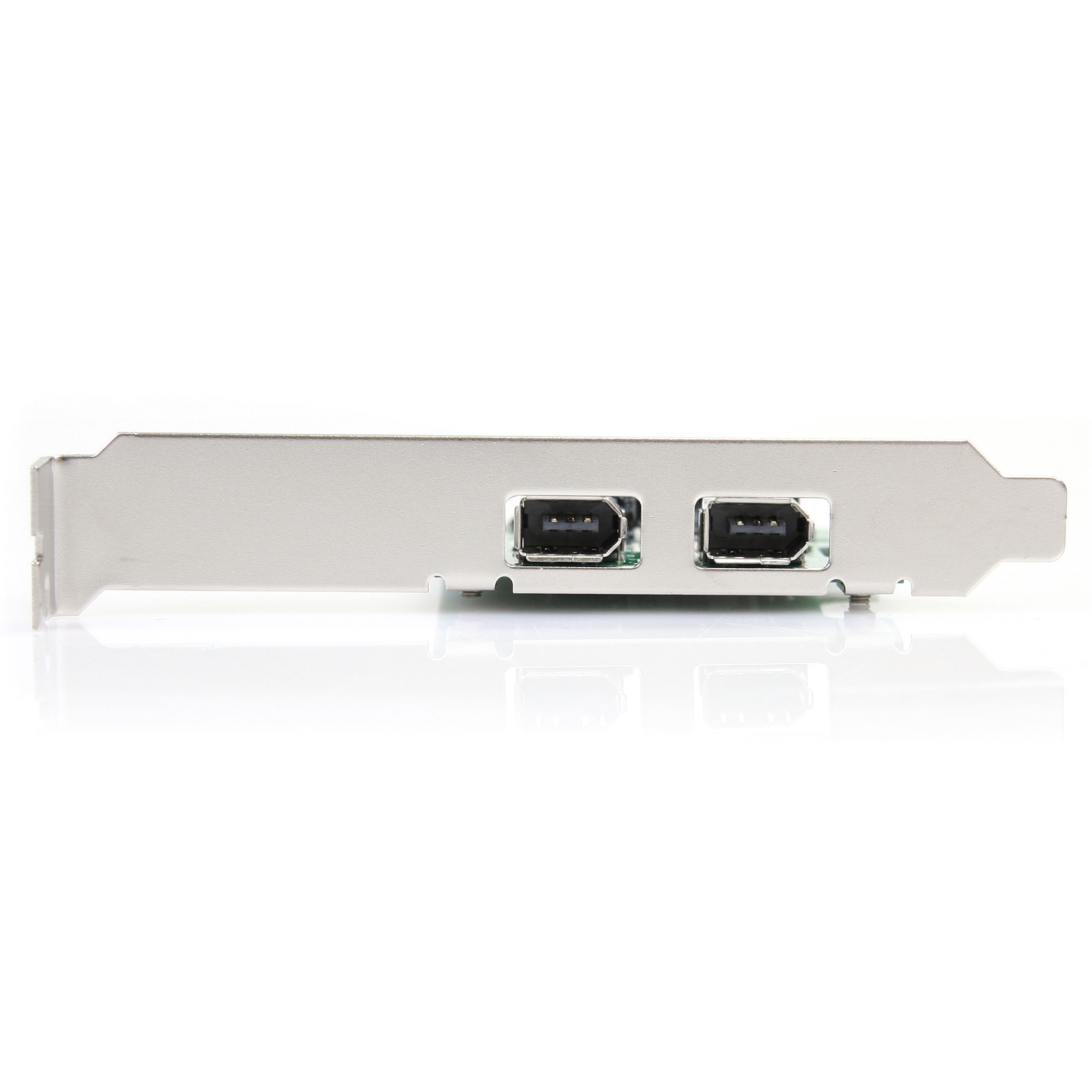

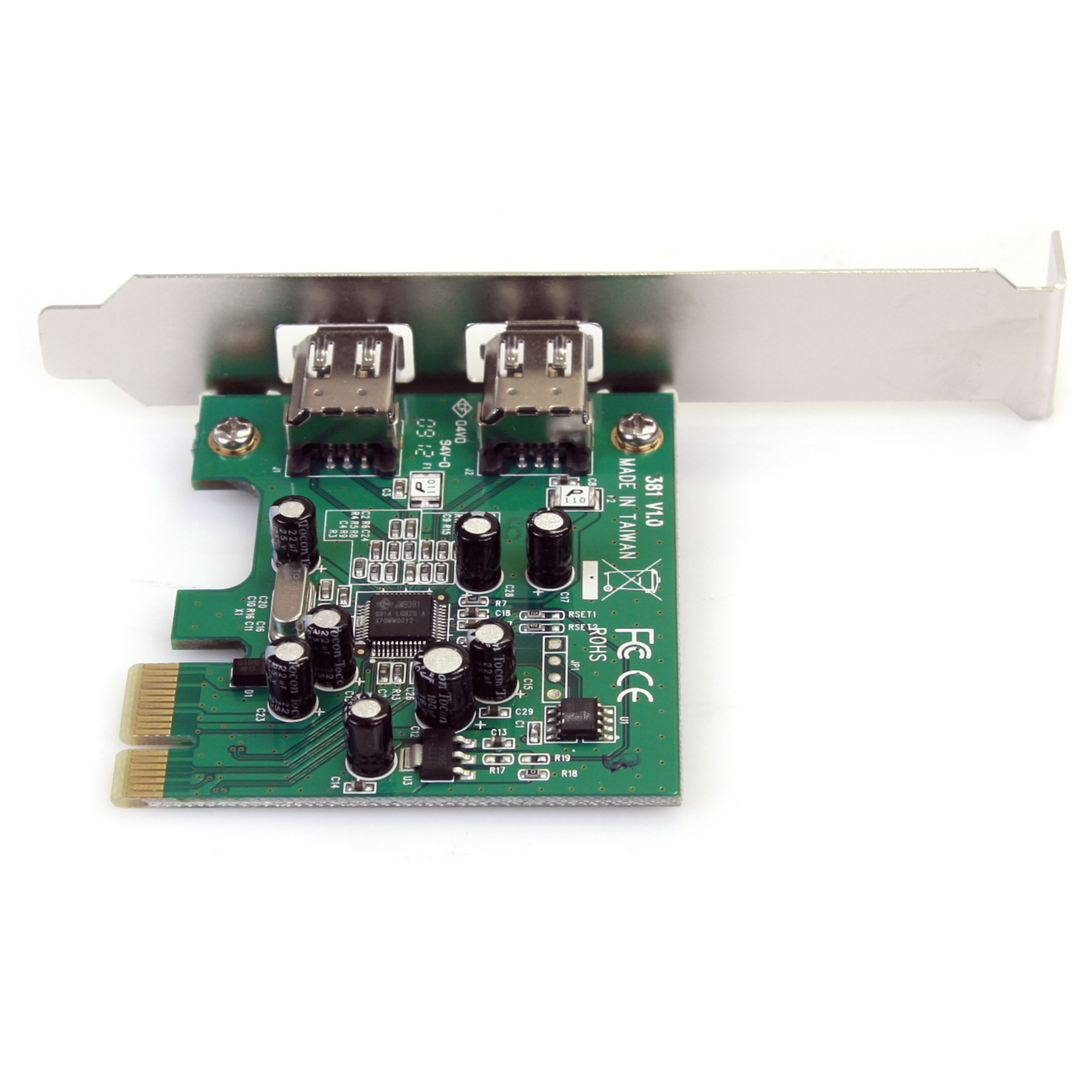

2 Port PCI Express Firewire Card (inc LP bracket)
Add 2 native FireWire 400 ports to your desktop through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port PCI Express Firewire Card (inc LP bracket) Product Number PEX1394A2 UPC 065030827546 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port PCI Express 1394a FireWire Card Product Title (Standard) StarTech.com 2-Port PCI Express 1394a FireWire 400 Card Product Title (Long) 2 Port PCI Express 1394a FireWire Card Product Title (AMZ) 2 Port PCI Express 1394a FireWire Card - Dual Port PCIe 6 pin FireWire 400 Adapter Card (PEX1394A2) Title Ingram (Part 1) 2 Port PCI Express 1394a FireWir Title Ingram (Part 2) e Card Website Product Headline Add 2 native FireWire 400 ports to your desktop through a PCI Express slot Bullet 1 Two 6-pin FireWire 400 ports, each with transfer rates up to 400Mbps Bullet 2 Built with a native PCI Express chipset, no bridge chip Bullet 3 Includes low profile/half-height installation bracket Bullet 4 Compliant with provisions of IEEE Std 1394-1995 for a high-performance serial bus and IEEE Std 1394a -2000 Bullet 5 Plug-and-Play and hot-swap compatible Marketing Copy Applications - Add a high speed FireWire port to a desktop/server without any FireWire ports
- Connect a digital camera to a desktop with a PCI Express slot to download photos and video
- Connect a high speed external hard drive to a PCI Express-enabled system
Website Search Keyword - Firewire Card
- PCI Express
- Express to Firewire
- native single firewire chipsets
- PCIe
- 1394a
Accessory Products - 1394_6
- 1394_10
- 1394_15
- 1394_46_6
Related Products - PEX1394B3
- PEX13943
- CB1394B3
- CB1394
- PEX1394A2DV
Replacement Product PEX1394A2V Product Length (mm) 70 Product Width (mm) 18 Product Height (mm) 60 Product Weight (g) 39 TAA Compliant No Maximum Data Transfer Rate 400 Mbps OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012

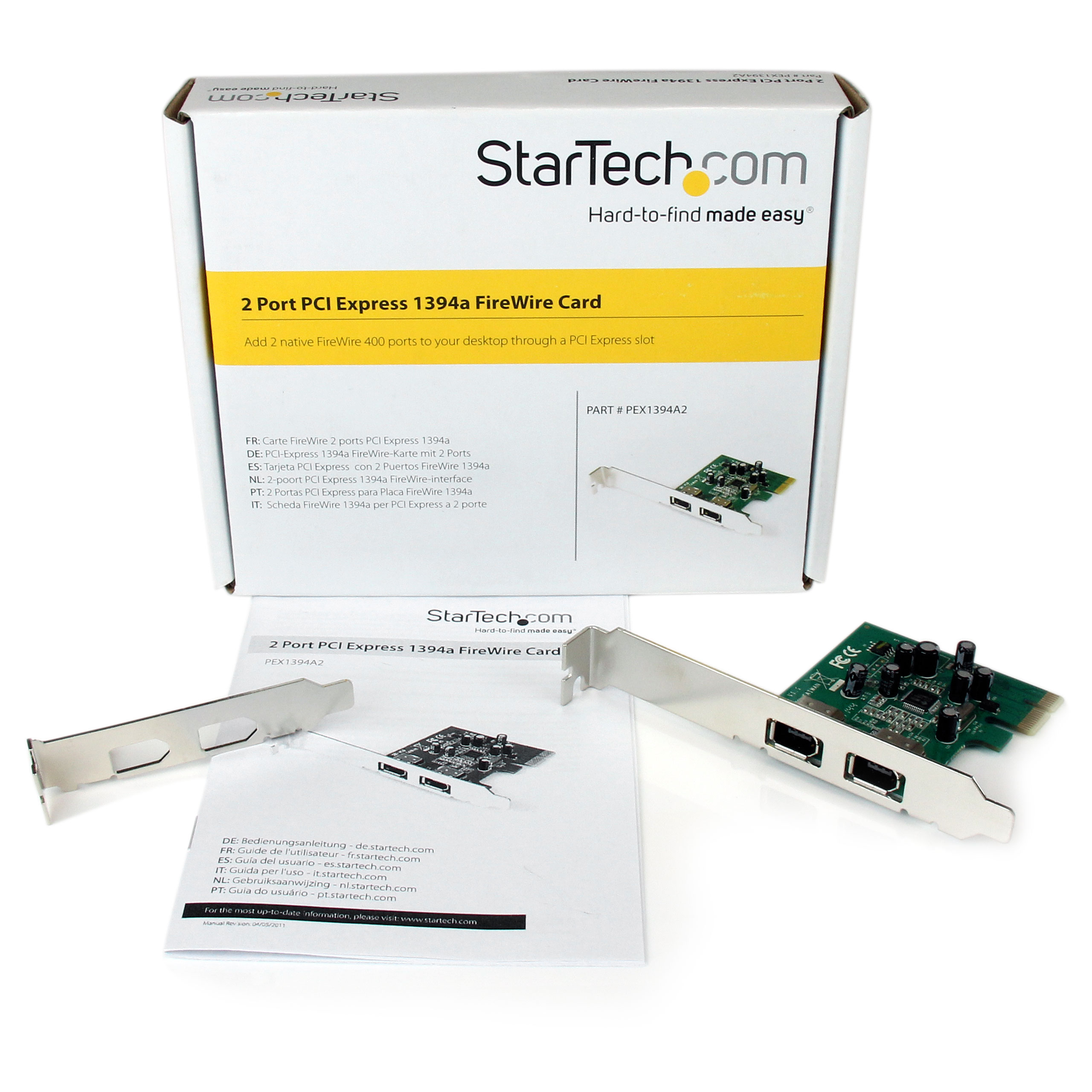

Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID JMicron - JMB381 Interface/Bridge FireWire 400 (1394a) Carton Depth (mm) 515 Carton Height (mm) 320 Carton Quantity 65 Carton Weight Gross (g) 8075 Included in Package - 1 - PCIe FireWire Card
- 1 - Instruction Manual
- 1 - Low Profile Bracket
Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 111 Packaging Description 2 Port PCI Express 1394a FireWire Card Packaging Description India 2 Port PCI Express 1394a FireWire Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Rafal Gwozdz
