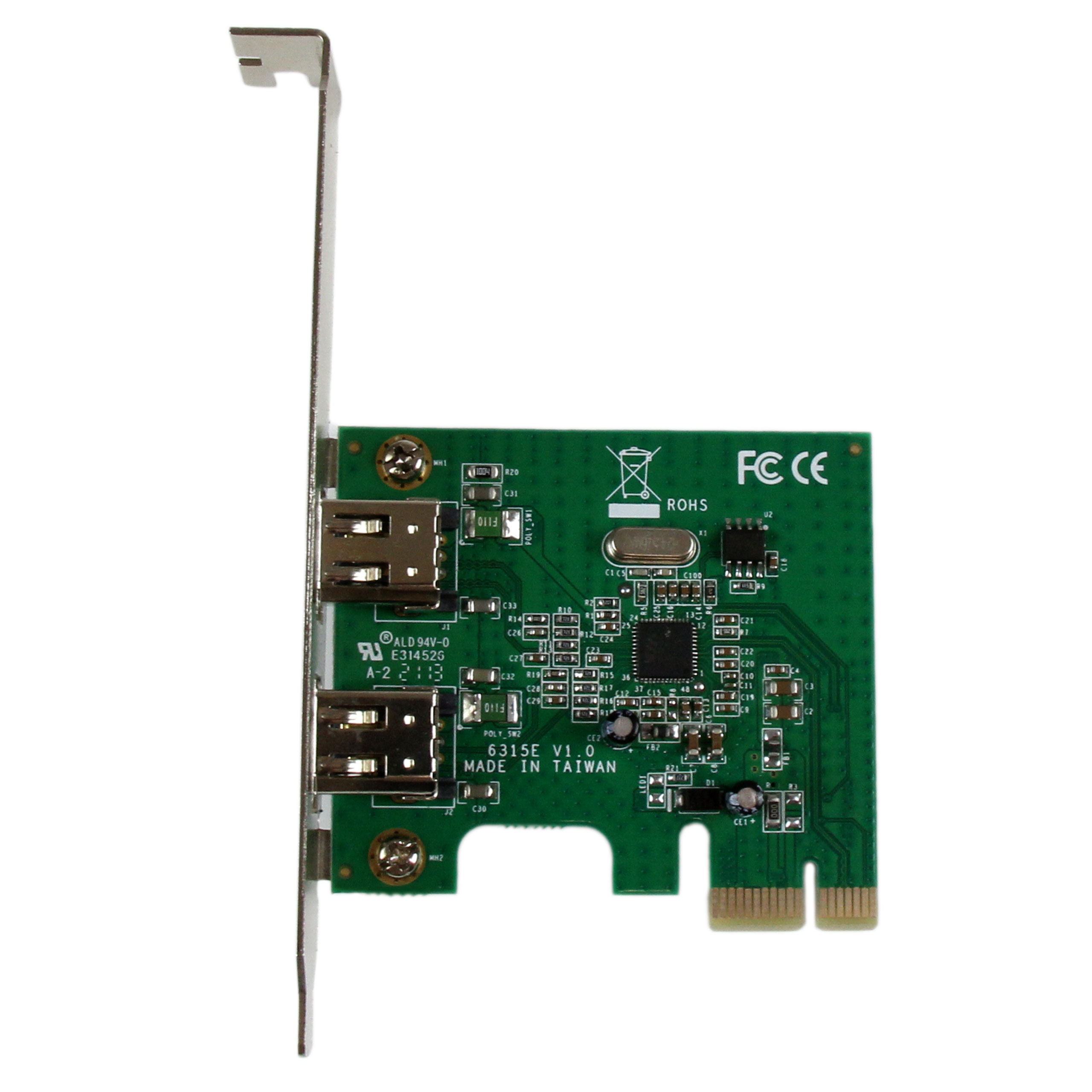

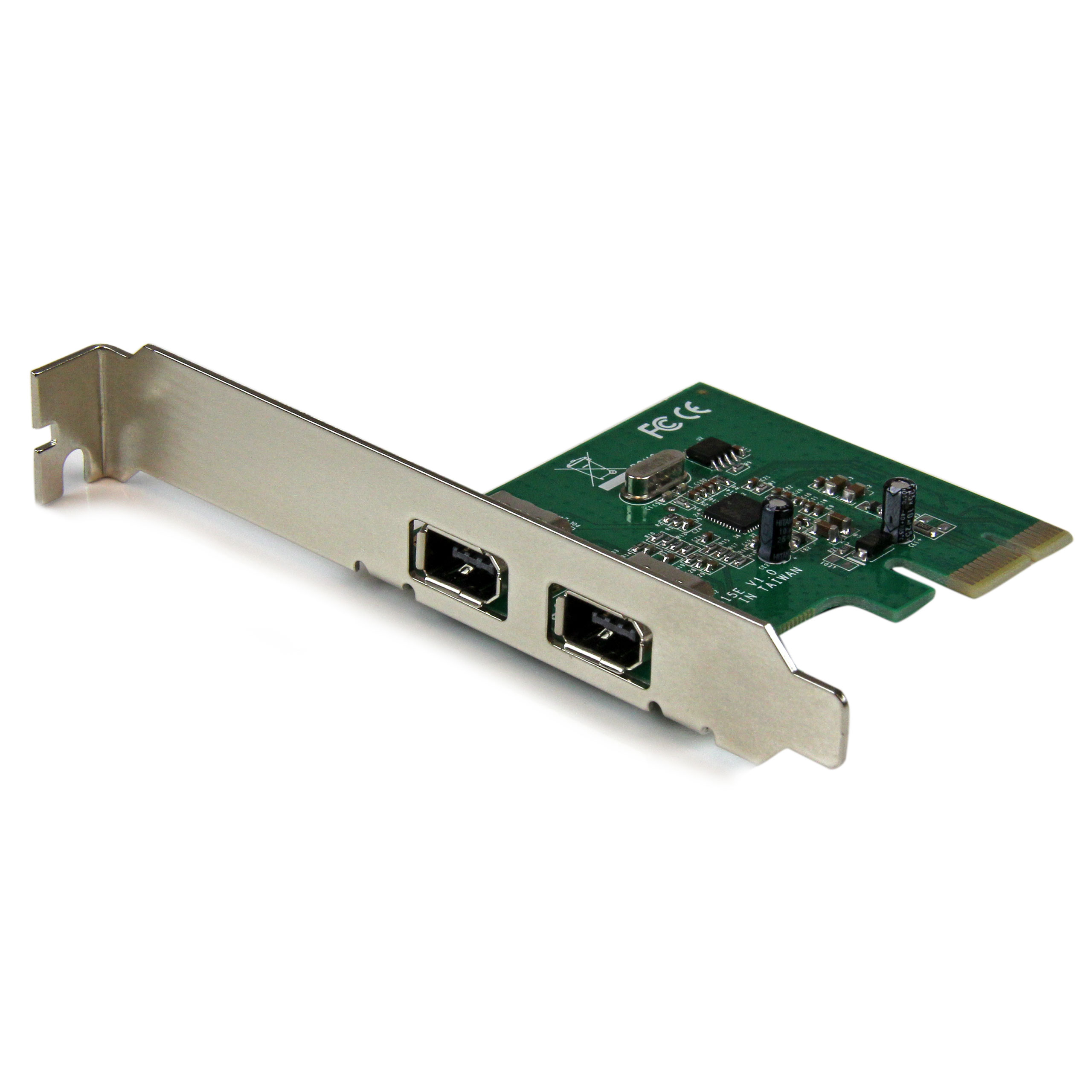

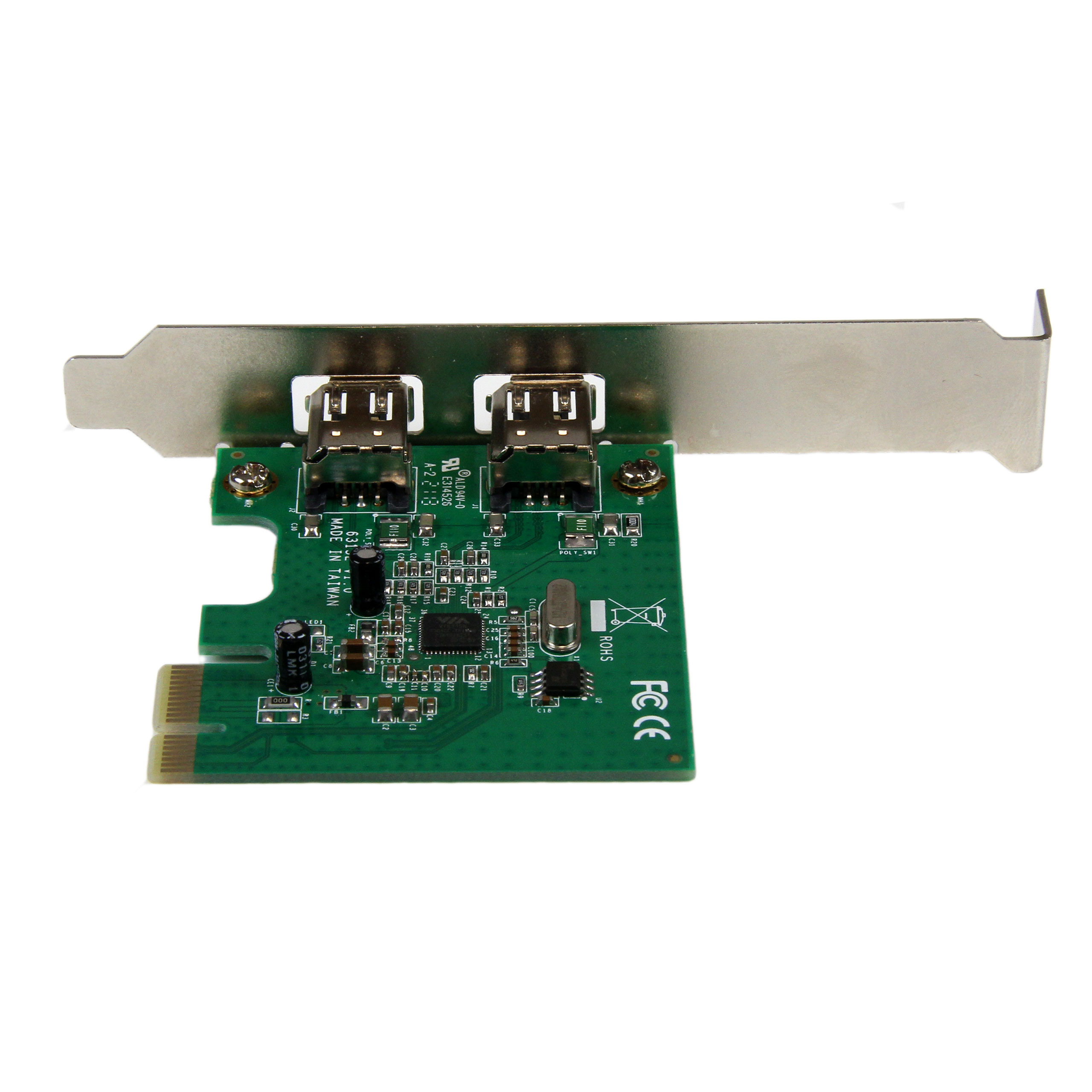

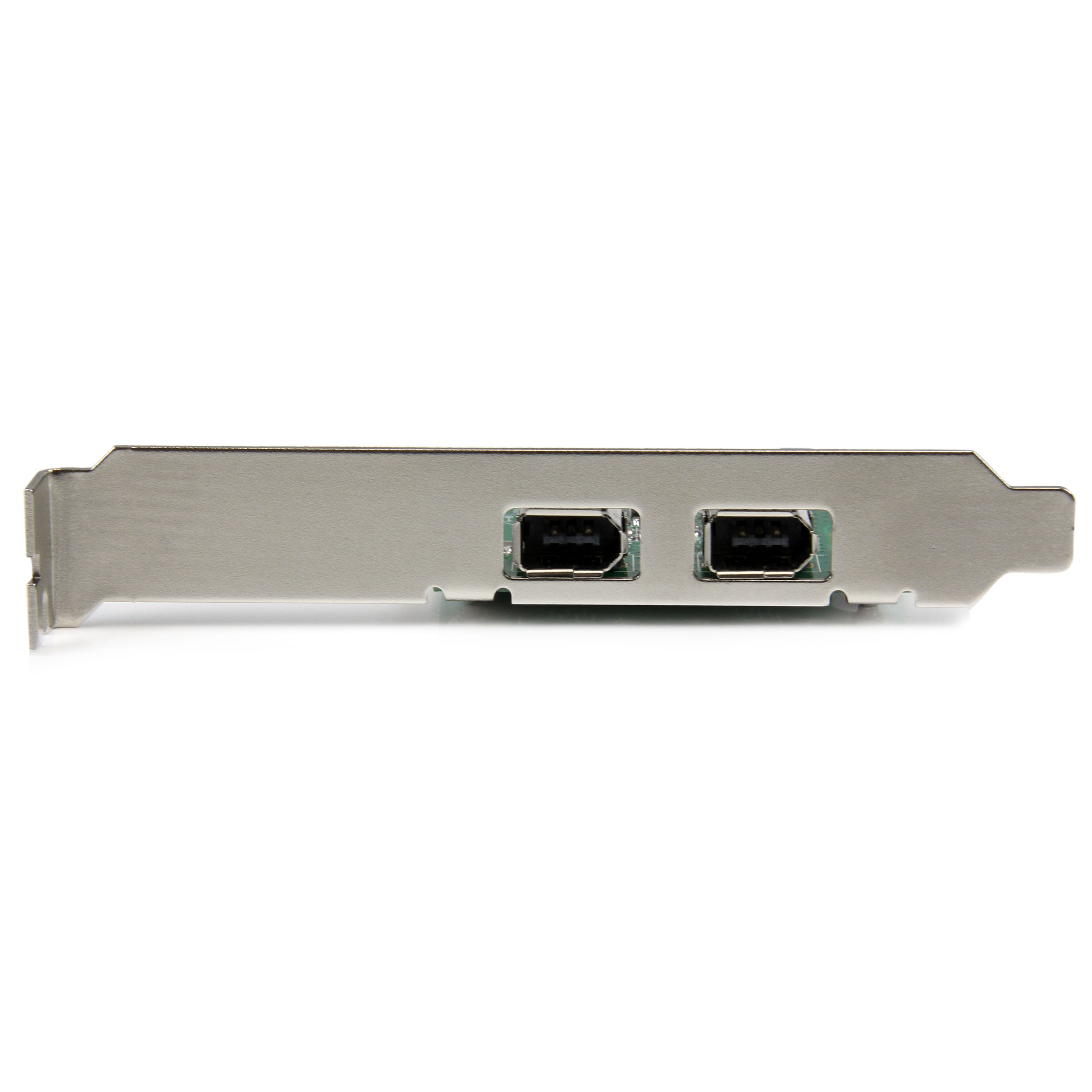

PEX1394A2V
2 Port PCI Express 1394a FireWire Card
Add 2 native FireWire 400 ports to your desktop through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port PCI Express 1394a FireWire Card Product Number PEX1394A2V UPC 065030855501 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 Firewire Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) 2Pt PCIe FireWire Card Product Title (Short) 2 Port 1394a PCI Express FireWire Card Product Title (Medium) 2 Port 1394a PCI Express FireWire Card - PCIe FireWire Adapter Product Title (Standard) 2 Port 1394a PCI Express FireWire Card - PCIe FireWire Adapter Product Title (Long) 2 Port 1394a PCI Express FireWire Card - PCIe FireWire Adapter Product Title (AMZ) 2 Port 1394a PCI Express FireWire Card - PCIe FireWire Adapter - 1394a FireWire PCI Express - Dual Port PCIe 400 Card (PEX1394A2V) Title Ingram (Part 1) 2Port 1394a FireWire PCI Title Ingram (Part 2) Express Card Adapter Website Product Headline Add 2 native FireWire 400 ports to your desktop through a PCI Express slot Bullet 1 Two 6-pin FireWire 400 ports, each with transfer rates up to 400Mbps Bullet 2 Compliant with PCI Express Revision 1.1 Bullet 3 Plug-and-Play and hot-swap compatible Bullet 4 Compliant with IEEE provisions 1394a-2000 Std and 1394-1995 Std Bullet 5 Built with a native PCI Express chipset, no bridge chip Bullets (Consolidated) Add 2 native FireWire 400 ports to your desktop through a PCI Express slot - 2 Port 1394a PCI Express FireWire Card - PCIe FireWire Adapter - 1394a FireWire PCI Express - Dual Port PCIe 1394 Card - FireWire 400 Card - Native PCI Express chipset, no bridge chip - FW 400 Card Marketing Copy Applications - Add a high-speed FireWire port to a desktop/server without any FireWire ports
- Connect a digital camera or digital video recorder to a desktop with a PCI Express slot to download photos and video
- Connect a high-speed external hard drive to a PCI Express-enabled system
Website Search Keyword PEX1394A2 Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
System and Cable Requirements Available PCI Express Slot Accessory Products - 1394_10
- 1394_96_6
- 139496MM1
- 1394_46_15
- 1394_46_10
- 1394_46_6
- FIRE96MF
- FIRE46MF
- FIRE96FM
- FIRE46FM
- 1394_96_10
- 139466EXT6
- 1394_15
- 1394MM1
- 1394_6
Related Products - PEX1394B3
- PCI1394B_3
- EC13942A2
- PCI1394MP
- EC13942
- PEX1394B3LP
- PCI1394_4
Replacement Product PEX1394A2V2 Humidity 20-80% RH Operating Temperature 0°C to 85°C (32°F to 185°F) Product Length (mm) 67.000 Product Width (mm) 18.000 Product Height (mm) 60.000 Product Weight (g) 38.000 Storage Temperature -55°C to 125°C (-67°F to 257°F) TAA Compliant Yes Maximum Data Transfer Rate 400 Mbps OS Compatibility - Windows 8
- Linux
- Windows 7
- Windows Server 2012
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- Windows 11

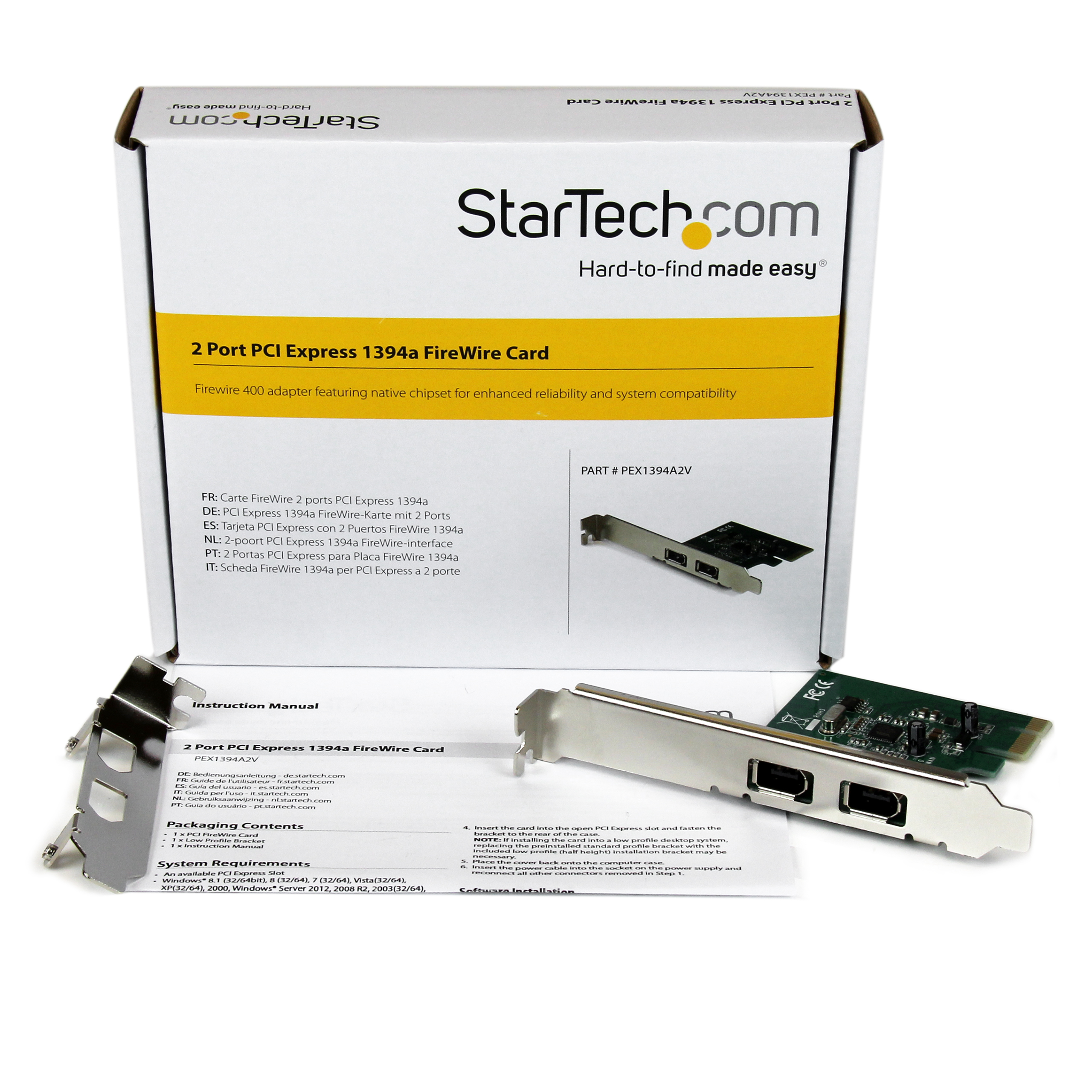

USB Type and Rate FireWire 400 IEEE-1394a (400Mbits) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID VIA/VLI - VT6315N Interface/Bridge FireWire 400 (1394a) IO Card Port Style Integrated on Card Carton Depth (mm) 355 Carton Height (mm) 311 Carton Quantity 50 Carton Weight Gross (g) 6260 Included in Package - 1 - PCI Express FireWire Card
- 1 - Low Profile Bracket
- 1 - Instruction Manual
Package Depth (mm) 172 Package Height (mm) 31 Package Width (mm) 145 Package Quantity 1 Package Weight (g) 106 Packaging Description 2 Port PCI Express 1394a FireWire Card Packaging Description India 2 Port PCI Express 1394a FireWire Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-11-19 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,CL,DK,ES,EU,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist kfarid Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
