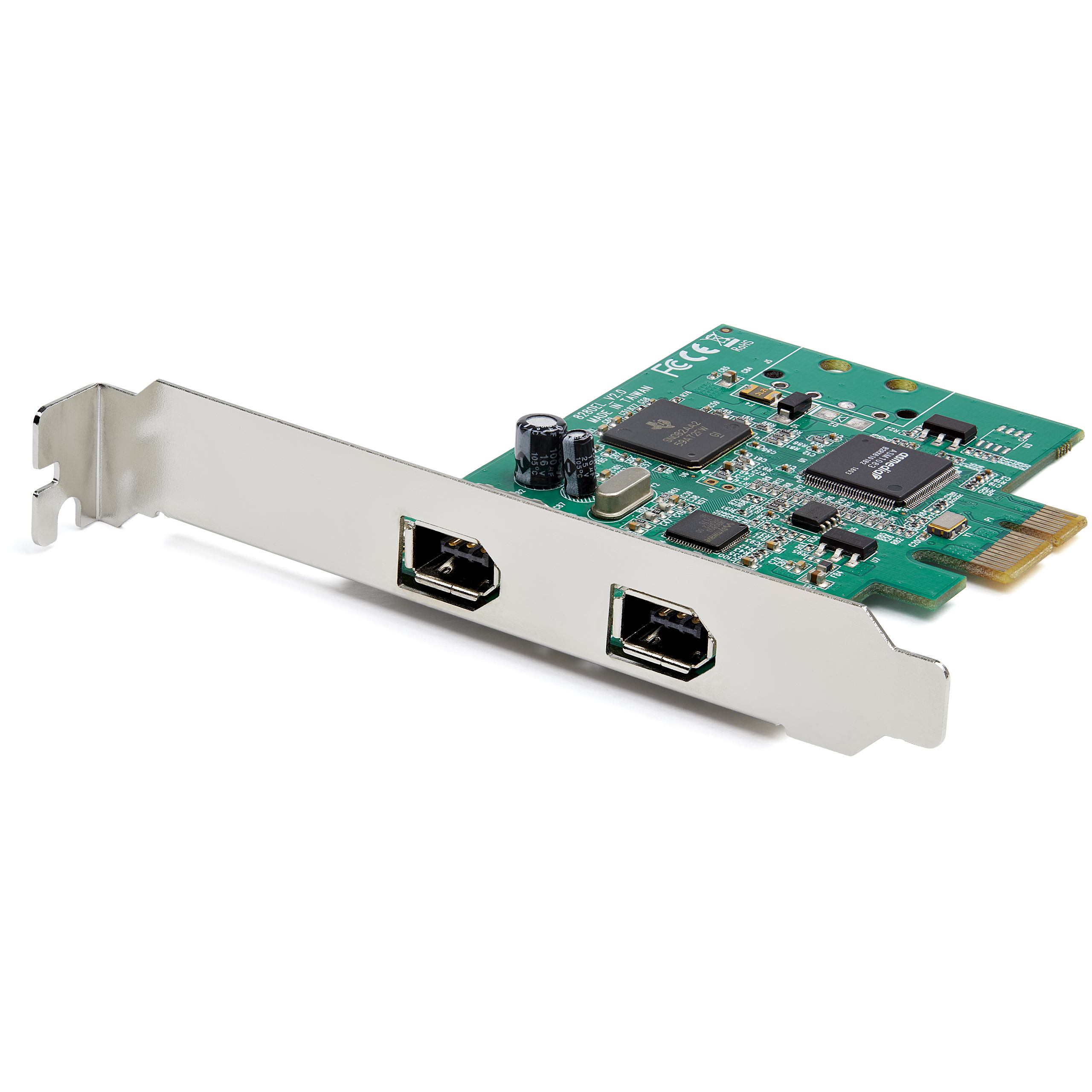

PEX1394A2V2
2 Port PCI Express 1394a FireWire Card
PCI Express to Firewire Adapter | FireWire 400 | Texas Instruments TSB82AA2
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2 Port PCI Express 1394a FireWire Card Product Number PEX1394A2V2 UPC 065030887755 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 Firewire Cards Family Firewire Cards - PCIe Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) 2 Port PCIe FireWire Product Title (Short) FireWire Card - PCIe FireWire - 2 Port Product Title (Medium) 2 Port PCI Express FireWire Card - 1394a Firewire -Windows and Mac Product Title (Standard) 2 Port PCI Express FireWire Card, TI TSB82AA2 Chipset, Plug-and-Play, PCIe 1394a FireWire Adapter (PEX1394A2V2), TAA Product Title (Long) 2-Port PCI Express FireWire Card - PCIe FireWire 1394a Adapter - TAA Product Title (AMZ) 2 Port PCI Express FireWire Card - 1394a Firewire - TI TSB82AA2 Chipset - Windows & Mac Compatible , TAA (PEX1394A2V2) Title Ingram (Part 1) 2 Port PCIe FireWire Card Title Ingram (Part 2) TI TSB82AA2 Chipset - Windows & Mac Website Product Headline PCI Express to Firewire Adapter | FireWire 400 | Texas Instruments TSB82AA2 Bullet 1 Built with a TI 1394 OHCI Compliant Host Controller Bullet 2 Includes low profile/half-height installation bracket Bullet 3 Two 6-pin FireWire 400 ports, each with transfer rates up to 400Mbps Bullet 4 Plug-and-Play compatible Bullet 5 PCI Express 1.1 and IEEE provisions 1394a-2000 Std, 1394-1995 Std compliant Bullets (Compact) PCI Express Firewire card lets you add 2 FireWire 400 ports to your desktop PC allowing you to connect IEEE 1394A FireWire devices - The PCIE FireWire adapter supports Windows and macOS 10.10-10.13 and includes full profile and half height brackets Bullets (Consolidated) The PCI Express Firewire card lets you add 2 FireWire 400 ports to your desktop PC allowing you to connect IEEE 1394A FireWire devices such as digital cameras external hard drives DV camcorders printers - This PCI Express to firewire adapter reduces performance bottlenecks by offering support for data transfer rates up to 400Mbps to each port - For broad compatibility the PCIE firewire adapter supports Windows and macOS 10.10-10.13 and includes full profile and half height installation brackets Marketing Copy Marketing Copy (No HTML) Applications - Connect a digital camera to a desktop with a PCI Express slot to download photos and video
- Add a high-speed FireWire port to a desktop/server without any FireWire ports
- Connect a high-speed external hard drive to a PCI Express-enabled system
Website Search Keyword - 2 port pci express 1394a firewire card
- low profile pcie firewire card
- pci express to firewire adapter
- pcie firewire adapter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements Available PCI Express Slot Accessory Products 139446MM1 Related Products - PEX1394B3LP
- PEX1394B3
- EC1394B2
- EC13942
- PCI1394MP
Replacement Product PEX1394B3 Color Green Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 89.000 Product Width (mm) 68.000 Product Height (mm) 17.800 Product Weight (g) 49.000 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant Yes Maximum Data Transfer Rate 400 Mbps MTBF (hours) 102,635 hours OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Windows Server 2003
- Windows Server 2012
- Windows Server 2012 R2
- Windows Server 2016
- Windows Server 2019
- Mac OS X Yosemite (10.10)
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- Linux
- Windows 11
- Windows Server 2022

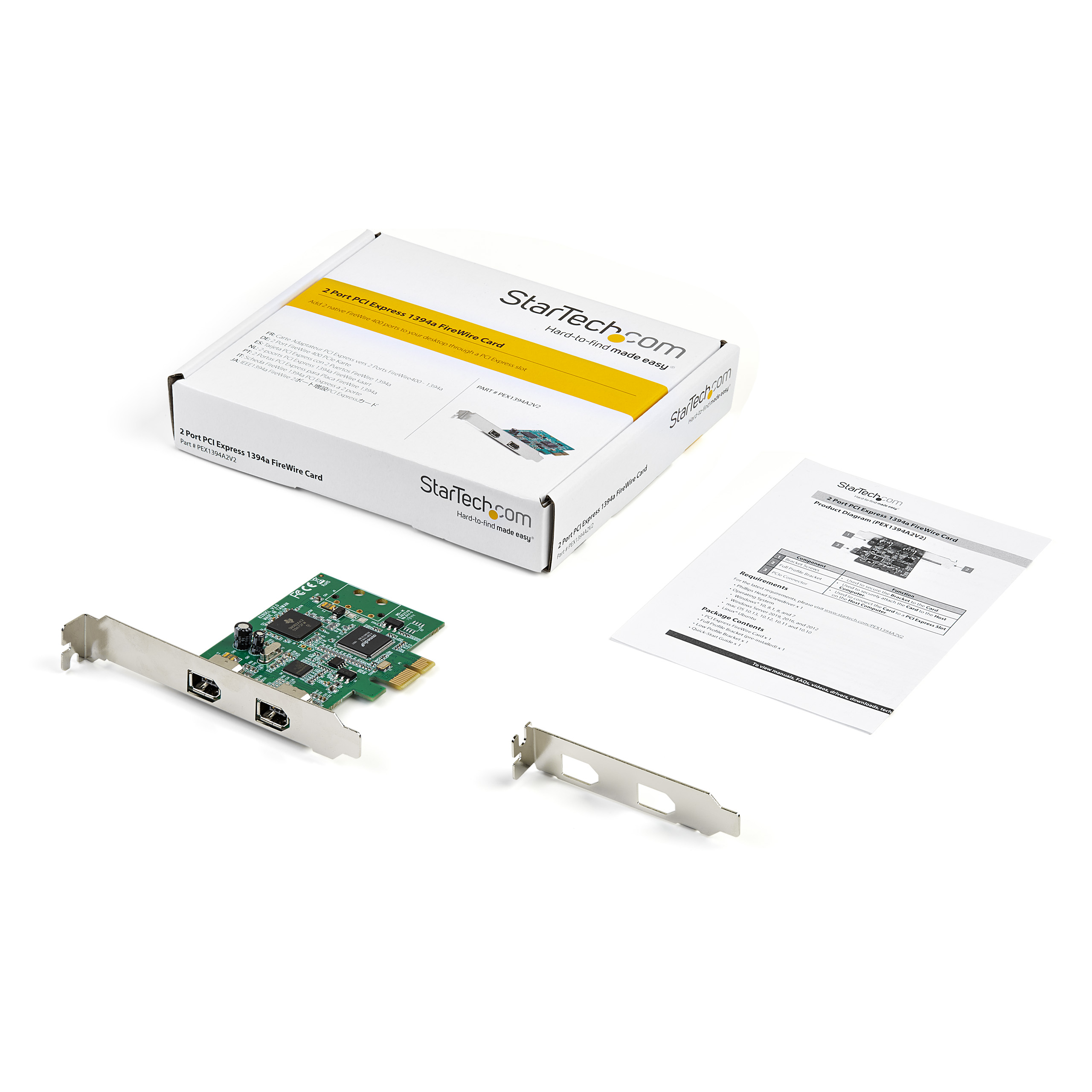

USB Type and Rate FireWire 400 IEEE-1394a (400Mbits) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Texas Instruments - TSB82AA2 Interface/Bridge FireWire 400 (1394a) IO Card Port Style Integrated on Card Carton Depth (mm) 360 Carton Height (mm) 312 Carton Quantity 75 Carton Weight Gross (g) 9950 Included in Package - 1 - PCI Express FireWire Card
- 1 - Full Profile Bracket (Installed)
- 1 - Low Profile Bracket
- 1 - Quick-Start Guide
Package Depth (mm) 175 Package Height (mm) 32 Package Width (mm) 144 Package Quantity 1 Package Weight (g) 114 Packaging Description 2 Port PCI Express 1394a FireWire Card Packaging Description India 2 Port PCI Express 1394a FireWire Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2019-10-03 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2019-10-17 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2019-09-17 Target Production Release 2019-10-03 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None
