PEX1394B3

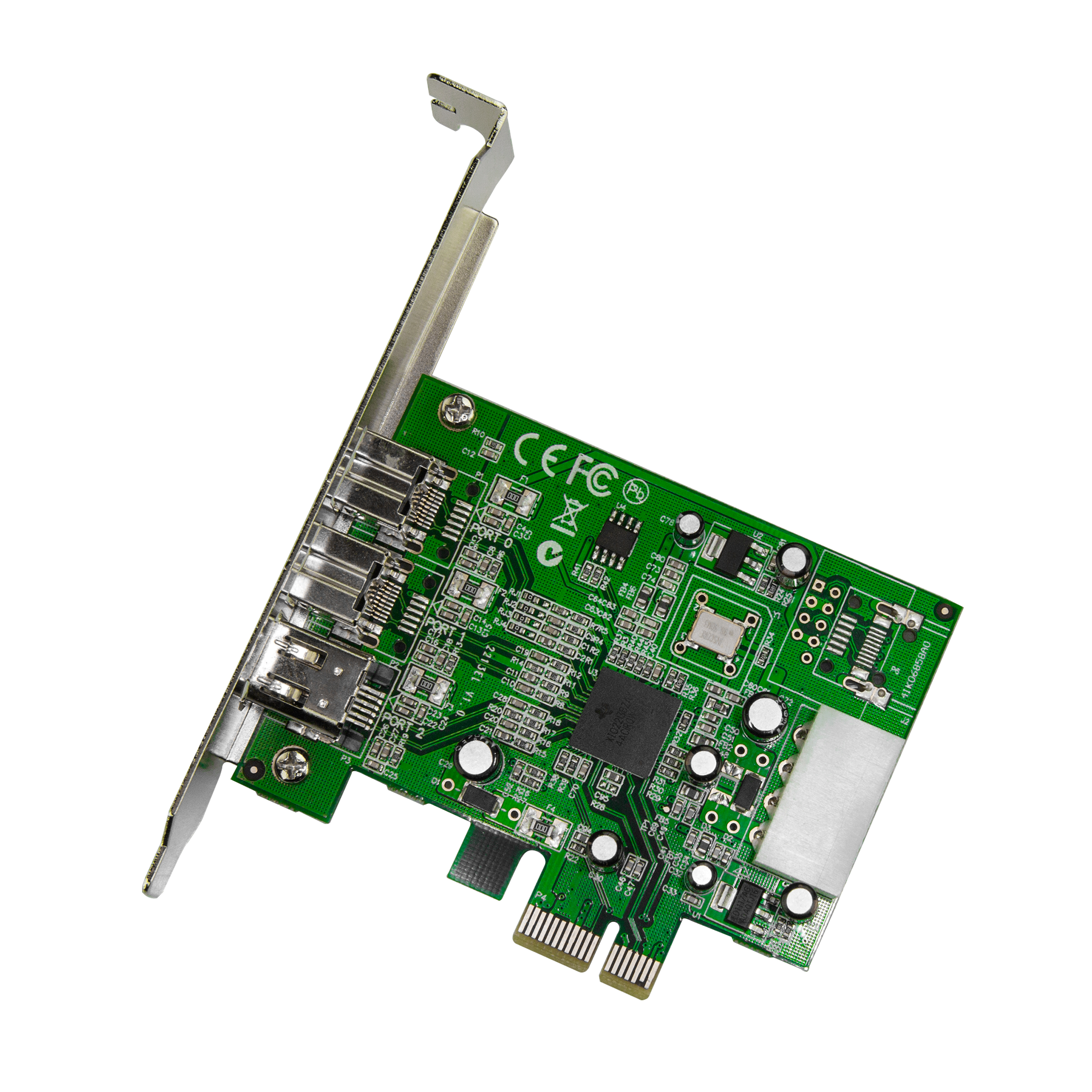

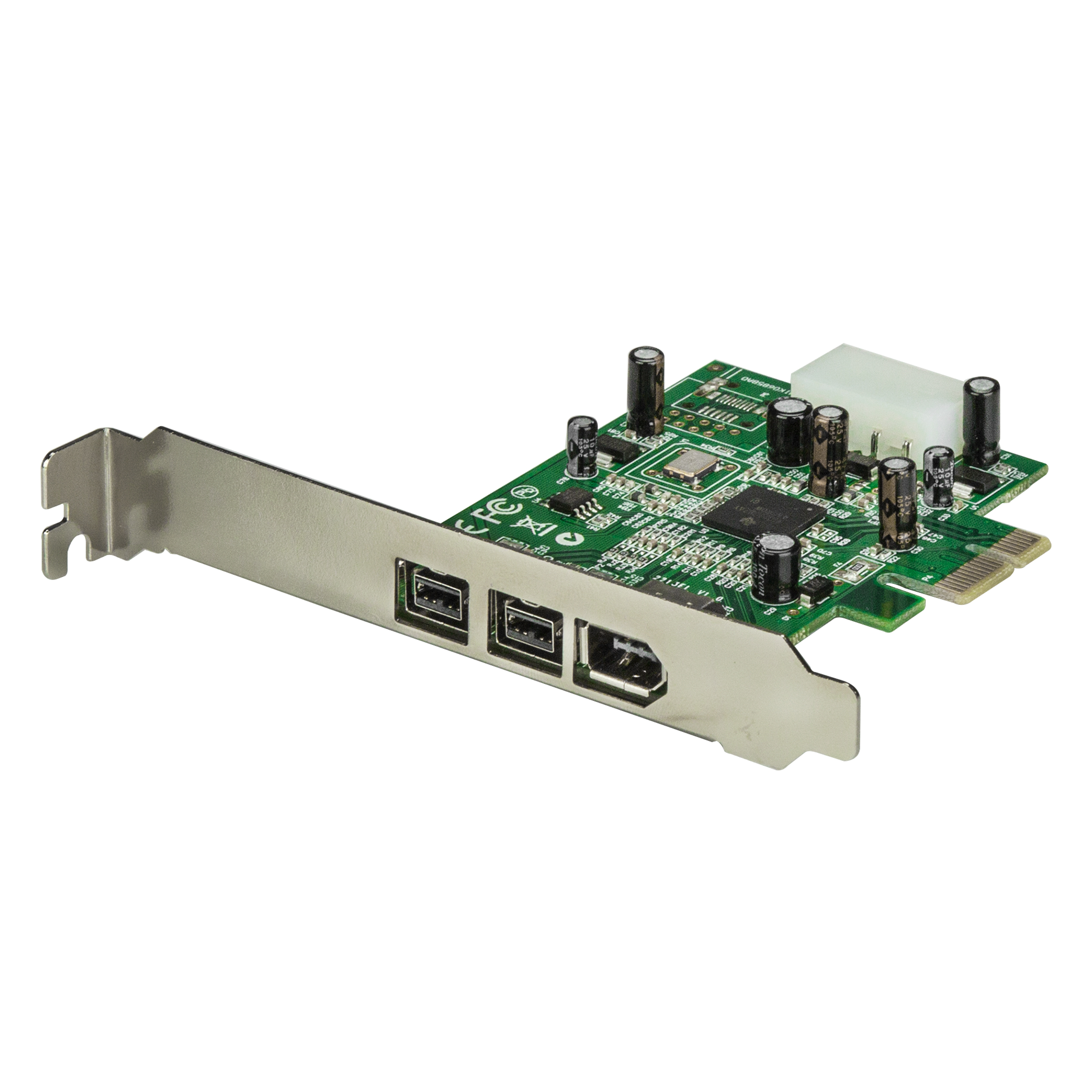

3 Port PCI-E 1394b FireWire 800 Card
Add 2 native FireWire 800 ports to your computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
BOM Image
Product Name 3 Port PCI-E 1394b FireWire 800 Card Product Number PEX1394B3 UPC 065030825139 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 Firewire Cards Family Firewire Cards - PCIe Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 3 Port 2b 1a PCI Express FireWire Card Product Title (Medium) x Product Title (Standard) 3 Port 2b 1a 1394 PCI Express FireWire Card, TAA Product Title (Long) 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter - TAA Product Title (AMZ) 3 Port 2b 1a 1394 PCI Express FireWire Card Adapter - 1394 FW PCIe FireWire 800 / 400 Card , TAA (PEX1394B3) Title Ingram (Part 1) 3 Port 2b 1a 1394 PCI Express Fi Title Ingram (Part 2) reWire Card Adapter Website Product Headline Add 2 native FireWire 800 ports to your computer through a PCI Express expansion slot Bullet 1 Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps Bullet 2 One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps Bullet 3 Built with a native PCI Express chipset, no bridge chip Bullet 4 Includes low profile/half-height installation bracket Bullet 5 Internal power connector for high powered FireWire devices Bullets (Consolidated) Add 2 native FireWire 800 ports to your computer through a PCI Express expansion slot - PCI Express FireWire Card - PCI Express 1394a - PCIe FireWire Card - PCIe 1394 - 4 Port FireWire 800/400 Card - Native Single Chip - PCI-e FireWire Adapter Card - Add 2x 1394b FW 800 and 1x 1394a FW 400 Ports Marketing Copy Marketing Copy (No HTML) Applications - Add a high speed FireWire port to a desktop without any FireWire ports
- Connect a digital camera to a desktop with a PCI Express slot to download photos and video
- Connect a high-speed external hard drive to a PCI Express-enabled system
Website Search Keyword - 1394 Firewire Card
- PCIe
- PCI-E
- 1394b
- IEEE 1394
- Single Chip
- firewire 800
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes The software included with this product supports a "typical" driver install only. Custom driver setup requires software purchase from a 3rd party System and Cable Requirements PCI Express enabled computer with an available PCI Express x1 slot or higher Accessory Products - 1394_94_10
- 1394_94_6
- 1394_96_10
- 1394_96_6
- 1394_99_10
- 1394_99_6
Related Products IDECASEU2FB Input Voltage 12V DC Output Voltage (V) 12V DC Color Green Humidity 0~90% RH Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 85.000 Product Width (mm) 18.000 Product Height (mm) 120.000 Product Weight (g) 48.000 Storage Temperature -20°C to 90°C (-4°F to 194°F) TAA Compliant Yes Maximum Data Transfer Rate MTBF (hours) 149,905 hours OS Compatibility - Linux
- Windows Server 2012
- Windows 8
- Windows 7
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Texas Instruments - XIO2213B Industry Standards Interface/Bridge - FireWire 800 (1394b)
- FireWire 400 (1394a)

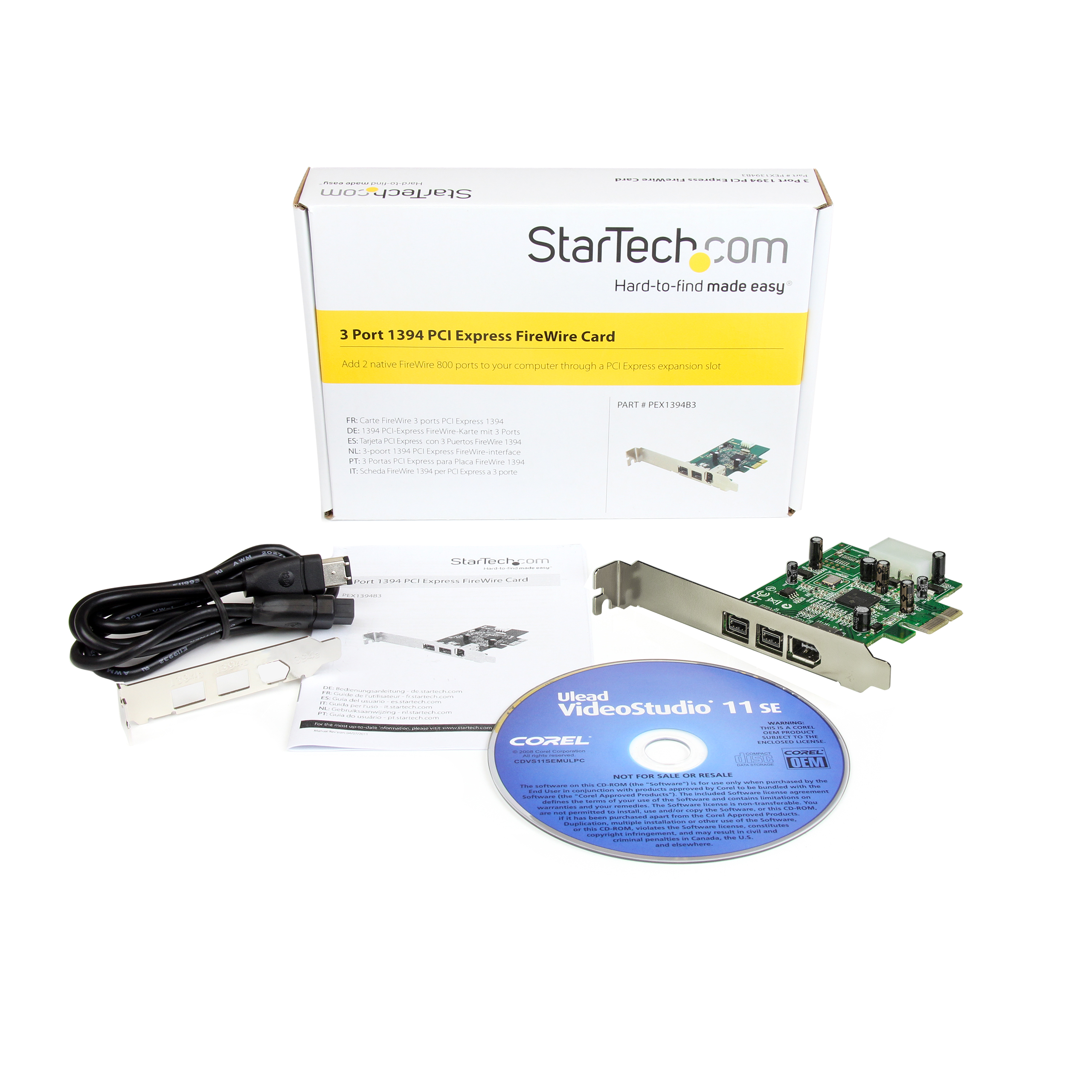

Carton Depth (mm) 352 Carton Height (mm) 313 Carton Quantity 50 Carton Weight Gross (g) 11050 Included in Package - 1 - PCI Express FireWire Card
- 1 - Instruction Manual
- 1 - Low Profile Bracket
- 1 - Software CD
- 1 - FireWire cable
Included In Package for Label - 1 - Low Profile Bracket
- 1 - Software CD
- 1 - Firewire Cable
- 1 - Instruction Manual
- 1 - PCI Express Firewire Card

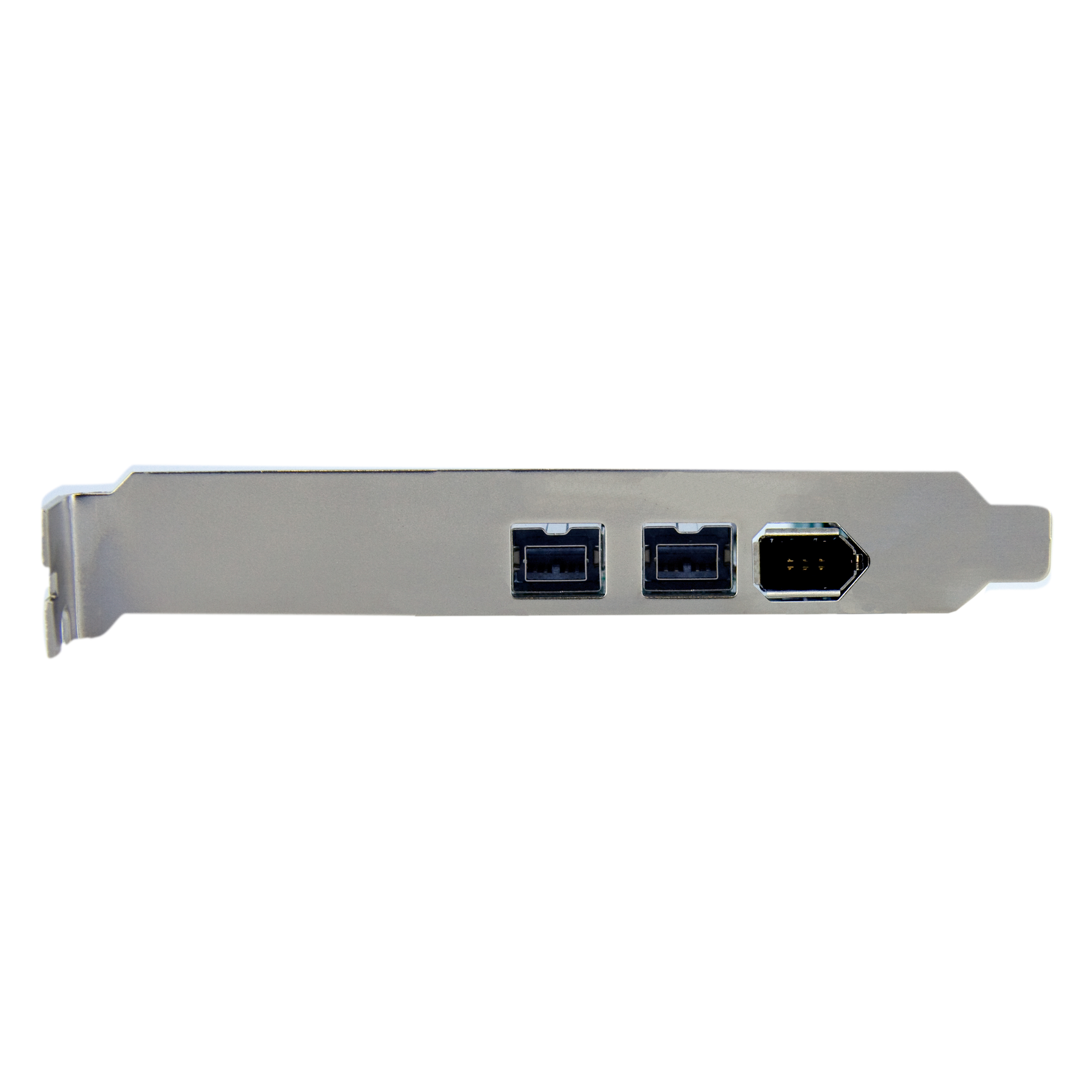

Package Depth (mm) 145 Package Height (mm) 38 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 206 Packaging Description 3 Port 1394 PCI Express FireWire Card Packaging Description India 3 Port 1394 PCI Express FireWire Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 2 (Quantity) 1 Connector 3 FireWire 800 (9-Pin, 800Mbps, Bus Power) Connector 3 (Quantity) 2 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
