PEX16S952LP

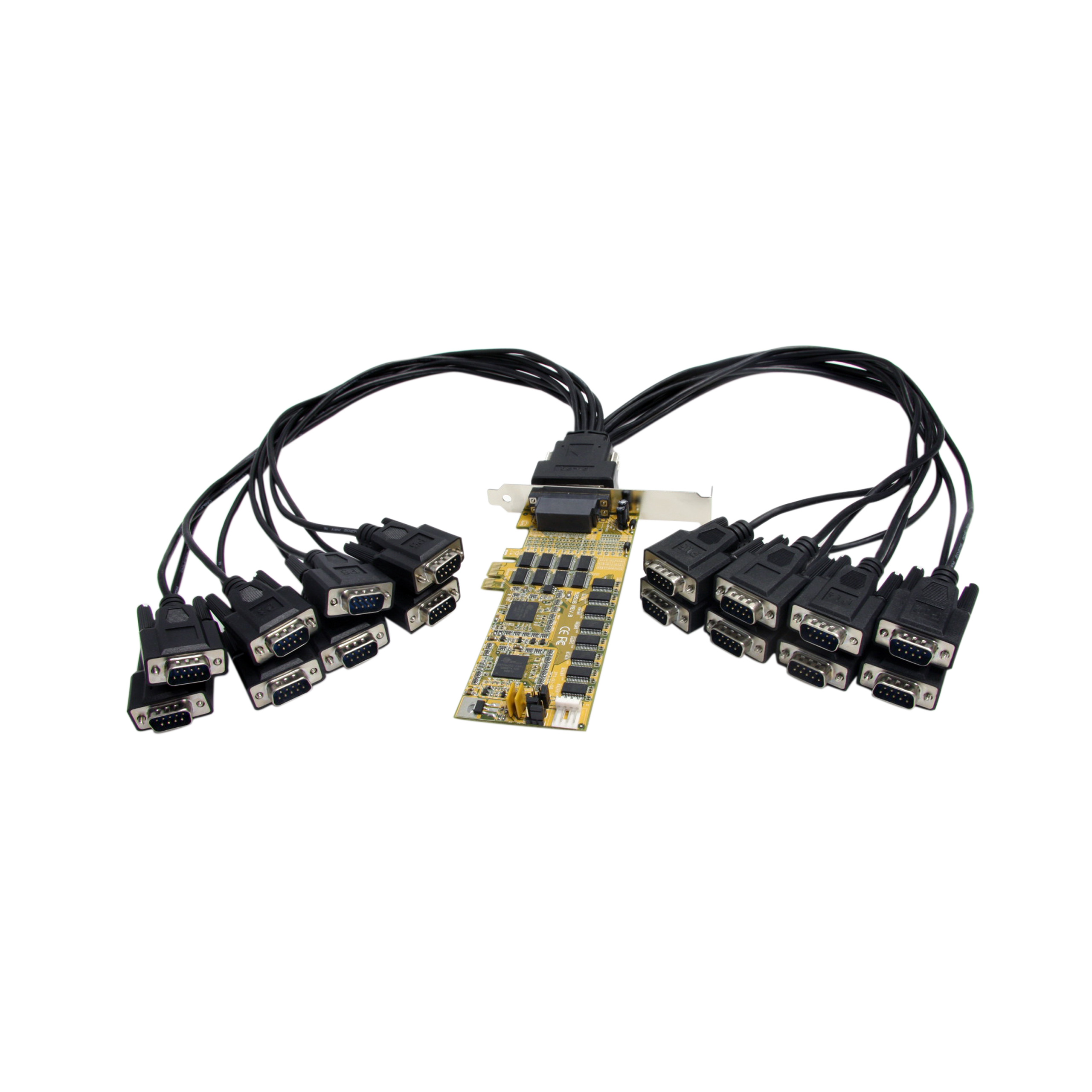

PCI Express Serial Adapter Card 16 Port 16950 UART
Add 16 RS232 serial ports to your computer via a single low profile PCI Express slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name PCI Express Serial Adapter Card 16 Port 16950 UART Product Number PEX16S952LP UPC 065030837675 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 16 Port LP RS232 PCI Express Serial Card Product Title (Medium) x Product Title (Standard) 16 Port LP RS232 PCI Express Serial Card & Cable Product Title (Long) 16 Port Low Profile RS232 PCI Express Serial Card - Cable Included Product Title (AMZ) 16 Port Low Profile RS232 PCI Express Serial Card - Cable Included - PCIe RS232 Serial Card (PEX16S952LP) Title Ingram (Part 1) 16 Port Low Profile RS232 PCI Ex Title Ingram (Part 2) press Serial Card & Cable Website Product Headline Add 16 RS232 serial ports to your computer via a single low profile PCI Express slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND Bullet 4 Compliant with PCI Express base specifications revision 1.1 Bullet 5 16 high speed RS-232 serial ports with data transfer rate up to 921.6 Kbps Bullets (Consolidated) Cable Included - Serial adapter - PCIe low profile - RS-232 x 16 Marketing Copy Applications - Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Self service automated machines and kiosks (grocery, airport) to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- Control/monitoring of surveillance/security cameras and systems
- Industrial automation for factory/manufacturing floors
- POS applications to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
Website Search Keyword - PCI Express
- Serial Adapter Card
- 16 Port card
- Industrial serial
- PCIe serial
- Native PCIe serial
- 16C950
- 16C550
- Multi-Port RS232
- Low Profile serial
- PCI-E
- Multiplexer
- Multiplexor
- RS-232
Required Regulatory Compliance Marks - REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI4S650DV
- PCI8S650DV
- PCI8S950
- PCI8S9503V
- PEX4S550
- PEX4S552
- PEX4S650
- PEX4S950
- PEX8S950LP
- PEX8S952
- PEX32S952
Humidity 5~95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 178 Product Width (mm) 68 Product Height (mm) 20 Product Weight (g) 1250 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Data Bits 5, 6, 7, 8 FIFO 128 Bytes Max Baud Rate 921.6 Kbps OS Compatibility - Linux
- Windows 8
- Windows Server 2012
- Windows 7
- Windows 10
- Windows Server 2016
- Windows 11

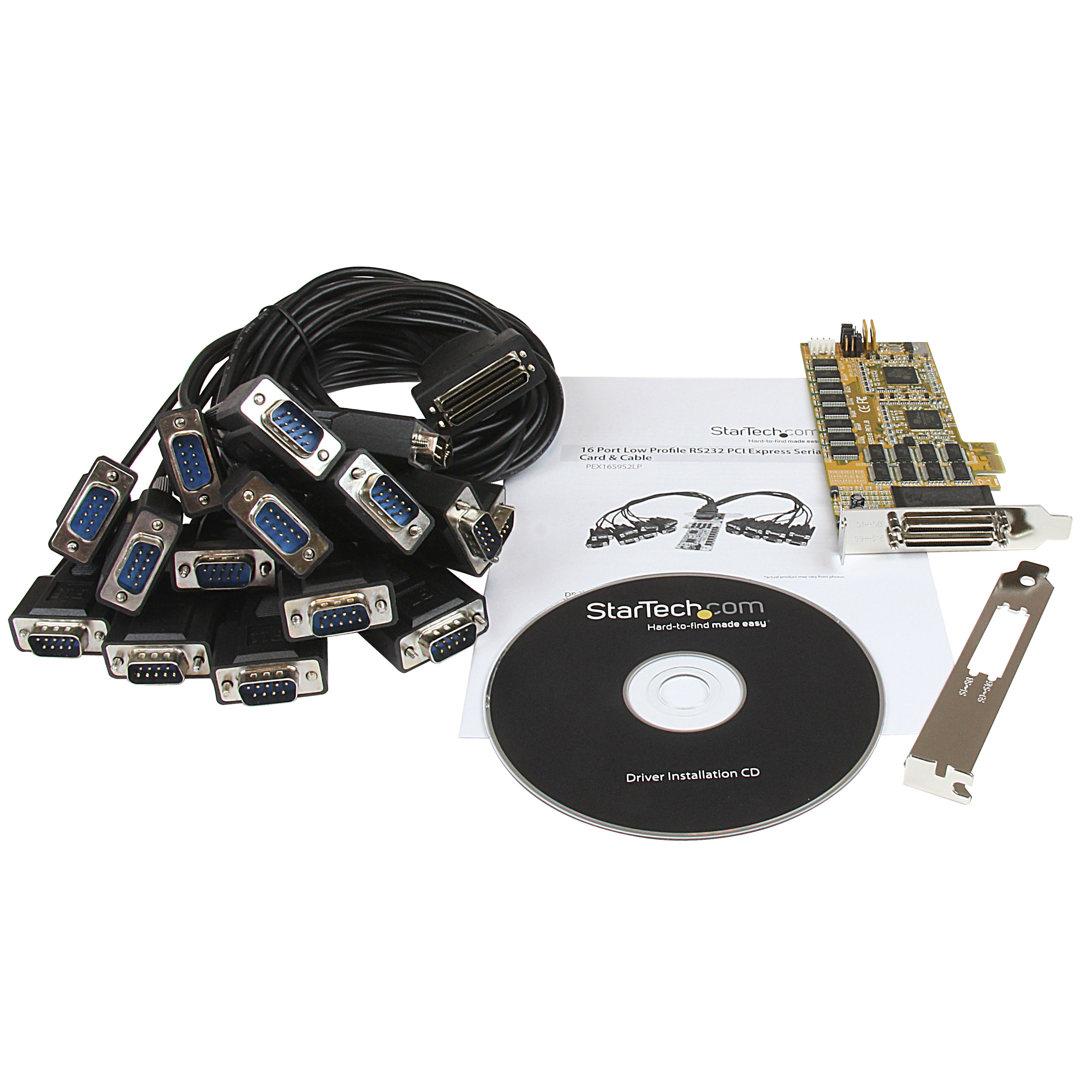

Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID PLX/Oxford - OXPCIe958 Industry Standards PCI Express 1.1, PCI Power Management 1.2 Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 524 Carton Height (mm) 341 Carton Quantity 14 Carton Weight Gross (g) 17720 Included in Package - 1 - 16 Port Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - 16 port breakout cable
- 1 - Full Profile Bracket
Package Depth (mm) 70 Package Height (mm) 192 Package Width (mm) 295 Package Quantity 1 Package Weight (g) 1180 Packaging Description 16 Port Low Profile PCIe RS232 Serial Card Packaging Description India 16 Port Low Profile PCIe RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 16 Connector 3 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,JP,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
