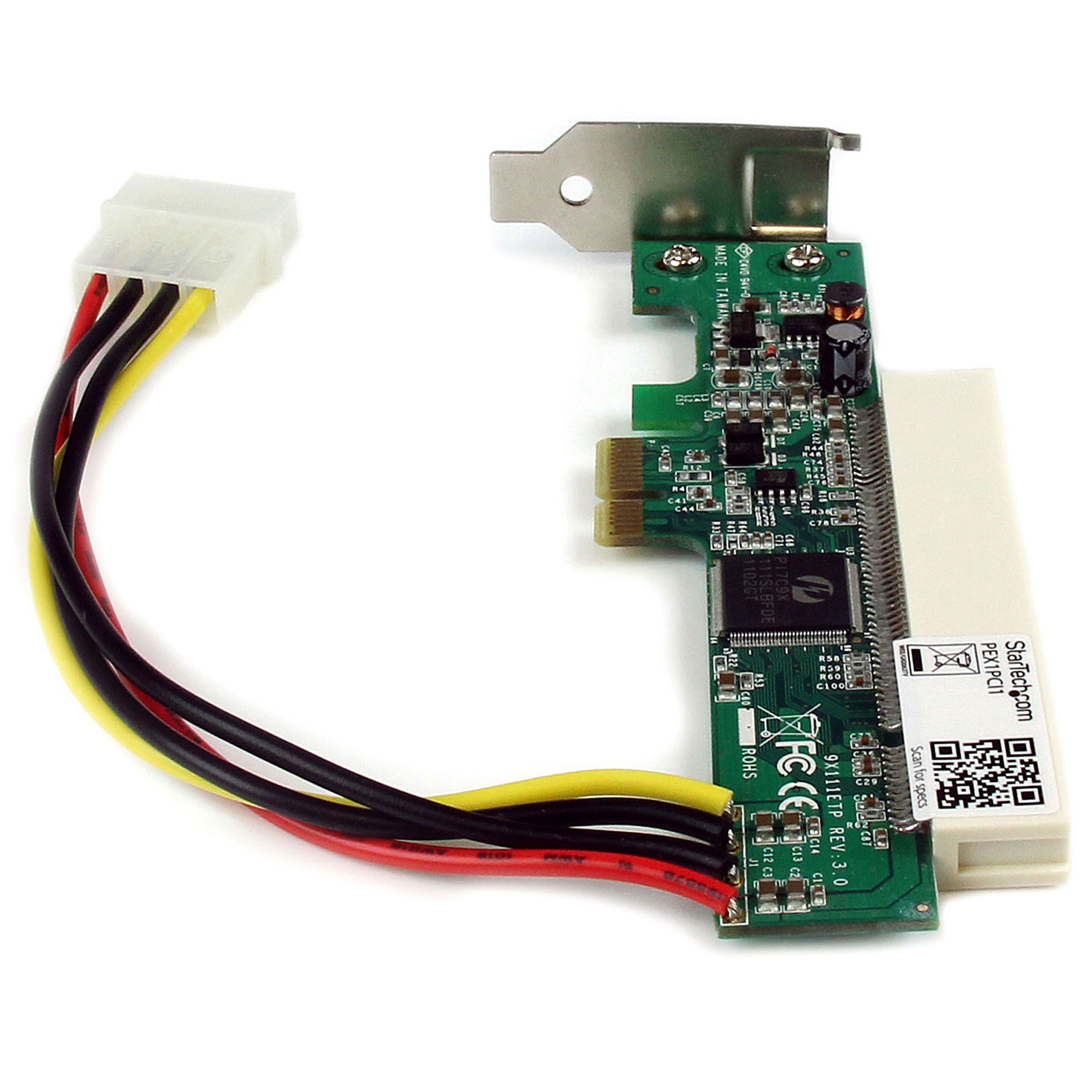

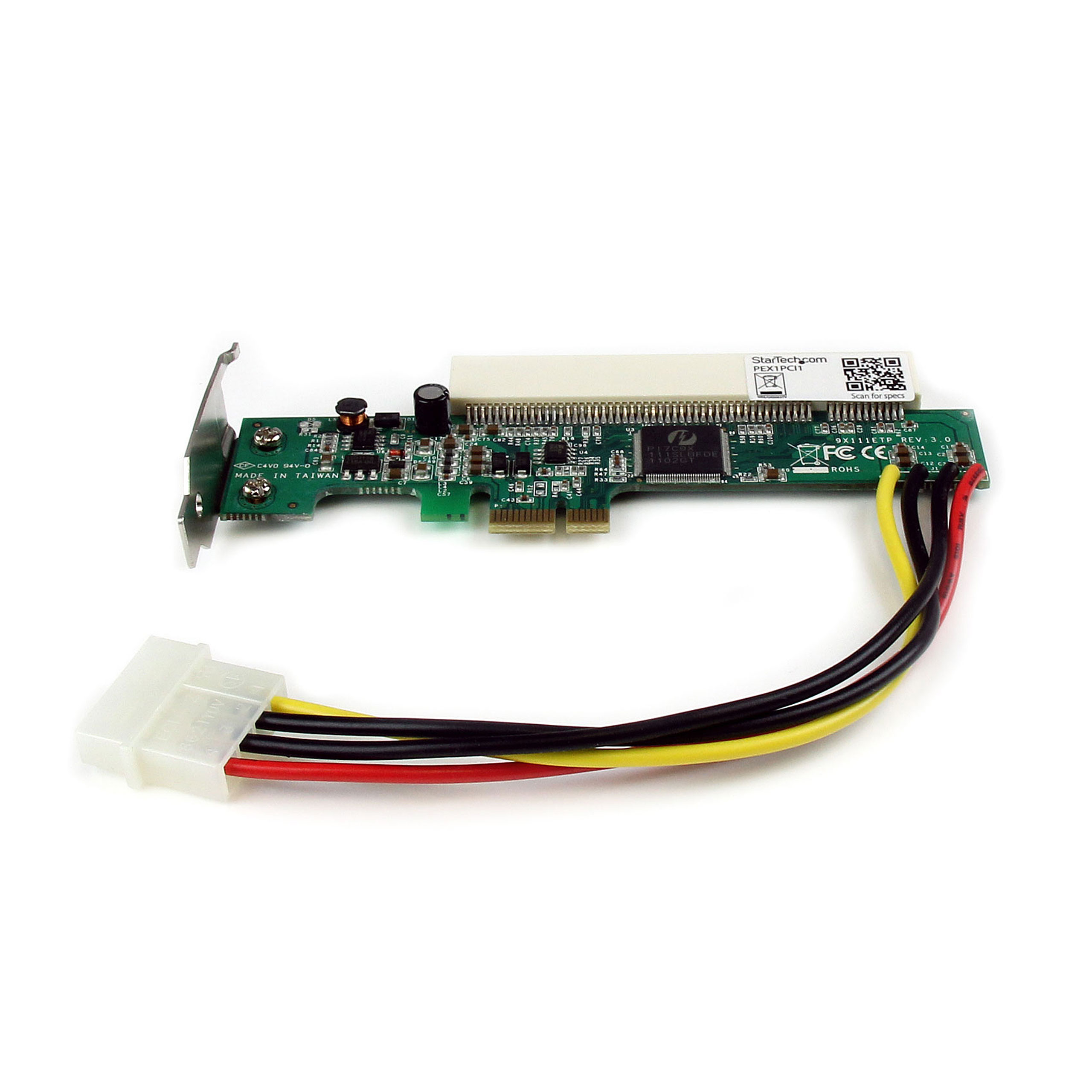

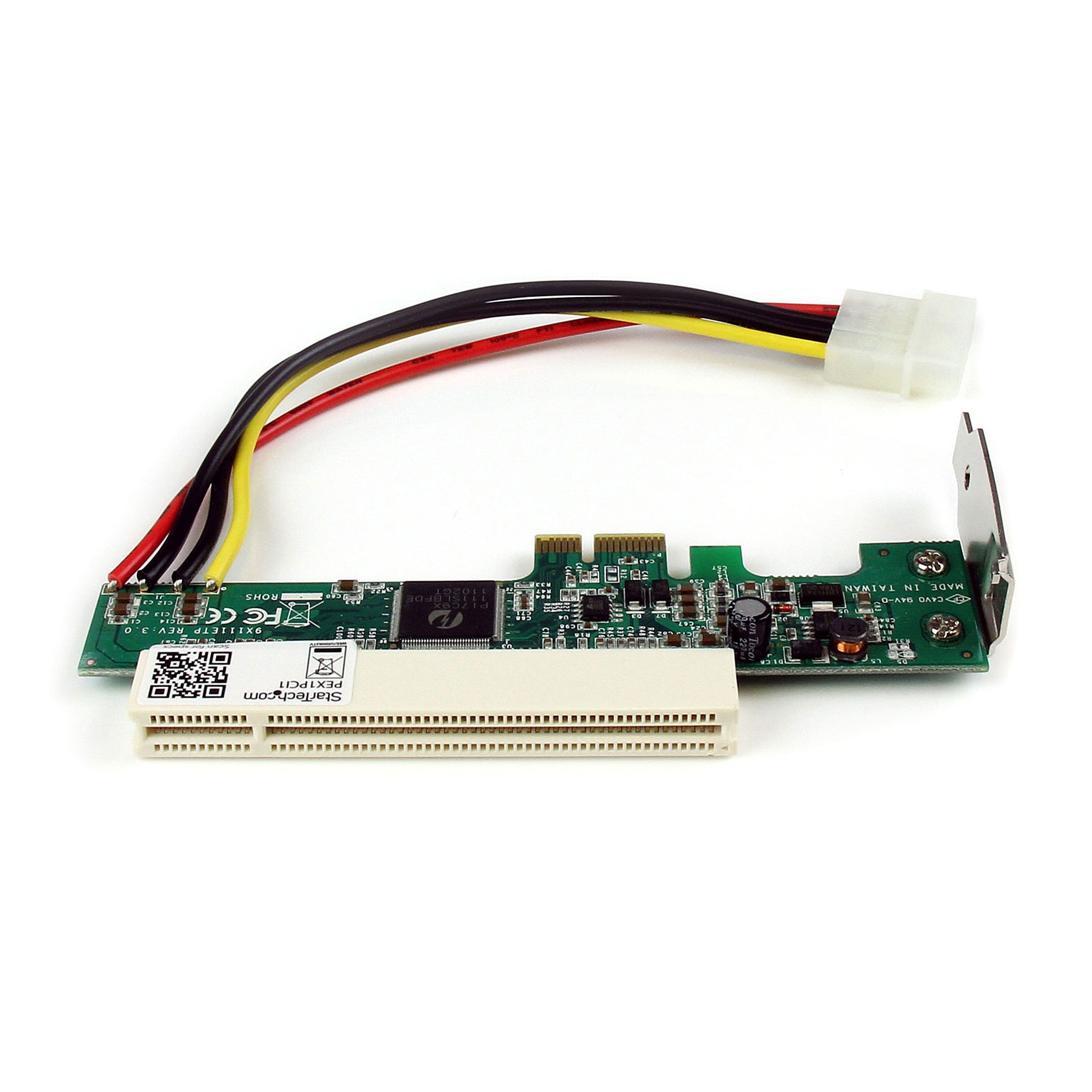

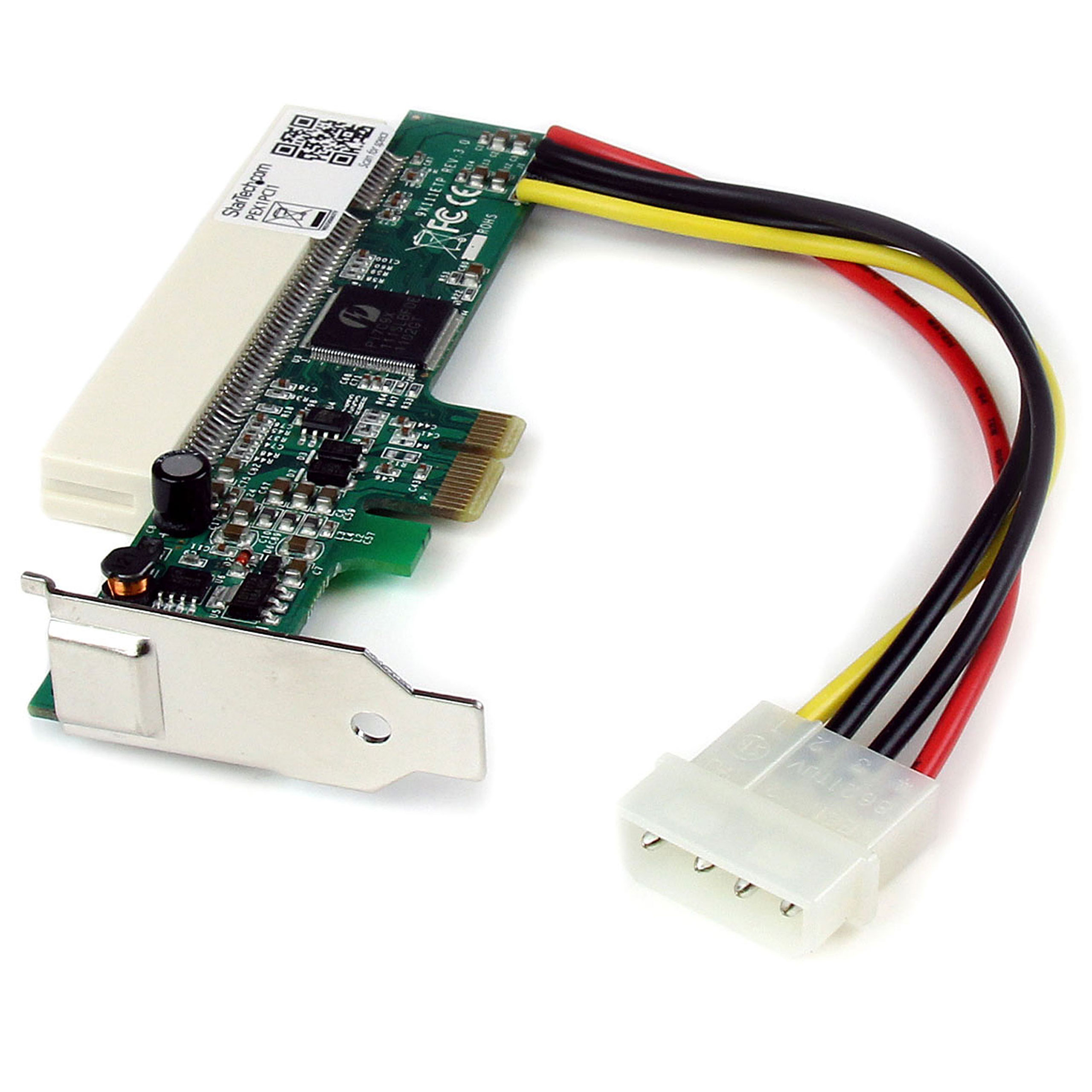

PEX1PCI1
PCI Express to PCI Card
Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCI Express to PCI Card Product Number PEX1PCI1 UPC 065030834629 Lifecycle status Active Warranty 2 Years Taxonomy Product > Other > Unclassifiables Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Expansion Slot Conversion and Extension Family PCIe Adapter Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) PCI Express to PCI Adapter Card Product Title (Medium) x Product Title (Standard) PCI Express to PCI adapter card, TAA Product Title (Long) PCI Express to PCI Adapter Card - TAA Product Title (AMZ) PCI Express to PCI Adapter Card - PCIe to PCI Converter Adapter with Low Profile / Half-Height Bracket , TAA (PEX1PCI1) Title Ingram (Part 1) PCI Express to PCI Adapter Card Title Ingram (Part 2) . Website Product Headline Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot Bullet 1 Innovative bracket design adapts and secures the existing half-height/low profile bracket of the PCI Card Bullet 2 PCI Express base spec 1.0a compliant for up to 250MBps of available bandwidth Bullet 3 LP4 Power Connector Included for Universal Voltage PCI Cards (3.3V/5V) Bullet 4 Compliant with PCI Express to PCI/PCI-X Bridge spec 1.0 Bullet 5 No driver or software installation Bullets (Compact) Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot - pci express to pci adapter card - pci express to pci converter - pcie to pci adapter Bullets (Consolidated) Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot - PCI Express to PCI Adapter card - PCI Express to PCI Converter - PCIe to PCI Adapter - PCIe to PCI or PCI-X with LP4 Power Connector - PCIe x1 to PCI Slot Adapter - PCIe to PCI Marketing Copy Applications - Use older PCI-based cards on new PCI Express-enabled computer systems
- Install a low profile/half-height PCI card into a full profile PCI Express system
- Industrial and legacy PCI cards may be hard to find or too costly to replace
Website Search Keyword - pci express to pci adapter
- pci e to pci-x converter
- pci express to pci bridge
- low profile pci in pci express slot
- PCIe
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements The PEX1PCI1 is not compatible with 32-bit 3.3V PCI cards. It is compatible with 5V or universal 3.3V/5V PCI cards only. Related Products - PEX2PCI4
- PEX2ECDP

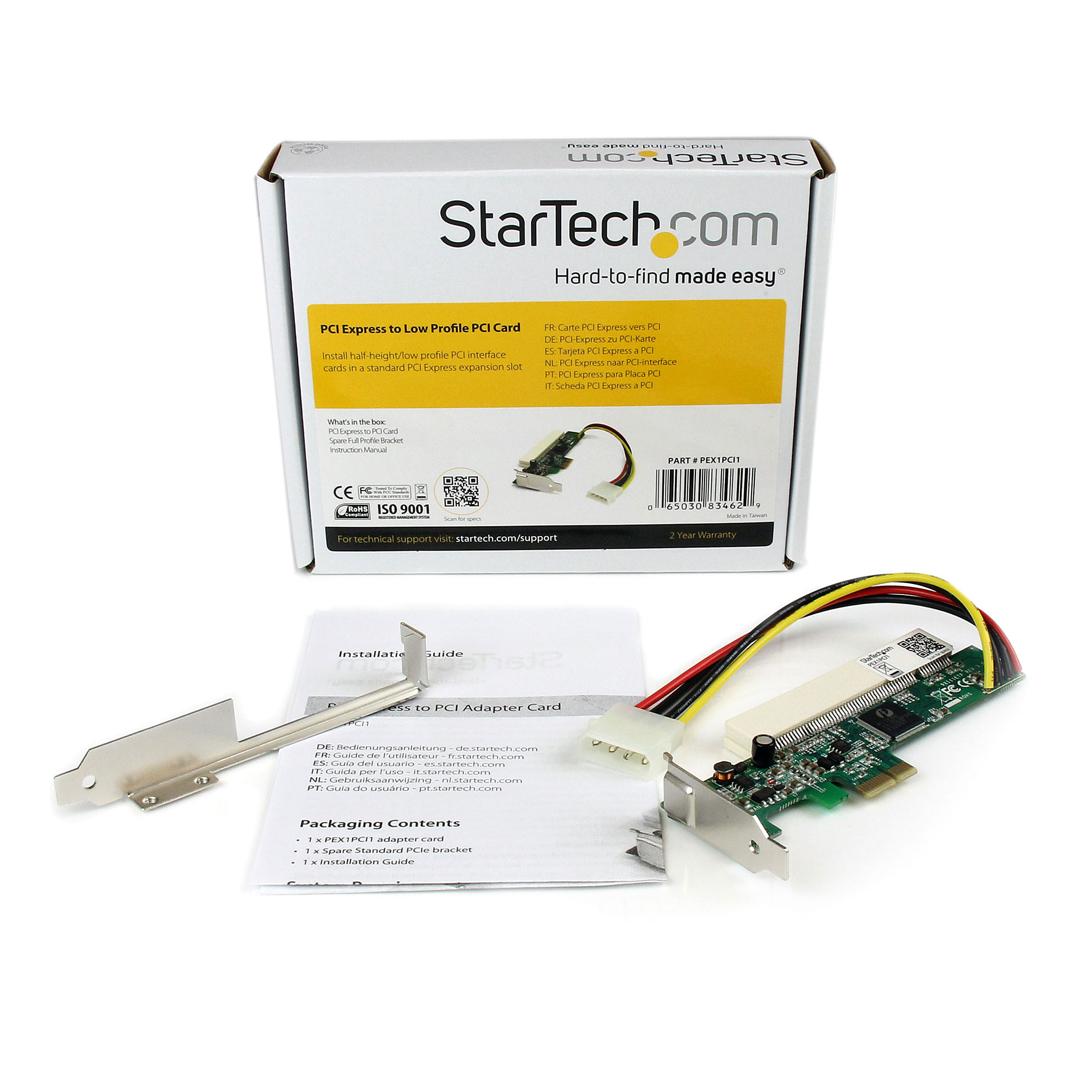

Color Green Material Steel Operating Temperature 0°C to 85°C (32°F to 185°F) Primary Material Steel Product Length (mm) 135.000 Product Width (mm) 70.000 Product Height (mm) 20.000 Product Weight (g) 49.000 TAA Compliant Yes MTBF (hours) 143,897 hours OS Compatibility OS Independent Bus Type PCI Express Card Type Standard Profile Chipset ID Pericom - PI7C9X118SL Interface/Bridge PCI / PCI-X (5 / 3.3V) Carton Depth (mm) 352 Carton Height (mm) 310 Carton Quantity 75 Carton Weight Gross (g) 9350 Included in Package - 1 - PCI Express to PCI Card
- 1 - Instruction Manual
- 1 - Spare Full Profile Bracket
Included In Package for Label - 1 - PCI Express to PCI Card
- 1 - Instruction Manual
- 1 - Spare Full Profile Bracket
Package Depth (mm) 144 Package Height (mm) 33 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 112 Packaging Description PCI Express to PCI Card Packaging Description India PCI Express to PCI Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 PCI (32-bit, 33MHz) Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
