PEX1PCI1R

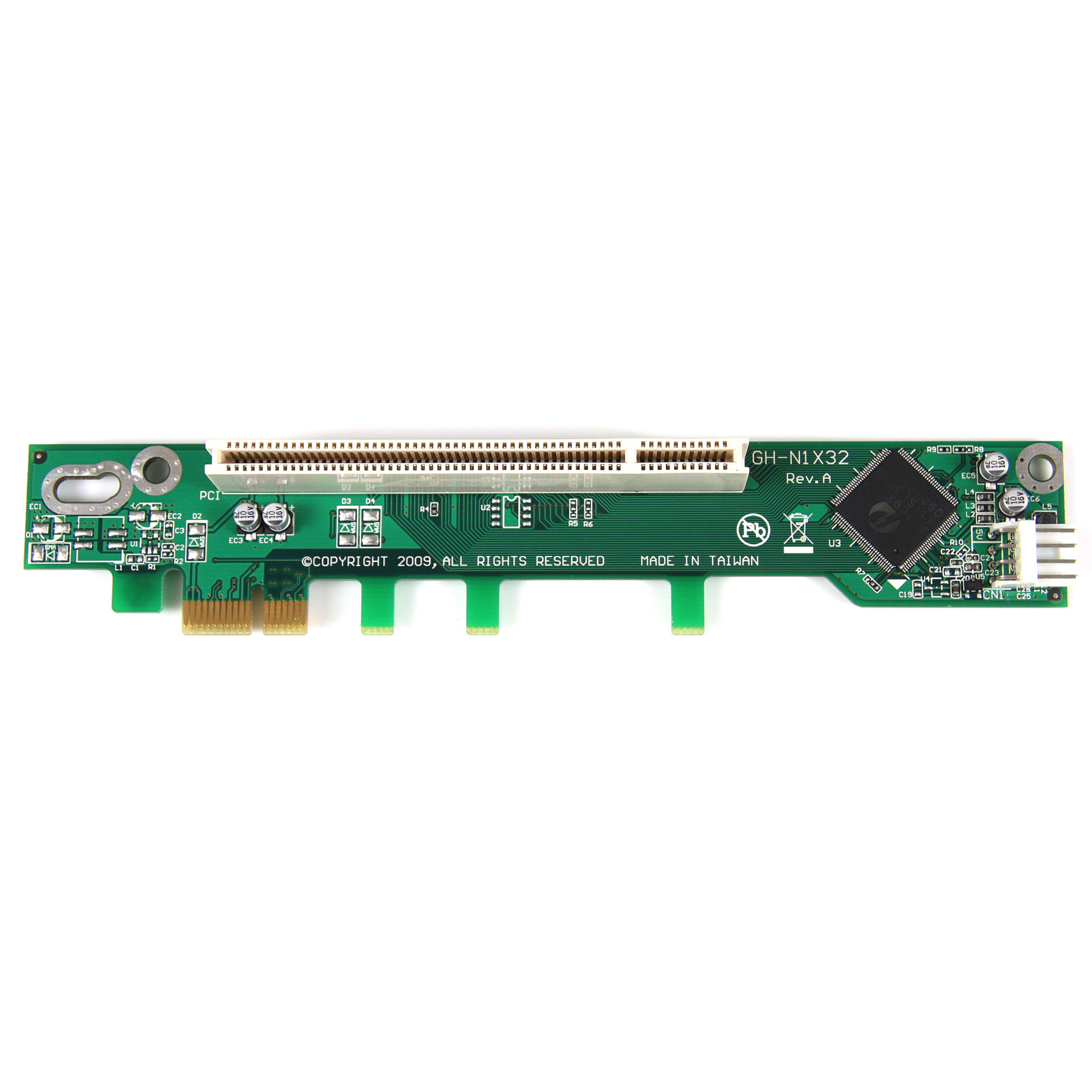

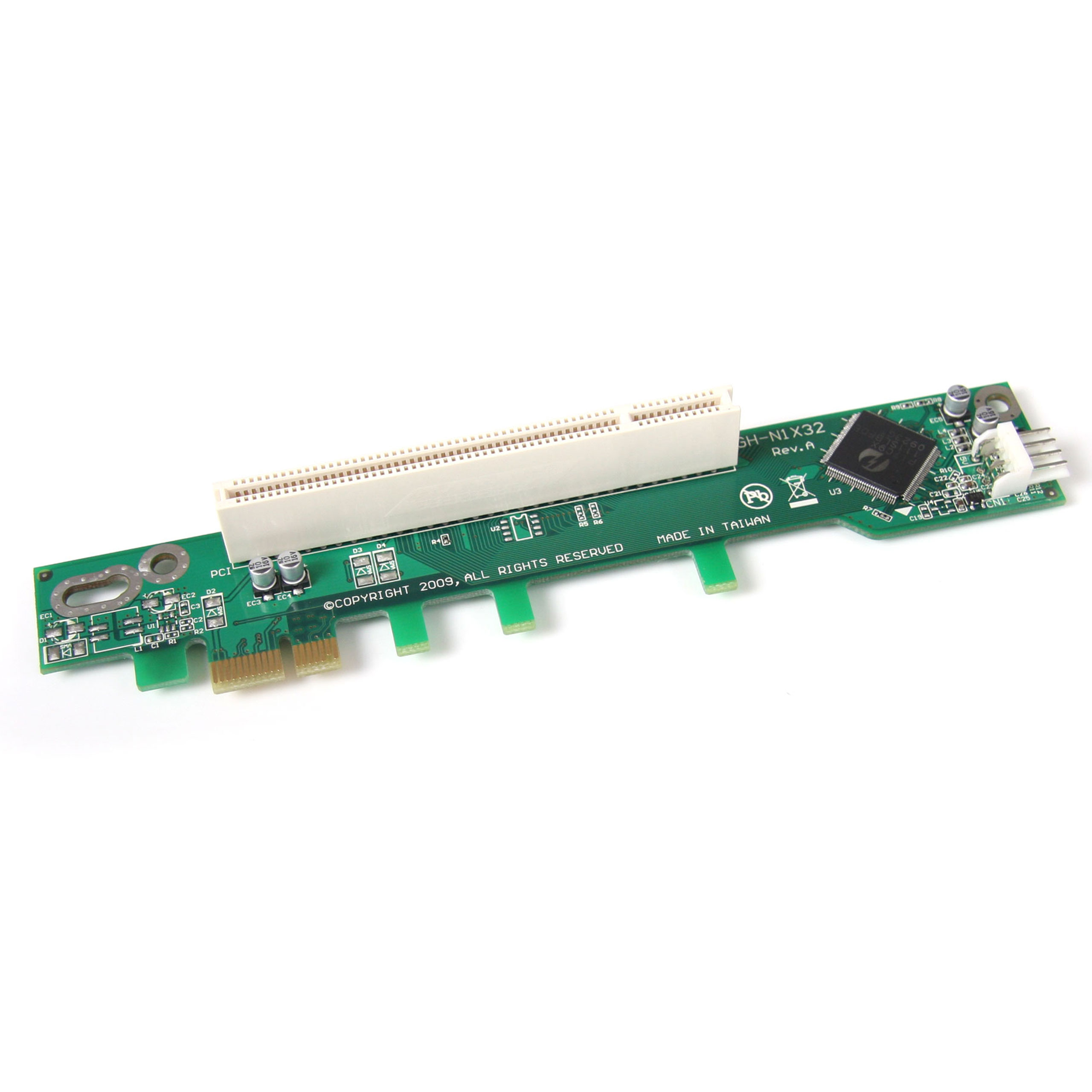

PCI Express to PCI Left Angle Riser Card
Install a PCI card into a x1 PCI Express slot in a Intel 1U IPC chassis
Main Image
Product Images
BOM Image
Product Name PCI Express to PCI Left Angle Riser Card Product Number PEX1PCI1R UPC 065030841658 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Expansion Slot Conversion and Extension Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) PCIe/PCI Riser Card for Intel 1U Server Product Title (Standard) PCI Express to PCI Riser Card x1 for Intel 1U IPC Server Product Title (Long) PCI Express to PCI Riser Card x1 for Intel 1U IPC Server Product Title (AMZ) PCI Express to PCI Riser Card x1 for Intel 1U IPC Server - Riser card - PEX1PCI1R Title Ingram (Part 1) PCI Express to PCI Riser Card x1 Title Ingram (Part 2) for Intel 1U IPC Server Website Product Headline Install a PCI card into a x1 PCI Express slot in a Intel 1U IPC chassis Bullet 1 No driver or software installation Bullet 2 Designed to fit most 1U Intel IPC rack mount server chassis Bullet 3 Additional power connector for high powered PCI cards Marketing Copy Marketing Copy (No HTML) The PEX1PCI1R PCI Express to PCI Riser Card (left-angle) lets you install a 32-bit PCI card into the (x1) PCIe slot on an Intel 1U IPC rackmount chassis - a necessary accessory for almost any Intel 1U chassis, providing a simple way to expand system capabilities by adding I/O ports or a legacy PCI card to newer systems. Backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Add a legacy card to a new system with only PCI Express slots
- Upgrade an Intel 1U IPC server with additional IO capabilities, such as a storage controller, serial ports, USB, networking, etc.
Website Search Keyword - 1u riser
- pci express riser card
- PCIe riser
- pcie x1
- PCIe to PCI riser
- left angle riser
- intel riser
- intel 1u ipc
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements 1U server chassis with available PCI Express expansion slot Related Products - PCIE1RIS
- PEX16RISER
- PEX1RISERF
- PEX4RISER
- PEX4RISERF
- PEX4TO16R
- PEX8RISER
- PEX8RISERF
- PEX8TO16R
- PEX1PCI1
- PCI1PEX1
Humidity 5~95% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 170.000 Product Width (mm) 27.000 Product Height (mm) 20.000 Product Weight (g) 30.000 Storage Temperature 0°C to 60°C (32°F to 140°F) TAA Compliant Yes OS Compatibility OS Independent Bus Type PCI Express Chipset ID Pericom - PI7C9X111SL Carton Depth (mm) 440 Carton Height (mm) 360 Carton Quantity 100 Carton Weight Gross (g) 8500 Included in Package - 1 - Instruction Manual

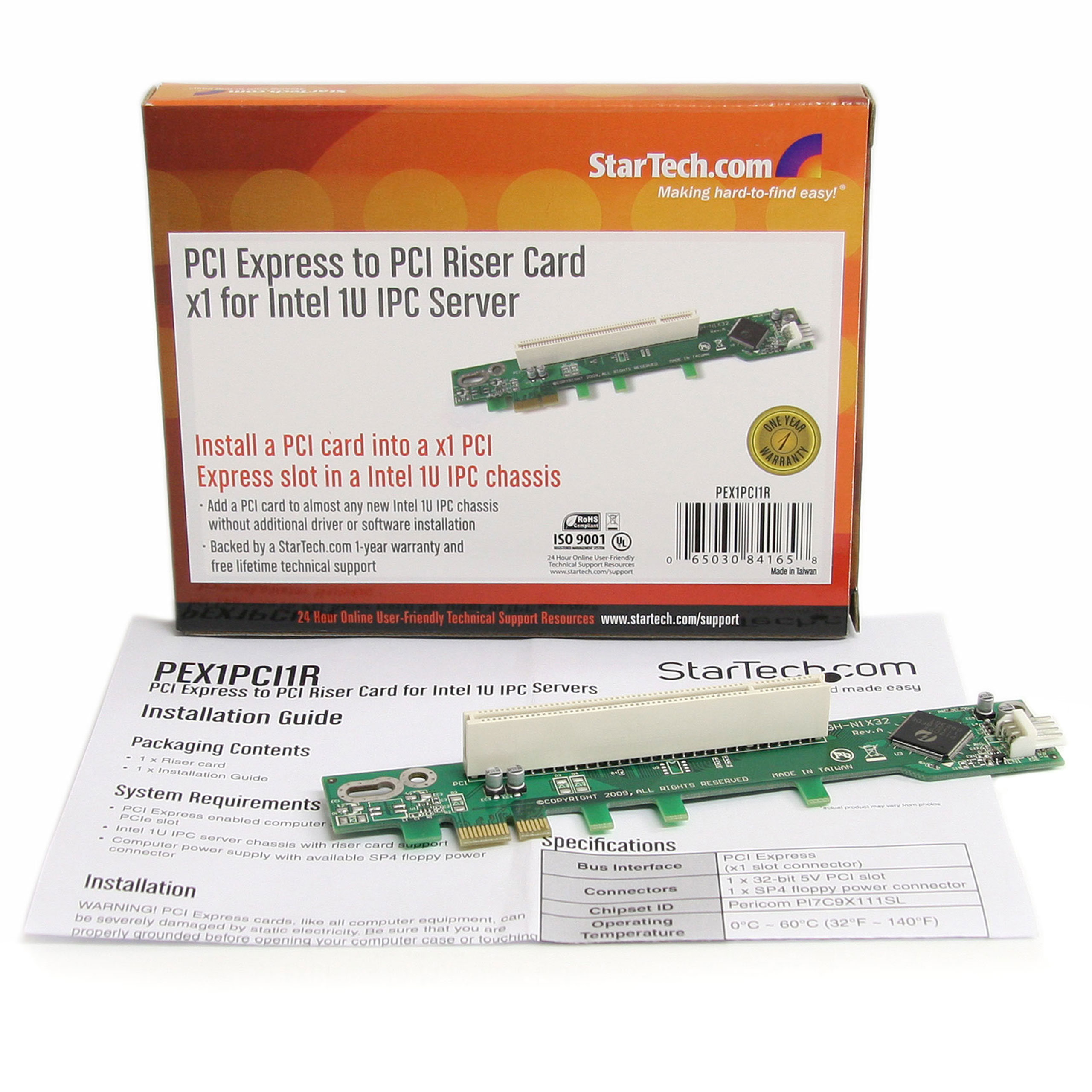

- 1 - PCI Express Riser Card
Package Depth (mm) 25 Package Height (mm) 135 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 80 Packaging Description PCIe/PCI Riser Card for Intel 1U Server Packaging Description India PCIe/PCI Riser Card for Intel 1U Server Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI (32-bit, 33MHz) Connector 1 (Quantity) 1 Connector 2 PCI Express x1 Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
