PEX1PLP
PCIe LP Parallel Card - 1 Port Parallel Port Card
Add an SPP/EPP/ECP Parallel port using a low-profile PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCIe LP Parallel Card - 1 Port Parallel Port Card Product Number PEX1PLP UPC 065030840873 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Parallel Cards and Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 1 Port PCIe LP Parallel Adapter Card Product Title (Medium) x Product Title (Standard) 1 Port PCI Express Low Profile Parallel Adapter Card - SPP/EPP/ECP Product Title (Long) 1 Port PCI Express Low Profile Parallel Adapter Card - SPP/EPP/ECP Product Title (AMZ) 1 Port PCI Express Low Profile Parallel Adapter Card - SPP/EPP/ECP Parallel Card (PEX1PLP) Title Ingram (Part 1) 1 Port PCIe Low Profile Parallel Title Ingram (Part 2) Adapter Card SPP/EPP/ECP Website Product Headline Add an SPP/EPP/ECP Parallel port using a low-profile PCI Express expansion slot Bullet 1 Compliant with PCI Express Base Specification 1.1a Bullet 2 SPP/EPP/ECP Parallel port fully supports existing Centronics interface Bullet 3 Packaged with low profile/half-height bracket attached, includes full profile bracket Bullet 4 Compliant with PCI Power Management 1.2 Bullets (Consolidated) Add an SPP/EPP/ECP Parallel port using a low-profile PCI Express expansion slot - PCIe Parallel Card - IEEE 1284 Card - Parallel Adapter - PCI Express Parallel Card - PCI Express DB25 Card - Full Height Bracket included - PCI-e DB25 Parallel Adapter Card Marketing Copy Applications Connects any parallel-based peripheral to your PC, including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers Website Search Keyword - ecp
- epp
- express parallel card
- native single chipset
- Parallel
- parallel card
- parallel port
- PCI Express
- PCI-E
- PCIe
- PEX1PECP
- spp
- Low profile
- 1 Port PCI Express Low Profile Parallel Adapter Card SPP EPP ECP
- Printer card
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - PB10
- PB6_
- PC20
- PC30
- PC50
- PTXFER15
- PTXFER6
- SC10FF
- SC10MF
- SC50MM
- SC6MF
- SC6MM
Related Products - EC1PECP
- EC1UP
- PCI1P
- PCI1P_LP
- PCI1PECPDV
- PEX1PECP
- PEX1S952
- PEX1P
Constrained SKU Alternatives (Limited Stock) PEX1P2 Humidity 5~85% RH Material Steel Operating Temperature 0°C 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 21.000 Product Width (mm) 110.000 Product Height (mm) 120.000 Product Weight (g) 37.000 Storage Temperature -20°C 60°C (-4°F to 140°F) TAA Compliant No Maximum Data Transfer Rate Up to 2.5Mbps OS Compatibility - Linux
- Windows Server 2012
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

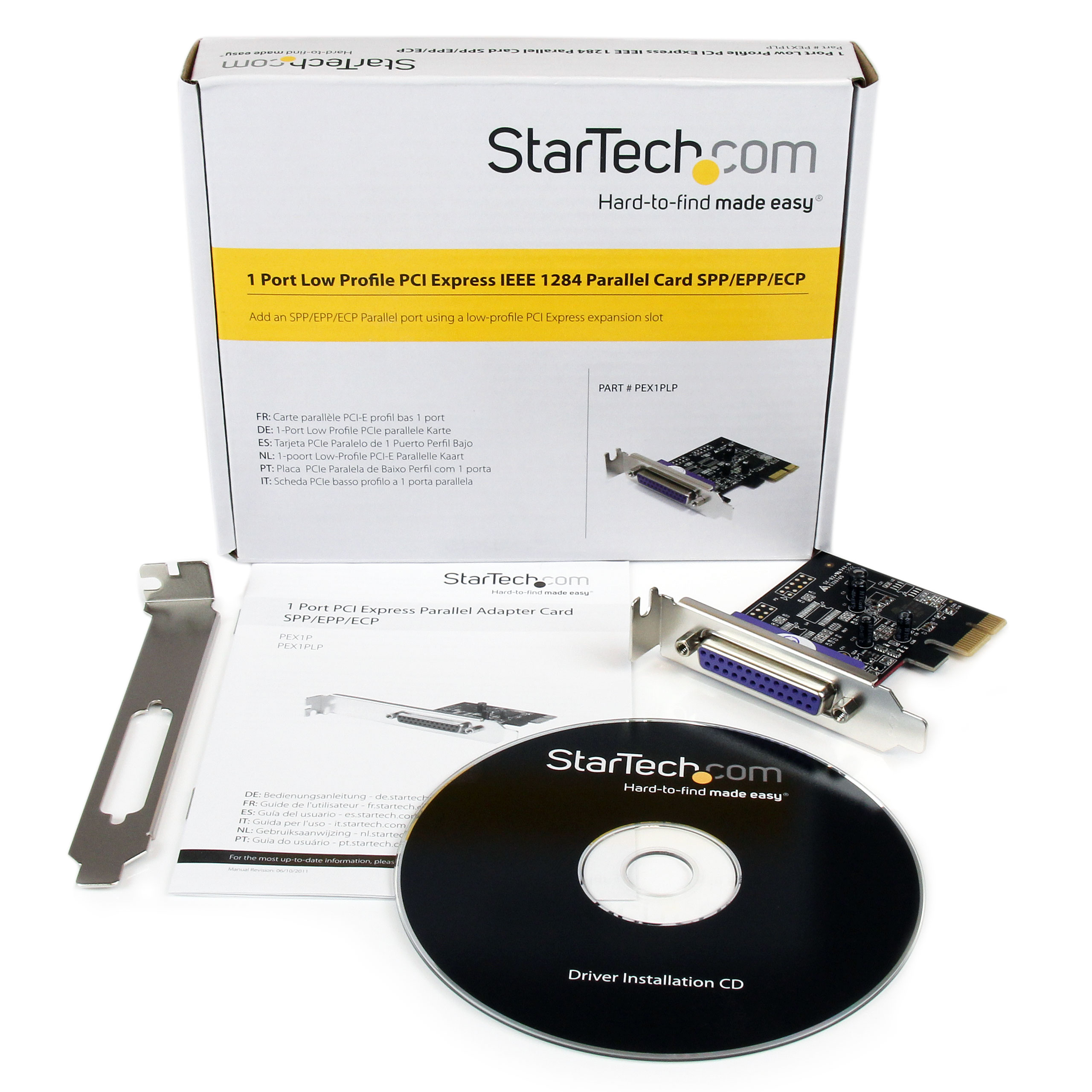

Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID PLX/Oxford - OXPCIe952 Interface/Bridge Parallel IO Card Port Style Integrated on Card Carton Depth (mm) 310 Carton Height (mm) 360 Carton Quantity 80 Carton Weight Gross (g) 10914 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - Full Profile Bracket
- 1 - Low profile PCI Express Parallel Card
Package Depth (mm) 145 Package Height (mm) 30 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 133 Packaging Description 1 Port Low Profile PCIe Parallel Card Packaging Description India 1 Port Low Profile PCIe Parallel Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
