PEX1S1P952

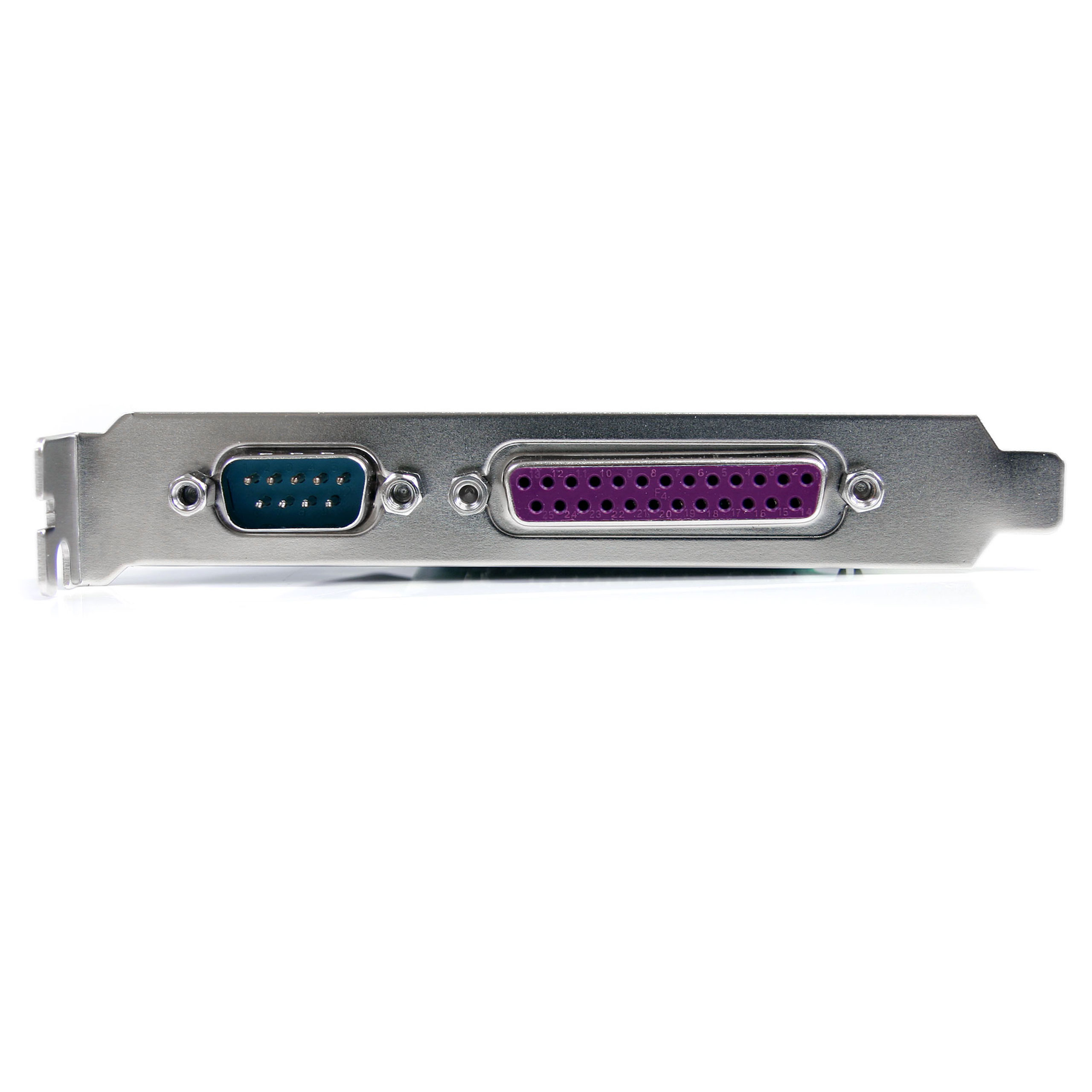

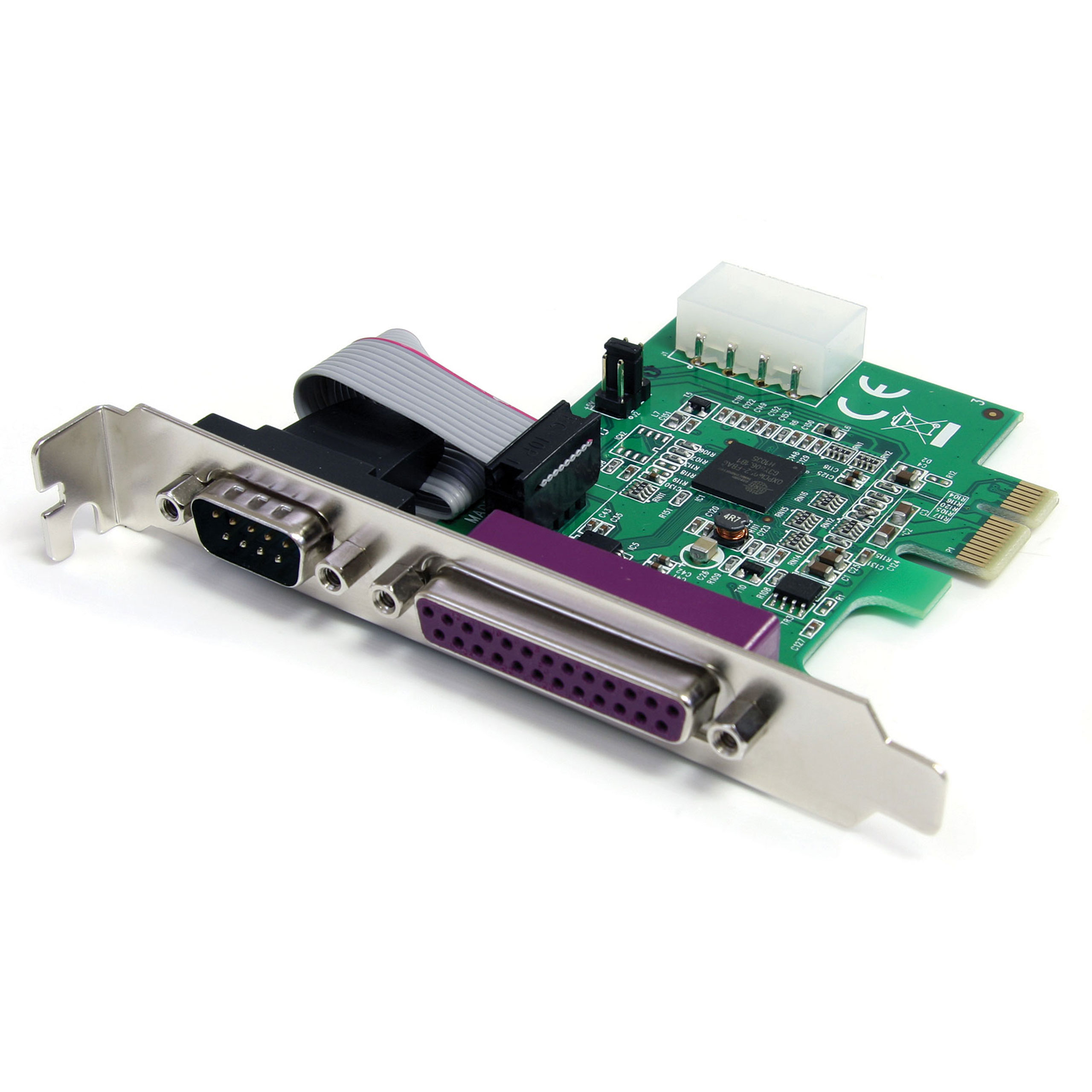

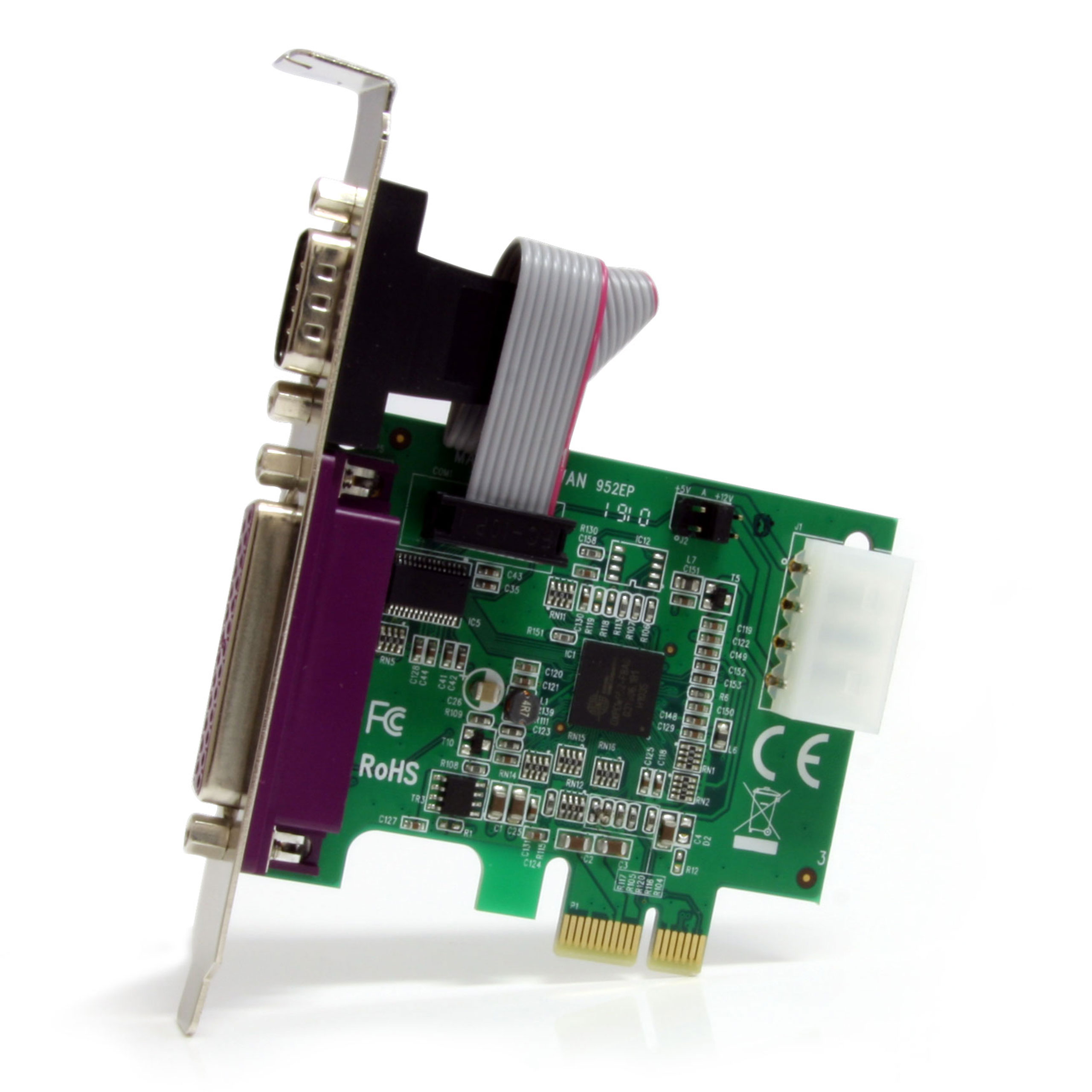

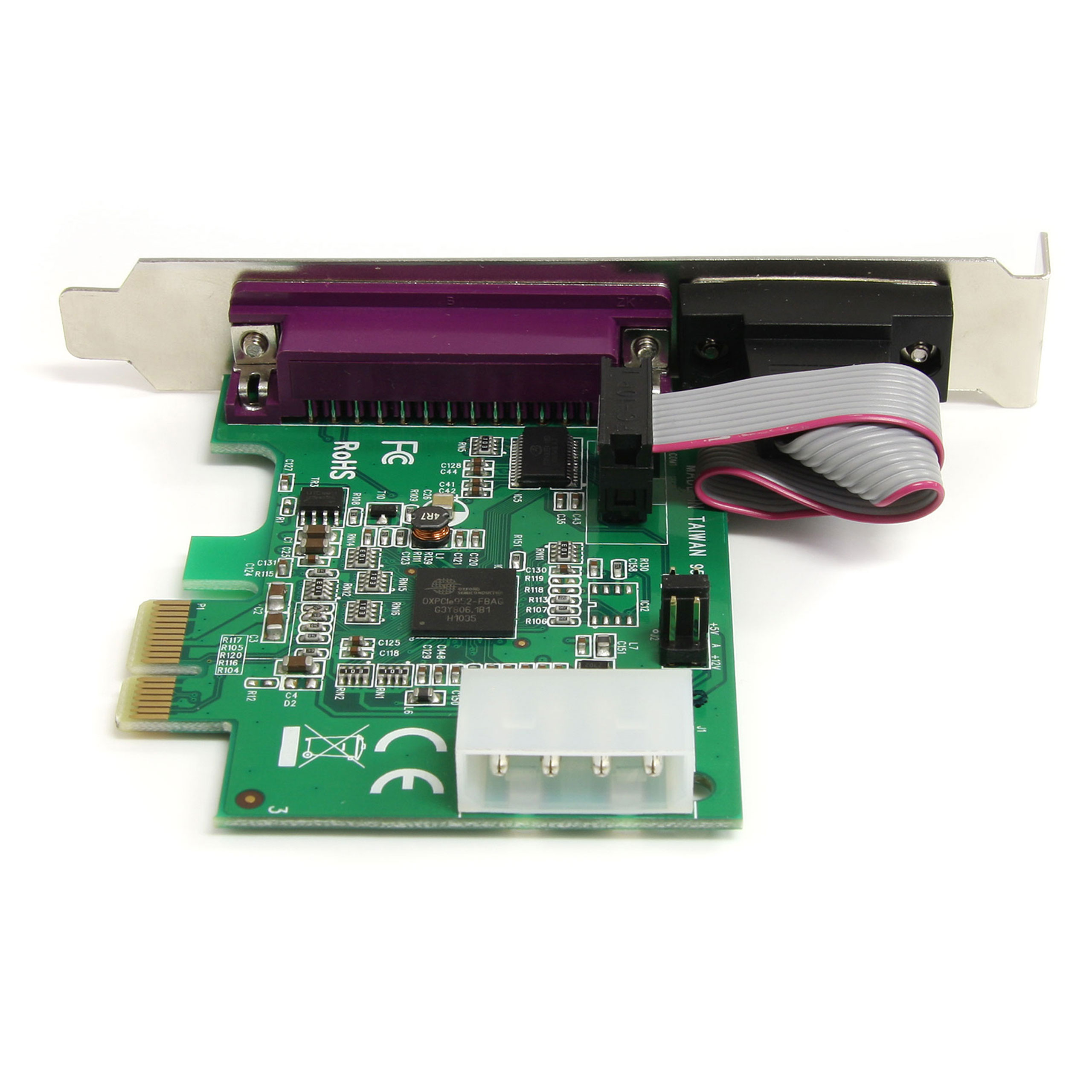

1S1P Native PCI Express Parallel Serial Combo Card
Add a parallel and serial port through a standard or low-profile PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 1S1P Native PCI Express Parallel Serial Combo Card Product Number PEX1S1P952 UPC 065030842600 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 1S1P PCIe Parallel Serial Combo Card Product Title (Medium) x Product Title (Standard) 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART Product Title (Long) 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART Product Title (AMZ) Discontinued and replaced by PEX1S1P950 - Native PCI Express Parallel Serial Combo Card with 16950 UART - 1-Port Parallel Card (PEX1S1P952) Title Ingram (Part 1) 1S1P Port PCI Express Parallel S Title Ingram (Part 2) erial Combo Card with 16950 Website Product Headline Add a parallel and serial port through a standard or low-profile PCI Express slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Automated in-band flow control using programmable Xon/Xoff Bullet 3 Compliant with PCI Express base specifications revision 1.1 Bullet 4 Native single chip, single lane PCI Express Bullet 5 1 high-speed RS232 serial port and 1 IEEE 1284 parallel port Bullets (Consolidated) Add a parallel and serial port through a standard or low-profile PCI Express slot - PCI Express Serial Parallel Card - PCI Express Serial Card - PCI Express Parallel Card - PCIe Serial Parallel - PCI Express RS232 - Native PCI Express Parallel Serial Combo Card 16950 Marketing Copy Applications - Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCDs, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Website Search Keyword - ECP
- EPP
- Parallel Serial Combo Card
- PCI-E
- PCIe
- RS-232
- RS232
- PCI-Express
- Paralel combo card
- serial combo card
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes Selectable power output on pin 9 of the serial port Accessory Products - MXT100
- AT925FF
- AT925FM
- GC99MFRA1
- MXT100_25
- MXT10010
- MXT100FF
- SC10MF
- SC10MM
- SC6MM1284
- SC6MM
- 1284DB25
- 1284DB25_10
- PB6_
- PC20
Related Products - PCI2S1P
- PEX1PECP
- PEX1S553
- PEX1S553LP
- PEX2PECP
- PEX2S1P553B
- PEX2S553
- PEX2S553LP
- PEX2S952
- PEX2S952LP
- PEX4S952
- PEX4S952LP
Power Consumption (In Watts) 0.2W Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 80.000 Product Width (mm) 12.000 Product Height (mm) 65.000 Product Weight (g) 64.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes Data Bits 5, 6, 7, 8, 9 FIFO 128 Bytes Flow Control Automated in-Band, Xon/Xoff Maximum Data Transfer Rate MTBF (hours) 87,600 Hours OS Compatibility - Linux
- Windows Server 2012
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
Parity Even, Odd, Mark, Space, None Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID PLX/Oxford - OXPCIe952 Industry Standards Interface/Bridge - Serial
- Parallel

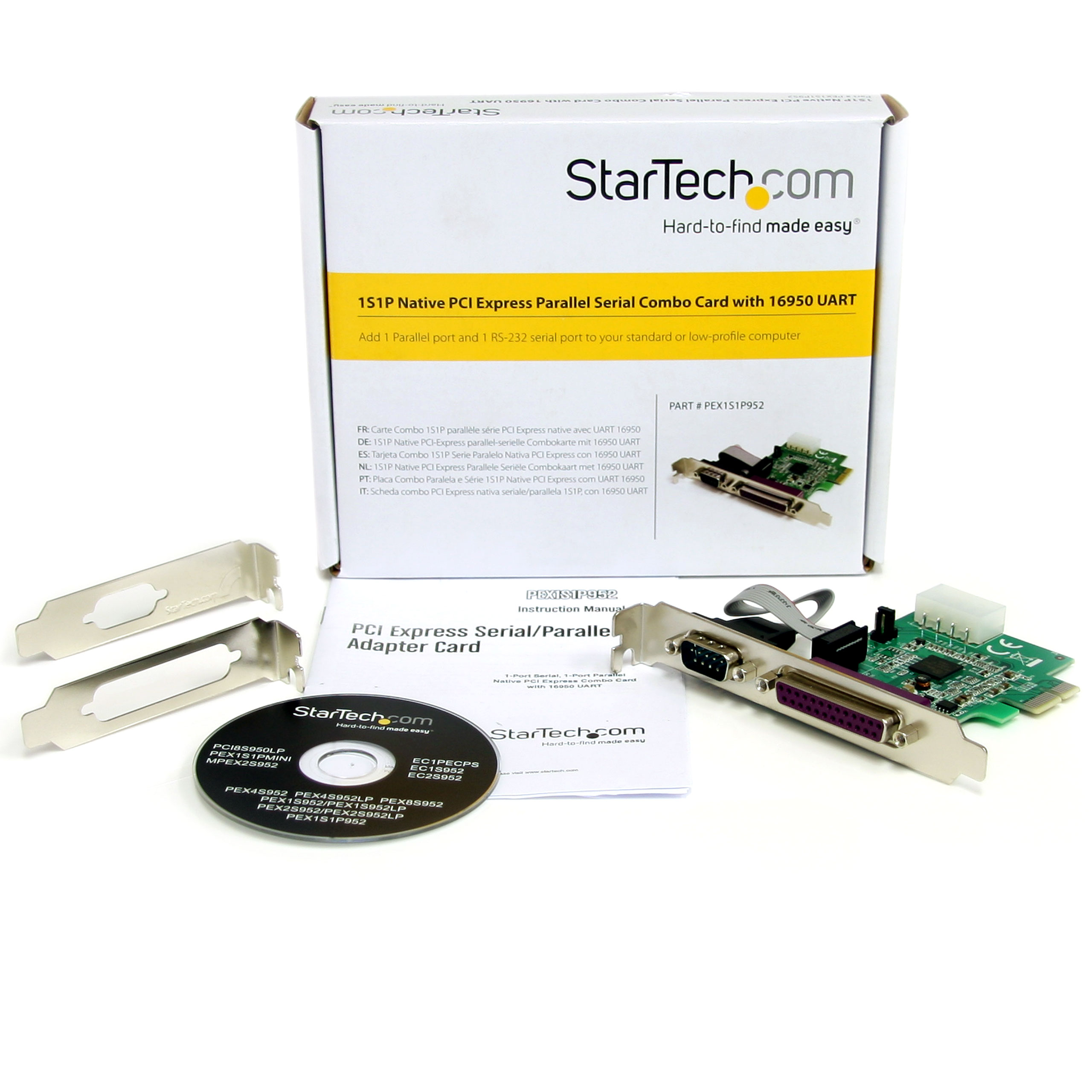

IO Card Port Style Integrated on Card Carton Depth (mm) 357 Carton Height (mm) 312 Carton Quantity 75 Carton Weight Gross (g) 11914 Included in Package - 1 - 1S1P PCI-Express Serial Parallel Combo Card
- 1 - Driver CD
- 1 - Instruction Manual
- 2 - Low Profile Brackets
Package Depth (mm) 144 Package Height (mm) 31 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 148 Packaging Description 1S1P PCIe Parallel Serial Combo Card Packaging Description India 1S1P PCIe Parallel Serial Combo Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Connector 3 DB-25 Parallel / Serial Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,EU,HK,JP,NZ,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle Legacy
