PEX1S1PMINI

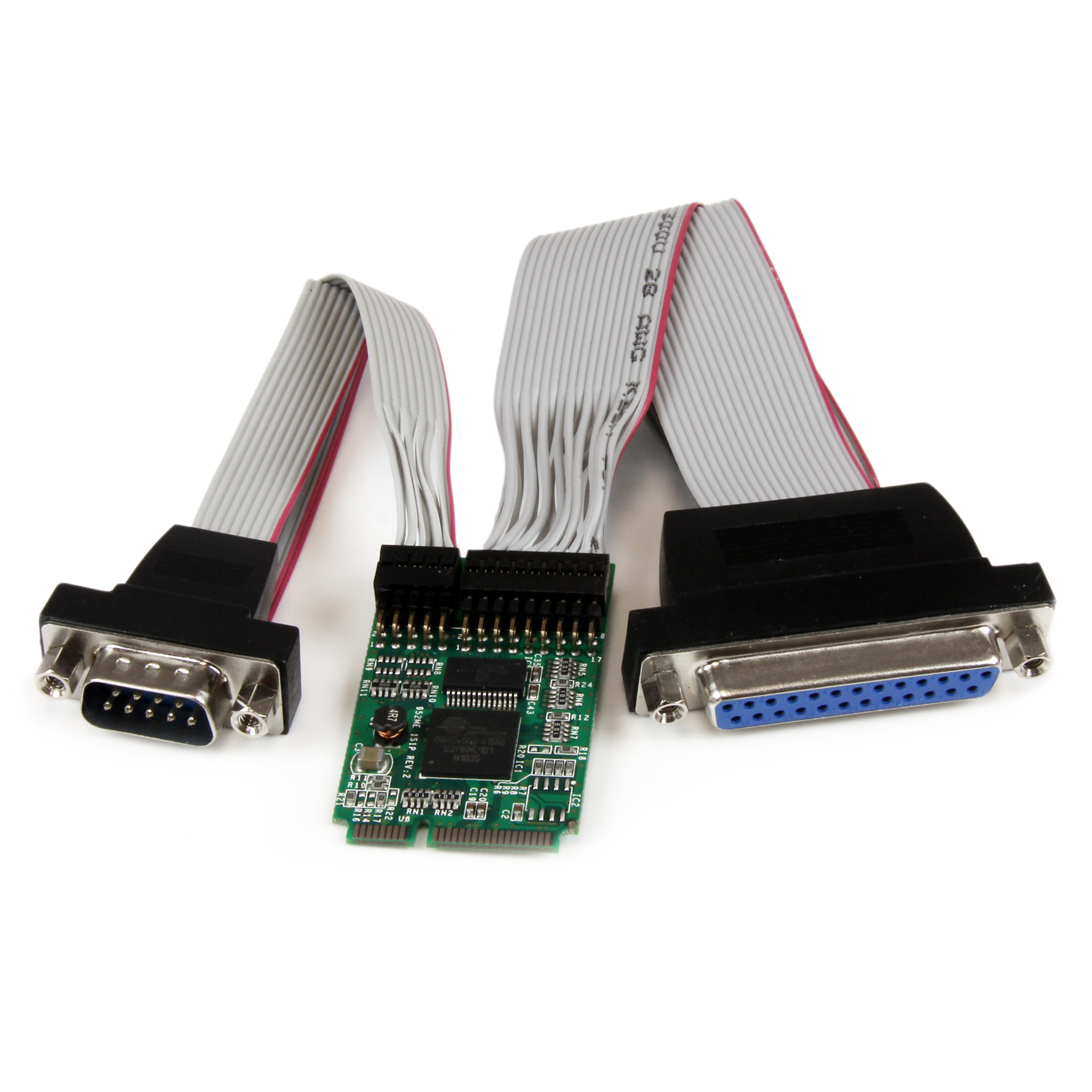

Mini PCIe Single Chip Serial Parallel Card
Add Serial and Parallel support to Embedded Systems via mini PCI Express
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Mini PCIe Single Chip Serial Parallel Card Product Number PEX1S1PMINI UPC 065030835299 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) Mini PCIe Serial Parallel Card Product Title (Standard) StarTech.com 1S1P Mini PCI Express Serial Parallel Card w/ 16950 UART Product Title (Long) 1S1P Mini PCI Express Serial Parallel Card w/ 16950 UART Product Title (AMZ) 1S1P Mini PCI Express Serial Parallel Card w/ 16950 UART - Mini PCIe Serial Parallel (PEX1S1PMINI) Title Ingram (Part 1) 1S1P Mini PCI Express Serial Par Title Ingram (Part 2) allel Card Website Product Headline Add Serial and Parallel support to Embedded Systems via mini PCI Express Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND Bullet 4 Compliant with PCI Express base specifications revision 1.1a Bullet 5 High Performance Dual Channel Oxford 16950 UART Marketing Copy Applications - Embedded and Slimline POS system requiring serial and parallel communications
- Industrial applications with embedded system
- Micro system requiring serial and parallel ports
Website Search Keyword - PCIe
- mini-PCIe
- mini-PCI
- Mini
- PCI Express
- One port serial
- One port Parallel
- Combo card
- Native Chip
- OXPCIe952
- COM Port
- LPT
- PCI-E
- Mini PCI-E
- RS232
- ECP
- EPP
Microsoft WHQL Certified Yes Accessory Products - PLATE925
- PLATE9
- GC99MFRA1
- GC99MFRA2
- GC98FF
- NM9FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
- MC10MF
- MC3MF
- 1284DB25
- PB10
- PB6_
- PC6_1284P
Related Products - PEX1S552
- PEX2S5521P
- PEX2S952
- PEX1P
- PEX2PECP
Cable Length (mm) 230 Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 50 Product Width (mm) 30 Product Height (mm) 6 Product Weight (g) 6.2 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No Data Bits 5, 6, 7, 8, 9 FIFO 128 Bytes Max Baud Rate 460.8 Kbps OS Compatibility - Windows 7
- Linux
- Windows Server 2016
- Windows 8
- Windows Server 2012
- Windows 10
- Windows 11
Supported Serial Protocol RS-232 Bus Type Mini PCI Express Card Type Embedded Chipset ID PLX/Oxford - OXPCIe952 Industry Standards PCI Express 1.1, PCI Power Management 1.2 Interface/Bridge - Serial
- Parallel

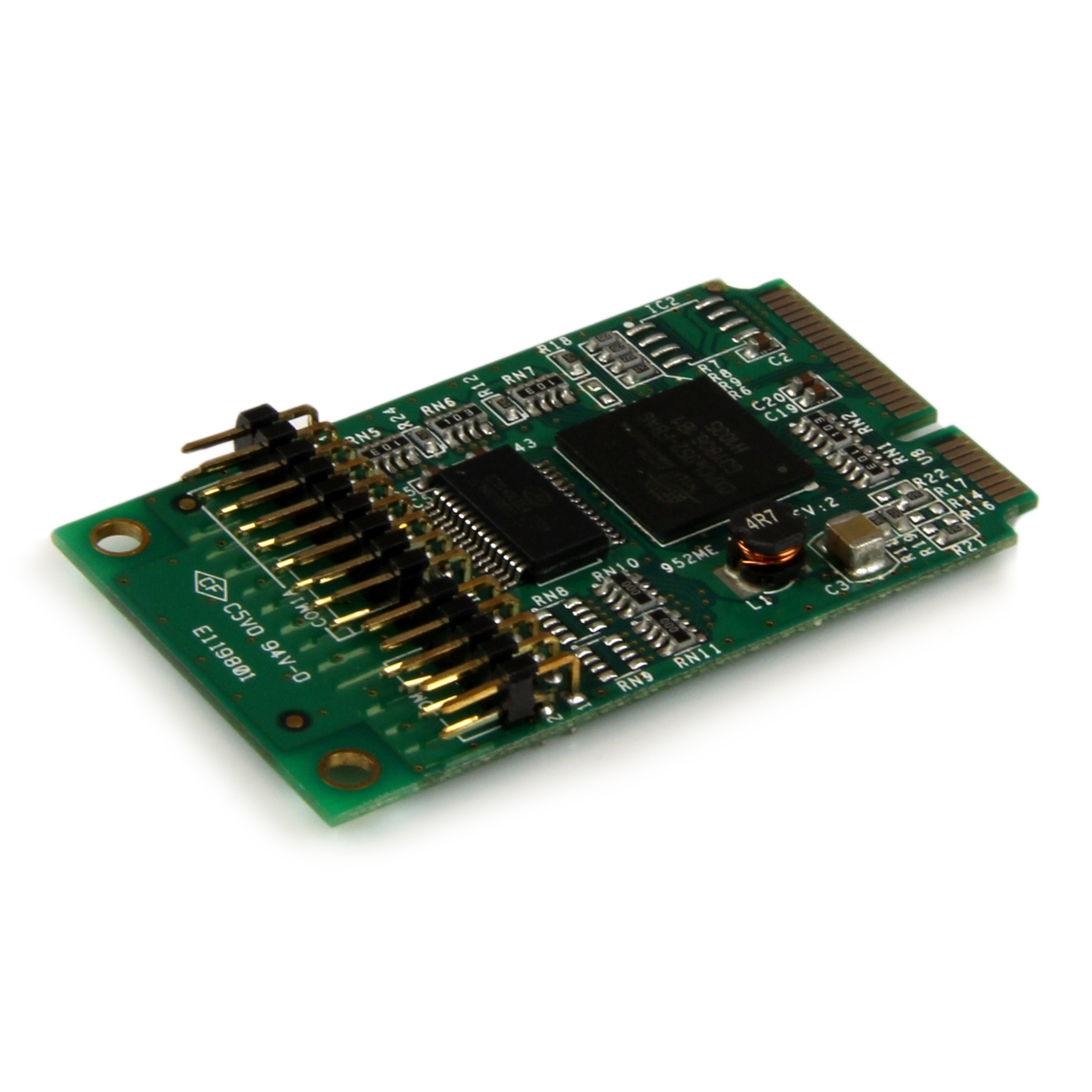

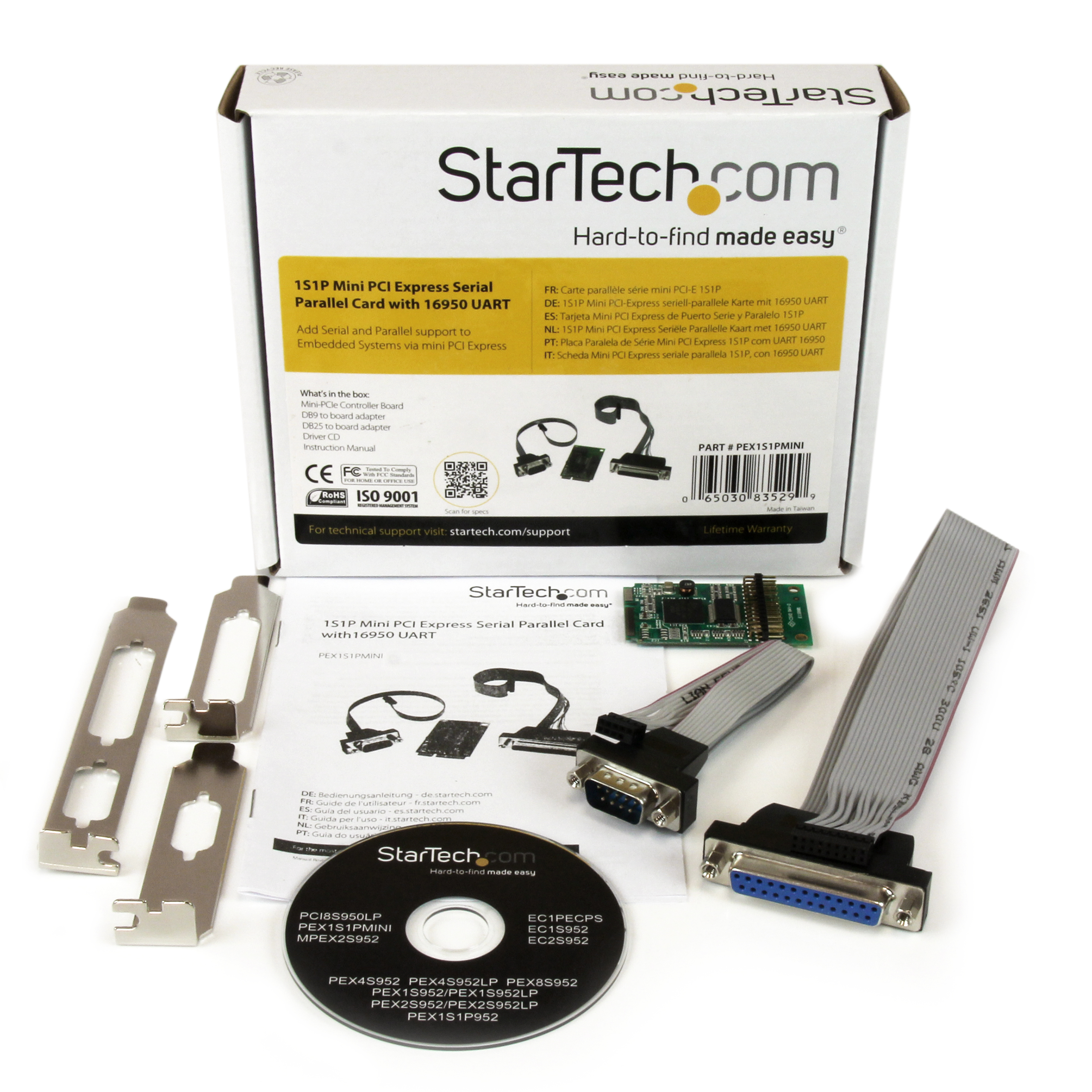

IO Card Port Style Dongle (Included) Carton Depth (mm) 507 Carton Height (mm) 316 Carton Quantity 40 Carton Weight Gross (g) 10800 Included in Package - 1 - Mini-PCIe Controller Board

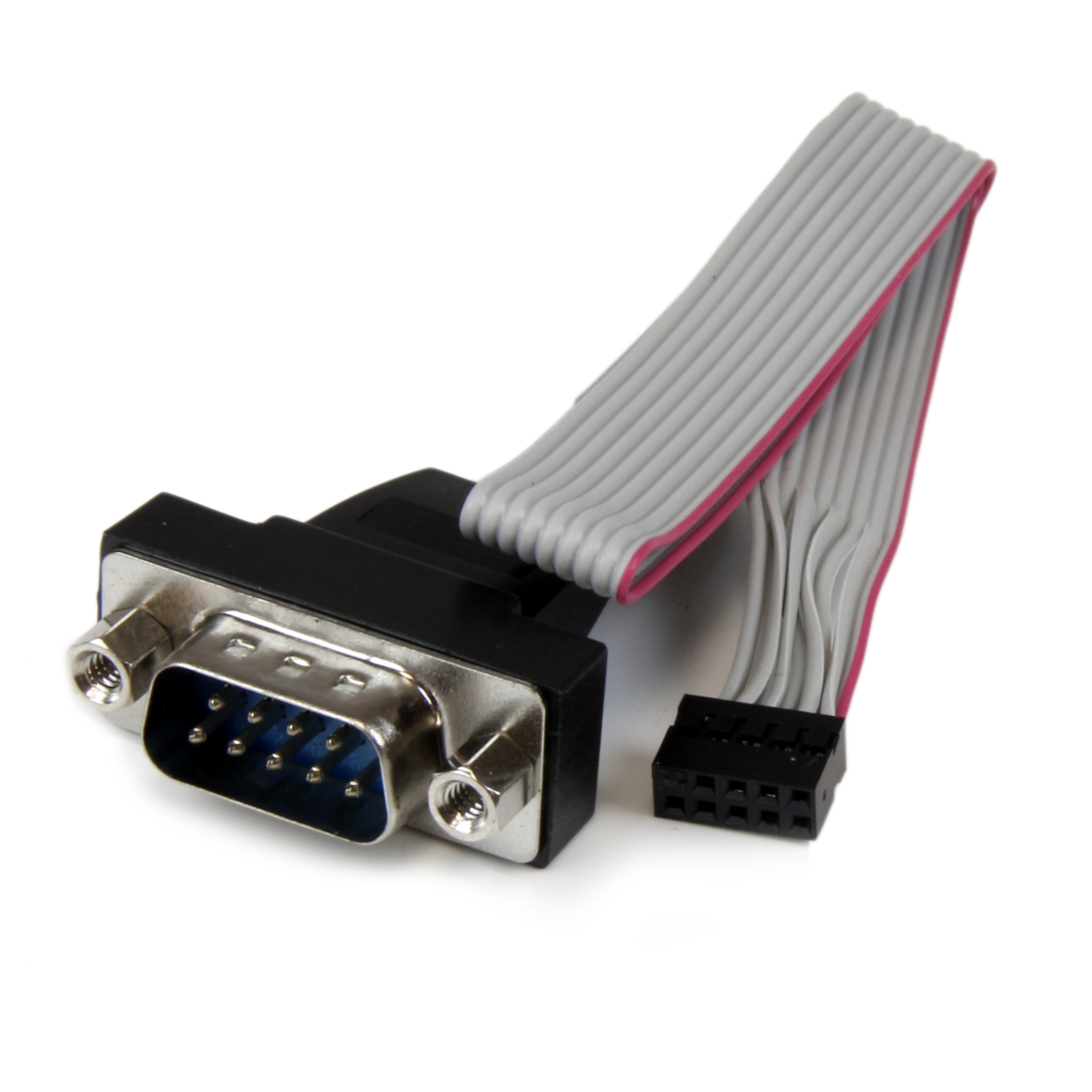

- 1 - DB9 to board adapter

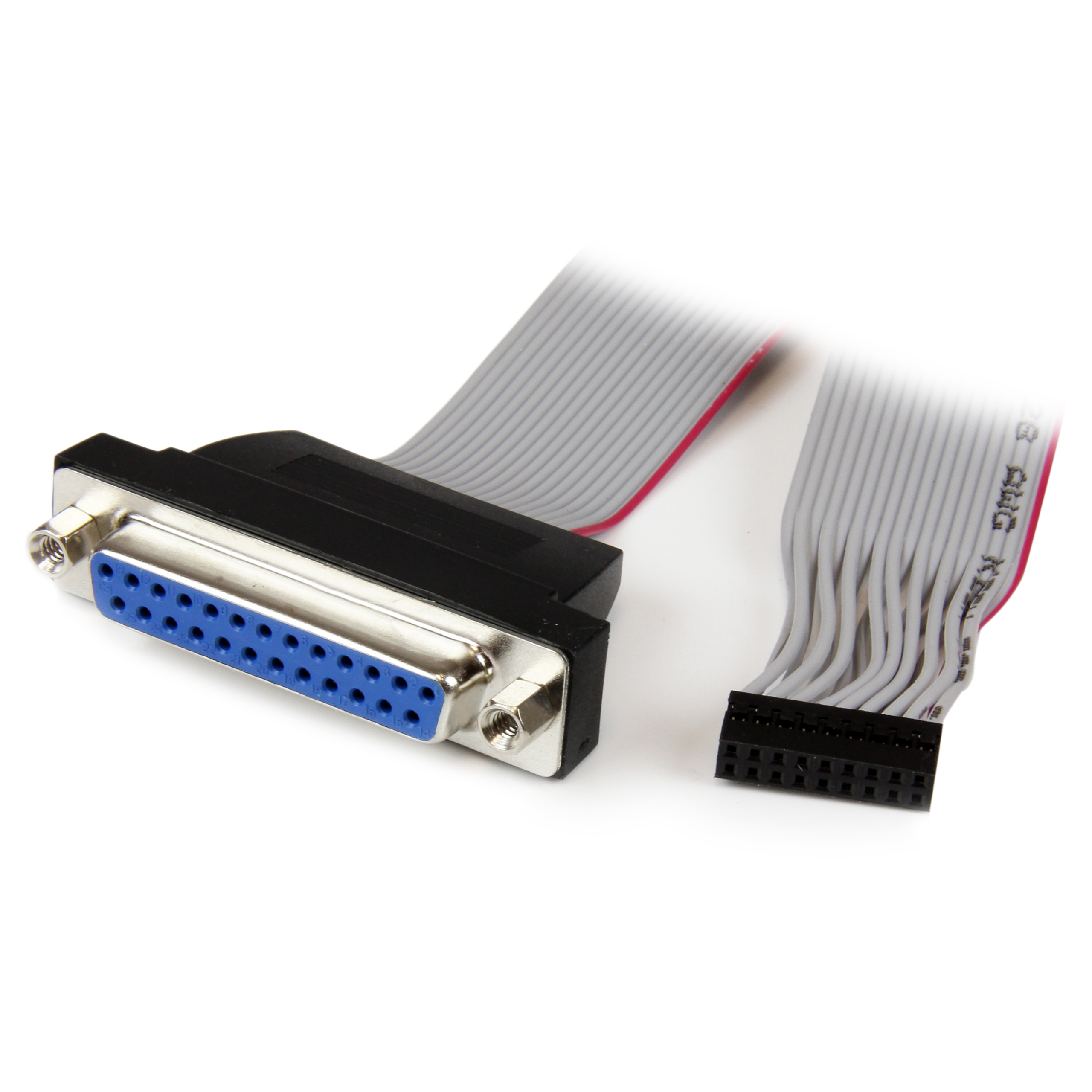

- 1 - DB25 to board adapter
- 1 - DB25 and DB9 bracket
- 1 - DB25 bracket
- 1 - DB9 bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 41 Package Height (mm) 143 Package Width (mm) 211 Package Quantity 1 Package Weight (g) 240 Packaging Description 1S1P Mini PCIe Serial Parallel Card Packaging Description India 1S1P Mini PCIe Serial Parallel Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Connector 3 DB-25 Parallel / Serial Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
