PEX1S550
Main Image
Product Images
Product Images
Product Images

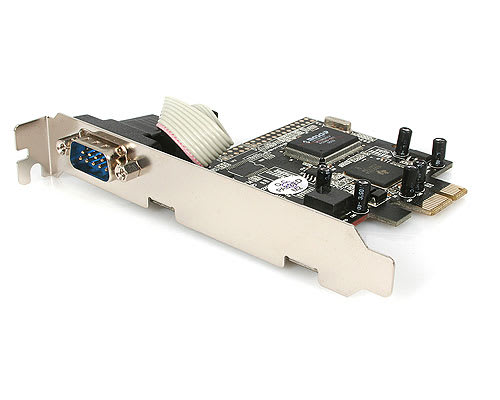

Product Name 1 Port 16550 PCI-Express Serial Card Product Number PEX1S550 UPC 065030821087 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Long) 1 Port PCI Express DB9 Serial Card 16550 UART Bullet 1 IRQ sharing saves resources and eliminates conflicts Bullet 2 Supports the RS-232 serial interface Bullet 3 16 byte FIFO buffer ensures fast data transfer while multitasking Marketing Copy Applications Website Search Keyword - PCIe
- PCI Express
- Serial
- 1 port
- 16550
- RoHS
Accessory Products - MC3MF
- MC6MF
- MXT100
- SCNM9FF
- AT925FF
- AT925FM
- AT925SFM
- SCNM925FM
- SCNM9FM
- NETRS232_1
Related Products - PCI1S550
- PCI2S550
- PEX2S550
- PEX2S650
- PEX4S650
- PEX2S552
- PEX1S552
Humidity 5~85% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 92 Product Width (mm) 21 Product Height (mm) 120 Product Weight (g) 90 Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant No General Specifications System Requirements: Pentium class computer with an available PCI Express Slot OS Compatibility Windows Vista Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile Chipset ID ASIX - MCS9820CV Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 510 Carton Height (mm) 310 Carton Quantity 48 Carton Weight Gross (g) 10200 Included in Package - 1 - 1 Port PCI Express Serial Card
- 1 - User Manual
- 1 - Driver CD
Package Depth (mm) 50 Package Height (mm) 182 Package Width (mm) 167 Package Weight (g) 150 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
