PEX1S552

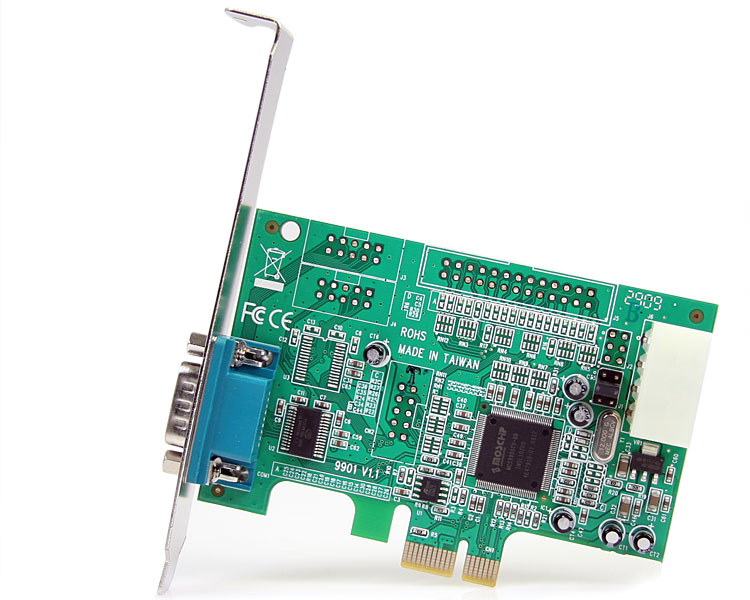

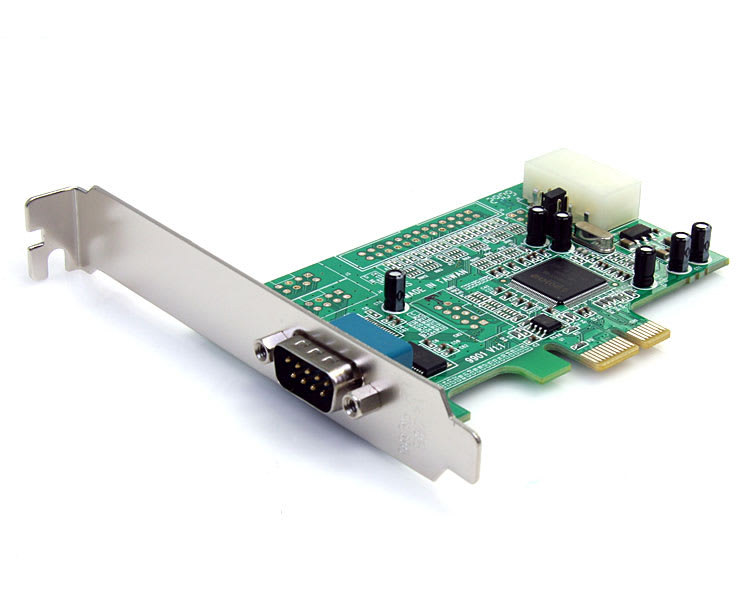

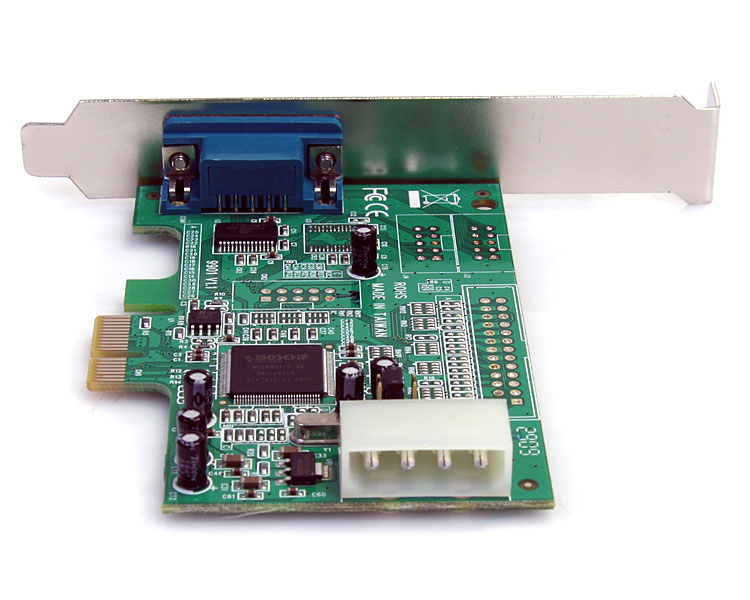

1 Port Dual Profile PCI-E RS-232 Serial Card
Add a high-speed RS-232 Serial port to your computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 1 Port Dual Profile PCI-E RS-232 Serial Card Product Number PEX1S552 UPC 065030830614 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 1 Port PCIe RS232 Serial Adapter Card Product Title (Standard) StarTech.com 1 Port PCIe RS232 Serial Adapter Card Product Title (Long) 1 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART Title Ingram (Part 1) 1 Port PCI Express RS232 Serial Title Ingram (Part 2) Adapter Card with 16550 UART Website Product Headline Add a high-speed RS-232 Serial port to your computer through a PCI Express expansion slot Bullet 1 Native single-chip, single lane PCI Express Bullet 2 One high speed RS-232 serial port with data transfer rate up to 460.8 Kbps Bullet 3 Compliant with PCI Express base specifications revision 1.0a Bullet 4 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 5 Automated out-of-band flow control using CTS/RTS and DSR/DTR Marketing Copy Applications - Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Bank Teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Website Search Keyword - Serial Adapter Card
- PCIe
- PCI-E
- RS232
- RS-232
- low profile
Special Notes Selectable power output on pin 9 of the serial port Accessory Products - MC3MF
- MC6MF
- MXT100
- AT925FF
- AT925FM
- SCNM925FM
- SCNM9FF
- SCNM9FM
- MXT100FF
Related Products - PEX2S552
- PEX2S5521P
- PEX2S950
- PCI1S950DV
- PCI2S950DV
- PEX1S550
- PEX2S550
Replacement Product PEX1S553LP Color Green Product Length (mm) 105 Product Width (mm) 120 Product Height (mm) 20 Product Weight (g) 51.5 TAA Compliant No Maximum Data Transfer Rate 460.8 Kbps OS Compatibility - Linux
- Mac OS X
- MS DOS
- Windows 95
- Windows 98SE
- Windows 2000
- Windows XP
- Windows Server 2003
- Windows Vista
- Windows 7
- Windows Server 2008 R2
- Windows Embedded
- Windows CE

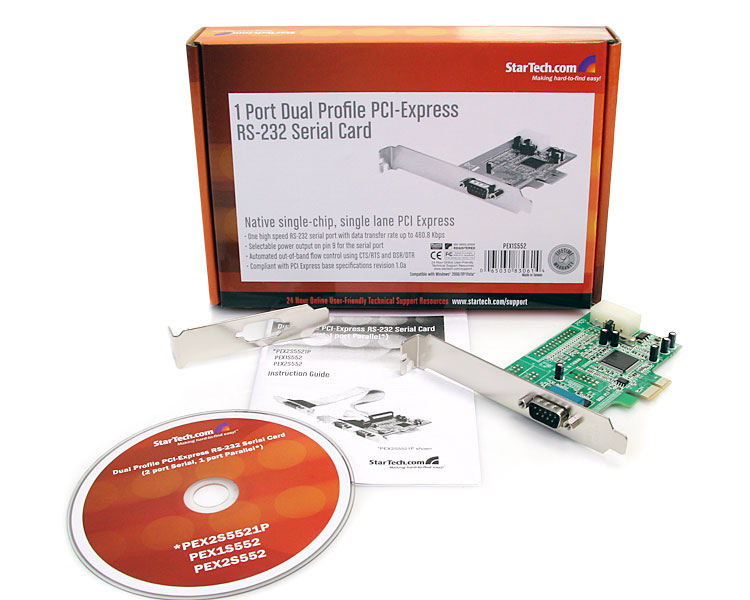

Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX - MCS9901CV-CC Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 9700 Included in Package - 1 - 1 Port PCI-Express RS-232 Serial Card
- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 40 Package Height (mm) 145 Package Width (mm) 210 Package Weight (g) 170 Packaging Description 1 Port PCIe RS232 Serial Card 16550 UART Packaging Description India 1 Port PCIe RS232 Serial Card 16550 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
