PEX1S552LP

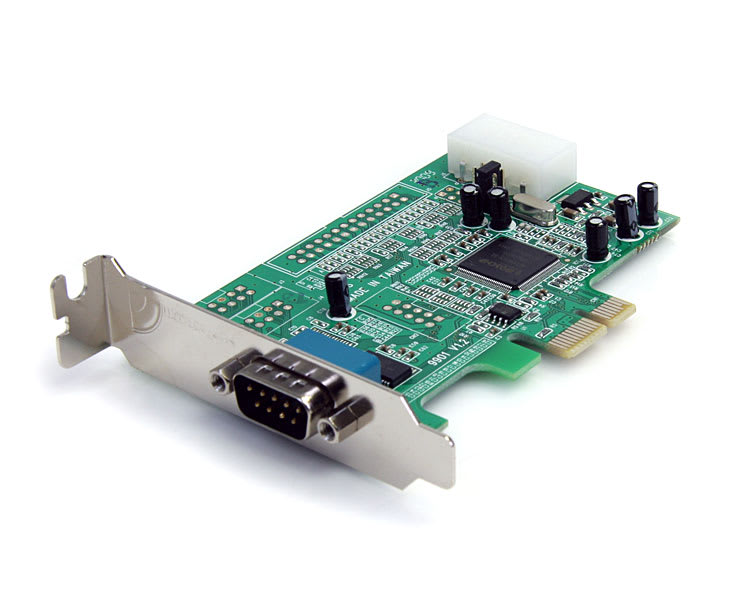

1 Port Low Profile PCI-E RS-232 Serial Card
Add a high-speed RS-232 Serial port to your computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 1 Port Low Profile PCI-E RS-232 Serial Card Product Number PEX1S552LP UPC 065030837156 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 1 Port LP PCI Express Serial Card Product Title (Standard) 1 Port Low Profile PCI Express Serial Card - 16550 Product Title (Long) 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART Title Ingram (Part 1) 1 Port Low Profile PCI Express S Title Ingram (Part 2) erial Card w/ 16550 UART Website Product Headline Add a high-speed RS-232 Serial port to your computer through a PCI Express expansion slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band flow control using CTS/RTS and DSR/DTR Bullet 4 Compliant with PCI Express base specifications revision 1.1a Bullet 5 Native single-chip, single lane PCI Express Marketing Copy Applications - Any other serial or legacy devices
- Bank Teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Website Search Keyword - Serial Adapter Card
- Low Profile
- 16550 UART
- RS232
- RS-232
- Native PCIe
- PCI-E
Microsoft WHQL Certified Yes Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI1S950DV
- PCI2S950DV
- PEX1S550
- PEX2S550
- PEX2S552
- PEX2S5521P
- PEX2S950
- PEX2S552LP
- PEX1S552
- PEX2S952LP
- PEX4S952LP
- PEX1S952
- PEX1S952LP

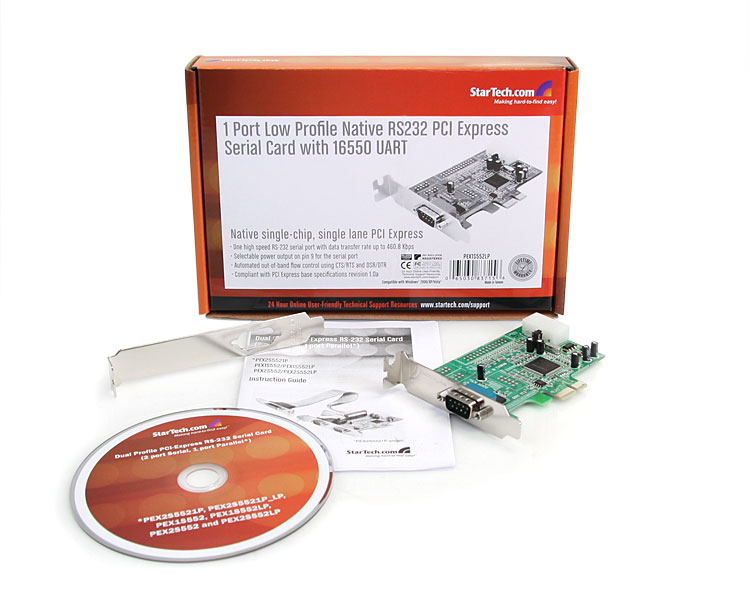

Replacement Product PEX1S553LP Humidity 5~85% RH Operating Temperature -20°C to 85°C (-4deg;F to 185°F) Product Length (mm) 105 Product Width (mm) 80 Product Height (mm) 20 Product Weight (g) 51.5 Storage Temperature -40°C to 85°C (-40deg;F to 185°F) TAA Compliant No Maximum Data Transfer Rate Up to 460 Kbps Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID ASIX - MCS9901CV-CC IO Card Port Style Integrated on Card Carton Depth (mm) 450 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 9200 Included in Package - 1 - 1 Port PCI-Express RS-232 Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Full Profile Bracket
Package Depth (mm) 140 Package Height (mm) 40 Package Width (mm) 210 Package Weight (g) 160 Packaging Description 1 Port LP PCIe RS232 Serial Card 16550 UART Packaging Description India 1 Port LP PCIe RS232 Serial Card 16550 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
