PEX1S553

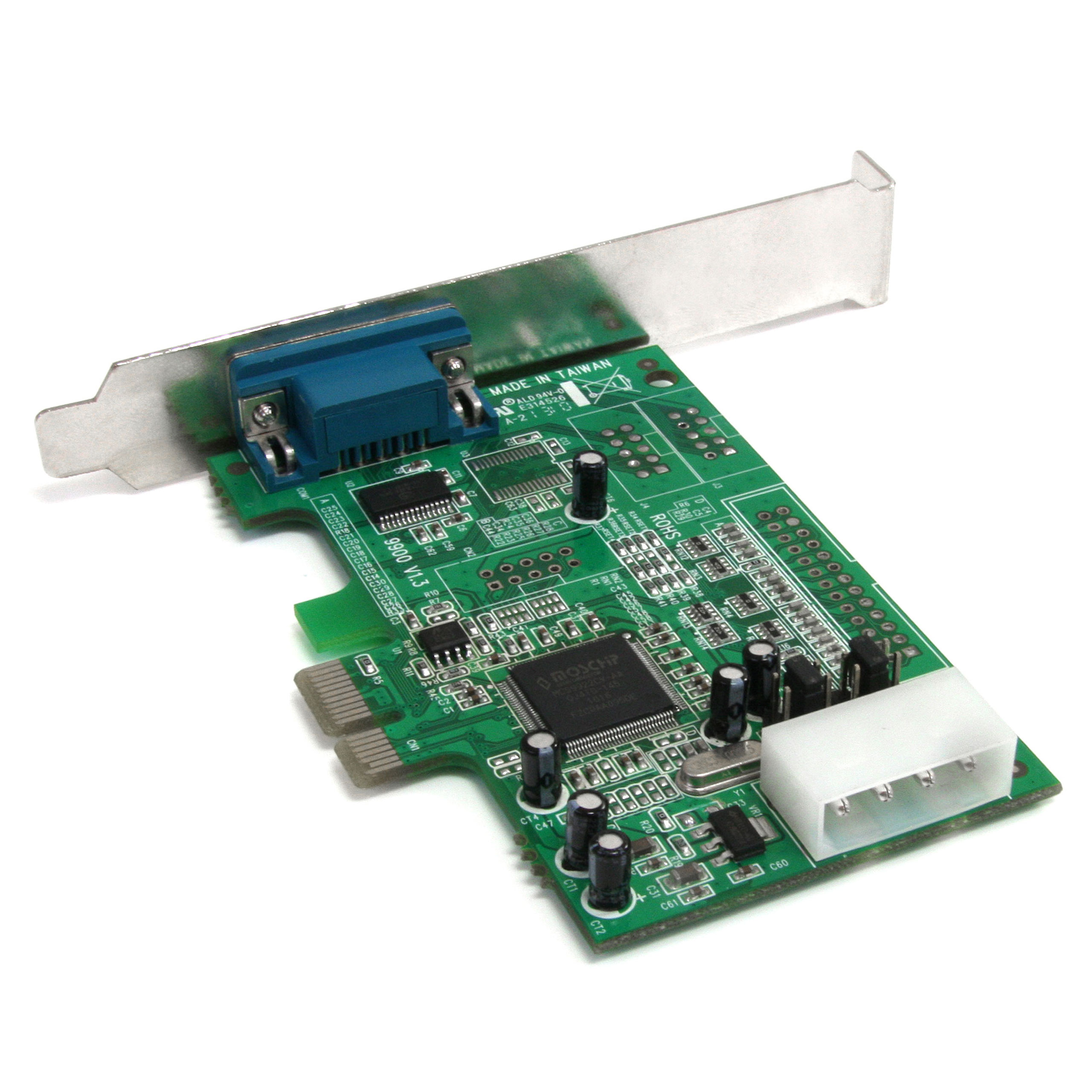

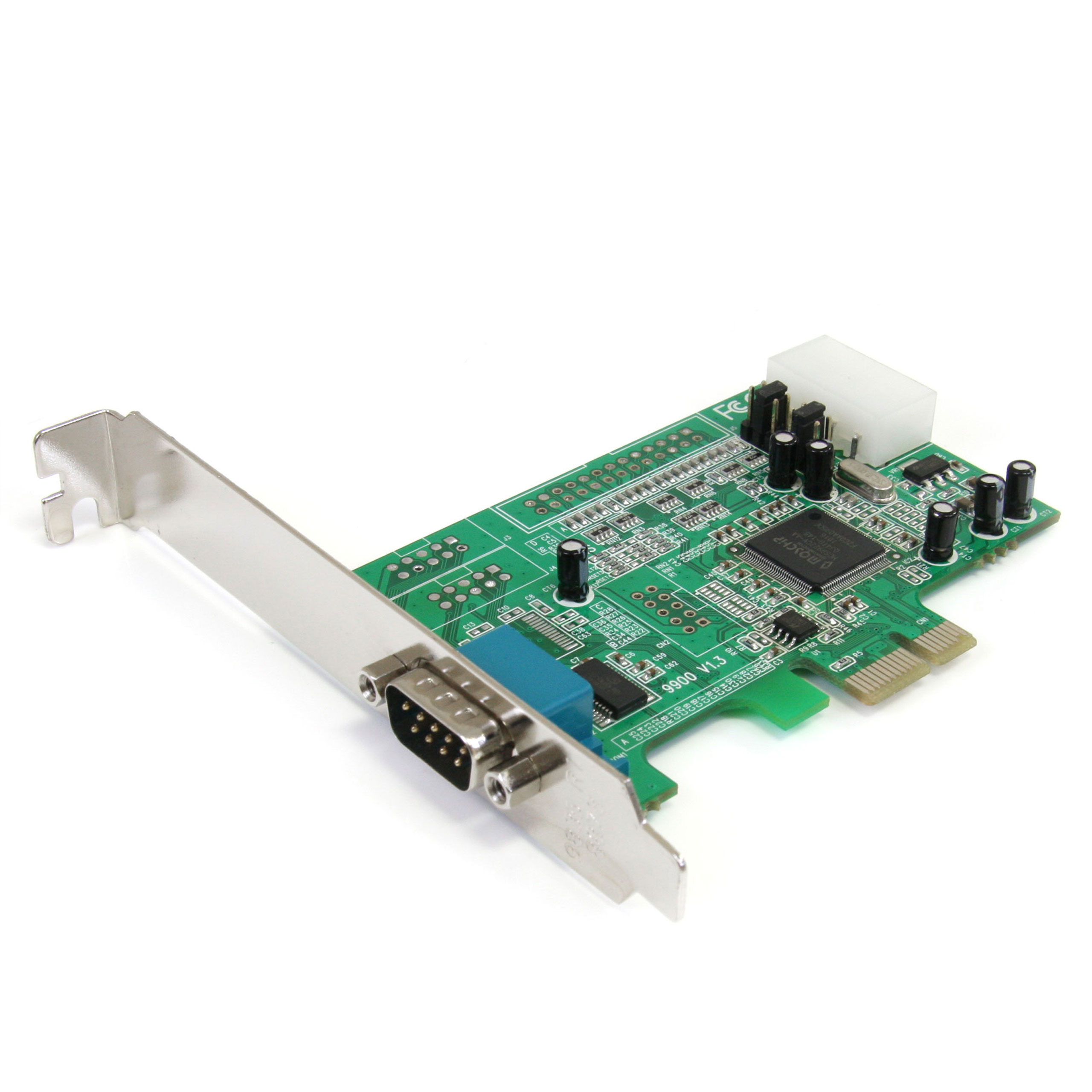

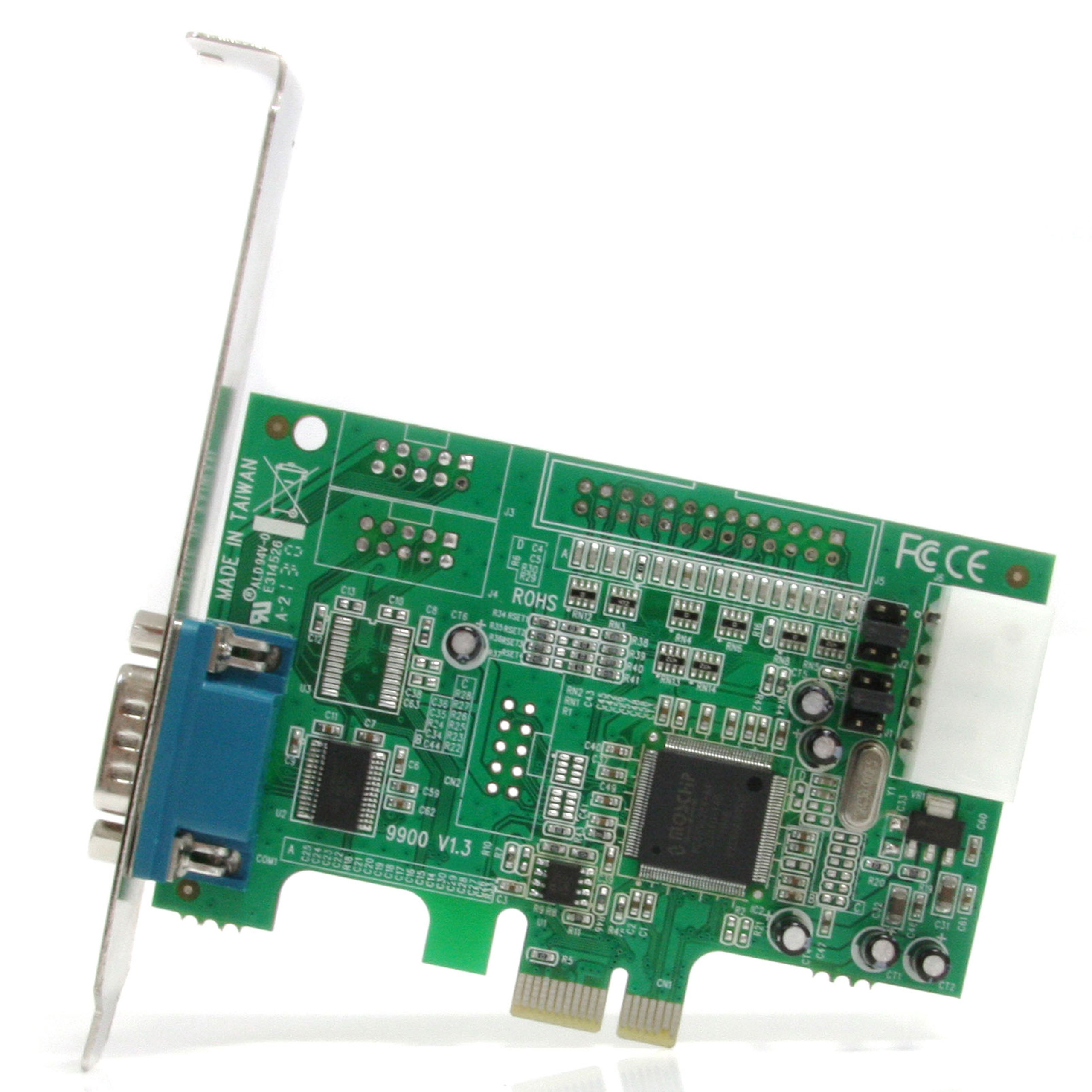

1 Port Native PCIe Serial Adapter Card with 16550
Add a high-speed RS-232 Serial port to your computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 1 Port Native PCIe Serial Adapter Card with 16550 Product Number PEX1S553 UPC 065030841726 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 1 Port PCIe RS232 Serial Adapter Card Product Title (Standard) StarTech.com 1 Port PCIe RS232 Serial Adapter Card Product Title (Long) 1 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART Product Title (AMZ) 1 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART (PEX1S553) Title Ingram (Part 1) 1 Port PCI Express RS232 Serial Title Ingram (Part 2) Adapter Card with 16550 UART Website Product Headline Add a high-speed RS-232 Serial port to your computer through a PCI Express expansion slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band flow control using CTS/RTS and DSR/DTR Bullet 4 Compliant with PCI Express base specifications revision 1.0a Bullet 5 Includes half-height bracket for installation in low profile systems Marketing Copy Applications - Bank Teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Website Search Keyword - low profile
- PCI-E
- PCIe
- RS-232
- RS232
- Serial Adapter Card
Special Notes Selectable power output on pin 9 of the serial port Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI1S950DV
- PCI2S950DV
- PEX1S553LP
- PEX2S553
- PEX2S553LP
- PEX2S5531P
- PEX1S952
- PEX1S952LP
- PEX4S952
- PEX4S952LP
Color Green Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 105.000 Product Width (mm) 120.000 Product Height (mm) 20.000 Product Weight (g) 51.500 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No FIFO 128 Bytes Max Baud Rate 460.8 Kbps OS Compatibility - Linux
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 8
- Windows 7
- Mac OS X Yosemite (10.10)
- Windows 10
- Windows Server 2016
- Windows 11

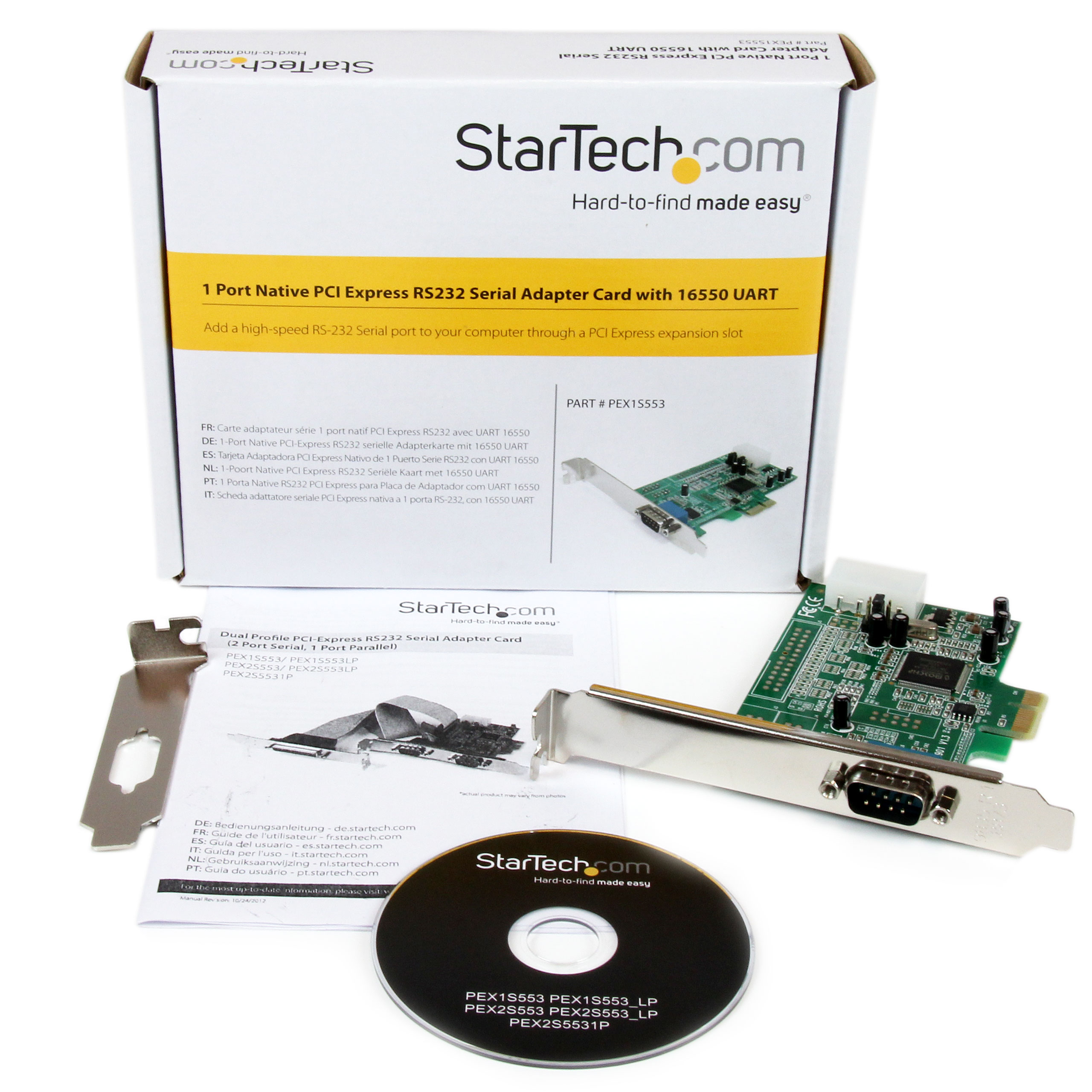

Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX - MCS9922CV-AA Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 725 Carton Height (mm) 238 Carton Quantity 50 Carton Weight Gross (g) 10200 Included in Package - 1 - 1 Port PCI-Express Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Low Profile Bracket

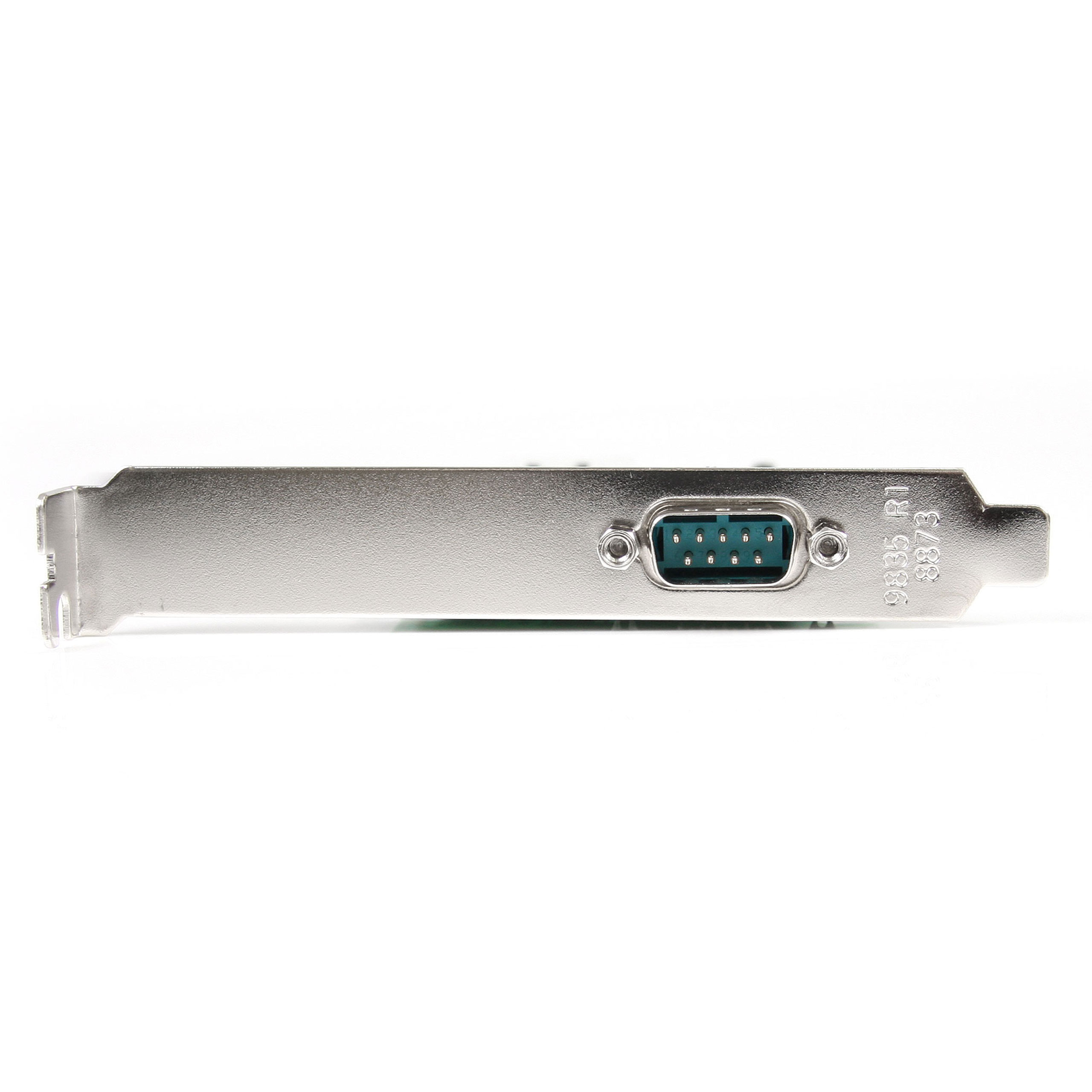

Package Depth (mm) 38 Package Height (mm) 138 Package Width (mm) 213 Package Quantity 1 Package Weight (g) 180 Packaging Description 1 Port PCIe RS232 Serial Card 16550 UART Packaging Description India 1 Port PCIe RS232 Serial Card 16550 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
