PEX1S553LP

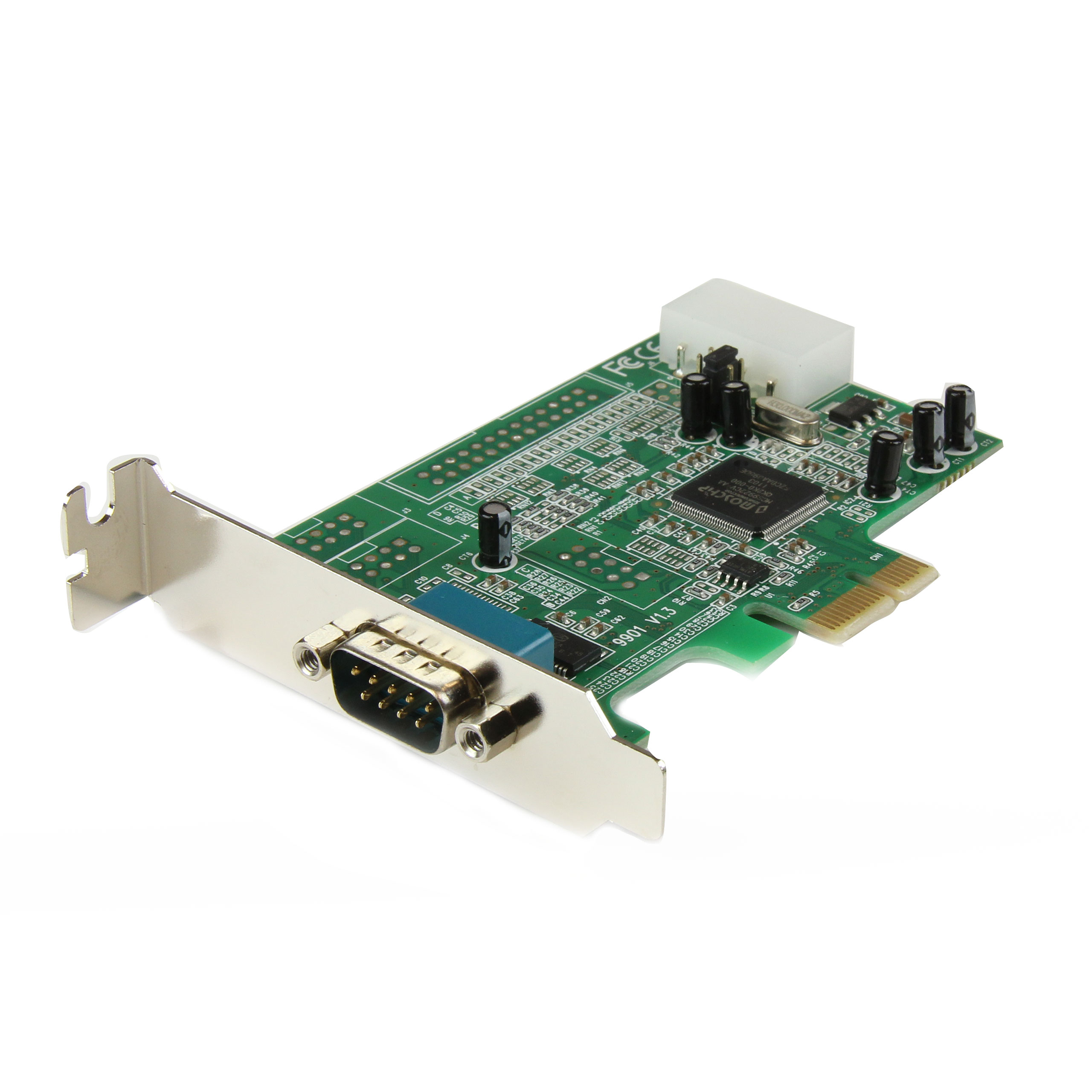

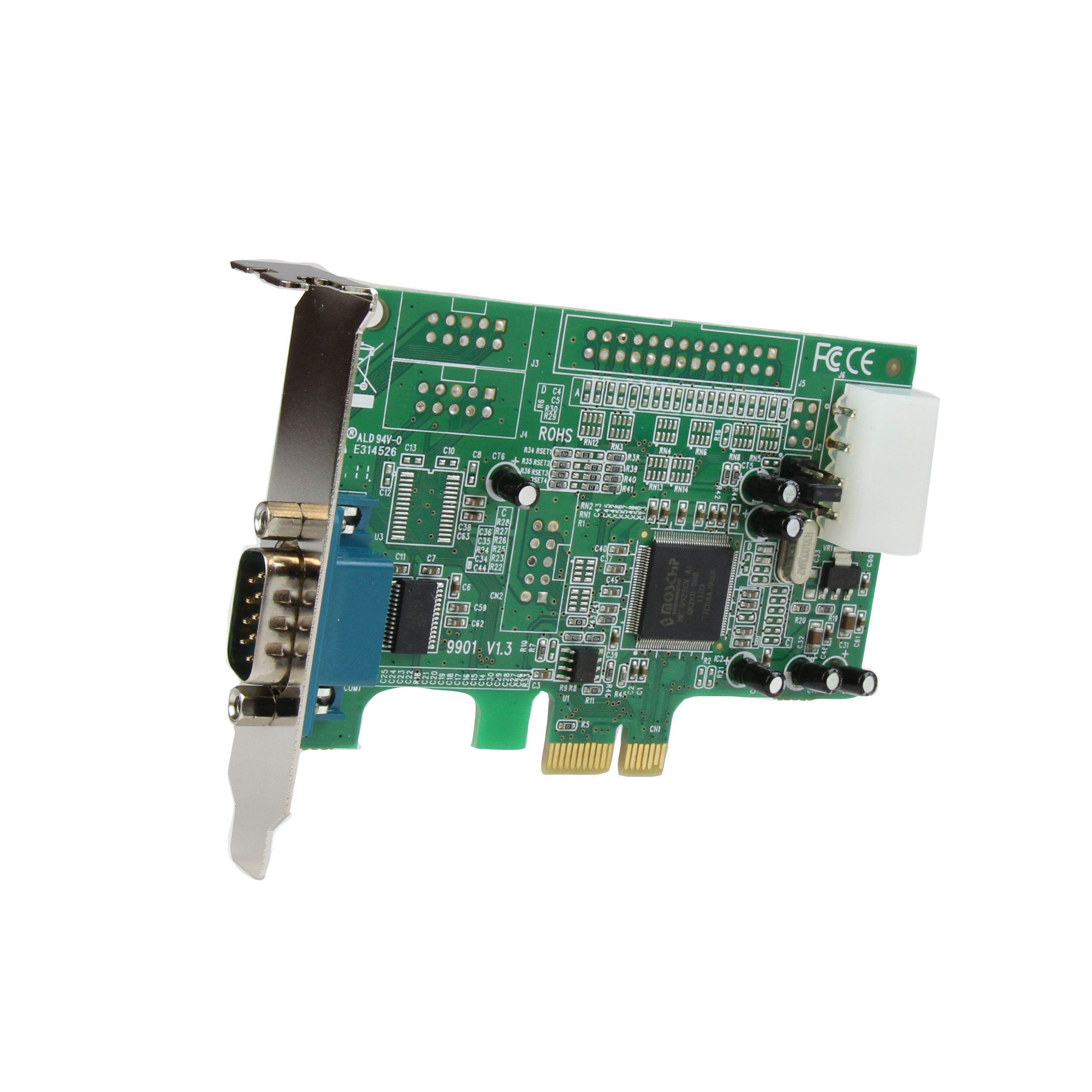

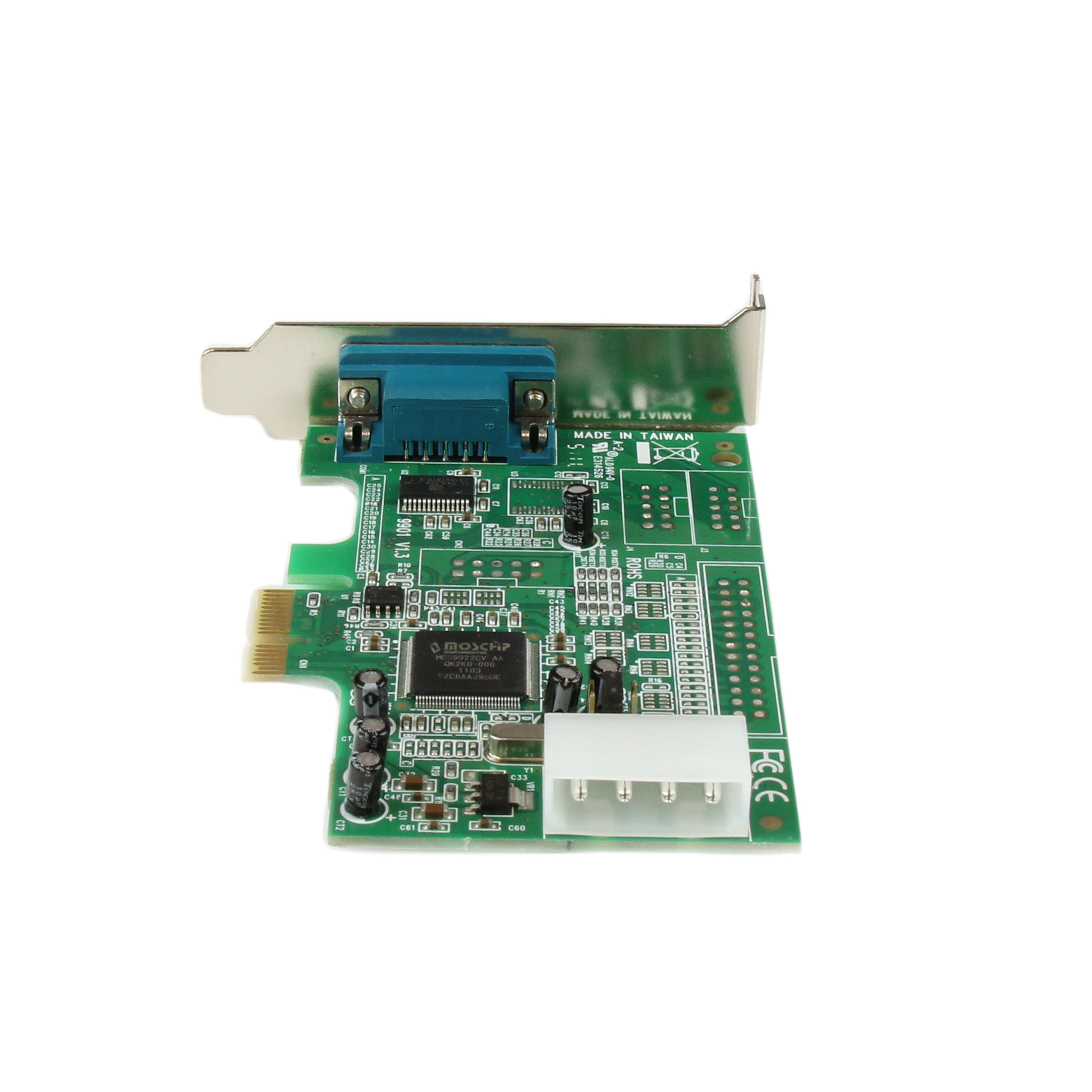

1 Port Low Profile PCIe RS232 Serial Card
Add a RS-232 serial port to your standard or small form factor computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 1 Port Low Profile PCIe RS232 Serial Card Product Number PEX1S553LP UPC 065030841733 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family Serial Host Adapter Cards - PCIe - 16550 UART Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) PCI Express RS232 Serial Adapter Card Product Title (Medium) x Product Title (Standard) 1-port PCI Express RS232 Serial Adapter Card, PCIe to DB9, 16550 UART, Low Profile, Window/Linux,TAA - Replaced by PEX1S953LP Product Title (Long) 1-port PCI Express RS232 Serial Adapter Card, PCIe to DB9 Serial Host Controller, 16550 UART, Low Profile, Window/Linux,TAA - Replaced by PEX1S953LP Product Title (AMZ) 1-port PCI Express RS232 Serial Adapter Card, PCIe to DB9, 16550 UART, Window/Linux,TAA - [New Version: PEX1S953LP] Title Ingram (Part 1) 1 Port Low Profile PCI Express S Title Ingram (Part 2) erial Card w/ 16550 UART Website Product Headline Add a RS-232 serial port to your standard or small form factor computer through a PCI Express expansion slot Bullet 1 VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope Bullet 2 1 PORT SERIAL CARD: Serial controller card w/ 16550 UART based on ASIX MCS9922CV-AA, allows 1x DB9 port w/bi-directional RS232 speeds up to 460.8Kbps per port, available 256 byte FIFO buffer; Upgraded version of our popular card PEX1S552LP Bullet 3 STANDARD PROFILE & LOW PROFILE BRACKET: PCIe serial card comes w/ a low profile bracket pre-installed & 1x full profile bracket is incl for versatile install; Supports Windows & Linux Bullet 4 OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 Bullet 5 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this PCIe serial adapter card is backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) 1 port PCI Express RS232 serial controller card w/16550 UART/ASIX MCS9922CV-AA - Bi-directional speeds 460.8Kbps/port | 256 byte FIFO | Pin 9 pwr out 5v/12v/none - Expansion card w/low profile (Std bracket incl) - Win/Linux Bullets (Consolidated) 1 port DB9 serial controller card w/ 16550 UART using ASIX MCS9922CV-AA w/bi-directional RS232 speeds up to 460.8Kbps per port; avail. 256 byte FIFO buffer | Upgraded version of our popular card PEX1S552LP - PCI Express RS232 serial adapter card w/power output of 12v/5v/none on DB9 pin 9 - Expansion card pre-installed w/ 1x low profile PCI-e bracket (standard profile incl.) - Windows XP and up/Linux - Use in PLCs/control/automation/medical/scanners - Lifetime warranty Marketing Copy Applications - Bank Teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Website Search Keyword - 16550 UART
- Low Profile
- Native PCIe
- PCI-E
- RS-232
- RS232
- Serial Adapter Card
- PEX1S552
- PEX1S552LP
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PEX1S553
- PEX1S952
- PEX1S952LP
- PEX2S553
- PEX2S553LP
- PEX2S5531P
- PEX4S952
- PEX4S952LP
- PCI1S950DV
- PCI2S950DV
Replacement Product PEX1S953LP Input Voltage 12V DC Output Voltage (V) 12V DC Color Green Humidity 5~85% RH Material Steel Operating Temperature -10°C to 80°C (14°F to 176°F) Primary Material Steel Product Length (mm) 105 Product Width (mm) 80 Product Height (mm) 20 Product Weight (g) 44 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes FIFO Max Baud Rate 460.8 Kbps MTBF (hours) 1,929,271 hours OS Compatibility - Linux
- Windows 8
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 7
- Mac OS X Yosemite (10.10)
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

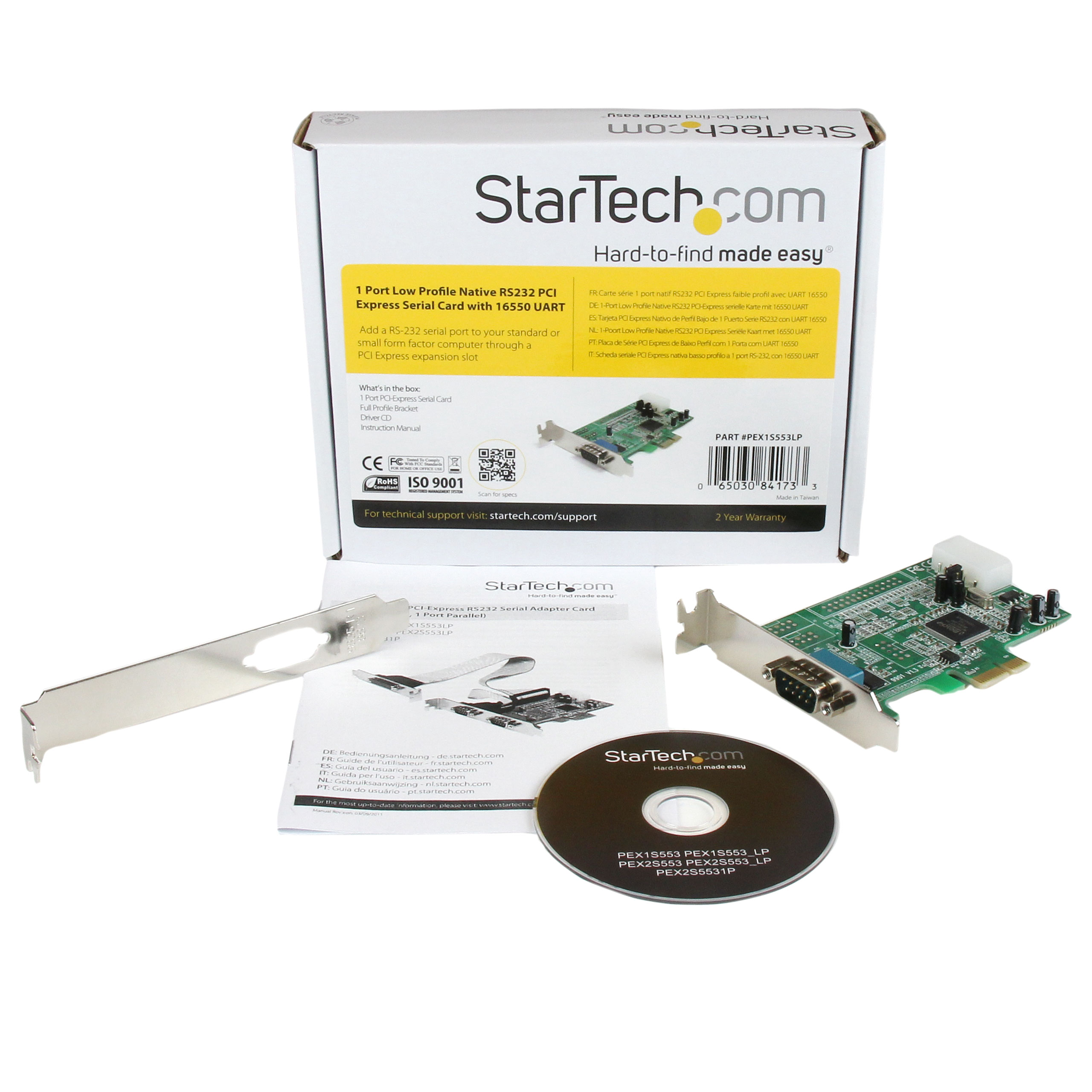

Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID ASIX - MCS9922CV-AA Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 356 Carton Height (mm) 318 Carton Quantity 75 Carton Weight Gross (g) 10658 Included in Package - 1 - 1 Port PCI-Express Serial Card
- 1 - Driver CD
- 1 - Full Profile Bracket
- 1 - Instruction Manual
Package Depth (mm) 144 Package Height (mm) 33 Package Width (mm) 176 Package Quantity 1 Package Weight (g) 120 Packaging Description 1 Port Low Profile PCIe RS232 Serial Card Packaging Description India 1 Port Low Profile PCIe RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
