PEX1S952LP

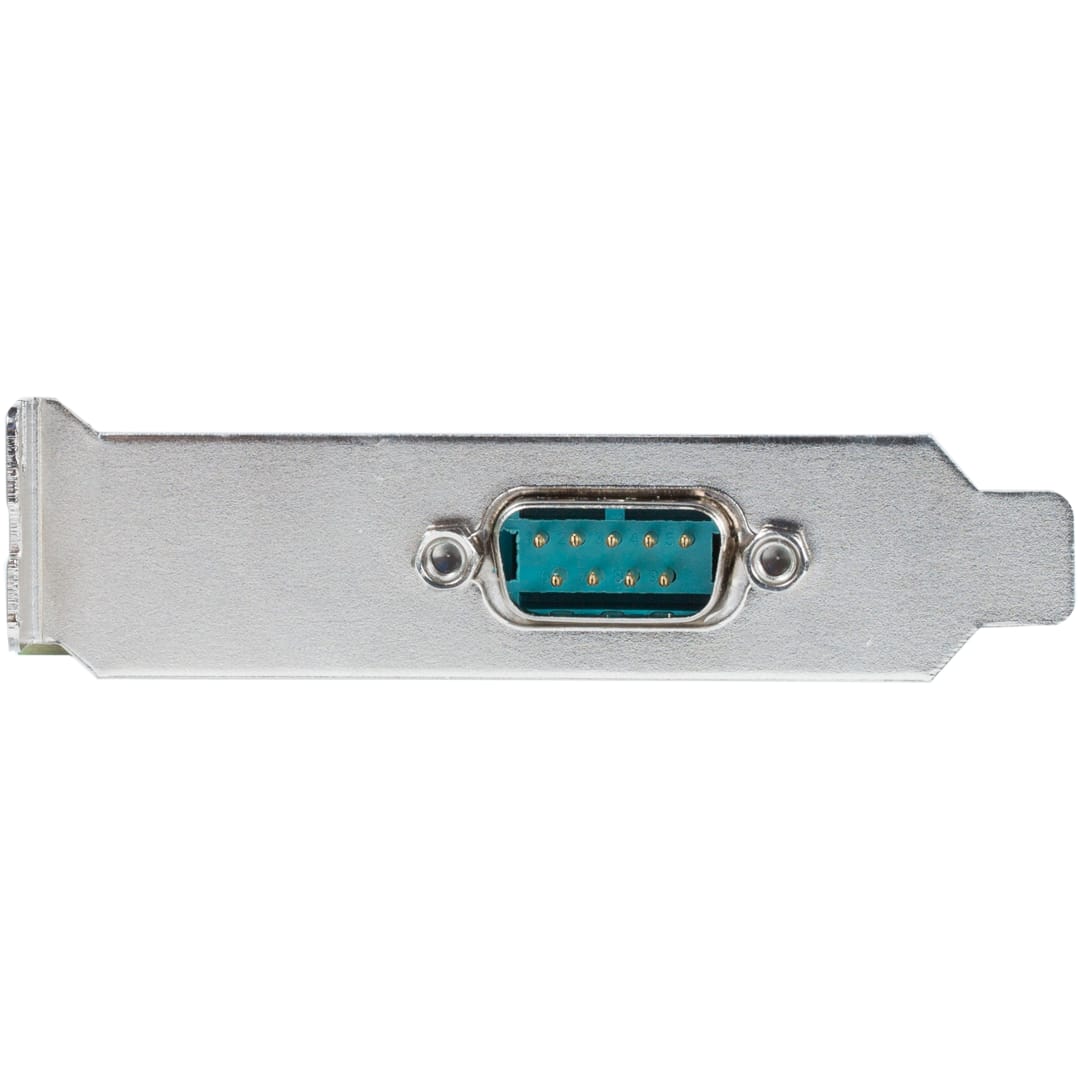

1 Port LP PCI Express Serial Adapter Card
Add 1 high-speed serial RS-232 port to any PC with a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 1 Port LP PCI Express Serial Adapter Card Product Number PEX1S952LP UPC 065030835657 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 1 Port LP PCI Express Serial Card Product Title (Medium) x Product Title (Standard) Replaced by PEX1S953LP - 1-Port RS232 DB9 Serial Port - PCI Express Serial Card Product Title (Long) Discontinued and replaced by PEX1S953LP - 1 Port Low Profile Native PCI Express RS232 Serial Card with 16950 UART - PCIe Serial Card - 1 Port LP RS232 Card Product Title (AMZ) Discontinued and replaced by PEX1S953LP - 1 Port Low Profile Native PCI Express RS232 Serial Card with 16950 UART - PCIe Serial Card - 1 Port LP RS232 Card (PEX1S952LP) Title Ingram (Part 1) One-Port Low Profile Native PCI Title Ingram (Part 2) Express Serial Card w/ 16950 Website Product Headline Add 1 high-speed serial RS-232 port to any PC with a PCI Express slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND Bullet 4 Compliant with PCI Express base specifications revision 1.0a Bullet 5 High Performance Single Channel Oxford 950 UART Bullets (Consolidated) REPLACED BY PEX1S953LP: Add 1 high-speed serial RS-232 port to any PC with a PCI Express slot - PCI Express Serial Card - PCI-e Serial Card - PCI Express RS232 - RS232 Card - PCIe Serial Adapter - 16950 UART - Low Profile Bracket Included Marketing Copy Applications - Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Website Search Keyword - 2 Port
- native single chip
- PCI Express
- Serial Adapter Card
- Low Profile
- OXPCIe952
- 950 UART
- PCIe x1
- Single Lane
- RS232
- 9 Pin
- PCIe card
- PCI-E
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes Selectable power output on pin 9 of the serial port Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI1S950DV
- PCI2S950DV
- PEX1S550
- PEX1S552
- PEX2S550
- PEX2S552
- PEX2S5521P
- PEX2S950
- PEX2S952
Replacement Product PEX1S953LP Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 90.000 Product Width (mm) 65.000 Product Height (mm) 20.000 Product Weight (g) 48.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes Data Bits 4, 5, 6, 7, 8 FIFO 128 Bytes Max Baud Rate 460.8 Kbps MTBF (hours) 87,600 Hours OS Compatibility - Linux
- Windows 8
- Windows Server 2012
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

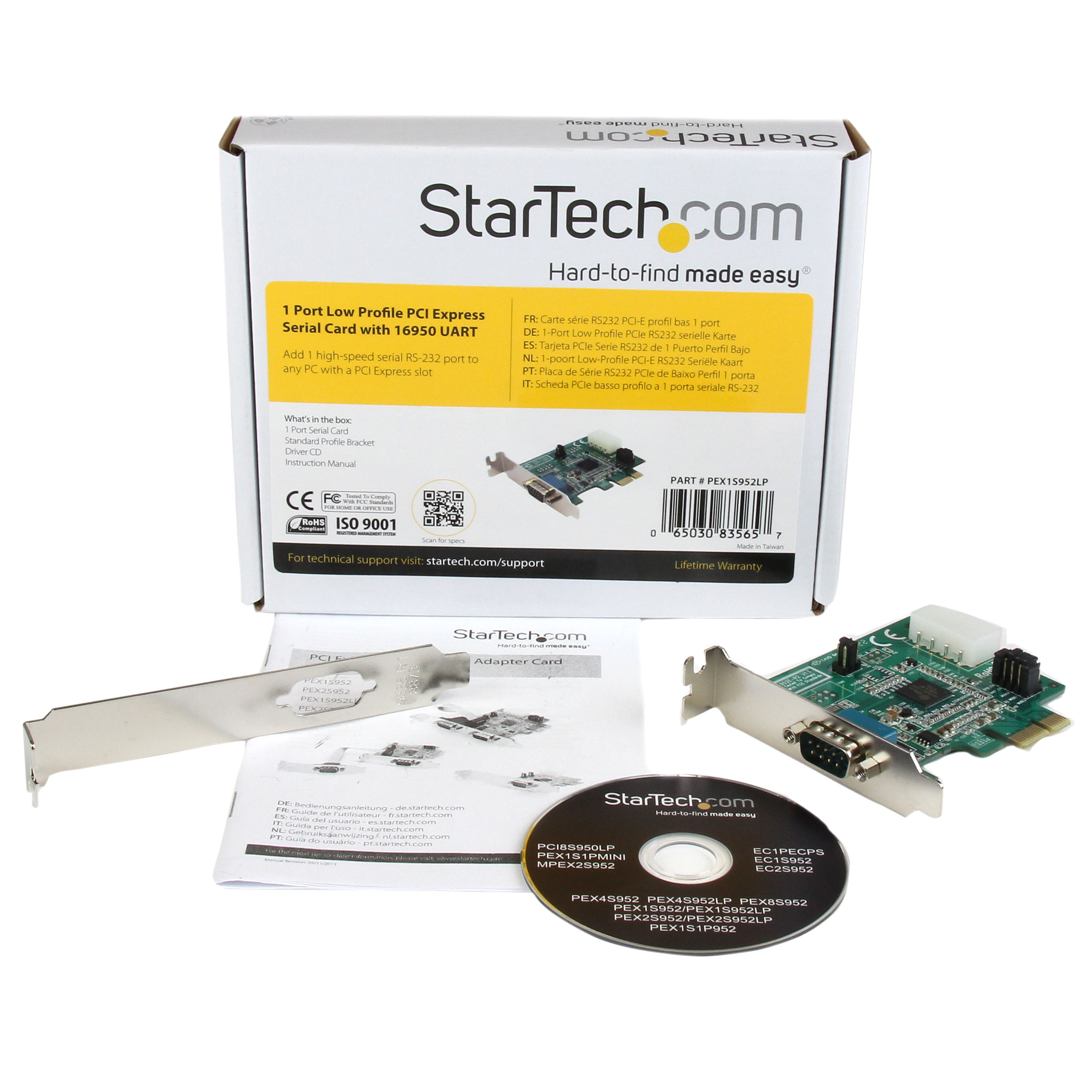

Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID PLX/Oxford - OXPCIe952 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 357 Carton Height (mm) 312 Carton Quantity 75 Carton Weight Gross (g) 10390 Included in Package - 1 - 1 Port Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Standard Profile Bracket
Package Depth (mm) 144 Package Height (mm) 31 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 130 Packaging Description 1 Port Low Profile PCIe RS232 Serial Card Packaging Description India 1 Port Low Profile PCIe RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,CO,EU,HK,JP,NZ,PE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
